Urgo Hot Sell Industrial Rolling Shelves

Urgo Hot Sell Industrial Rolling Shelves
Price: US $ 150-300/Set
Min Order: 5/Set
Pay Type: L/C,T/T
Prod Model: GPR201707
Material: Steel
Structure: Rack
Mobility: Adjustable
Height: 5-15m
Closed: Open
Development: New Type
Serviceability: Common Use
Weight: 500-4000

Product Description


Product Description

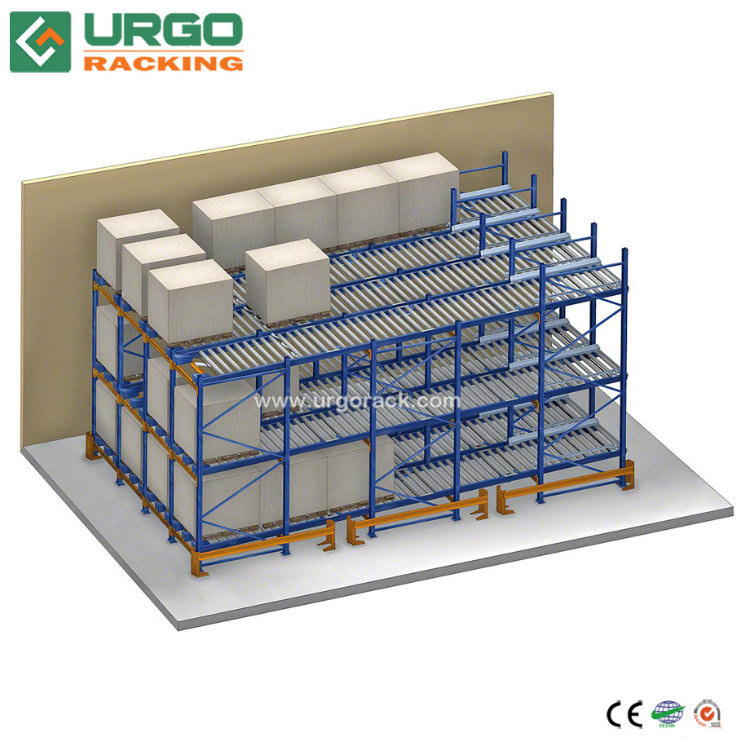

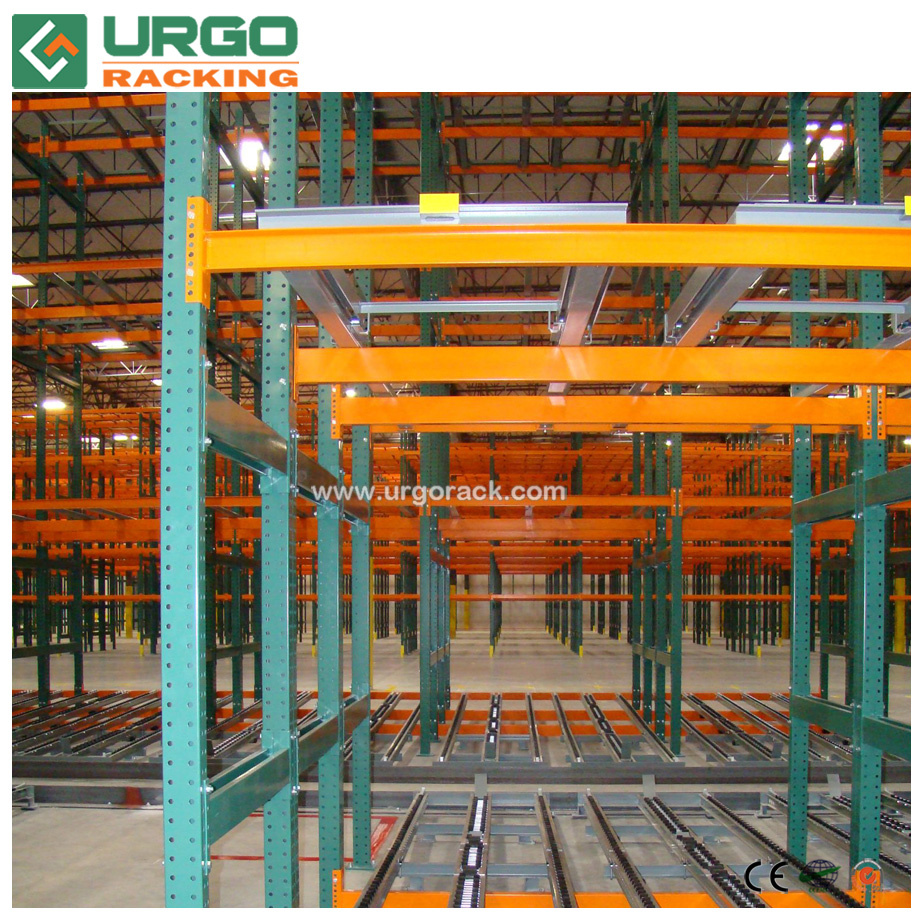

Gravity pallet racking:

1. Regarding the gravity pallet racking, by using roller rail system or pallet with roller and under the influence of gravity, "first in and first out" of goods is achieved.

2. It is suitable for storing large quantity of goods with the same kind, taking full advantage of storage space.

3. It is especially suit for the goods which short quality guarantee period and can't be pressed for long time.

4. In order to get the goods move freely, the racking should be equipped with brake if the slope is long; In order not to make the goods turn over when reaching to the bottom under great dash, the lower end of the slope should be equipped with separators and buffer.

5. The loading capacity is less than 1000kg per pallet.

Others:
Designprofessional design for your requirment:include choose the correct type for you,CAD drawing
Pricedirect Manufacture price,according to your quantity,payment
Packagestandard export package
Payment30%prepaid T/T,L/C at sight
FOB,CNF,CIF
ShippmentFOB NANJING,FOB SHANGHAI
CNF/CIF destination port
Quick Delivery.Within 25 days for ordinary order quantity. Big production capacity allow us in a position to make quick delivery.
CertificationCE:if you need,can make for you

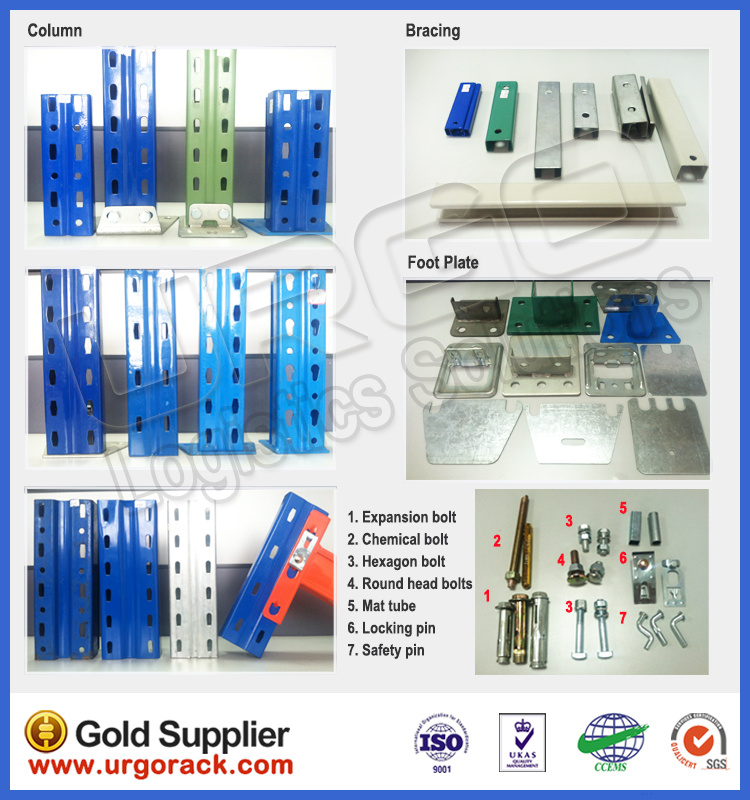

Upright:
1. High load capacity up to 21000kg.
2. Frames include all the elements needed for assembly: bracing, feet and nuts & bolts.
3. Blue epoxy coated (RAL 5012/5015/5017).
4. Standard heights : From 2 to 11.5m.
5. Adjusted by 50/75mm pitch.

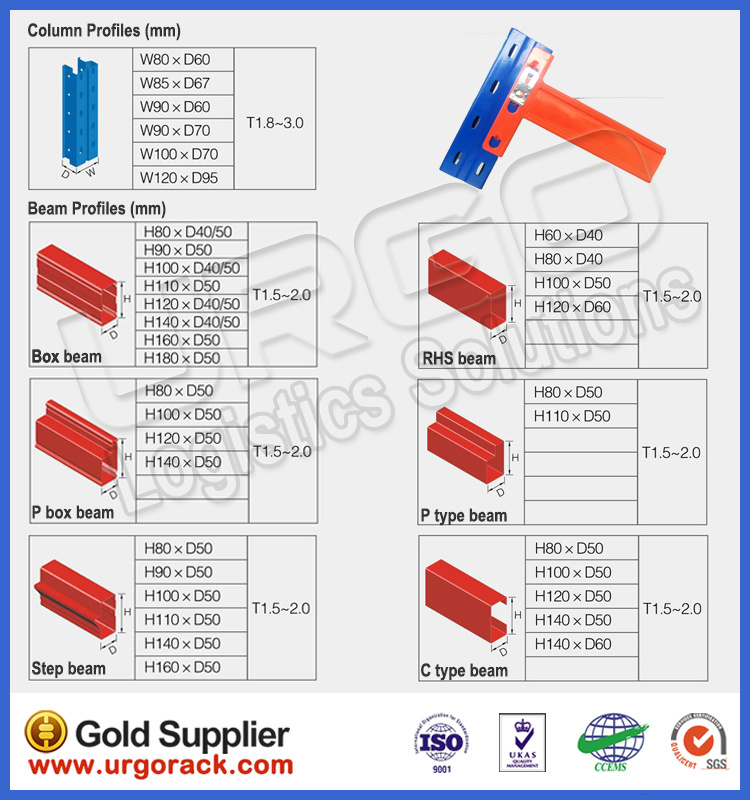

Column Profiles:

Column Specification (mm)Thickness (mm)             Upright Loading (kg)
  W80 x D60 1.8-2. 4000-6000 KG
  W85 x D67 1.8-2.3 7500-12500 KG
  W90 x D60 1.8-2.5 8000-10000 KG
  W90 x D70 1.8-2.5 10000-12000 KG
  W100 x D70 2.0-2.5 11000-14000 KG
  W120 x D95 2.3-3.0 17000-21000KG

Beam:

1. High load capacity up to 5000kg.

2 .Manufactured with the highest quality steel Q235.

3. Orange epoxy coated (RAL 2004).

4. Lengths available: 1500/2000/2300/2700/3000/3300/3600/3900mm

5. Boltless connection with 3/ 4/ 5 connector hooks.

6. A security pins per beam to prevent accidental dislodgement.

7. Powder coating finish

Beam Profiles:

Loading (kg)

 Specification (mm)

The Length of Box Beam (mm)
 1500 2000  2300  2500  2700  3000  3300  3600 3900
80 x 50 x 1.5 3000 1740 1340 1160 1010
90 x 50 x 1.5 4080 2350 1800  1645 1345  1010 850
100 x 50 1.5  2960 2260 1930 1680 1380 1040
 110 x 50 x 1.5   2640 2250 1950 1600 1340 1140
 120 x 50 x 1.5   3200 2730 2358 1930 1518 1379
 140 x 50 x 1.5    3868 3330 2720 2370 2020
 160 x 50 x 1.5     4220 3690 2970 2600 2340
 160 x 50 x 1.8      4400 3420 3020

 2590

160 x 50 x 2.0      4130 4170 3320

 2840

Loading (kg)

 Specification (mm)

The Length of P Box Beam (mm)
 1500 2000  2300  2500  2700  3000  3300  3600 3900
100 x 50 x 1.5 4470 2512 1900 1610 1380 1120 920
110 x 50 x 1.5 5484 3085 2332  1974 1693 1371 1133 952
120 x 50 x 1.5  3910 2957 2503 2146 1738 1436 1207 1030
 140 x 50 x 1.5  5722 4330 3662 3140 2543 2102 1766 1505




URGO Gravity Pallet Racking Features:

1.    Reduced warehouse cost;

2.    Easy,efficient goods loading and unloading;

3.    First In First Out(FIFO) pallet goods storage;

4.    Heavy duty long life construction;

5.    Reduced aisie space by 60-70%;

6.    Increased warehouse utilization and space savings;

7.    Reduced forklift damage ad pallet or carton flows to the operator or unloading area.










Nanjing Urgo Logistics Equipment Co., Ltd is located in Jiangning Economic Development Zone, Nanjing City, China, Set the development, design, production, sales, installation and after sale service in one, after years of development, she has become the leading manufacturer of logistics and warehousing equipment First, she is recognized as one of the industry leaders.

Since Urgo company has been set up to talent as a fundamental, take the market as the guidance, take the quality as the guarantee, to serve for the purpose of philosophy, with strong technical force, advanced production equipment, mature with processing technology, perfect quality assurance system and provide first-class products and services to the domestic and foreign customers.

Urgo all products have a stable structure, innovative design, reliable quality advantages. So they are exported to 50 countries worldwide, such as USA, Canada, India, Japan, Australia, New Zealand, Italy and South Africa and so on. In the domestic and foreign clients and peer supports, She is to develop advanced management, modernization of equipment, high-speed, and strive to become bigger, stronger "URGO" brand visibility and influence the nation and the world, and to become a world-class logistics equipment manufacturer.
