Prod Model: |
YD-S001 |
Capacity: |
80-120kg/Layer |
Layer: |
1-7 Layers |
MOQ: |
10 PCS |
OEM/ODM: |
Available |
Finish: |
Powder Coated |
Function: |
Shop Display |
Color: |
White/Black/Yellow/Any Color |
Sample: |
Available |
Port: |
Shanghai |
Delivery Time: |
10-15 Days |
Material: |
Steel |
Style: |
Back Hole Style |
Side Number: |
Double Sided |
Weight: |
Middle Weight |
Rotary: |
Fixed |
Usage: |
Convenient Store |
Customized: |
Customized |
Product Description

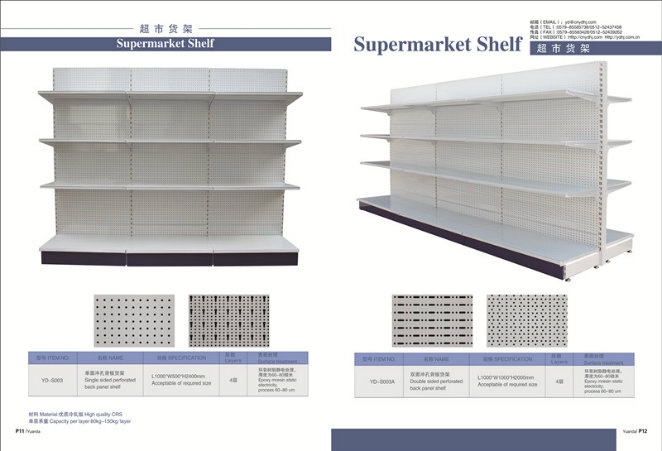

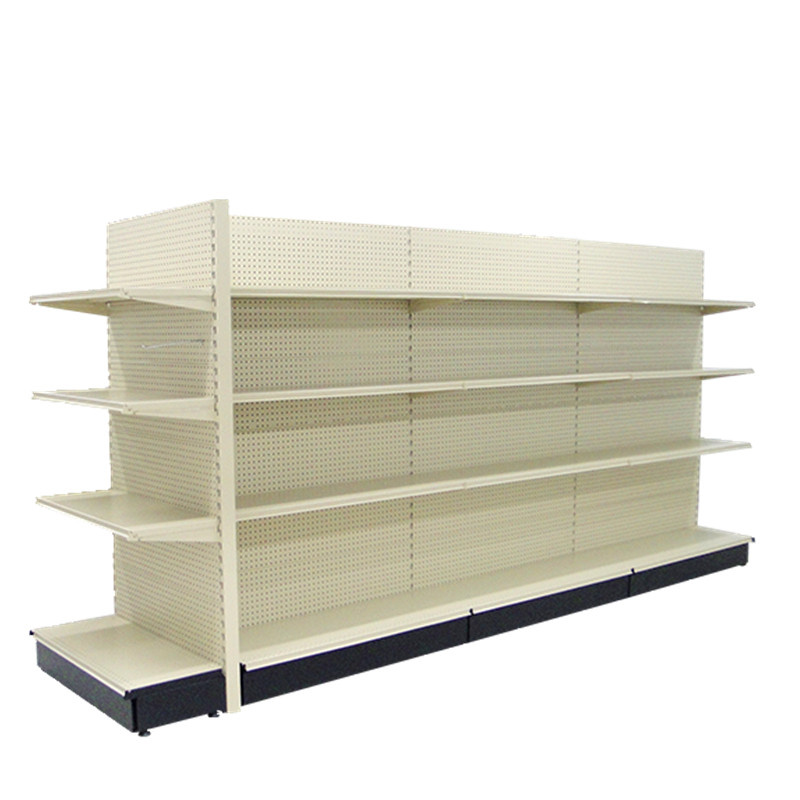

Used Supermarket Equipment Retail Display Rack Shelf
Product Description
1). Usual size: L1000 X W1000 X H1800mm, double side, 4 layers
L1000 X W500 X H2400mm, single side, 5 layers
2). Layers for each unit: 3-7 layers are choiceable
3). Weight capability: 50--180kg/layer just according to material choice
4). Each layers are adjustable freely
5). Easy to assemble & dismantle
6). Packing: Upright with bubble foam wrapped, others with carton
7). Different dimension, thickness, color, type are available for us
8). OEM service can be offered
Euro style:
Basic shelving components | Size | options(mm) |
Upright | Section size/ | 30x60/ 30x80/ |
Lenght/ | 1410/1510/1610/1710/1810/1910/2010/2110/2210/2310/2410/ |
|
2510/2610/2710/2810/2910/3010 |
Thickness/ | 2.0/ 2.5 |
Base leg | Length | 200/250/300/370/470/570/670/770 |
Height | 60/110/160/260 |
Shelf | Width | 665/800/1000/1250/1330 |
Depth | 200/250/300/370/470/570/670/770 |
Thickness | 0.7/0.8 |
Wire shelf | Width | 665/1000/1250/1330 |
Depth | 370/470/570 |
Dia | 2.8 |
Preforated backpanel | Width | 665/800/1000/1250/1330 |
Height | 400/500 |
Thickness | 1.0/1.2 |
Back panel | Width | 665/800/1000/1250/1330 |
Height | 100/200/300/400/500 |
Thickness | 0.6/0.7 |
Bracket | Hook number | 2/3/4 |
Length | 200/250/300/ 370/470/570/670/770 |
Thickness | 2.5/3 |
American style:Basic shelving components | Size | options |
Upright | height | 30'' thru 120'' in 6'' (152 mm) incremnets |
|
|
Kicker plate | Length | 2' to 4' in 6'' increments |
Top/bottom spanner | Width | 3' or 4' |
Hardboard Backs | height | 6", 12", 18", 24", 30", 36", 42", 48", 54", 60", 66", 72" |
|
(Pegboard and Marteck) | Length | 2' to 4' in 6'' increments |
Shelf | Width | 2' to 4' in 6'' increments |
Depth | 7''-31'' |
Angular adjustment | flat, 17° or 30° downslope positions |
Base Shelf | Width | 2' to 4' in 6'' increments |
Depth | 7''-31'' |
Wire shelf | Width | 2' to 4' in 6'' increments |
Depth | 7''-31'' |
Angular adjustment | flat, 17° or 30° downslope positions |
Australian style:Basic shelving components | Size | options(mm) |
Upright(single side) | Depth | 200/250/300/320/350/400/450/500 |
Height/ | 1200/1500/1800/2100/2400 |
Thickness/ | 1.5/ 2.0 |
Shelf | Width | 600/630/900/930/1200/1230 |
Depth | 200/250/300/320/350/400/450/500 |
Thickness | 0.5/0.6/0.7/0.8/0.9/1.0 |
Wire shelf | Width | 600/630/900/930/1200/1230 |
Depth | 335/405 |
Dia | 2.7 |
Preforated backpanel | Width | 600/630/900/930/1200/1230 |
Height | 100/300 |
Thickness | 0.7/0.8/0.9/1.0/1.2 |
Back panel | Width | 600/630/900/930/1200/1230 |
Height | 100/300 |
Thickness | 0.6/0.7/0.8/0.9 |
Volcano back panel | Width | 600/630/900/930/1200/1230 |
Height | 100/300 |
Thickness | 0.8/0.9/1.0 |
Mesh back | Height | 1200/1500/1800/2100/2400 |
Width | 600/630/900/930/1200/1230 |
Bracket | Hook number | 2/3/ |
Length | 250/300/ 320/350/400/450/500 |
Thickness | 2.0/2.5/3 |
Rear/ front beam | Length | 600/630/900/930/1200/1230 |
Wire fence | Length | 600/630/900/930/1200/1230 |
Asia style:Basic shelving components | Size | options |
Upright | Section | 30*60*2.0mm; 30*80*2.0mm; |
height | 1350;1550;1850;2150;2550mm |
|
|
Kicker plate | Length | 500; 650;700;800;900;1000;1100;1200;1300mm |
Flat back panel | height | 300mm; 150mm |
Length | 500; 650;700;800;900;1000;1100;1200;1300mm |
Pegboard panel | height | 300mm; 150mm |
Length | 500; 650;700;800;900;1000;1100;1200;1300mm |
Thickness | 0.5; 1.2mm |
Shelf | Width | 500; 650;700;800;900;1000;1100;1200;1300mm |
Depth | 200; 300;350;400;450;500;550;600mm |
Angular adjustment | flat, 17° or 30° downslope positions |
Base Shelf | Width | 2' to 4' in 6'' increments |
Depth | 7''-31'' |
Bracket | Length | 200; 300;350;400;450;500;550;600mm |
Thickness | 2.5; 3mm |
![](/proimages/44f3j00tUZQdnwWSmoq/used-supermarket-equipment-retail-display-rack-shelf.jpg)
Contect Us:
Sales : April
phone number: +86-18255643822

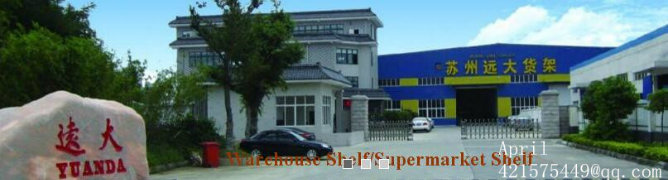

Suzhou Yuanda Business Equipment Co., Ltd. Specializes in the design and production of supermarkets goods shelves, luxurious back board type shelves, heavy warehousing shelves, handcarts, cash counters, PAR value counters, flowing vehicles, storage cages, bookshelves, shoe shelves and other commercial equipment.
