Home LED Light Products Vacuum Adsorption Electric Large Flat Screen Printer for Glass
Vacuum Adsorption Electric Large Flat Screen Printer for Glass
| Price: | US $ 13875/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | TM-D85220 |
|---|---|
| Worktable Largest Size: | 1000×2440mm |
| Max.Printing Area: | 850×2200mm |
| Max Printing Speed: | 800PCS/Hr |
| Power: | 110/220V 60/50Hz 4kw |
| Weight: | 750kg |
| Condition: | New |
| Type: | Vertical Screen Printing Machine |
| Style: | Screen-process Printing Press |
| Structure: | Platen Press |
| Color & Page: | Single-Colour Printing Press |
Product Description

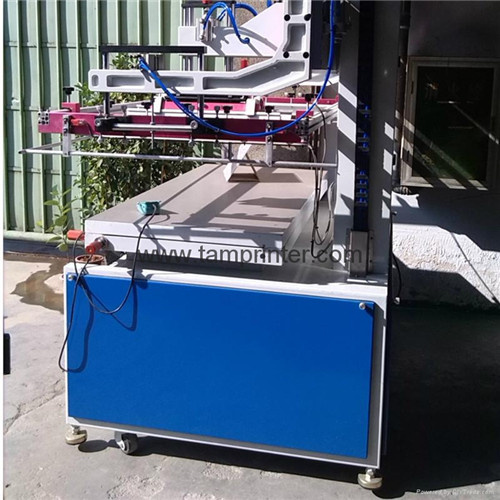

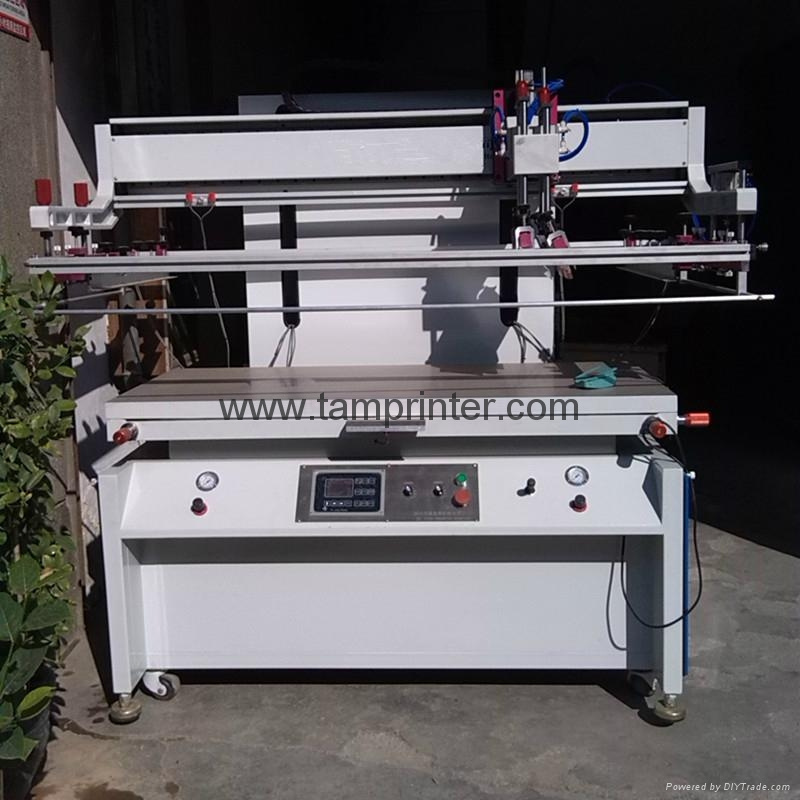

TM-D85220 Electric large flat screen printer
Technical parameters:
| Worktable largest size | 1000×2440mm |
| Max.printing area | 850×2200mm |
| Max printing speed | 800pcs/hr |
| Air consumption | 104litre/min(6bar) |
| Power | 110/220V 60/50Hz 4Kw |
| Dimensions | 1600×2800×1800mm(L×W×H) |
| Weight | 750Kg |
Application:
This machine's printing scope is very widely and it can be used for screen printing of many plane bodies such as paper,plastic, glass, ceramics, metal, textile products, leather, etc.
Function:
1. vertical structure,and screen frame takes Off and Landing vertically,printing distance is left and right sliding
2.up and down,left and right movement adopts variable frequency motor driving
3.it adopts linear guide
4.Printing pressure is controlled by Taiwai cylinder
5.SCM controlled circuit
6.Workatble is vacuum,and low noise
7.Worktable surface adopts high hardness material,air hole is very uniform(we can make it according to customer's requirement)
8.The worktable can be adjusted slightly on X.Y.Z direction
9.There are three kinds of models,such as manual,semi-auotamtic and full automatic,you can set it according to your needing
10.The printing head can be lift,it is easy to clean
11.Scraper and ink covering blades can be adjusted freely
12.the screen frame holder can be adjustable according to the size of frame
