Viscosity Cup 4 Viscosity with Holder

Viscosity Cup 4 Viscosity with Holder
Price: US $ 80-86/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: Cup 4
Cup Capability: 100ml +- 1ml
Cup Material: Brass
Inner Diameter: Dia 49.5+- 0.2mm
Nozzle Hole Diameter: Dia 4+- 0.02 mm
Weight: 0-100Kg
Type: Viscosity Cup
Power Source: None
Oil Cylinder Position: None

Product Description

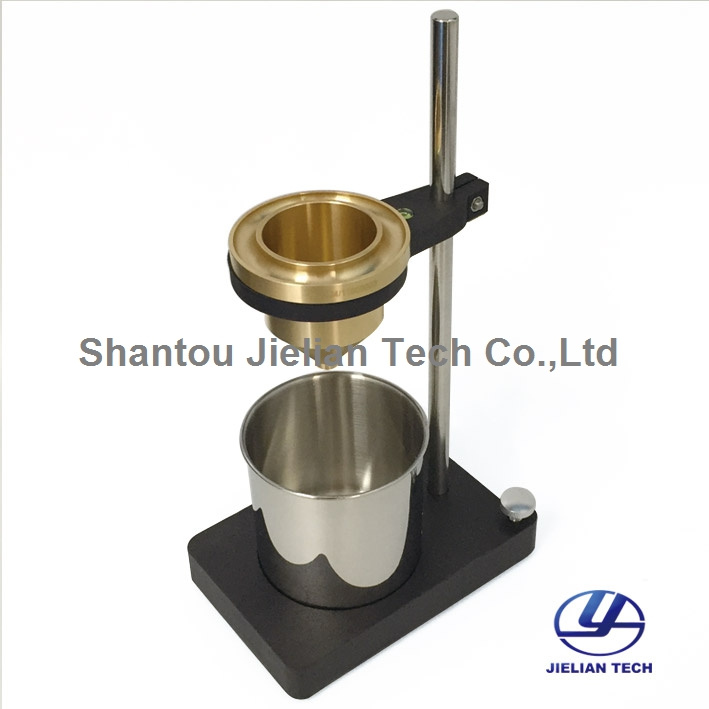

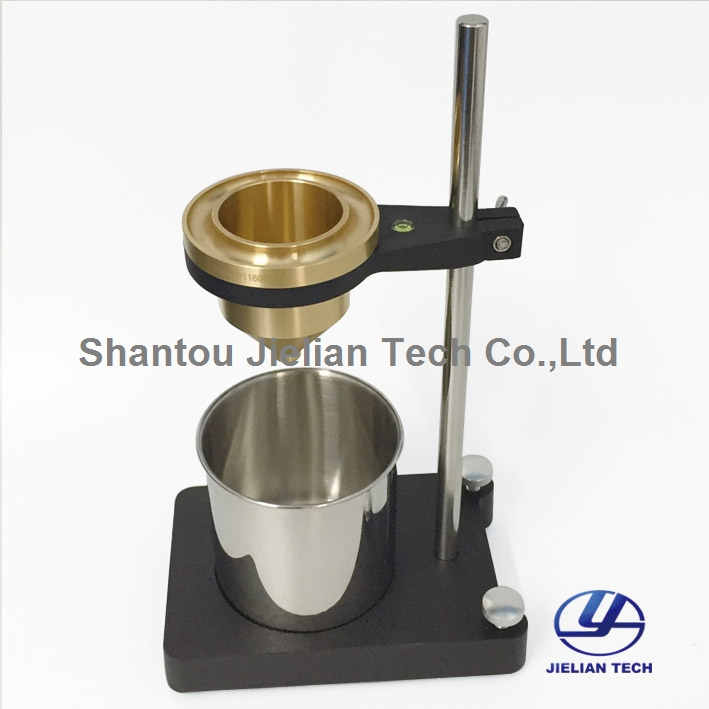

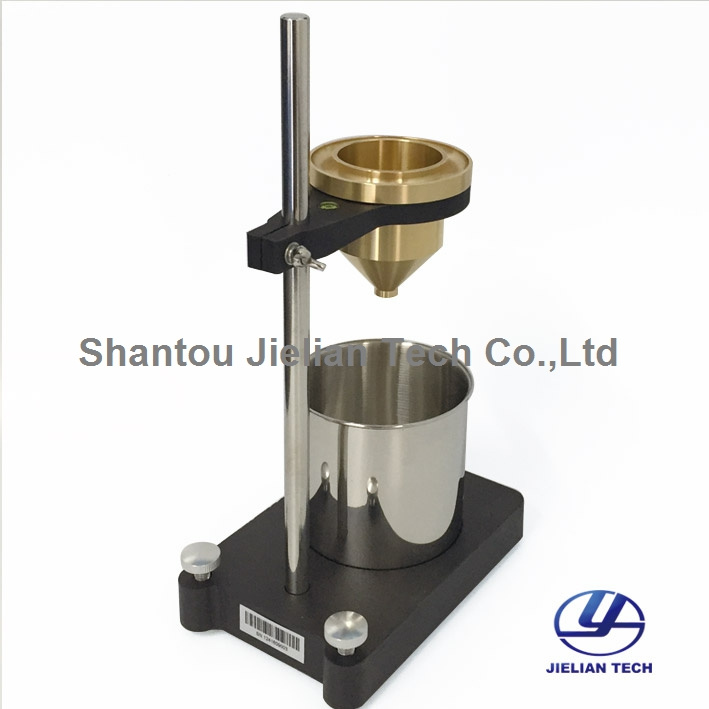

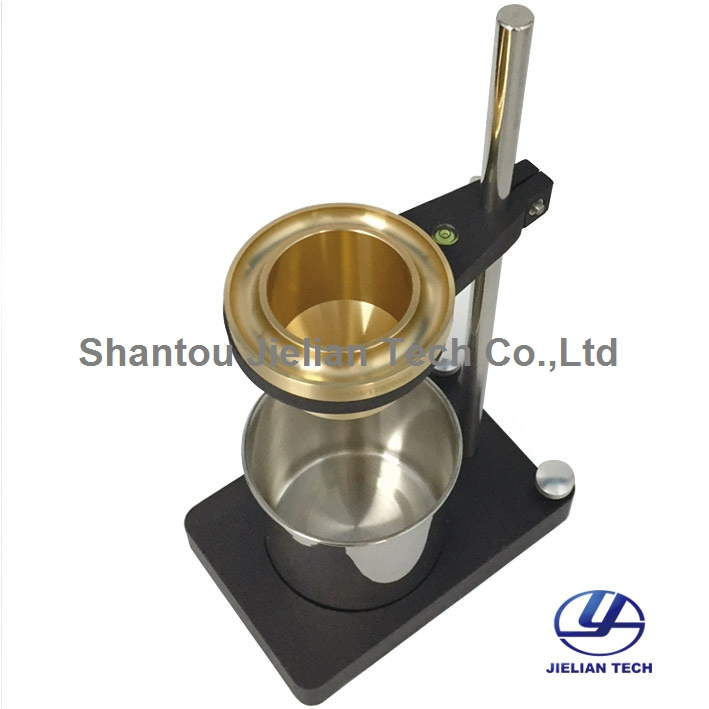

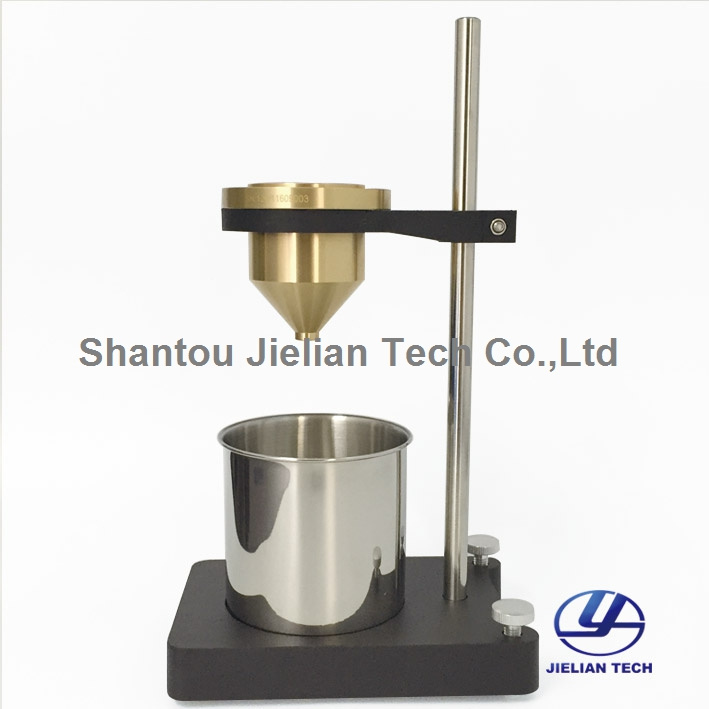

Viscosity Cup 4 Viscosity With Holder


Technical Parameter:


Cup capability: 100ml ± 1ml

Cup Material: brass

K value: 0.99

Cup NO.:356

Inner diameter: Φ49.5 ± 0.2mm

Inner Cone Angle: 81°± 15'

Discharge Spout: 4 ± 0.02 mm

Nozzle Hole Diameter: Φ4 ± 0.02 mm


Product Description:

Viscosity Cup-4mm

This cup is a portable apparatus, suitable for measure the viscosity between 30s - 100s' paint, fill the cup with liquid, use the outflow time as the measure result, and the viscosity value is second.



1. Test the thick viscosity fluid

2. A portable apparatus

3. Rapidly test viscosity

4. High quality and best price



Structure specifications:

Place the viscosity cup on the cup annular, adjust the horizontal screw on the base to make the level blister in the middle place, the under receiving cup's capacity is approximately 150ml, for receiving the flowed fluid.
