Wall Mount Twist-Lock Photocontrol Receptacle W/ Plastic Cup Housing External Holder
| Price: | Negotiable/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Paypal |
| Prod Model: | JL-200 |
|---|
Product Description
Basic Specification:| Holding Cover | Polycarbonate |
|---|---|
| Rated Voltage | 480VAC Max. |
| Loading Capacity | 15Amp Max. |
| Ambient Temperature | -40ºC ~ +70ºC |
| Voltage | 0-480VAC |

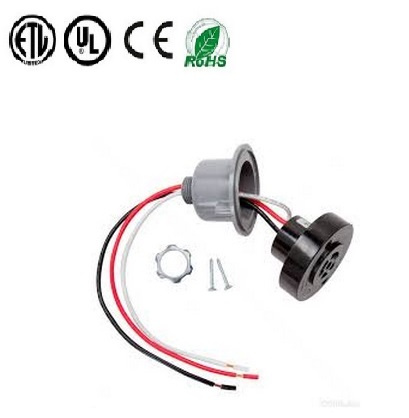

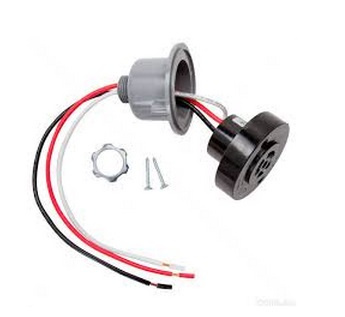

Product Pictures:
| Model No. | JL-200X | JL-200 | JL-200Z | ||
| Applicable Volt Range | 0~480VAC | ||||
| Rated Frequency | 50/60Hz | ||||
| Suggested Loading | AWG#18: 10Amp; AWG#14: 15Amp | ||||
| Ambient Temperature | -40ºC ~ +70ºC | ||||
| Related Humidity | 99% | ||||
| Overall Dimensions (mm) | 65Dia.x38.5 | 65Dia.x65 | |||
| Accessory | Back/Front Cover | - | ° | ° | |
| Zinc Alloy Lock Nut | - | ° | ° | ||
| Mounting Plate/Base | - | - | ° 30x(70+130) | ||
| Leads | 6" Min. | ||||
| Weight Approx. | 80g | 105g | 135g | ||
Installation:

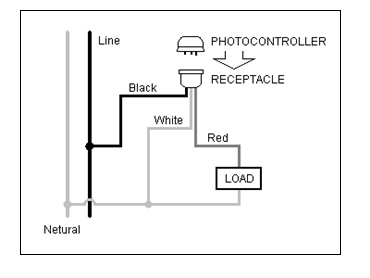

Disconnect power; wire the receptacle according to the diagram in right hand. An arrow indicating NORTH on the top of the receptacle is used to assist correct direction. Push the photocontroller on and twist it clockwise to lock it into the receptacle.
Install the photocontroller with the Photocell facing the NORTH direction as indicated on the top of the photocontroller.
Adjust the receptacle position if necessary.
