Warehouse Heavy Duty Pallet Storage Rack with Forklift Drive-in

Warehouse Heavy Duty Pallet Storage Rack with Forklift Drive-in
Price: US $ 97-104/Set
Trade Terms: FOB,CFR,CIF
Min Order: 30/Set
Pay Type: L/C,T/T
Prod Model: SL-H011
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fast Delivery: Within 15 Days
Certifications: CE/SGS/As4084/ISO9001
Size: Customized
Surface Treatment: Powder Coated, Galvanized Finish
Storage Type: Forklift Drive in Lane
Feature: Corrosion Protection
Export: More Than 10 Years
Material: Steel
Structure: Rack
Mobility: Adjustable
Closed: Closed
Development: New Type
Serviceability: Common Use
Height: 0-8m
Weight: 1000-5000

Product Description

Warehouse Heavy Duty Pallet Storage Rack with Forklift Drive-in


What we can do compared with other supplier:

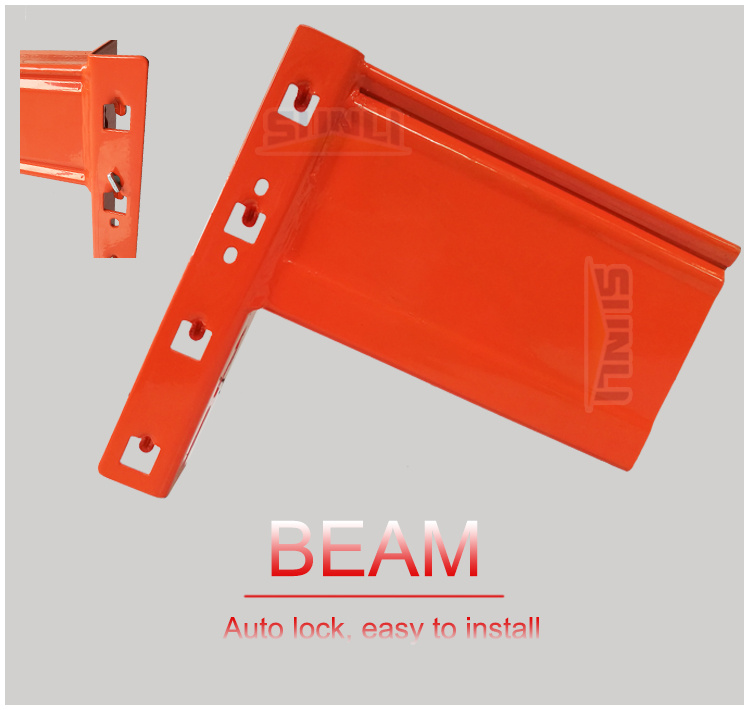

Beam1, Double C-shaped tubes roll-formed without welding(H45mm)

To make bigger loading section when beam is spreaded out

2, 4 Corrugated edges along section( for 2 sides)

To make beams not easy to bend during rated capacity

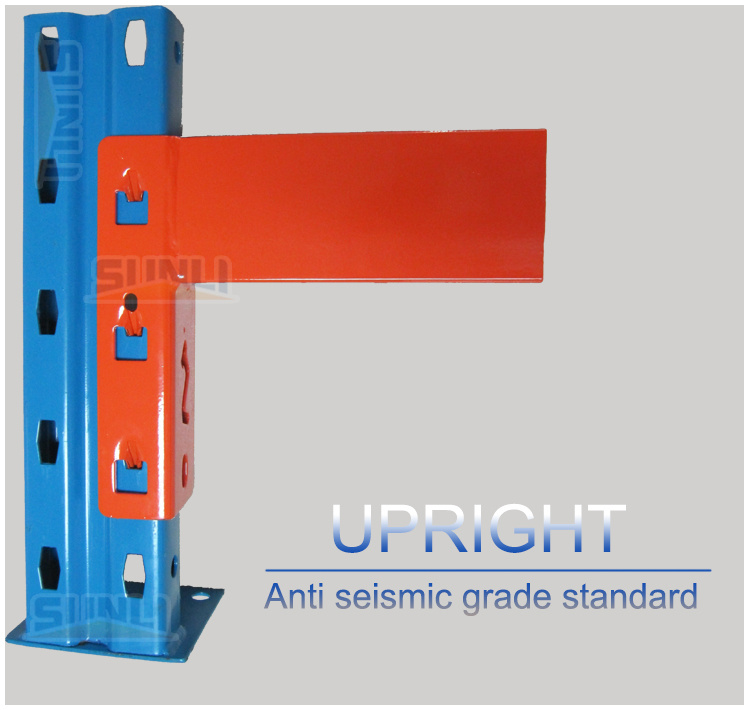

Upright3, Corrugated edges ( 4PCS)
Anti-shock resistance4, Suitable for harsh working condition


Technical Description for drive in rack
Main componentsUpright frame, beams, rails, frame connector

Top connector("X" connector), corbles
StylePallet storage drive in rack system
Rated capacityMAX 2000KG/Pallet
Height of rackAvailable with your lifting height of fork truck and

Warehouse height
Width X length of rackAs per your palletized load's specifications
Upright range80*60, 88*68, 100*68, 90*60, 120*68, 120*80
Upright thickness1.5~3.0mm
Beam range80*45(80~160mm) 80*50(80/100/120)
Beam thickness1.5~2.3mm
MOQTWO rack channels
Feature1, first pallet on the ground directly

2, first layer of support corbel must be taller than your

Overall forktruck
's height
Rack channel for driving in1, single way entry: Max 6 pallet depth

2, double way entry: Max 13 pallet depth

3, with ground guiding rails
Main protecting device1, upright protect in front

2, crash barrier along the driving in

3, top cross beams to make rack stable
ColourRAL SYSTE( www. RALCOLOUR. COM)
InstallationWe can despatch 2 technical person overseas to do teach your workers

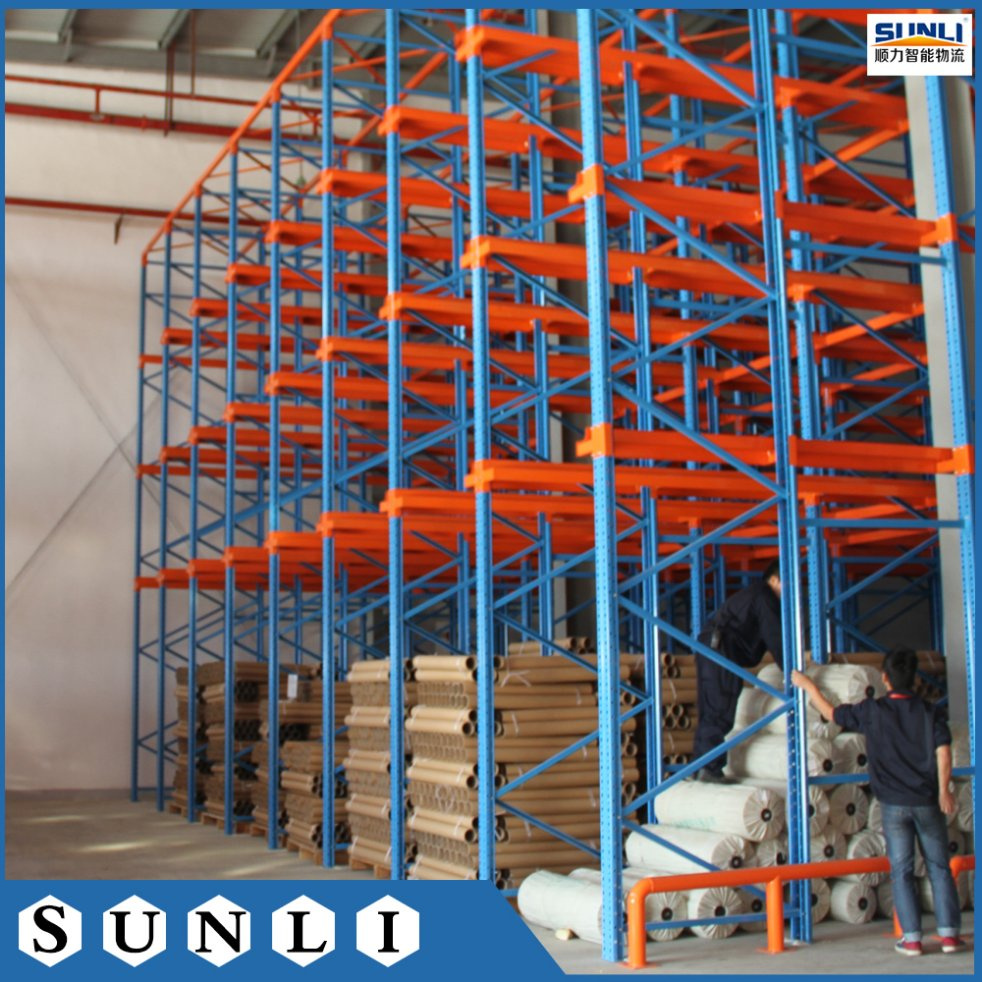

Drive-in rack system structure:

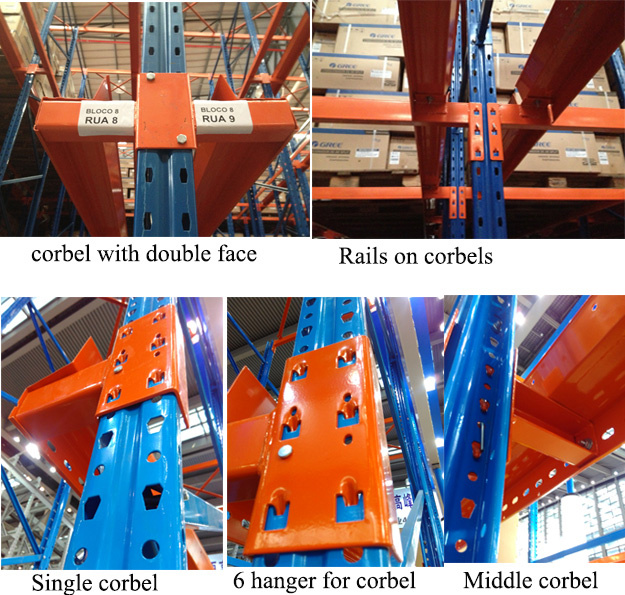

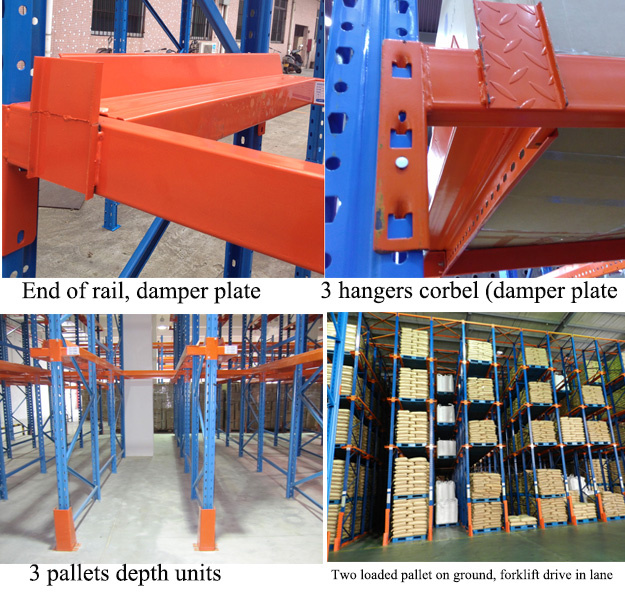

Drive-in rack system units:

Our Services

Business scope within Sunli Company
Pallet storageWarehouse RackDouble deep pallet rack
Radio shuttle rackDouble deep pallet rack
AccessoriesLong span shelving rackMezzanine Rack System
Long itemsCantilever rackStackable Pallet Rack
Please inform us following information to get prompt offer for drive in pallet rack

+ The dimensions of single rack unit ( or palletized load descriptions)

+ The palletized payload

+ Row of racks( single row, back-to-back row or multiple rows)

+ How many palletized load within one unit

( Please refer to the Product Description on the top)

FAQ
1, What is MOQ limitation for?
++ NO. But large purchase will bring competitive prices, 20FT container ( 10T~13T) is highly recommended, so that production can be better handled.

2, What is the lead time in Sunli?
++ As per 20FT container loading, manufacture time is about 21days; Regarding some customized items 25~27days will be covered.

3, What is payments methods Sunli can accept?
++ T/T and L/C are welcomed.

4, How about Sunli's sample delivery?
++ Short section of uprights and beams can be provided free of charge. But the freight will be collected upon your duty.

5, What is warranty for Sunli's rack system?
++ All rack items will be warrantied against manufacture's defects.
++ To avoid any shortage or missing components, we will provide 1%~2% spare parts besides basic ones.
The Rack Manufacturers&Designers, Guangdong Sunli Intelligent Logistics Equipment Co., Ltd are the national distributor of Industrial Steel Storage Racks and AS&RS system. We supply industrial rack solutions worldwide and in every major manufacturing and distribution sector. Sunli was formed in 2005.

Various products include Automatic storage system, pallet rack, carton flow, shelving, wire decking, safety&protection equipment, mobile carts, pallet, stackers and more.

As a turn-key solution, capabilitiesInclude warehousing design, consulting, in-house installation crews and new&unique solutions for closing, downsizing and new facilities. Stock items available.

What sets us apart from our competitors is the large inventory that we stock. We don't sell out of other dealer inventories. Instead, we carry rack stocks in Guangdong province - with hundreds/ thousands of beams, uprights and wire decksOn hand for immediate distribution.

Our team can design you a system for your project needs. We quote exactly what you need from our large in-stock inventory of teardrop,

New style, & many more beams and uprights. This allows us to meet your needs and ship your order when you need it.

Sunli motto "Value beyond expectations
