Warehouse Rack by High Quality Steel Material
| Price: | US $ 1.2/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | UN-PR1635 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Surface Finished: | Power Coating/Galvanized |
| Color: | Royalblue/Charcoal Gray/Orange/Medium Yellow |
| Certificates: | ISO900, Ohsas18001, SGS. |
| Box Beam: | 50*80/100/120/140/160*1.5/2.0mm |
| Upright: | 80*60*2.0/90*68*2.0/100*68*2.0mm |
| Row Bracer: | 40*24*1.5/40*34*1.5mm |
| Design: | Free and Professional Design |
| Custom: | Yes |
| Brand: | Union |
| Material: | Steel |
| Structure: | Rack |
| Mobility: | Adjustable |
| Height: | 5-15m |
| Weight: | 150-500kg |
| Closed: | Open |
| Development: | Conventional |
| Serviceability: | Common Use |
Product Description
Warehouse rack by high quality steel materialDescription:

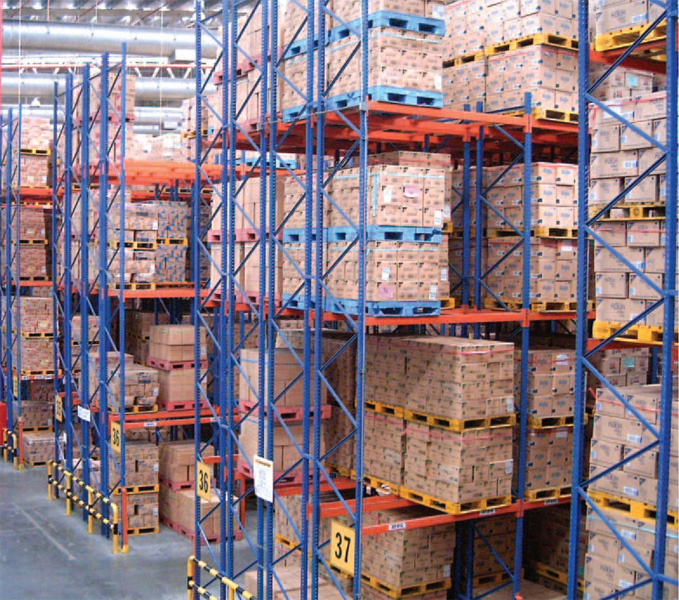

Beam rack, we also called them pallet rack. It composed by beams and uprights. Pallet Rack is a most useful and cost-effective storage racking system providing direct access to all pallets. It provides high capacity storage, is easily installed and adjusted, and has low equipment and capital costs.
Below is some infomation you should get.
| 1. | Feature | A. Pallets can be located, accessed and moved individually. B. Rapid handling of almost all types of pallet used goods. C. Infinitely adjustable and offering a wide range of options and components to accommodate specific needs. D. Maximizes space use in any warehouse configuration while retaining optimum product accessibility. E. Strength and rigidity prevents compression damage to goods. F. Bottom level of pallets can be stored on the floor, lowering structure costs. |
| 2. | Loading capacity & Specification | A. Loading capacity: 500-4000 kgs UDL/layer. B. Height: 1000-9000mm C. Depth: 400-1500mm D. Length: 1500-3300mm E. Special sizes also available to specific storage needs |
| 3. | Parts | A. Upright section: 80*60*2.0, 90*70*2.0, 100*70*2.0, 120*95*2.0-2.5mm, etc. B. Box beams section: 80*50*1.5, 100*50*1.5, 110*50*1.5, 120*50*1.5-2.0, 140*50*1.5-2.0, 160*50*1.5-2.0, 180*50*2.0mm, etc., C. Adjusted by 50-75mm pitch D. Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components |
| 4. | Material | High-quality steel from BAO Steel Co. Ltd., the largest steel manufacturer in China |
| 5. | Finish | Epoxy power coated / Glavanize |
| 6. | Quick Delivery | Within 25 days for ordinary order quantity. Big production capacity allow us in a position to make quick delivery. |
| 7. | SGS test | Union's racking can be tested by international authority test organization, most of our customers like to be tested by it. It is also a trend of it in the future |
Our pallet racking can be design according to your requirements!
Factory Show
Jiangsu Union Logistics System Engineering Co., Ltd
Established in 1995,
Possessing 10 years export experience;
With the strength of Pallet Racking, MID-duty Shelving, Radio Shuttle Pallet Racking, ASRS System, Drive In Racking, Cantilever Racking, Mezzanine and Steel Platform, Steel/Plastic Pallet, Wire mesh container and other related storage equipment.
Our Products: Pallet Racking, MID-duty Shelving, Radion Shuttle Pallet Racking, ASRS System, Drive In Racking, Cantilever Racking, Mezzanine and Steel Platform, Steel/Plastic Pallet, Wire mesh container and other related storage equipment.
Our Products: Pallet Racking, MID-duty Shelving, Radion Shuttle Pallet Racking, ASRS System, Drive In Racking, Cantilever Racking, Mezzanine and Steel Platform, Steel/Plastic Pallet, Wire mesh container and other related storage equipment.
Our Products: Pallet Racking, MID-duty Shelving, Radion Shuttle Pallet Racking, ASRS System, Drive In Racking, Cantilever Racking, Mezzanine and Steel Platform, Steel/Plastic Pallet, Wire mesh container and other related storage equipment.
Service
We can offer CAD design service for customer for free charge and give customer technical support
Kindly provide information for quick quotation
- Drawing of racking (if available)
- Dimension of your warehouse (Length X Width X Clear height mm)
- Pallet Size (W*D*H) & loading weight
- How many layers and bays
- The color you want
FAQ
Q: What is your trading terms?A:
1. ) Payment term: T/T 30% deposit after order confirmed, 70% balance paid against bill of lading. Or L/C.
2. ) Lead time: Normally in 30 days after deposit received.
3. ) Sample policy: Samples are always available for each model. Samples can be ready in 7-15 days once payment received.
4. ) Shipping port: Shanghai China.
5. ) Discounts: We offer discount for large quantity.
Q: How I can delivery my goods?
A:
1. ) Sea Freight: We will update sea freight once we know your sea port where goods will be delivered.
2. ) Agent designated by client: Please tell us the contact detail of your shipping agent and we will arrange to deliver the items.
Q: What is your service?
A:
1. ) Your inquiry related to our products or prices will be replied in 24 hours.
2. ) Well-trained and experienced staffs to answer all your enquires in fluent English.
3. ) OEM&ODM, any your customized racks we can help you to design product.
4. ) We have very experienced professional engineers to make best solutions.
Q: How to purchase your product?
A:
Design drawing → Confirm drawing →Quotation → PI → Confirm PI → Arrange 30% deposit →Manufacturer→QC inspect → Pay balance → Shipping
Q: What is your advantage?
A:
1. ) Warranty: Two years warranty, the broken parts will be replaced and sent to you.
2. ) Factory price: Factory direct sale competitive price.
Contact
Website: http://www.racking-supplier.com/
TEL: +86-25-52890290
FAX: +86-25-52890115
Please feel free to contact us if you are intersted in!
We kindly welcome clients from all over the world to contact us.
We will work hard and do our best to serve our customers.
Give us a chance to be your provider, we guarantee you'll be pleased with our performance.
Jiangsu Union Logistics System Engineering Co., Ltd. Is a specialized designer and manufacturer of logistics systems, including racks, logistics systems, and multi-layer warehousing systems. Besides, Union also provides warehouse storage solutions for our clients.
Union possesses a professional sales team, experienced engineers, advanced manufacturing equipment, particular production technology and perfect quality-guarantee system. We have ability to supply large quantity of products which amounts to about 3, 000MT per month. Moreover, our products have been widely used in large companies, Our sales network covers 28 provinces and regions in China, and our overseas market includes North America, Southeast Asia and West Europe. We have several distributors in Europe and the US.
We can supply following products:
1. Light, medium and heavy pallet racking;
2. Drive-in, flow-through, cantilever, movable racking;
3. Radio Shuttle Pallet Rack, AS/RS system, Stacker Crane, mezzanine floors/multi-tier racking;
4. Kinds of pallet, for example, steel pallet, foldable mesh box pallet, and plastic pallet
As one of the best logistics system suppliers in China, Union will provide our clients with high quality products and excellent services. Our trade team will respond to your inquiries within 24 hours.
Union possesses a professional sales team, experienced engineers, advanced manufacturing equipment, particular production technology and perfect quality-guarantee system. We have ability to supply large quantity of products which amounts to about 3, 000MT per month. Moreover, our products have been widely used in large companies, Our sales network covers 28 provinces and regions in China, and our overseas market includes North America, Southeast Asia and West Europe. We have several distributors in Europe and the US.
We can supply following products:
1. Light, medium and heavy pallet racking;
2. Drive-in, flow-through, cantilever, movable racking;
3. Radio Shuttle Pallet Rack, AS/RS system, Stacker Crane, mezzanine floors/multi-tier racking;
4. Kinds of pallet, for example, steel pallet, foldable mesh box pallet, and plastic pallet
As one of the best logistics system suppliers in China, Union will provide our clients with high quality products and excellent services. Our trade team will respond to your inquiries within 24 hours.
