Warehouse Stacking Pallet Rack
| Price: | US $ 1kg |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 10/Ton |
| Pay Type: | L/C,T/T |
| Prod Model: | PR-03 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: | ISO9001, As4084, CE, SGS |
| Material: | Steel |
| Structure: | Rack |
| Mobility: | Adjustable |
| Closed: | Open |
| Development: | Conventional |
| Serviceability: | Common Use |
| Height: | up to 12m |
| Weight: | up to 4, 000 Kgs Udl/Level |
Product Description

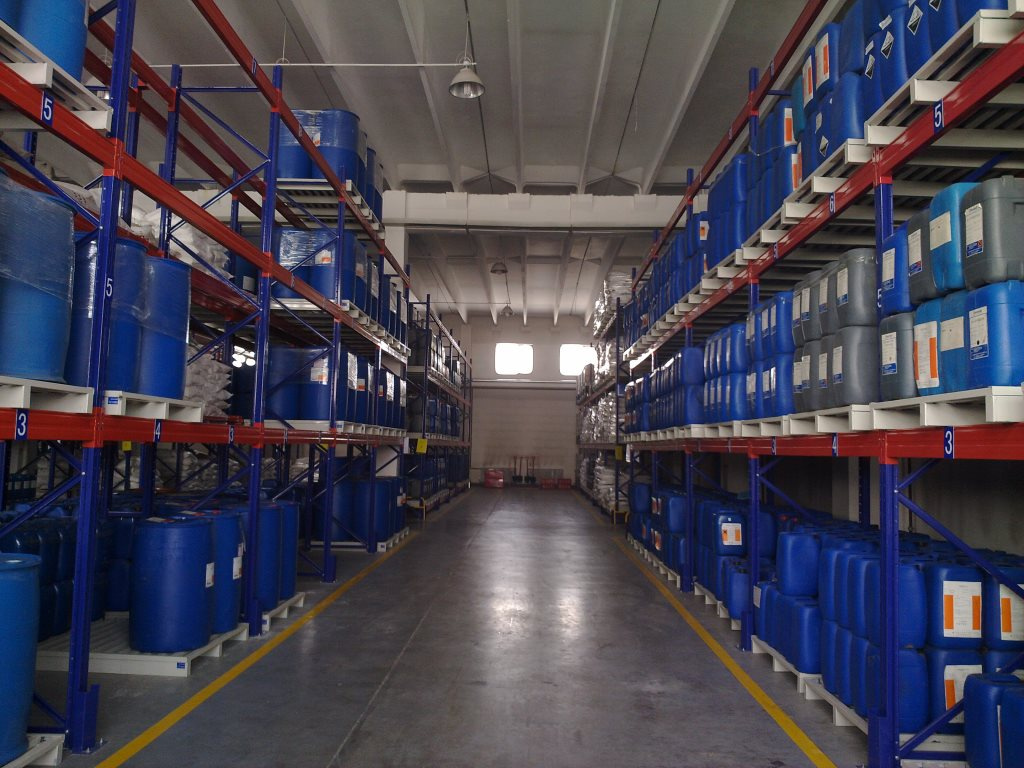

Pallet Racking
The Sin-Sino Pallet Racking system, one of the most widely used pallet racking systems available today, has evolved through our knowledge of storage and handling techniques gained during 30 years experience in the industry.
Design for strength, durability and ease of assembly,the system comprises a comprehensive choice of frames and pallet support beams which are precisely selected and combined to meet the load requirements of any storage application, safely, efficiently and cost-effectivedly.
DESIGN STANDARDS
SIN-SINO Pallet Rack has been designed using the Australian Standard AS4084 Supp1 1993.This standard is predominantly based on the American Rack Manufacture Institute Specification (RMI) when used at its lower tier, although it also takes information from the British Storage Equipment Manufactures Association(SEMA) and the European Racking Code FEM 10.2.02 for the higher tiers of the standard.
The Storage arrangement enables First-In-First-Out access to all goods.
Detail:
| Load Capacity: | 1000-4000Kg/Lever | Surface Treatment: | Powder Coating |
| Color: | Customizable | Hieghth/Depth: | Customizable |
| Dimensions: | Customizable | Metal: | High Quality Cold Rolled Steel |

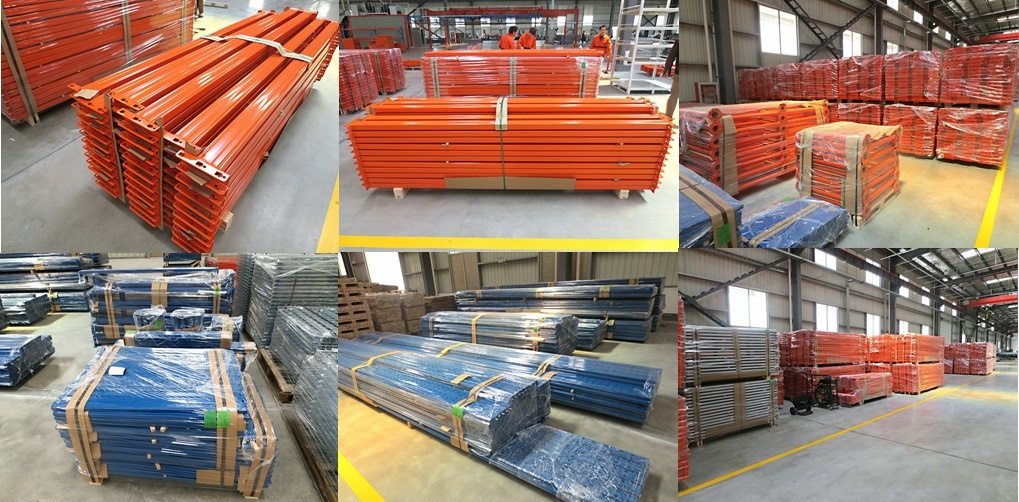

Package & Delivery:
Delivery:15-20 days after receive the advance.
Packing:Standard Export Seaworthy Packing.
Certificates: ISO & AS4084
Specification:
| Specifications of Beam | |||||
| Type | Item | Height(mm) | Width(mm) | Thickness(mm) | |
| P style Pipe(Step Beam) | 1 | 50 | 30 | 1.5 | |
| 2 | 60 | 40 | 1.5 | ||
| 3 | 80 | 50 | 1.5 | ||
| 4 | 110 | 70 | 1.5 | ||
| 5 | 140 | 70 | 1.5 | ||
| 6 | 160 | 70 | 1.5 | ||
| Box Beam | 7 | 80 | 50 | 1.5 | |
| 8 | 100 | 50 | 1.5 | ||
| 9 | 110 | 50 | 1.5 | ||
| 10 | 120 | 50 | 1.5 | ||
| 11 | 140 | 50 | 1.8 | ||
| 12 | 160 | 50 | 2.0 | ||
| Specifications of Upright | ||||
| Item | Width(mm) | Depth(mm) | Thickness(mm) | Loading Capacity(kg) |
| 1 | 85 | 67 | 1.6 | 7000 |
| 2 | 85 | 67 | 1.8 | 8500 |
| 3 | 85 | 67 | 2.0 | 10000 |
| 4 | 85 | 67 | 2.3 | 12500 |
| 5 | 100 | 67 | 1.8 | 10500 |
| 6 | 100 | 67 | 2.0 | 12000 |
| 7 | 100 | 67 | 2.3 | 13800 |
| 8 | 100 | 95 | 2.0 | 12000 |
| 9 | 100 | 95 | 2.3 | 14500 |
| 10 | 100 | 95 | 2.5 | 16000 |
| 11 | 100 | 95 | 2.75 | 18000 |
| 12 | 100 | 95 | 3.0 | 20000 |
| 13 | 120 | 95 | 2.5 | 17000 |
| 14 | 120 | 95 | 2.75 | 19000 |
| 15 | 120 | 95 | 3.0 | 21000 |
