Home LED Light Products Warehouse Stacking Storage Galvanized Pallet Racking
Warehouse Stacking Storage Galvanized Pallet Racking
| Price: | US $ 45-70/Set |
|---|---|
| Min Order: | 50/Set |
| Pay Type: | L/C,T/T,D/P |
| Prod Model: | HML-M1 |
|---|---|
| Company Type: | China Professional Manufacturer |
| Product Warranty: | 1 Year |
| M1-Base: | 1395lx1060wx310h mm |
| Post: | 1200lx60wx2.5 mm |
| Loading Capacity: | 1500 Kg |
| Finish: | Hot DIP Galvanized |
| Load In 40hq: | 250 Sets |
| Product Shelf Life: | up to 3 or 5 Years Against Proper Handling |
| Remark: | Customized and OEM Support |
| Material: | Steel |
| Structure: | Rack |
| Mobility: | Mobile |
| Height: | 0-5m |
| Closed: | Open |
| Development: | Conventional |
| Serviceability: | Common Use |
| Weight: | 1500 Kg |
Product Description
What can you get from us:1.FREE and NO OBLIGATION quote
2.Higher quality, reasonable price:
a. We have our own factory, so we can supply you the factory price.
b. Full set quality control system to guarantee the best quality
c. Third party inspection available upon requirement
3. Experienced Service:
a. Professional solusion:
With over 20 years producing experience, we can offer you our best solution, and help you
to save money.
b. Design
We can translate your original drawing, offer best suggestion on design, or give you our unique
design according to your requires.
c.OEM surpport & customized size
Warehouse stacking storage galvanized pallet racking
Specification of pallet racking
| Similar design, defferent sizes | |||||
| Model No. | Exterior Dimension | Loading Capacity | Finish | Quantities | Total container |
| LxWxH(mm) | kg | sets | |||
| M1-Base | 1395x1060x310 | 1500 | Hot dip zinc | 250 | 1x40'HQ |
| M1-Post | 1200x60x2.5 | Hot dip zinc | 1000 | ||
| M2-Base | 1875x1060x310 | 1500 | Hot dip zinc | 143 | 1x40'HQ |
| M2-Post | 1200x60x2.5 | Hot dip zinc | 572 | ||
| M4-Base | 1545x1050x310 | 1500 | Powder coating | 247 | 1x40'HQ |
| M4-Post | 1510x60x2.5 | Powder coating | 988 | ||
| M5-Base | 1200x1000x310 | 1000 | zinc | 255 | 1x40'HQ |
| M5-Post | 2000x60x2.5 | zinc | 1020 | ||
| M6-Base | 950x950x310 | 1000 | zinc | 160 | 1x40'HQ |
| M6-Post | 2100x60x2.5 | Hot dip zinc | 320 | ||
| Material | Mild steel Q235 | ||||
| Application area | Warehouse, logistic, recycling, etc. | ||||
| Remark | Costomized or OEM support | ||||
| Key features | 1.Ideal solution for palletized cargo. 2.eliminates the need for wooden pallets for loose cargo. 3.customized to suit your products and storage environment. 4.assembled and disassembled within seconds. 5.When not in use can be stowed away in less than 10% of space 6.No maintenance required | ||||

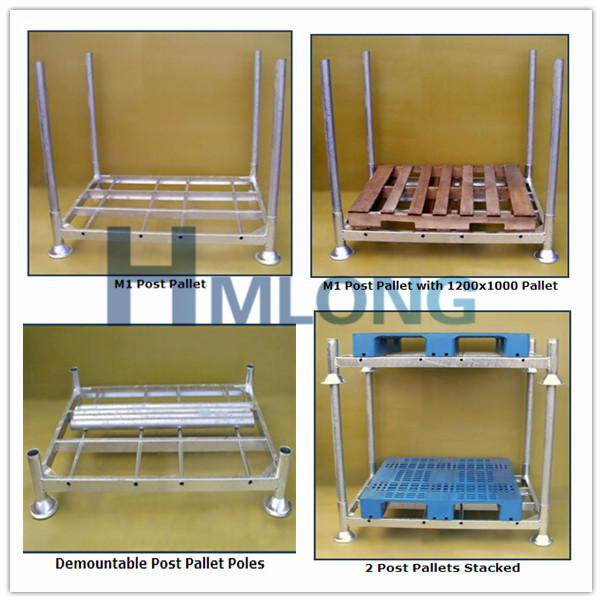

Details of pallet racking

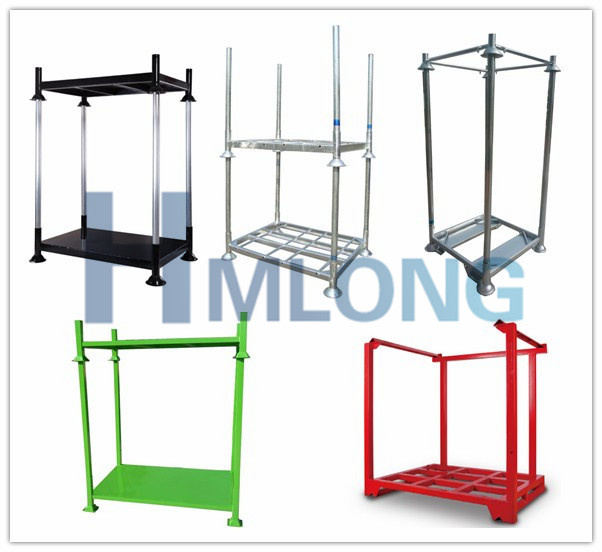

Similar products of pallet racking

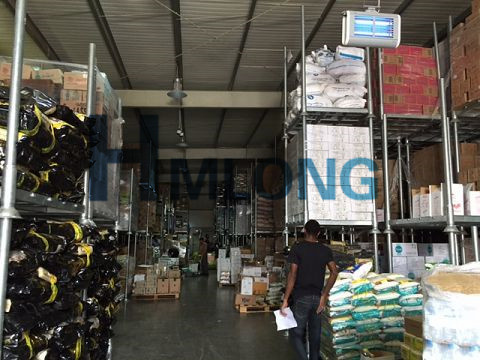

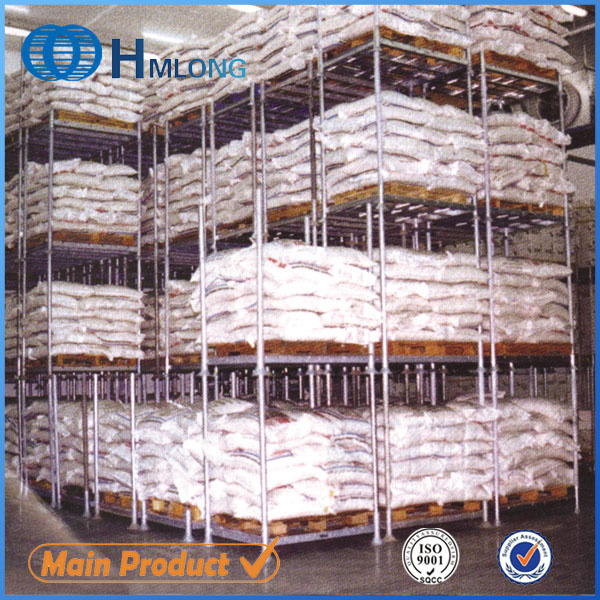

Application of pallet racking
Company Introduction
Huameilong was established in 1993, an industry and trade integrated enterprise in
China. With our products of wire mesh container, wire mesh decking, roll cage, post
pallet, tire rack, etc., a best solution can be provided for your material handling industry.
Quality products, advanced equipment, customized design, and OEM support have
earned us a great reputation among our customers.
FAQ
1, What is the material being used for your products?
---Mild steel Q235, Q195
2, How is the goods being packed?
---Plastic banding + Stretch film wrapped, palletized for easy loading and unloading with
standard forklift truck or pallet jack.
3, What is the payment terms I can get?
---TT or L/C at sight, DP etc
4, What kind of finish do you provide for your goods?
-- A.Electrol galvanized/Zinc plated: the zinc serves as a sacrificial anode( indoor
storage)
B.Hot dip galvanized: it forms a coating of corrosion resistant zinc (indoor/outdoor
and cold storage)
C.Powder coating: a type of coating that is applied as a free-flowing, dry powder
(indoor/outdoor storage)
5, What is the loading capacity?
---In general, we have light duty(100~300kg) model,medium duty(400~800kg) model
and heavy duty(1000~1700kg) model available for your choice.
6 Which product can be used in cold storage?
---Mobile rack,wire container and roll cage are all widely used in cold storage.
7 I like your design, but couldn't find the right model from the products list, is custom
size available?
---Yes, we do custom products and projects.
8 I would like to have my own design products and qty is not that big, is it ok?
---Yes, we can go with your custom design, no matter small or big qty, however, pls
understand the cost will be different.
9 I don't have drawing or picture available for the custom products, could you design it
for me?
--Yes, we can make the best suitable design for you but do need to know the details,
such as a) dimension b) loading capacity c)stackability d)operation environment
10 What is the minimum quantity I can order?
--1x20'GP - qty is variable depend on the size
11 What is your average production lead time?
--2-3 weeks against formal order and deposit.
12 Do I get any guarantee from your company?
-3~10 years warranty in case that A) Proper handling during operation, correctly forklift
handling while stacking/unstacking B) Overloading is prohibited C) Environment request
indoor, dry and not humid circumstance, do not contact with any corrosive chemical
material (for zinc plated and powder coated products, no limitation for hot dip galvanized)
.
