Home LED Light Products Warehouse Storage Heavy Duty Pallet Rack with CE Certification
Warehouse Storage Heavy Duty Pallet Rack with CE Certification
| Price: | US $ 390-500/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | HT01 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Surface Treatment: | Plastic Spray or Baked Paint Finishing |
| Color: | as Required |
| Pitch: | 75mm |
| Feature: | Corrosion Protection |
| Connecting Way: | Bolted |
| Operation: | by Forklift or Stacker |
| ODM: | Yes |
| OEM: | Yes |
| Type Of Company: | Manufacturer |
| Loading Port: | Nanjing |
| Material: | Steel |
| Structure: | Rack |
| Mobility: | Adjustable |
| Closed: | Open |
| Development: | New Type |
| Serviceability: | Common Use |
| Height: | Selective |
| Weight: | up to 4500kg |
Product Description

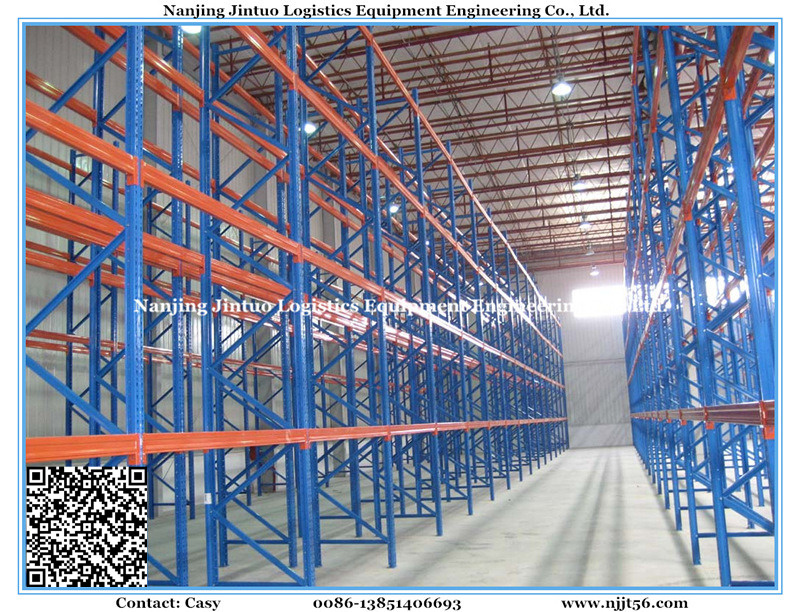

Warehouse / Storage Heavy Duty Pallet Rack With CE CertificationHeavy Duty Rack is a most useful and cost-effective storage racking system providing direct access to all pallets. It provides high capacity storage, is easily installed and adjusted, and has low equipment and capital costs.
Features:
1. Pallets can be located, accessed and moved individually.
2. Rapid handling of almost all types of palletized goods.
3. Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs.
4. Maximizes space use in any warehouse configuration while retaining optimum product accessibility.
5. Strength and rigidity prevents compression damage to goods.
6. Bottom level of pallets can be stored on the floor, lowering structure costs.
Parameters:
Loading Capacity:Up to 5,000 kgs UDL/level
Racking Height:Up to 11,000mm
Racking Depth:700-1200mm
Beam Length:Up to 3600mm
Racking Finish:Powder Coated Finish or Galvanised Finish for Post & Bracing.
Please inform us the listed questions in your inquiry for quick quotation:
A) The warehouse outline drawing
B) The size of shelf (length/mm*width/mm*height/mm)
C) The layers of each shelf?
D) The loading weight of each layer
E) The RAL color you want
| Features | 1. Pallets can be located, accessed and moved individually. 2. Rapid handling of almost all types of palletized goods. 3. Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs. 4. Maximizes space use in any warehouse configuration while retaining optimum product accessibility. 5. Strength and rigidity prevents compression damage to goods. 6. Bottom level of pallets can be stored on the floor, lowering structure costs. |
| Load Capacity & Dimension | 1. Loading capacity: 500-4, 000 kg UDL/beam level. 2. Height: 1, 000-11, 000mm 3. Depth: 400-1, 500mm 4. Length: 1, 500-3, 300mm 5. Special sizes also available to specific storage needs. |
| Main Parts Specification | 1. Upright section: 80*60*2.0, 90*70*2.0, 100*70*2.0, 120*95*2.0-2.5mm, etc. 2. Boxed beams section: 80*50*1.5, 100*50*1.5, 110*50*1.5, 120*50*1.5-2.0, 140*50*1.5-2.0, 160*50*1.5-2.0, 180*50*2.0mm, etc., 3. Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components. |
| Material | High-quality steel from big steel company in China |
| Finish | High-quality Powder Coating |
| Delivery | Within 25 days for ordinary order quantity. Big production capacity allows us to make a quick delivery. |
Nanjing Hengtuo Storage Equipment Co., Ltd. is an enterprise who always commits herself to develop convenient logistics equipment and efficient storage equipment. Our goal is to build a leading company in logistics. The enrollment of our company capital is more than USD 140, 000 and the total investment is over USD 2, 700, 000. We have customers from all over the world, such as southeastern Asia, Japan, Europe, Africa and so on.
Our company covers an area of over four hectares with a building space of over 5800 square meters. We have more than 160 staff, among whom more than 10 people are professional senior engineers. Based on the foreign advanced technology and combining Chinese storage equipment with features of automatic production line, we have developed
1) Logistics containers, such as a variety of storage cages, pallets and packing materials;
2) a series of rack products such as Install-able Assemble Racks, Through Type Racks, Supermarket Racks, Attic Type Racks, Flow-through Racks,;
3) Station Equipment: Pallets, Metal Boxes, Tool Cabinets, Case Racks, Trucks, Stacking Frames;
4) Handing Equipment: Pallet Truck, Trolley, and Handcart.
Our products are widely used in exhibitions, supermarkets, companies, banks, hospitals, factories, libraries, warehouses and so on.
We insist on the scientific management principles: "Live with best quality and develop with good reputation". Emphasizing on quality and reputation is our weapon to keep up with the status in this field.
We will be glad to provide good products and perfect service to you and welcome your visit and cooperation.
