Warehouse Storage Slid Mould Racking
| Price: | Negotiable/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Paypal |
| Prod Model: | mold rack |
|---|---|
| Color: | Blue/as Your Requirement |
| Material: | Steel |
| Structure: | Shelf |
| Mobility: | Adjustable |
| Height: | 0-5m |
| Closed: | Open |
| Development: | New Type |
| Serviceability: | Common Use |
| Weight: | 800kg/Level |
Product Description
Warehouse Storage Slid Mould Racking
Product Description
Product Description

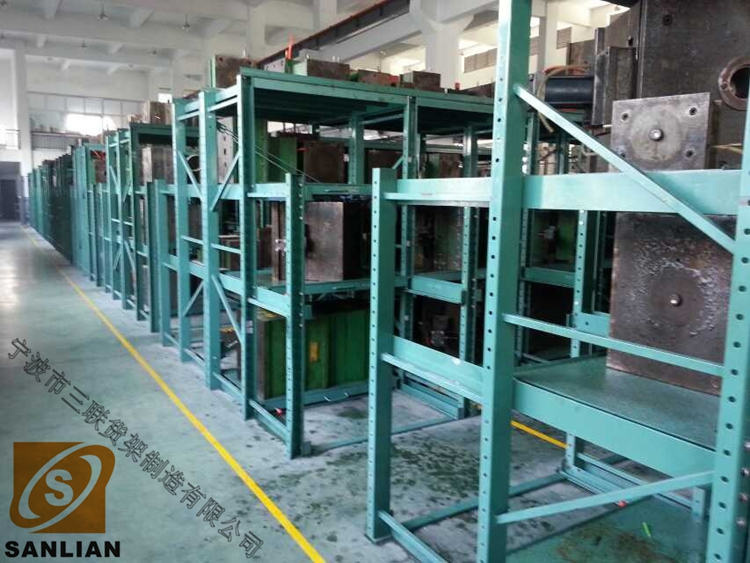

Drawer mold rack is mainly used for storage of all kinds of mould, which could be assembled with manual movable carriage on the top so as to easily take and retrieve the goods. The side rack was equipped with idler wheel rail on the bottom and the sliding shelf panel could be freely pulled out when loading. The middle type slide rack could carry less than 800KG/Layer.
The entire drawer mold rack is section combination structure, which is convenient for transport, and the assembly is simple and fast and this rack possesses better safety protection device. Special drawer type mold rack can be ordered.
Quick Specification
Note:The lower three levels can only be drawn out one by one.(when first level is drawn out. The second and third level can not be drawn out. This is because of the self-locked system. We design this system to protect the whole rack in stable situation and safe.
Advantages:Slide rack is widely used in work plants of machinery industries. To work with crane will enhance the work efficiency. For tools are often very heavy and small in size, so the draw-out design makes tools easier be taken out. So it makes access work convenient.
Deatails:
Mould rack is composed of uprigt frame, steel decing, support structure, self locking devices etc,
The support structure is the secondary design, the loading capacity of the single drawer is generally within 1000KG.
The drawer deking can be designed to the semi-open.It is suitable for storing moulds etc, the crane, forklift, self-made trolley can be used for picking up goods.The particular slideway design makes the small using resistance, and the self-locking device can be reliabl, and safe.,Each drawer can be drawn out 60% of its depth.

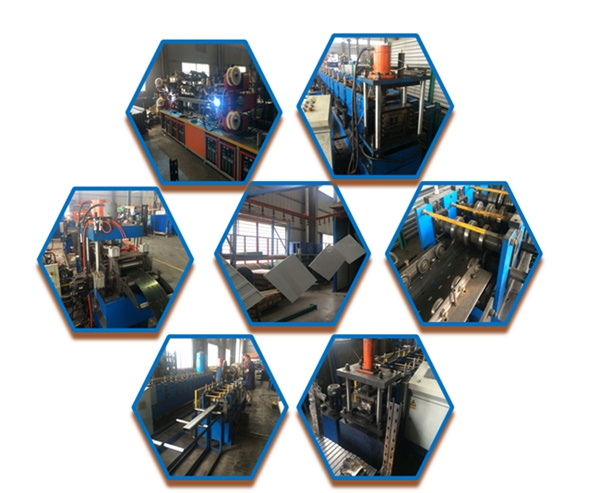

Production Equipment

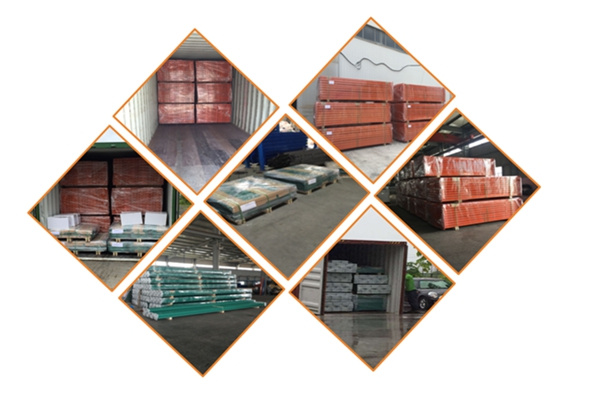

The beams, and upright posts are separate packed by wrapping film, can be also carton according to customer's requirement.
Shelves packed in carton. Safe for long-distance transportation.
Container load:50-100 sets per 1x20ft container, 100-160 per 1x40ft container
Delivery time:
Within 15 days for ordinary order quantity.
Big production capacity allow us in a position to make quick delivery.
Shipment & Price term:
FOB,CFR,CIF,EXW. We also can help to arrange the shipment if customer request.
TT,L/C,West Union.
The entire drawer mold rack is section combination structure, which is convenient for transport, and the assembly is simple and fast and this rack possesses better safety protection device. Special drawer type mold rack can be ordered.
Quick Specification
| Item number | Drawer mold rack,Slide rack,Tooling rack |
| Material | steel |
| shelf | Drawable, can be half open or widely open |
| Standard size | L3000*W625*H2000mm,L1385xW800xH2000 can customized any size |
| Level & Loading Capacity | 4 The top level is fixed and its loading capacity is equal to or bigger than 1000kg. The lower three levels can be drawn out 500mm and can load as much as 1000kg. |
| Drawer mold rack using | Storage mould |
| Surface treatment | Powder coated |
| color | Green or as your like |
| upright post | 100*50MM square tube, #10 channel steel |
| upright post spacer | 2.0MM cold roll steel |
| Drawer material | 2.0MM cold roll steel |
| accessoires | overhead travelling crane and chain block |
Advantages:Slide rack is widely used in work plants of machinery industries. To work with crane will enhance the work efficiency. For tools are often very heavy and small in size, so the draw-out design makes tools easier be taken out. So it makes access work convenient.
Deatails:
Mould rack is composed of uprigt frame, steel decing, support structure, self locking devices etc,
The support structure is the secondary design, the loading capacity of the single drawer is generally within 1000KG.
The drawer deking can be designed to the semi-open.It is suitable for storing moulds etc, the crane, forklift, self-made trolley can be used for picking up goods.The particular slideway design makes the small using resistance, and the self-locking device can be reliabl, and safe.,Each drawer can be drawn out 60% of its depth.
Production Equipment
The beams, and upright posts are separate packed by wrapping film, can be also carton according to customer's requirement.
Shelves packed in carton. Safe for long-distance transportation.
Container load:50-100 sets per 1x20ft container, 100-160 per 1x40ft container
Delivery time:
Within 15 days for ordinary order quantity.
Big production capacity allow us in a position to make quick delivery.
Shipment & Price term:
FOB,CFR,CIF,EXW. We also can help to arrange the shipment if customer request.
TT,L/C,West Union.
