Widely Used Warehouse Storage Rack System

Prod Model:	BOSJ-S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Control System:	PLC
After-Sales Service Provided:	Engineers Available to Service Machinery Overseas
Making Machine:	Multifunctional
Material Of Roller:	Gcr 15
Surface:	Concrete Iron Connection Machinery
Forging Forming Method:	Free Forging

Product Description

Equipment structure

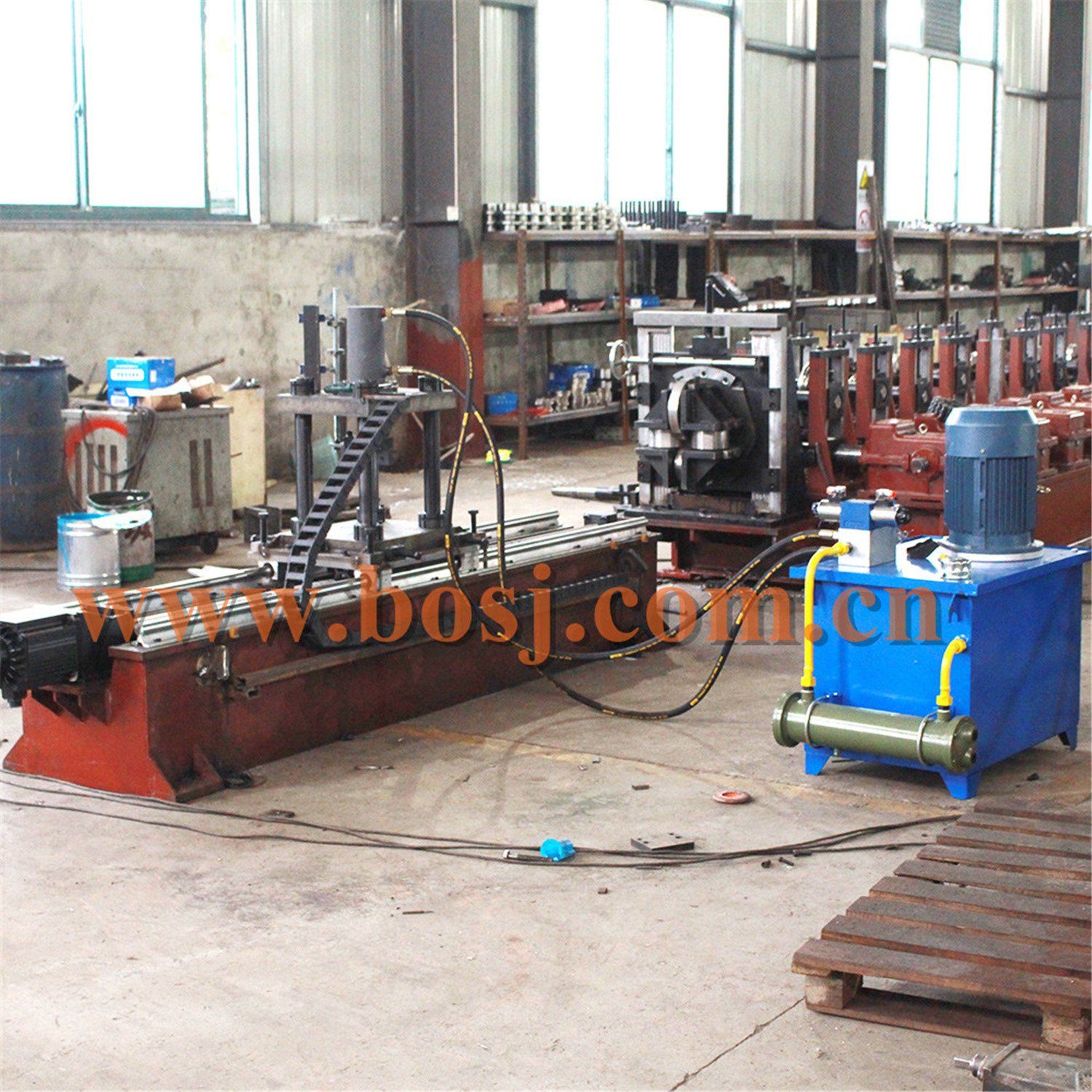

The equipment is consisted with auto-de-coiler, guide frame, lever/feeding section, continuous bottom hole punching section, forming section, positioning and cutting section, collection table and electrical control system etc.
Shelf forming machine is Jiangyin Bosj Technology Co.,Ltd. According to market demand by the collection year production cold rolling equipment experience independently designs a series or products.
Product: Shelf column, Shelf crossbeam, Shelf stay rod, Shelf plywood etc.

Equipment capacity:
1, Equipment production capacity: width≤400mm, thickness of steel material: 1-2.5mm
2, Production speed: 8-15m/min
3, Total power: about 21.5kw
Structure of Heavy Duty Pallet Racking.
Beams
Horizontal bracing
Diagonal bracing
Uprights
Screw, safe pins
Protector
Trays ,pallets ,or steel mesh plates

Determinant of Heavy Duty Pallet Racking design
1. The weight of your goods (trays, steel containers / boxes are included)
2. The dimension of your goods together with pallets ( Length  Width Height )
3. The maximum height of your forklift and the available height of your warehouse
4. The dimension of your forklift
5. The fork direction
6. The dimension of your warehouse
7. The path of the transportation

Advantages of Heavy Duty Pallet Racking .
1.It is suitable to be used in factories, manufactures and warehouse
2.Size(L*W*H): 1200/1500/2000*450/600/1000*1800/2000/2500mm
3.Perfect for storing categorized products in a neat and tidy way
4.heavy-duty shelf set for warehouse shelving
5.Strong structure
6.Easy installation
7.Customization is acceptable



NO.	Name		unit	parameter	remark
1	materials	type		Mild steel,galvanized sheet
		Plate strength	Map	≥350
		Plate thickness	mm	1.0~1.6
2	specification		mm	See the pictures
3	speed		m/min	18
4	Material of the roller			GCr15,Hardening treatment
5	drive type			Gear box
6	power		kw	About 35.5
7	Electrical control system			PCL frequency control
8	Size(lengthXwidthXheight)		m	20X4X3.9



Main Accessories
1	Decoiler	1 set
2	Main Forming Machine	1 set
3	Correction System	1 set
4	Hydraulic Station	1 set
5	Auto-Cutting system	1 set
6	PLC Control System	1 set
7	Run Out Table	1 set

Technical Datas roll forming machine
1	Material width	As your regards
2	The effective width	As your regards
3	The thickness of Coil	1.0-3.0mm or more
4	Application	wall sheet and roof sheet
5	The overall dimensions	6800mmX1500mmX1300mm
6	Total weight	5 Tons
7	Main Power	5.5 KW
8	Uncoiler	Manual Uncoiler
9	Inner diameter	508--610mm
10	Outer diameter	1200mm
11	Loading weight	3T
12	Forming speed	5-10m/min
13	Forming steps	12 stations or more
14	Bracket	welded with 36 # I-steel
15	Material of Shafts	45# steel with rough finished and then refined finished
16	Diameter of the Roll	76mm
17	Material of Rolls	high quality 45#steel coated with hard chromium 0.05 mm
18	Processing Technology	rough processing ---refined processing--Hard Chromium Plating.
19	Material of Rack	complete welded structure of A3 steel plate 16mm  thickness
20	Transmission	Transmitted by the chain-bracket/ Gearbox T180
21	Material of Chain	45#steel with heat treatment of HRC45-50°
22	Holders under chain for lubricant	By the machine
23	Material of cutting blade	Cr12 with quenched treatment 60-62
24	Cutting system	Hydraulic cutting
0.25	Voltage	380V/50HZ/3phase
