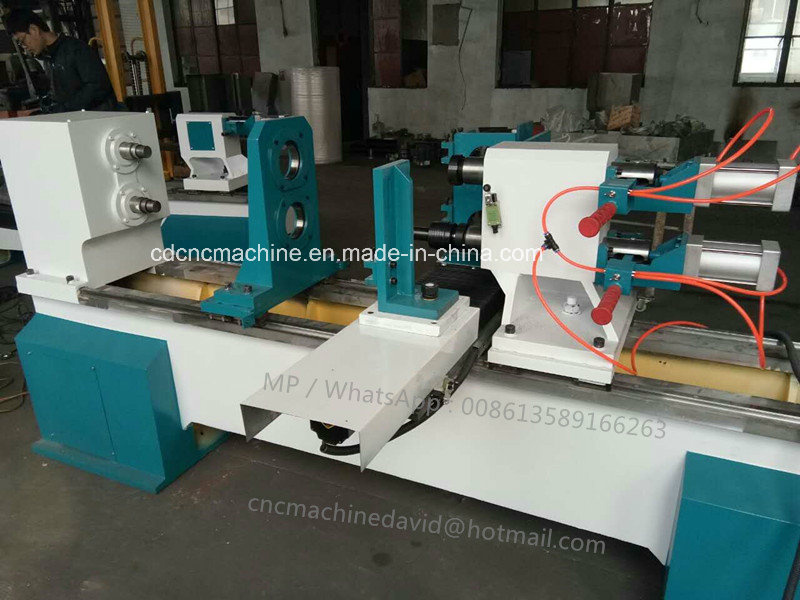

Wooden Tea Cup / Mug Stand Making Machine
| Price: | US $ 3500-8600/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | CDT-1000 |
|---|---|
| Logo: | OEM |
| Machine Type: | New |
| Control: | Easy to Learn |
| Motor: | Steeping Motor |
| Type: | Horizontal Lathe |
| Tool Holder: | Double-tool Holder CNC Lathe |
| Automatic Grade: | Automatic |
| Precision: | High Precision |
| Setting Mode: | Floor-type |
| Controlling Mode: | CNC |
| Power Source: | Electric |
| Processing Accessory: | Centre CNC Lathe |
| Certification: | ISO |
| Voltage: | 380V ( Can Be Changed According to Customer Need) |
Product Description

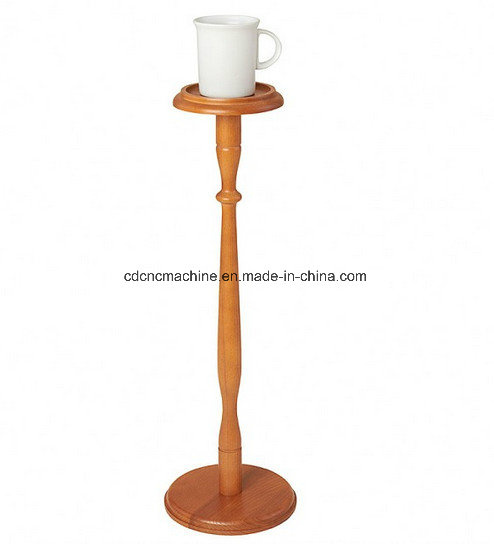

Wooden Tea cup / Mug stand making machine
please email us directy for machine details and last price .
Machine Using :

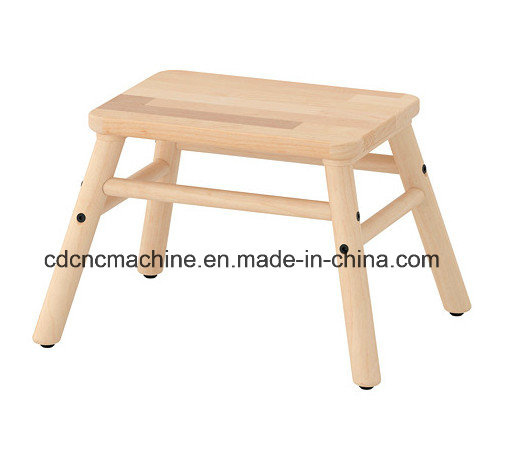

The automatic cnc wood turning engraving lathe machine can be used for making Staircases,
stairway balusters,stairway newel posts;dining table legs;end table legs;sofa table legs;bar
stool legs;chair legs;chair arm posts;chair stretchers;bed rails;lamp posts;baseball bats , drum and
so on.
Multi-Function :
| Model | CD-1000 | CD-1500 | CD-2000 |
| Max.turning length | 1000mm | 1500mm | 2000mm |
| Max. turning diameter | 450mm | 450mm | 450mm |
| Spindle power | 5.5 kw | 7.5KW | |
| Quantity of spindle | 1 2 3 | ||
| Max.feed speed | 35mm/s | ||
| Spindle speed | 1000-5000rpm | ||
| Accuracy | 0.01mm | ||
| Support command | G code | ||
| Voltage | 380V/50Hz | ||
| Machine dimension | 2240*1500*1400 | 3000*1500*1500 | 3500*1500*1600 |
| Weight | 1500kg | 1700kg | 1900kg |
Features
1).Is a very precise, efficient CNC wood turning lathe with first-class workmanship
2).Operating system:Friendly simple operation interface , english suggestion and simple setting method .
3).Motor System: domestic famous brand stepper motor to ensure the precision .
4).Transmission System: Hiwin square rail and ball screw to control the linear error effectively .
5).Inverter System:adopt import inverter system to adjust the rotation speed and solve the vibration problem of
timber .
6). Single sided carbide blades for simple blade replacement
7).structure: heavy steel construction to avoid vibration, processed surface is smooth and precision
8). Infinitely variable DC feed motor with feeding speed of 0 to 5000rpm.
Optional part:
(1). Dust collect, which is used to collect the wood exhaust.
(2). Φ160 mm Four-Jaw Chuck for large sizes timber or barrel shape turning
Consumable parts:
We suggest customers buy more consumable parts for future use.
(1). Tool. This machine use white steel tool. Customers could change the tools easily.
(2). Bearing. Customers could change the bearing easily.
(3). Centre rest bushing with 5cm and 6cm square timber.if have other sizes,please inform inadvance.
Package & Delivery
Warranty:
1) The engineers of the original factory are available to do all kinds of the original factory are available to do all kinds of oversea machinery service.
2) we also offer 24 hours heart to heart service on-line or mobile.
3) Your technologists could attend the training in our factory and on-line which be free of charge
4) The warrantyof CNC lathe is 24 months, small broken parts could be freely replaced at any time, spare parts are delivered with machine for customer convenience.
5) We offer you best agent price and distributer price for our further cooperation .
6) we can offer special custom-made according to your request.

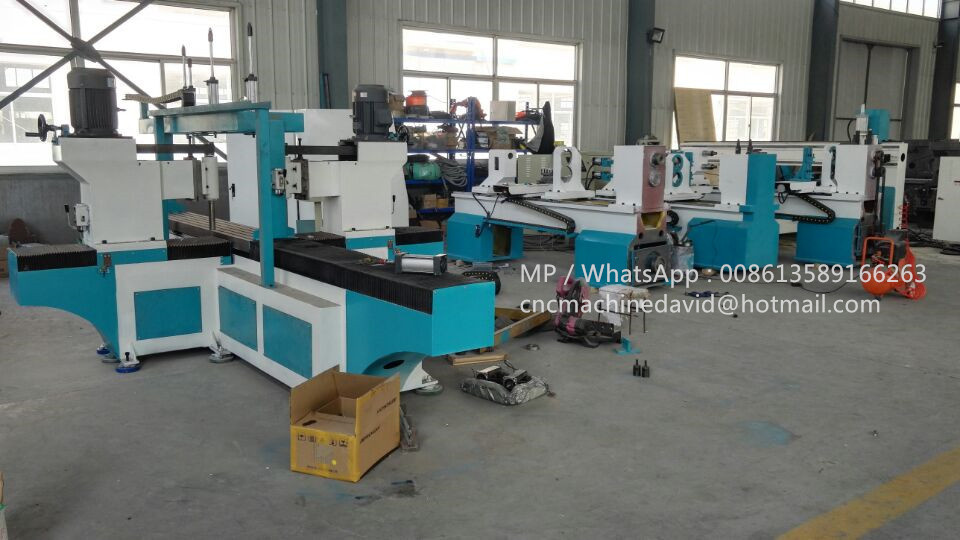

Our Workshop :
Why choose our factory machine ?
1) Widely used in different industry
2) High precision and reputation
3) Competitive price
4) High quality parts
5) Fast delivery
6) Best service
Our Mainly machine :
CNC Multi function Lathe , CNC Router Machine , CNC Engraving machine ,
Wood Handle machine , Wood Model Copy Machine , 4 sider wood milling machine , Log house machine , Prayer beads machine , Table saw etc .
We also can design and manufacture wood machine according to customer needing .
