Home LED Light Products 16 Slots Chassis 10/100m or 10/100/1000m Media Converters
16 Slots Chassis 10/100m or 10/100/1000m Media Converters
| Price: | US $ 86-88.34/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |
| Prod Model: | TK-16 slots chassis |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: | Computer, Workstation, Server |
| Support Network: | Ethernet |
| Information Content: | Data |
| Dimension(Standalone): | 156mm(W)*128mm(D)*32mm(H) |
| Slot Number: | 16 Slots |
| Size(Card): | 482*282*90cm |
| Rack: | 2u 19 Inch Standard |
| Fan: | Redundant Fan for Cooling |
| Dimensions (W* D* H): | 42.5*31.5*9.2 Cm |
| Environment Attribute: | 0 to 50 |
| Type: | Fiber Transceiver |
| Wiring Devices: | Integrated Wiring |
| Certification: | RoHS |
| Condition: | New |
Product Description

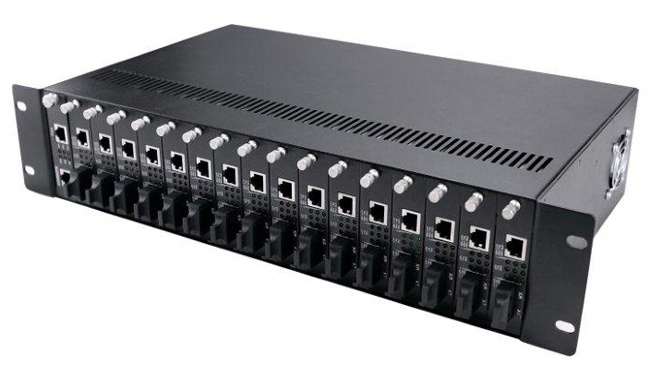

16 slot 10/100M fiber media converter (network rack)Weight: 3.5kg
Size: 482nm×280mm×90mm
General Description:
DF/RM1600 16inch media converter rack mount classis is designed to supply 16 slots of various types of media converter modules at a central location for multiple segments cross connection. Users can transparently link backbone equipments such as switches, routers to LAN workgroup segments.
Because of each module operates independently, new modules may be added as requested. This flexibility allows the unit to grow with the network.
Installation is easy, simply slide module into the chassis,then the media is connected. All of the DF/RM1600 modules are hot swappable thus eliminating costly network downtime.
DF/RM1600 converter rack fits cleanly into any network environment. With a slim low profile chassis and a mix of 10Mbps, 100Mbps and Gigabit media converter cards, theDF- RM1600 becomes the perfect solution for connecting today's evolving networks.
Features:
* 16'2U rack, easy for focus management
* 16 slots for media converter module
* Power AC 220V or DC -48V optional
* Power is backup 1+1
* double /single fiber with bi-direction optional
* 10/100M,1000M media converter module optional
* Auto-identify MDI/MDIX
* 10M,100M,full/half duplex auto negotiation
* Optional choose storage transmit or straight mode
Typical Application:
Model:
DF-RM1600: 16 slot media converter chassis
DF-RM1600P-22: AC220Vpower module
DF-RM1600P-48: DC-48V power module
Note:Install able module
10/100M Module(MM,SM Dual fiber,SM Single fiber)
10/100/1000M Module
Mode conversion module
