Home LED Light Products 18u-47u Storge Cabinet Shelving Rack with Loading Capacity 800kgs

18u-47u Storge Cabinet Shelving Rack with Loading Capacity 800kgs

18u-47u Storge Cabinet Shelving Rack with Loading Capacity 800kgs
Price: US $ 120/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: A3
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Loading Capacity: 800kg
Product Name: Network Cabinet
Optional Color: Black,Gray,White
Width: 600mm,800mm
Depth: 600mm,800mm,900mm,1000mm,1100mm,1200mm
Front Door: Vented Mesh Door
Rear Door: Vented Mesh Door
Side Panel: Remove Easily with Latches
Optional Accessories: Shelf,Fan,PDU,Bracket,Cable Tray,Blind Panel,etc.
Type: Server Cabinet
Usage: Network Integration System
Installation: Vertical
Fan Number: Two
Certification: RoHS
Condition: New

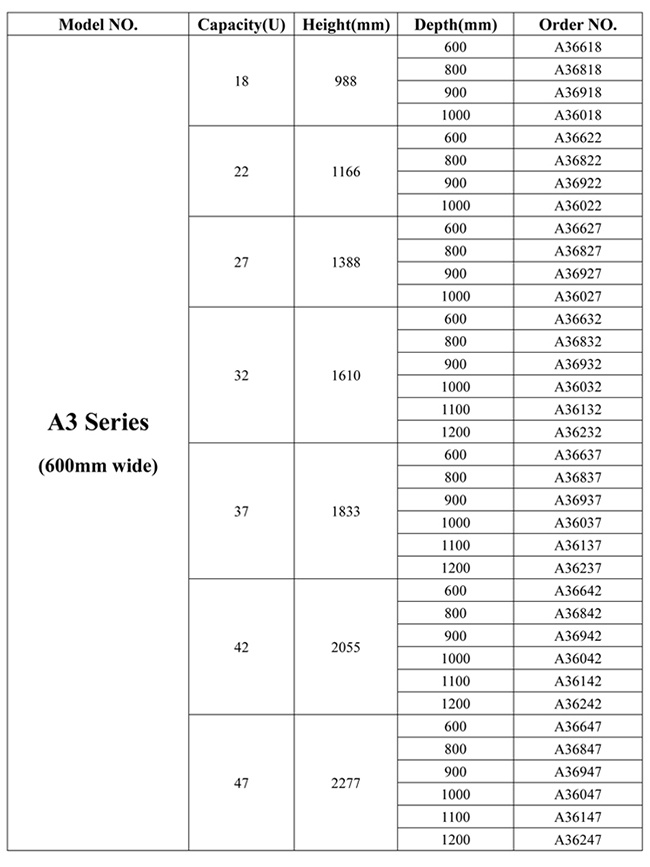

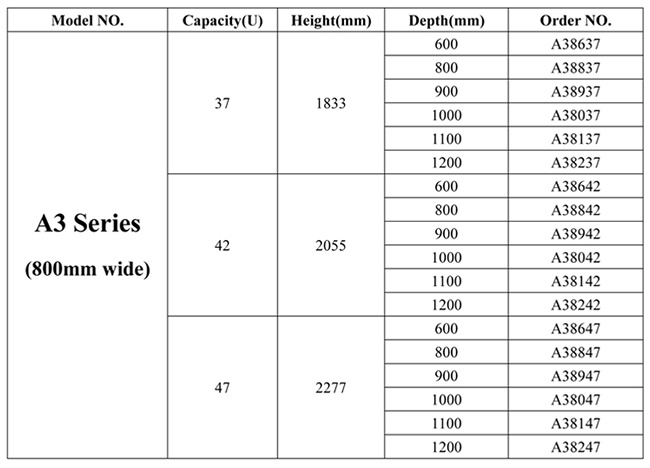

Capacity: 18u-47u

Product Description

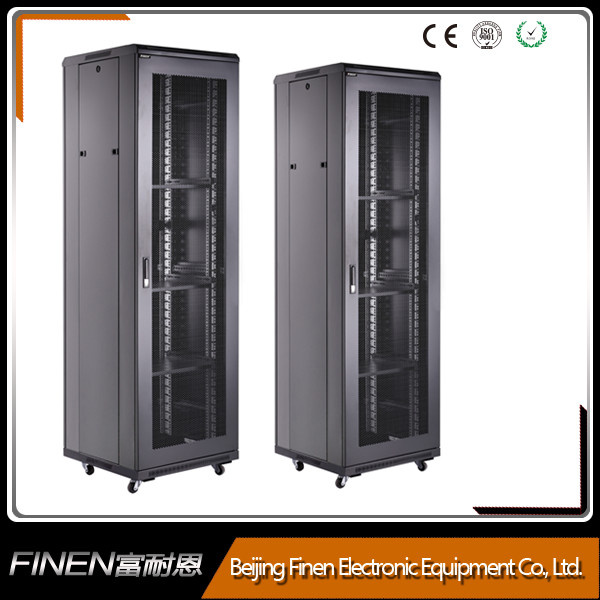

19" Floor Standing Network Cabinet Rack at Competitive price


1. Product Information


1). Standard:

Complies with ANSI/EIA RS-31O-D, IEC297-2, DIN41491: PART1, DIN41494: PART7, GB/T3047.2-92, ETSI Standard

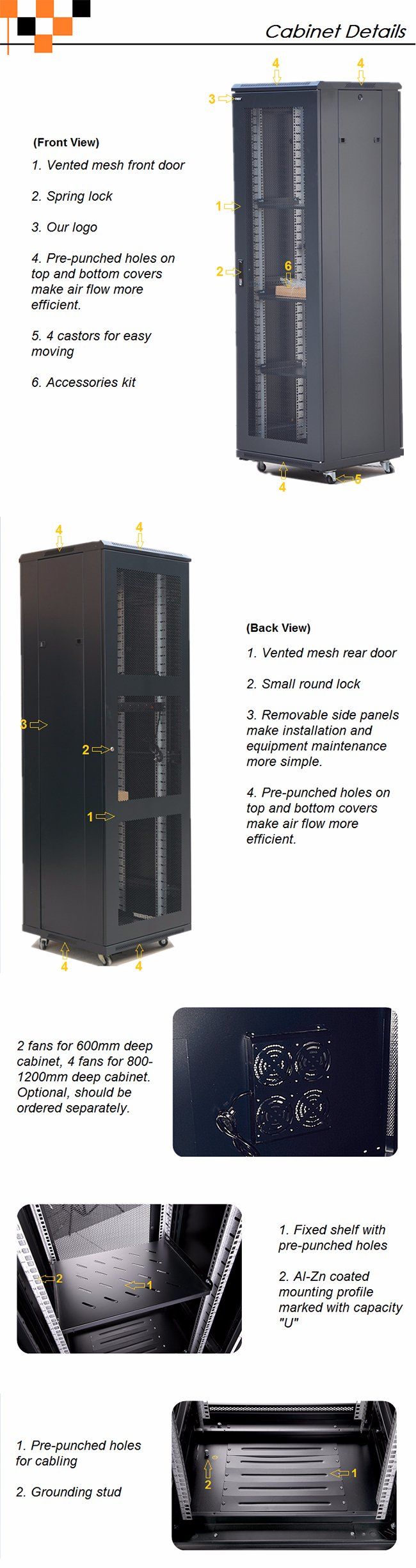

2). Features:

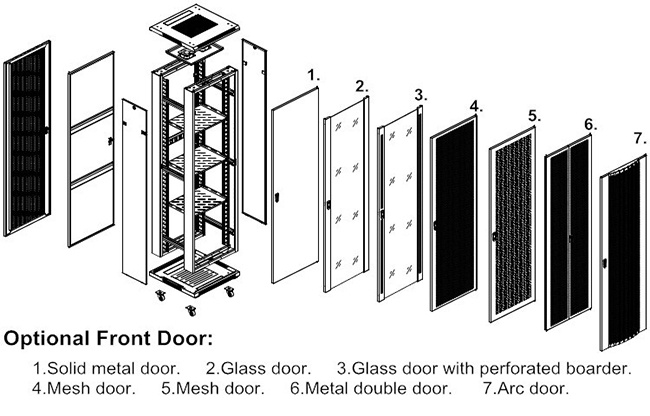

-High-Density square holes Front Door With Over 180 Turing Degree-Vented rear door with round lock
-High-Density square holes Rear Door (Ventilation Rate Above 75%)
-Removable side panel, easy to install and remove (lock optional)
-Zinc plated mounting profile
-Adjustable supports and castors are supplied
-Cable entry on top cover and base plate with adjustable sizes
-Optional plinth for better ventilation and heavy duty support
-Optional baying kit for connecting the cabinets

3). Main Material: Mounting profile(Galva clean Al-Zn coated steel plate); Others(SPCC)

4). Surface Finish: Degreasing, Pickling, Phosphating, Electrostatic spraying/Powder coating.

5). Degree of Protection: IP20

6). Loading Capacity: 800kg


2. Applications

Rack cabinets for Information Technology and telecommunication appliances:
-Small, Medium and Large Servers
-DVR, Security Equipment and Routers
-Patch Panels and Switches
-Telephone Systems and PABX
-Network and Communications Equipment
-UPS Equipment
-Other Rack Mount Equipment


3. Who are we?

1). A professional manufacturer of server rack and network cabinet with 25 years experience
2). 53 skilled engineers and more than 400 workers
3). 35000 square meters workshop

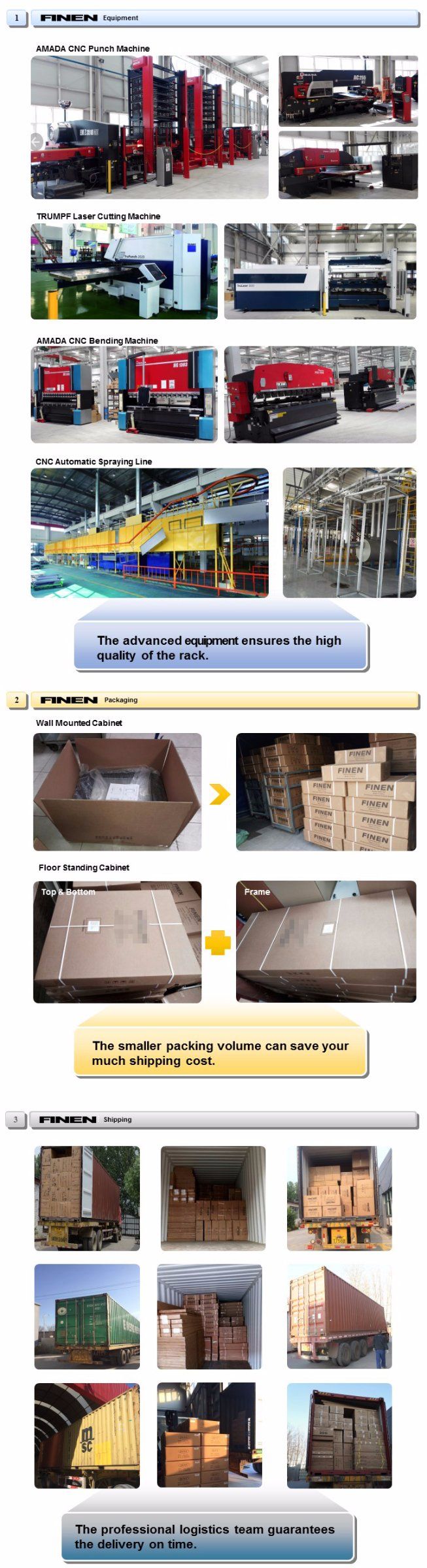

4). 5 production lines, including TruLaser 3030(Germany Trumpf), Amada RGM21003(Japan Amada), etc.









Beijing Finen Electronic Equipment Co., Ltd. Is located in industrial park of Pinggu district, Beijing. We are superior in geographic location and convenient transportation. Finen is a company with the whole line of designing, producing, selling and trading a standard series of products while continually making strides in new product development. Our tenet is "quality first, credit standing paramountcy". Welcome the clients at home and abroad to negotiate and cooperate with us.

We have excellent environment, about more than 3, 000 square meter standard production workshops and about 400 employees. Senior technical staff members are over 65 percent. The laser cutter is imported From German TRUMPF Company, AMADA CNC Press Brake, CNC punching machine and so on. We have automatic powder spraying equipment. All of processes are automation finished in airtight spray powder line.

Our product are widely adopted to the database of computer net, communication net, spaceflight and aviation, computer field, colligate thread and output electric of equipment, broadcast and TV, received series, automatism control, manpower control, monitor series, etc. Finen establishes a home & overseas sales system and earns prestige from consumers.

Our product: Network cabinet, sever rack, control console, TV screen wall, APC (structure) cabinet, (structure) cabinet, (structure) cabinet, distribution box, security equipment and so on.

Based on the advantaged experience and methods of management in developed countries, we have own better methods of management.

Depending on updated scientific management, advanced process design and strict examination measurements, we manufacture excelsior products and welcome all of you for cooperation.
