2016 New Style Warehouse / Factory Storage Metallic Push Back Rack/Shelf

Product Description

Description:

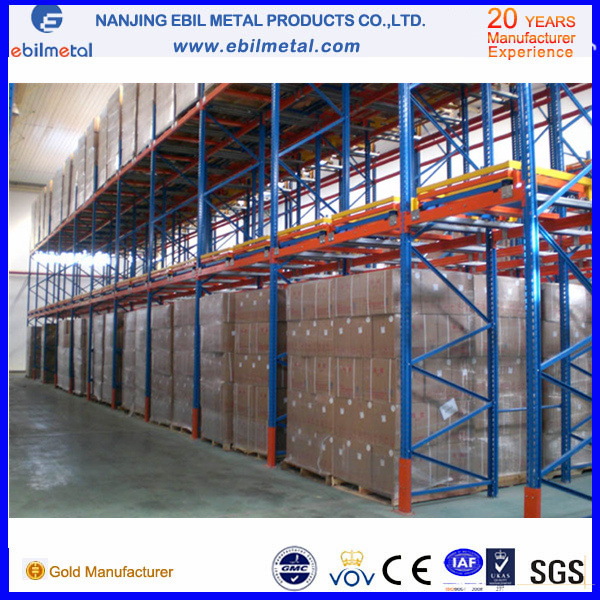

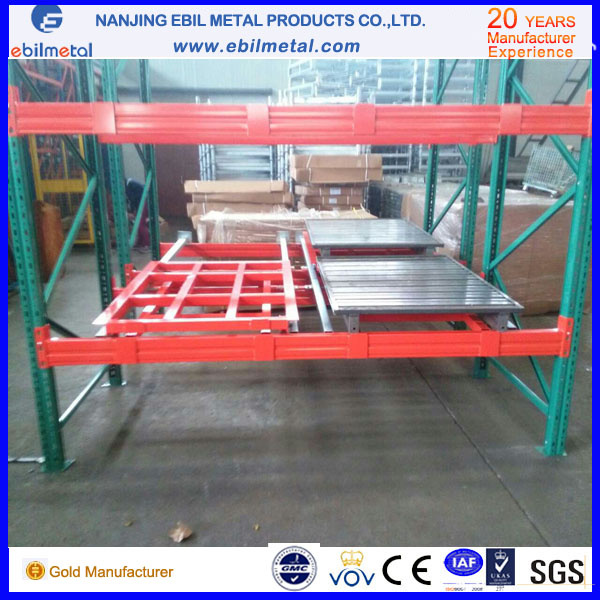

Push Back rack systems are available in structural or roll-formed frames.

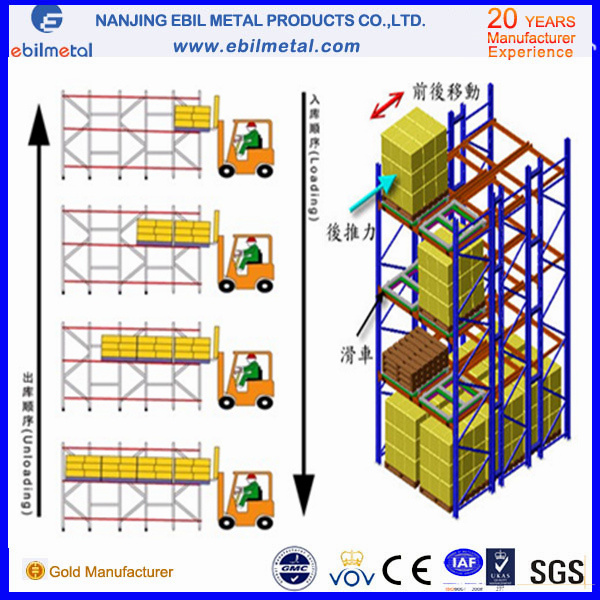

The systems work by placing pallet loads on a series of nesting carts fed forward by gravity on rigid structural steel rails. As a pallet is loaded from the front, it pushes the pallet behind it back one position. When unloading, the front pallet is removed and the rear pallets automatically come forward to the front picking position. This allows for easily accessible Last-In-First-Out (LIFO) inventory management. Operators can store product from 2-5 pallets deep, with front-only loading from a single aisle. Push Back offers more versatile storage than Drive-In rack because each lane flows independently and vertical storage operates separately from lanes below. Multiple pick facings for a variety of SKUs can be stored and retrieved without disturbing other product above or below in a single-lane or double-lane format.

Features:
1)- First-in-last-out operation process
2)- Can be designed for many levels
3)- Specially for palletized goods

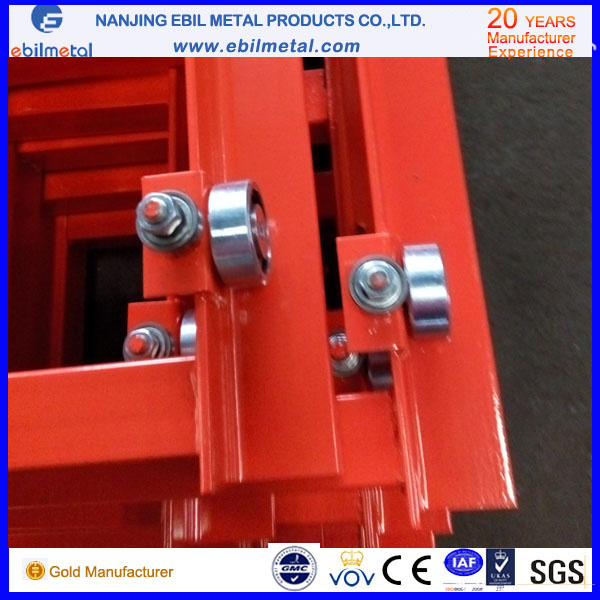

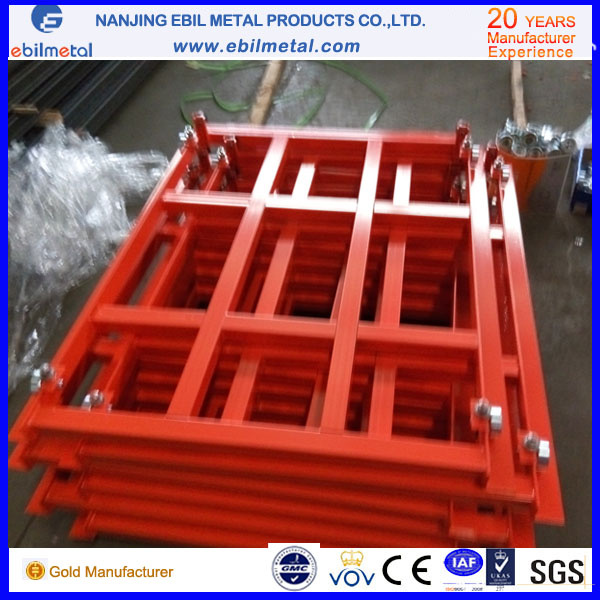

4)- Trolley has four feet with rollers moving on its support beam
5)- Has advantages of both drive-in rack and live pallet rack
6)- Each level has 4 to 5 layers of trolley, each layer will be withstood by its former layer's pallet

Please inform us of the following information for quick quotation

If you don't have the drawing and idea of the rack, we could provide you the CAD design for your warehouse to your requirements.


EBIL Advantage:
Low MOQ: Meeting actual small requests;
OEM Acceptable: We can produce you design;
Good service: We treat clients as friend;
Good quality: We have strict quality control system. Good reputation in the market;
Fast delivery: Scientific production arrangement to ensure the fast delivery.


Nanjing Ebil Metal Products Co., Ltd

---- Over 20 years' experiences in designing and manufacturing storage racking system. More than 10 years' of experience in export.

---- Sell to more than 20 provinces in domestic and more than 120 countries overseas.

---- Ebil implements ISO9001 system into all operations rigidly, and had passed CE, SGS and TUV Certificates.

---- Professional installation and after sale service teams.

WE OFFER YOU:

1. Prompt service and response in 24 hous;

2. Lead Time: 7-20 days for 3*40'fcl general orders;

3. Excellent quality for every part, every step;

4. Best storage solution for your warehouse;

5. Perfect service & technical support in every business process;

6. Direct sale freom manufacture and customized dimensions;

7. Small wholesale allowed.

8. All kinds of colors and sizes are available.

Standard colors are: blue, orange, light grey, milk white and pea green;

9. Monthly output: 2000mt;

10. Meet American, European and Australian Standards.
