2017 Hot Sell Durable High Quality Gravity Roller Pallet Rack

2017 Hot Sell Durable High Quality Gravity Roller Pallet Rack
Price: US $ 0.9-1.416
Min Order: 500016
Pay Type: L/C,T/T,Western Union
Prod Model: URGO-17001236
Surface Treatment: Powder Coating
Feature: Corrosion Protection
Certification: CE
Material: Steel
Structure: Rack
Mobility: Adjustable
Closed: Open
Development: New Type
Serviceability: Common Use
Height: 3-12m
Weight: 500-4000kg

Product Description

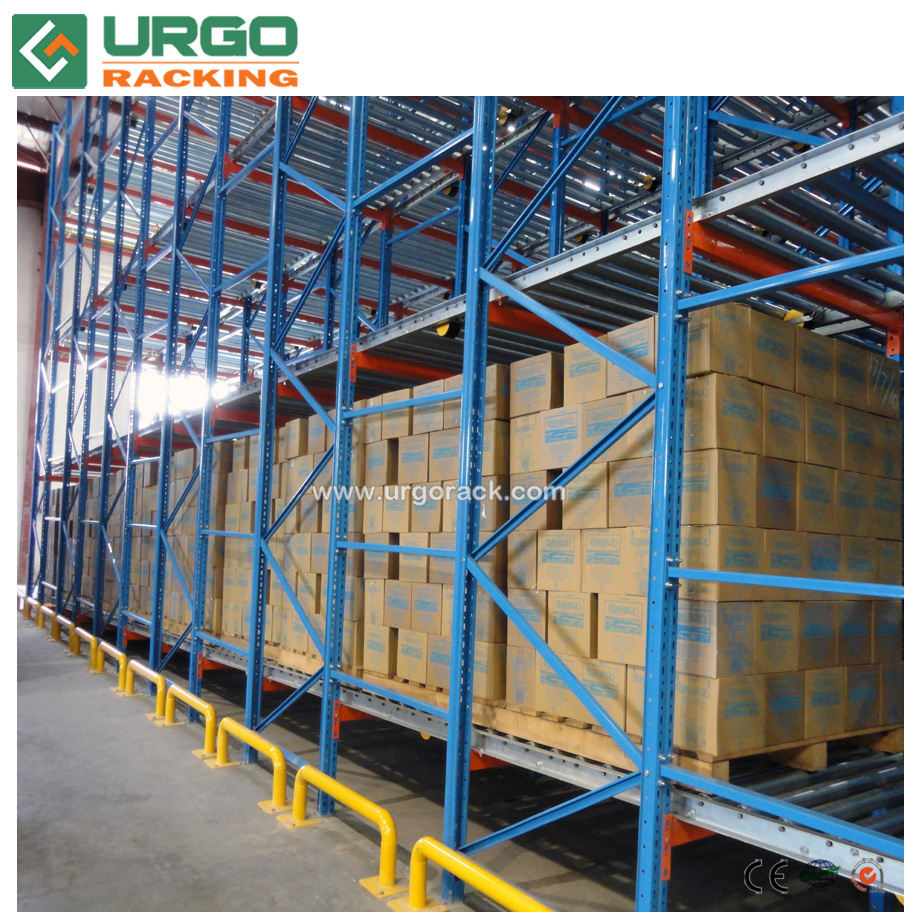

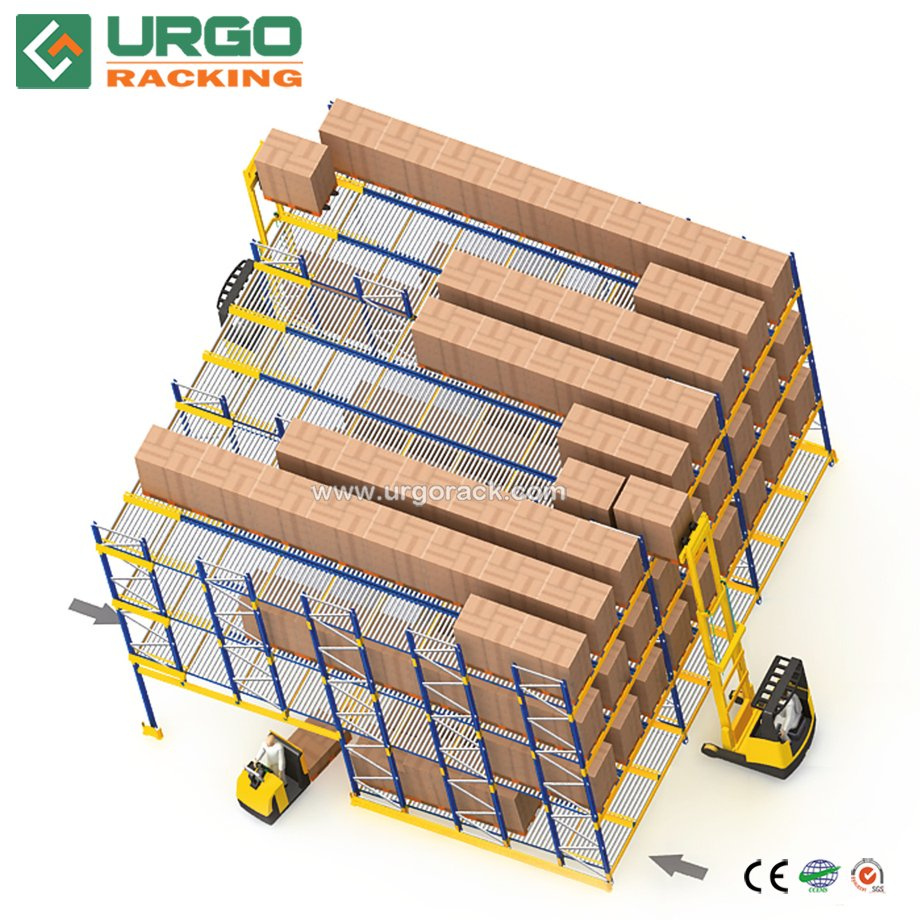

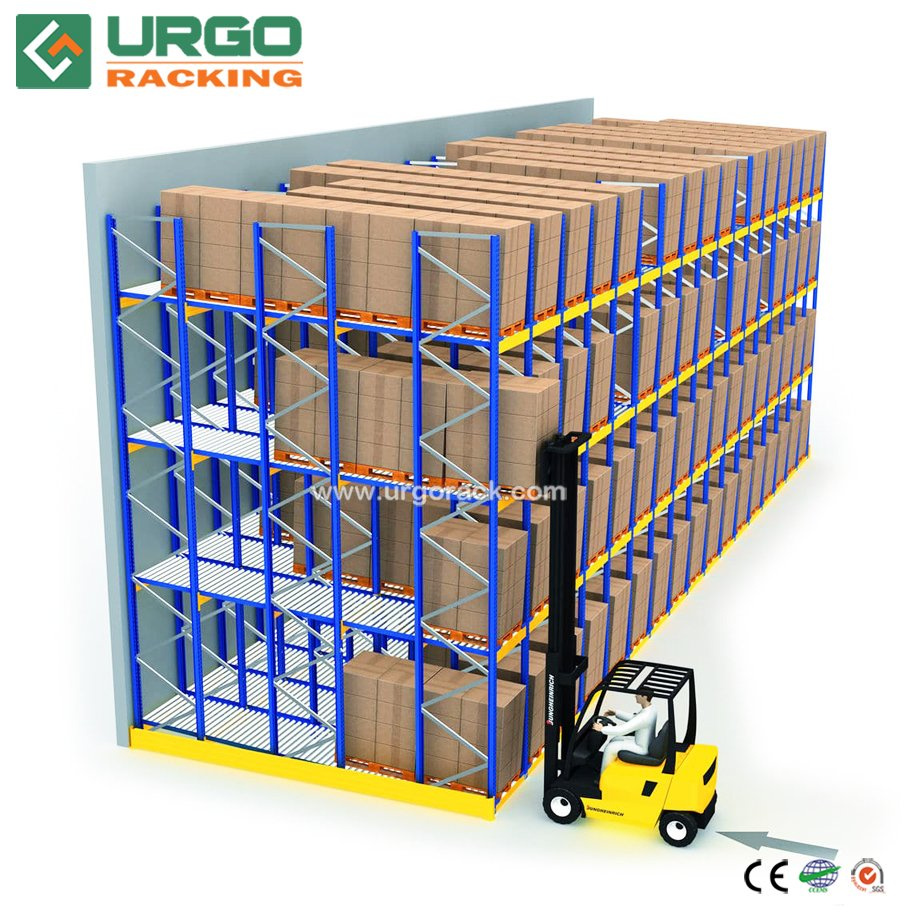

URGO Gravity Pallet Racking is ideal for situations where strict FIFO(First In First Out Solution) is required and it is also popular. When pallets need to be moved quickly from one area to another, without the assistance of lift trucks.

Features:

1. Reduced warehouse cost;
2. Easy,efficient goods loading and unloading;
3. First In First Out(FIFO) pallet goods storage;
4. Heavy duty long life construction;
5. Reduced aisie space by 60-70%;
6. Increased warehouse utilization and space savings;
7. Reduced forklift damage ad pallet or carton flows to the operator or unloading area.

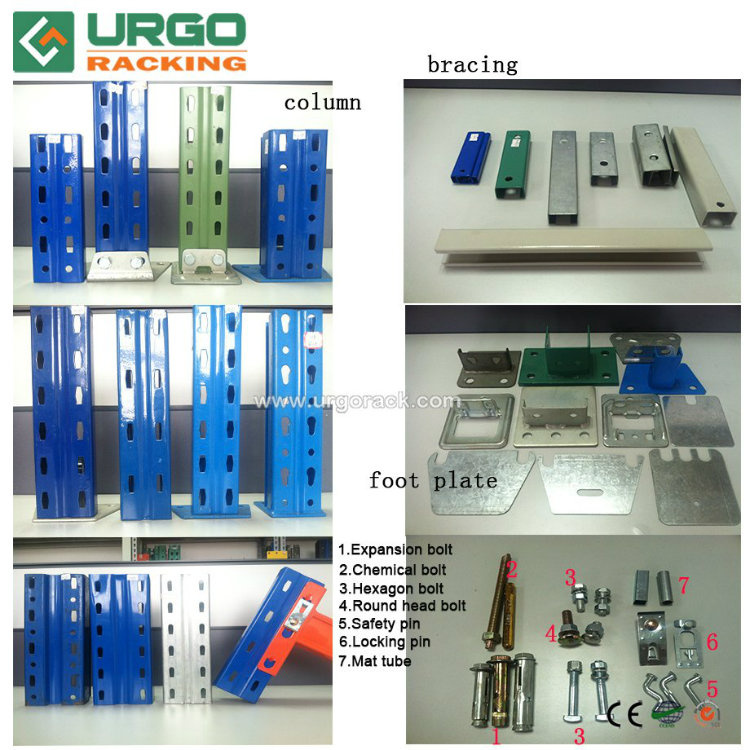

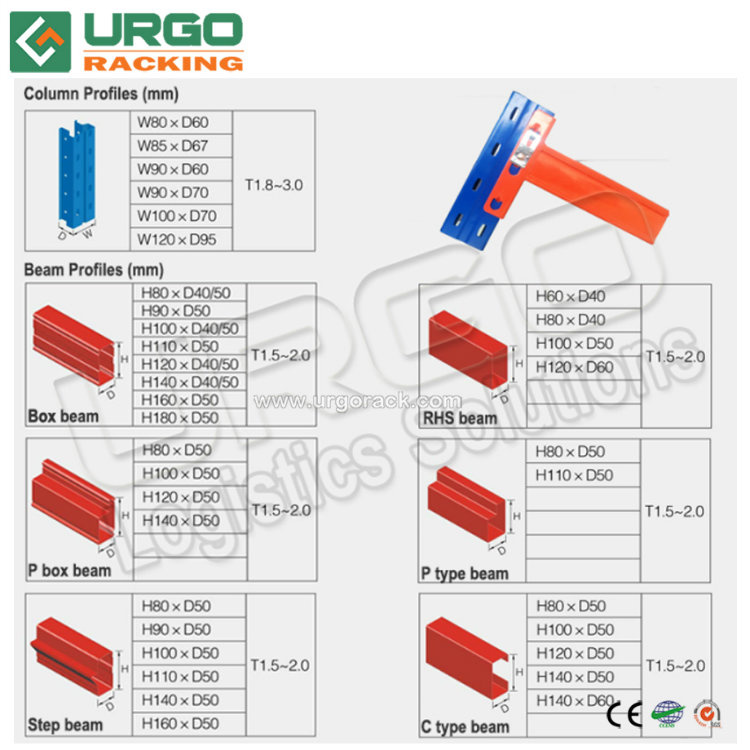

Column Profiles:

Column Specification (mm)Thickness (mm)Upright Loading (kg)
  W80 x D60 1.8-2.0 4000-6000 KG
  W85 x D67 1.8-2.3 7500-12500 KG
  W90 x D60 1.8-2.5 8000-10000 KG
  W90 x D70 1.8-2.5 10000-12000 KG
  W100 x D70 2.0-2.5 11000-14000 KG
  W120 x D95 2.3-3.0 17000-21000KG


Beam Profiles:

Loading (kg)

 Specification (mm)

The Length of Box Beam (mm)
 1500 2000  2300  2500  2700  3000  3300  3600 3900
80 x 50 x 1.5 3000 1740 1340 1160 1010
90 x 50 x 1.5 4080 2350 1800  1645 1345  1010 850
100 x 50 1.5  2960 2260 1930 1680 1380 1040
 110 x 50 x 1.5   2640 2250 1950 1600 1340 1140
 120 x 50 x 1.5   3200 2730 2358 1930 1518 1379
 140 x 50 x 1.5    3868 3330 2720 2370 2020
 160 x 50 x 1.5     4220 3690 2970 2600 2340
 160 x 50 x 1.8      4400 3420 3020

 2590

160 x 50 x 2.0      4130 4170 3320

 2840

Loading (kg)

 Specification (mm)

The Length of P Box Beam (mm)
 1500 2000  2300  2500  2700  3000  3300  3600 3900
100 x 50 x 1.5 4470 2512 1900 1610 1380 1120 920
110 x 50 x 1.5 5484 3085 2332  1974 1693 1371 1133 952
120 x 50 x 1.5  3910 2957 2503 2146 1738 1436 1207 1030
 140 x 50 x 1.5  5722 4330 3662 3140 2543 2102 1766 1505

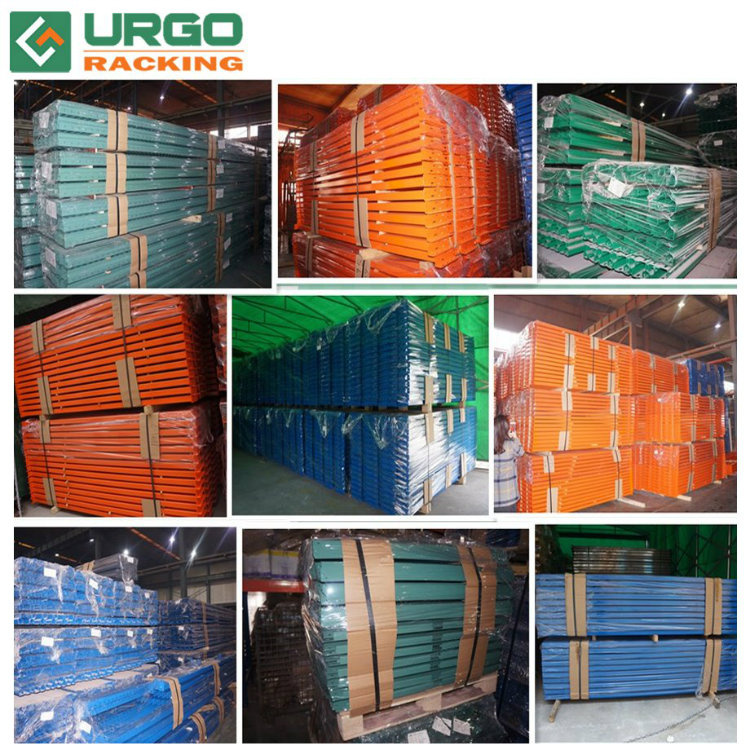

Packaging and shiping

Frequent Question Answer

1. Q: What makes you different with other suppliers?

    A: 1) Our excellent service  For a quick, no hassle quote just send email to us. We promise to reply with a price within 12 hours

        2) Our quick manufacturing time

For selective pallet racking orders, we will promise to produce within 15 days. As a manufactory we can essure the delivery time according to the formal contract.

        3) Our special export designWe pay very much attention to the export packages. We have plastic clips on the beams to protect the beams

from surface damage in the transportation, We have got thewhole uprights wrapped  with transparent  plastic film.

        4) Our warranty time

        The high standards in the design and manufacturing ensure us to support the products with a 10 years warranty time for your normal use, it is the longest manufacturer's warranty !

2. Q: May I know the status of my order?

     A: Yes. We will send you information and photos at different production stage of your order. You will get the latest information in time.

3. Q: Are samples available?

     A: Yes, we can send some sections of samples for your reference by express.

4. Q: Is Galvanised Finish available for pallet racks?

     A: Yes. Pallet raking posts and bracings are available with galvanized finish.

5. Q: How can I get your quick quotation on my pallet racking project?

     A: As different clients and projects have different needs of racking dimensions and specification, as general, for quick quotation, we need to know the following information:

         1) Required Pallet Racking Dimension: Height*Depth*Length?

         2) Number of Levels?

         3) Loading Capacity of each level?

         4) Racking Quantity?
