Home LED Light Products ABS Runner Carton Flow Self Slide Gravity Rack for Box Storage

ABS Runner Carton Flow Self Slide Gravity Rack for Box Storage

ABS Runner Carton Flow Self Slide Gravity Rack for Box Storage
Price: US $ 84-90/Set
Trade Terms: FOB,CFR,CIF
Min Order: 20/Set
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: SL-GR10
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Delivery Time: Within 10 Days
Storage: First in.First out
Depth (Column): 600-3000mm
Height (Column): 1500-3000mm
Load: up to 500kg
Roller: Aluminum/Metal/Metal Reinforced
Colour: Blue+Orange
Fast Delivery: 10 Days
Surface Treatment: Powder Coating
Certifications: CE/SGS/As4084/ISO9001
Material: Steel
Structure: Shelf
Mobility: Adjustable
Height: 0-5m
Weight: 150-500kg
Closed: Semi-closed
Development: New Type
Serviceability: Common Use

Product Description

ABS Runner Carton Flow Self Slide Gravity Rack for box storage

Product feeds to Picking Position by Gravity Flow
Carton flow rack system(also called gravity flow rack) for every size warehouse and every price range are gravity driven and perfect for applications with numerous SKUs. Inventory rotation is ensured with First-in/first-out presentation basis. Separating the loading aisle from the retrieval aisle allows pickers to operation more efficiency. Carton flow rack user sloped shelves to improve visibility and order accuracy and is perfect answer for split case or piece picking.

Carton flow rack can be integrated with conveyors and other warehouse storage solutions to create functional pick modules and picking efficiency.

The strength by Sunli
. ABS runners plus aluminium tracking rails
. 60*45 or 80*60 column plus 60*40 or 80*40 beams
.We can provide plastic box to match warehouse storage
. Rigid hardness of steel, to provide at least 5 years warranty against manufacture's defects
. We do customized purchase for your business

Technical Descriptions

StyleCarton flow rack system, gravity sliding runner
SelectionSingle row, multiple rows
MaterialQ235B Steel( powder coated finish)
Dimension of rack1, Depends on carton/box sizes

Mateiral section
100KG~500KG)
1,Beam: 80*45mm/90*45mm
2, uprights: 80*60mm
3, Thickness: Beam: 1.5~1.8mm; upright:1.5mm~1.8mm
Colour RAL2004+RAL5015
( www.ralcolour.com)
Weight capacity100KG~500KG per level
Package1, Less than one container: steel pallets/steel straps/plastic film
2,full container: plastic film/steel pallets for items
ServicesCAD drawings for rack layout; CAD drawings for installation

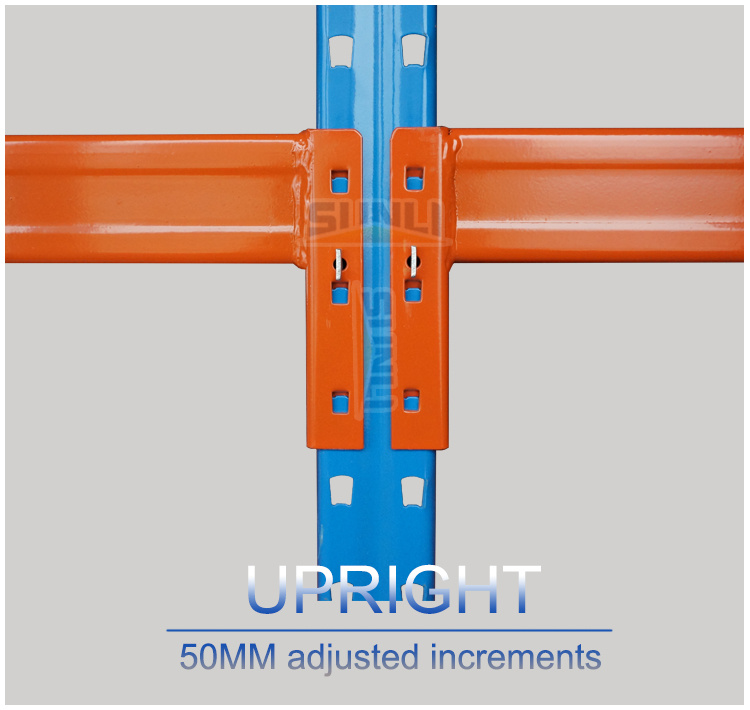

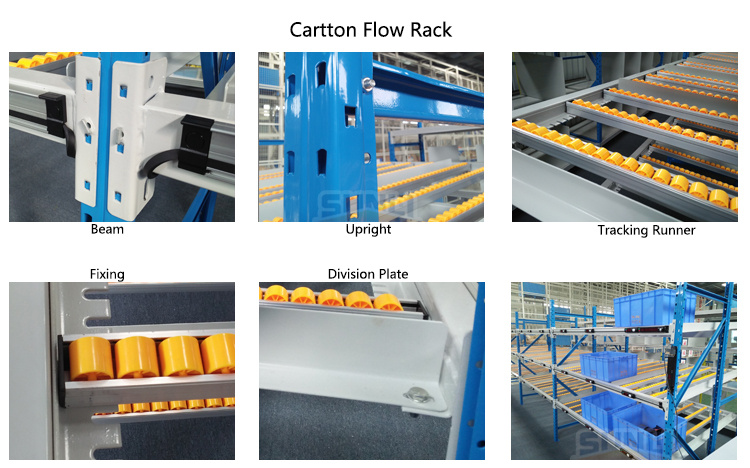

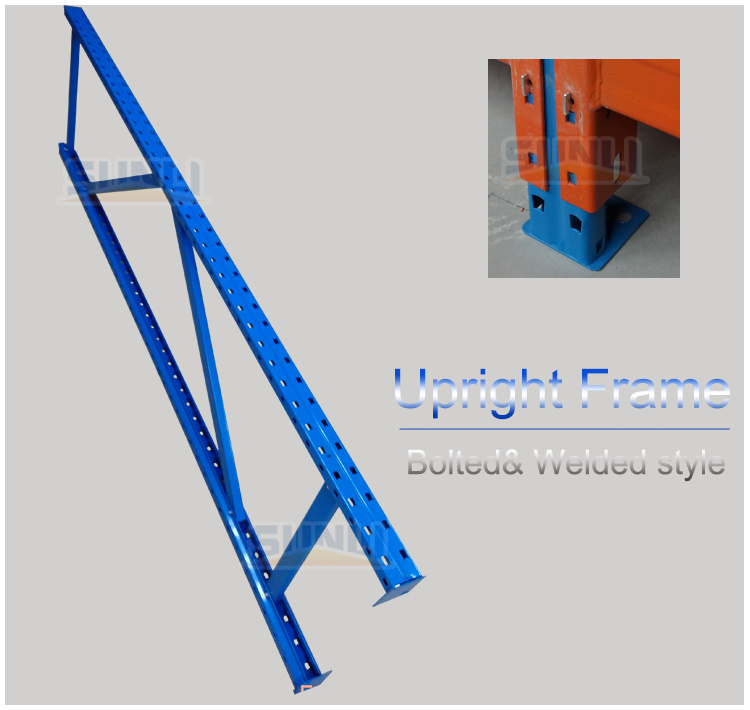

Detailed image for column, beam section for gravity flow rack system

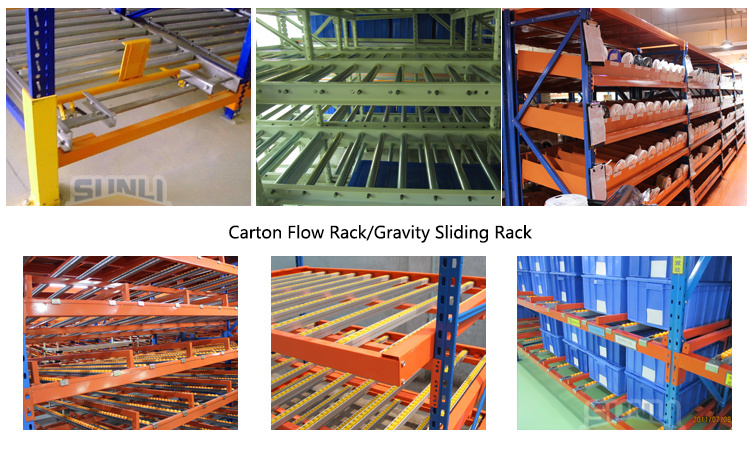

Total view for carton flow rack system

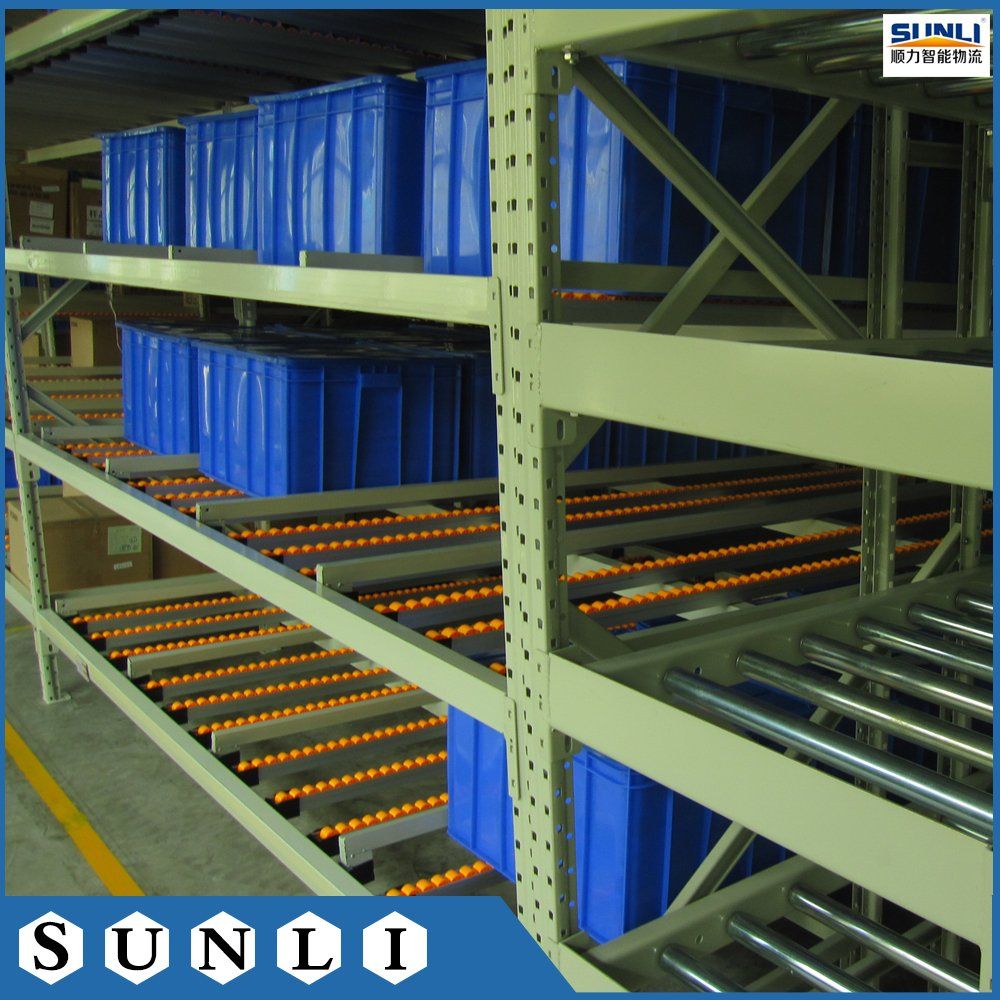

Application for carton flow rack system with gravity flow runner

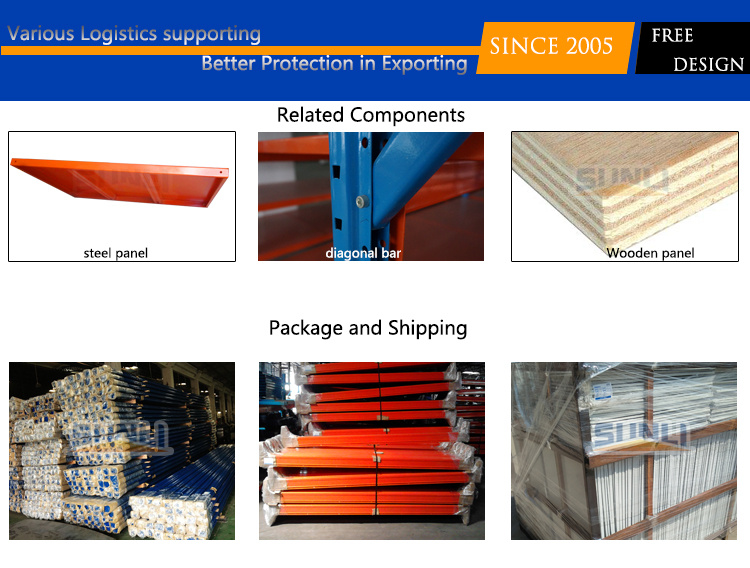

General package for storage rack system






Please inform us following information to get prompt offer for storage rack system

+  The dimensions of single rack unit ( or palletized load descriptions)

+  The palletized payload

+  Row of racks(  single row, back-to-back row or multiple rows)

+  How many palletized load within one unit

( Please refer to the Product Description on the top)

FAQ
1, What is MOQ limitation for Self Slide Gravity Rack?
++ NO. But large purchase will bring competitive prices, 20FT container ( 10T~13T) is highly recommended, so that  production can be better handled.

2, What is the lead time in Sunli?
++ As per 20FT container loading, manufacture time is about 21days; Regarding some customized items 25~27days will be covered.

3,  What is payments methods Sunli can accept?
++ T/T and L/C are welcomed.

4, How about Sunli's sample delivery?
++ Short section of uprights and beams can be provided free of charge. But the freight will be collected upon your duty.

5, What is warranty for Sunli's rack system?
++ All rack items will be warrantied against manufacture's defects.
++ To avoid any shortage or missing components, we will provide 1%~2% spare parts besides basic ones.

The Rack Manufacturers&Designers, Guangdong Sunli Intelligent Logistics Equipment Co., Ltd are the national distributor of Industrial Steel Storage Racks and AS&RS system. We supply industrial rack solutions worldwide and in every major manufacturing and distribution sector. Sunli was formed in 2005.

Various products include Automatic storage system, pallet rack, carton flow, shelving, wire decking, safety&protection equipment, mobile carts, pallet, stackers and more.

As a turn-key solution, capabilitiesInclude warehousing design, consulting, in-house installation crews and new&unique solutions for closing, downsizing and new facilities. Stock items available.

What sets us apart from our competitors is the large inventory that we stock. We don't sell out of other dealer inventories. Instead, we carry rack stocks in Guangdong province - with hundreds/ thousands of beams, uprights and wire decksOn hand for immediate distribution.

Our team can design you a system for your project needs. We quote exactly what you need from our large in-stock inventory of teardrop,

New style, & many more beams and uprights. This allows us to meet your needs and ship your order when you need it.

Sunli motto "Value beyond expectations
