Aluminum Plastic Tube Filling and Sealing Machine

Aluminum Plastic Tube Filling and Sealing Machine
Price: US $ 7500-25000/Set
Trade Terms: FOB,CIF,FCA
Min Order: 1/Set
Pay Type: L/C,T/T
Prod Model: FGF01
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Tube Type: Composite Tube, Aluminum and Plastic
Filling Head: Usually One or Customized
Material Of Feeding Hopper: SUS304/316L or Customized
Main Material Of The Machine: SUS304
Automatic Type: Fully Auto
If Semi-Auto: Customized
Function: Automatic Feeding Tube, Filling and Sealing
Date Coding: Yes
Filling Scope: as Customized
Dimension: Refering
Type: Volumetric Filling Machine
Automatic Grade: Automatic
Material Type: Liquid
Filling Valve Head: Single-Head
Feed Cylinder Structure: Single-Room Feeding
Dosing Device: Plunger
Filling Principle: Pressure
Packaging Container Lifting Structure: Pneumatic Lifting
Structure: Rotary
Packaging Material: Composite Materials
Packaging Type: Aluminum Plastic Composite Tube

Product Description

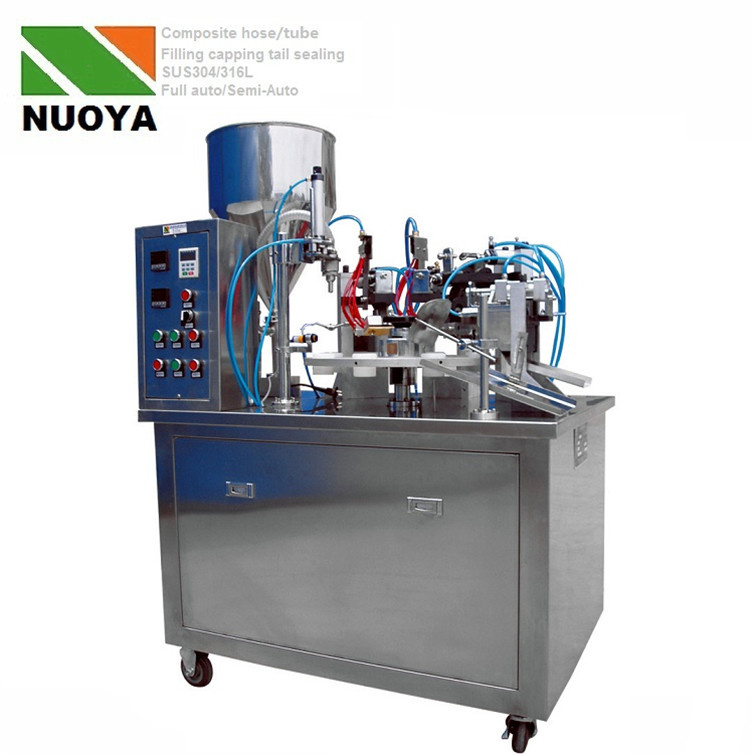

Aluminum Plastic Tube Filling and Sealing Machine


Introduction:
FGF tube filling and sealing machine is usually used for material's package using the composite hose as the packing container,such as aluminum-plastics composite flexible tube.
After tube-feeding,8 tube-position rotates continuously for quantity filling, auto-cut-off, heating sealing and tube ejecting.
It is used for the product's packing in the fields of medicine, daily chemical products products, food and fine chemical industry, for example. The filling and tail-sealing for the ointment,hair dyes,pigments,toothpastes,shoe polishes and adhesives.

Features:
★ made of stainless steel
★ button-controlled and easy to adjust filling quantity and speed
★ No liquid leak and clean
★ pneumatic-controlled
★ For the special industry, It adds the gas protection device to prevent the solidification phenomenon occurring during transportation and storage process after the materials are sealed.
★ The machine is suitable for various size of plastic tube for filling, sealing, and date printing. It is featured with performance. Optional: pot heating system, against-trail-out filling head.

The Filling Process:

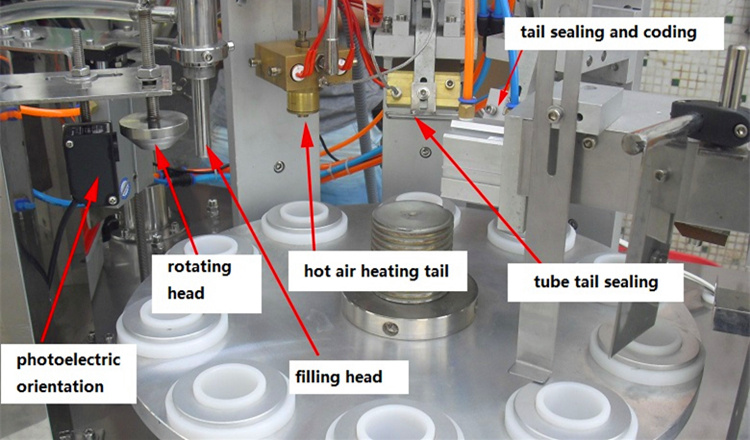

tube feeding → tube position (hose container) → automatic identification label located on pipe → filling quantity control test → filling→ heating the tube (inner heating for plastic tube, outer heating for compound tube)→ tail shaping and sealing → tail cutting → Print → finished discharge code.


Technical parameters :
Voltage
220V 50Hz
Filling capacity
20-30 pcs/min
Filling quantity
50ml, 100ml, 200ml
Quantity error
<2%
Compressed air
pressure 0.6-0.8Mpa
Air consumption
<30( dm³/min )
Dimension
1230mm*700mm*1400m

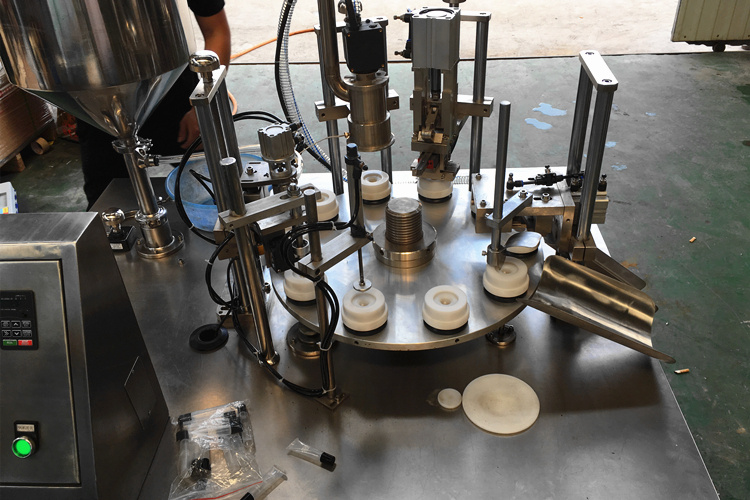

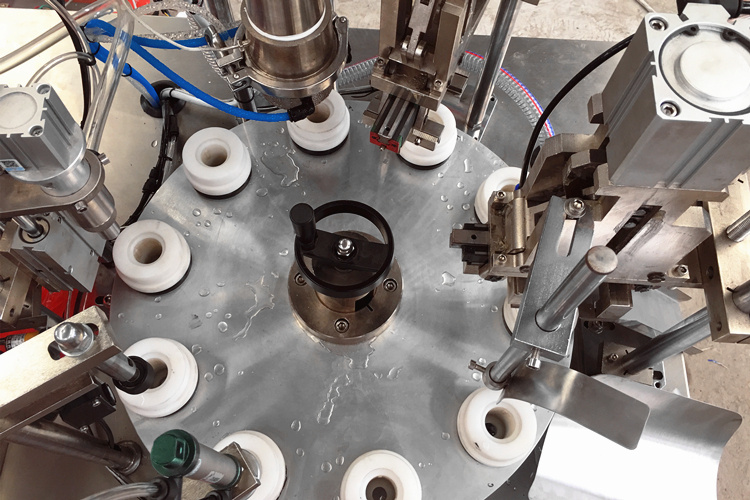

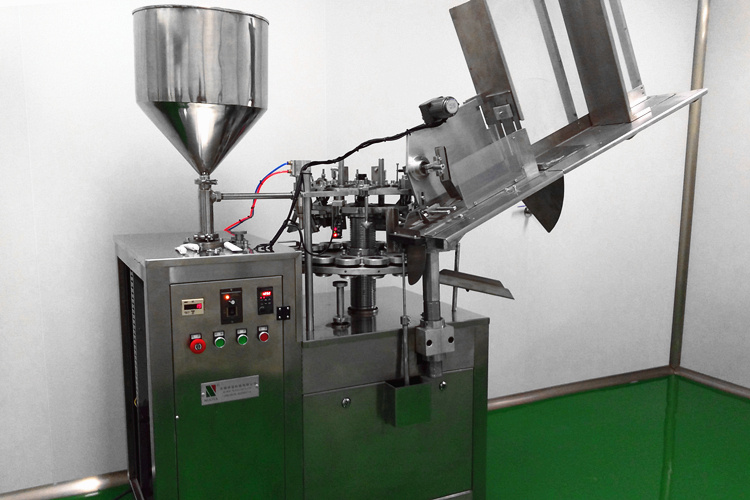

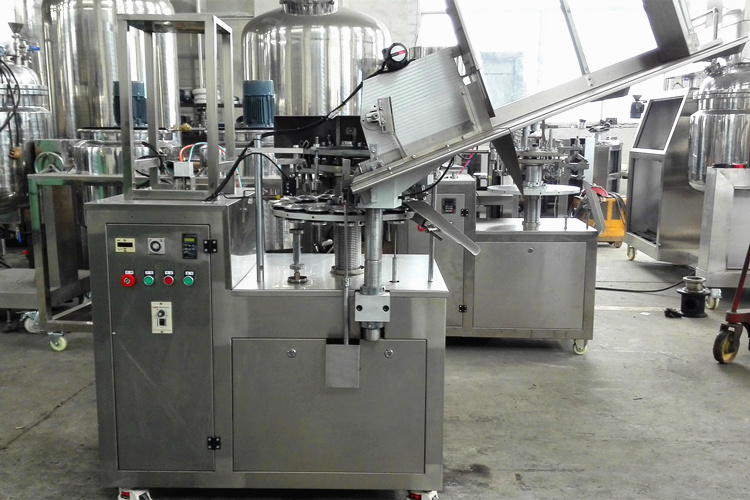

More pictures:




FAQ

Q1.Why choose us?
More than 15 years history of manufacturing machine.

Well experienced professional technical team.
Products as customized.
Price advantage with high quality and excellent service.


Q2.What's your main products?
Vacuum emulsifying machine,homogenizer,cream making machine.

Mixing machine,high speed dispersing machine,double planetary mixer.
Filling machine and sealing machine,tube filling sealing machine,packing and racking machine.
Colloid mill machine,crusher,grinding machine and other mixers.

Mixing tank,storage tank,reaction tank.


Q3.What about components are broken?
The warranty is one year.

If it is in warranty,we will send you a new one for free to replace right after we confirm the reason by EMS,DHL or TNT.
If it is out of warranty,the new components will be charged.


Q4.How to get contacted directly?

WhtasApp, Skype, Viber, Messenger Avaible
SEND INQUIRY FOR MORE CONTACT WAYS.

WILL GIVE YOU ANSWERS WITHIN 18 HOURS.
