Auto Line for Shape Glass Cutting Machine
| Price: | US $ 38000-39000/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,Western Union,Money Gram |
| Prod Model: | YD-CNC-2620 |
|---|---|
| 1.New Style: | Pretty |
| 2.Good Looking: | Bright |
| 3.Horizontal: | Suitable for Flat Glass |
| 4.Size: | as Required |
| 5.System: | Automatic |
| 6.Glass Thickness: | 2-15mm |
| 7.Power: | 11kw |
| 8.Sturdy Structure: | Easy for User to Operate |
| 9.Fast Shipping: | Can Make Soon |
| 10.Occupies Small Space: | Working Stable |
| Type: | CNC Engraving Machine / CNC Router |
| Certification: | CE |
| Control System: | Automatic |
| Glass Edging Machine Type: | Glass Taking Platform |
Product Description

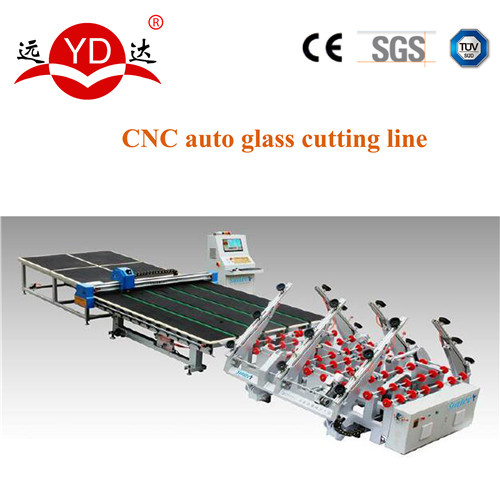

Auto Line for Shape Glass Cutting Machine
The line mainly contains three sections:
1. YD-SP-2620 Automatic Glass Loading MachineMain parts list:
Technical introduction:
Technical parameter:
2. YD-CNC-2620 Automatic Shaped Glass Cutting Machine
Main technical parts:
Main electric parts:
Technical parameter:
3. YD-QP-2620 Glass Breaking Table
Mechanical characteristic:
The line mainly contains three sections:
- YD-SP-2620 Automatic Glass Loading Machine
- YD-CNC-2620 Automatic Shaped Glass Cutting Machine
- YD-QP-2620 Glass Breaking Table
1. YD-SP-2620 Automatic Glass Loading MachineMain parts list:
- PLC: Omron(Japan)
- Touch screen: MCGS
- Converter: Teco(Taiwan)
- Sensor: Omron(Japan)
Technical introduction:
- Tilt and suck: tilt angle adjustable, 3-19mm glass sheet auto-suck, suck depth 750mm
- Chain convey after glass suck
- Both auto and manual modes
- Auto alarm system and emergency button for make sure safety operation
- English language touch screen operation
- Glass sheet quantity and station position auto set
- Loading sequence: move-arm tilt up-glass sheet sense-glass sheet vacuum suck-move back-arm tilt flat-glass transmit to cutting table
Technical parameter:
| Model | Max. glass size | Thickness | Dimensions(L*W*H) | Power | Air pressure |
| SP-2620 | 2600*2000mm | 2-15mm | 3860*2200*900mm | 8kw | 0.6-0.8MPa |
| SP-4228 | 4200*2800mm | 3-19mm | 5400*3000*900mm | 8kw | 0.6-0.8MPa |
| SP-5133 | 5100*3300mm | 3-19mm | 5400*3000*900mm | 8kw | 0.6-0.8MPa |
| SP-6133 | 6100*3300mm | 3-19mm | 6430*3340*900mm | 8kw | 0.6-0.8MPa |
2. YD-CNC-2620 Automatic Shaped Glass Cutting Machine
Main technical parts:
- Table panel: high density water proof panel( flatness≤±0.2mm/m)
- Rack and rail: KHK Japan
- Guide rail: Hiwin Taiwan
- Belt: China brand (Joint venture)
- Cutter wheel and cutter holder: Bolhe Germany
Main electric parts:
- CNC System: Galil(USA)
- Optimization software: Optima(Italy)/ Guiyou(China best brand)
- Servo motor: YASKAWA(Japan)
- Pneumatic parts: Airtec(Taiwan)
- Low voltage electric parts: Schneider(France)
- Cutting pressure valve: SMC(Japan)
Technical parameter:
| Model | Max. glass size | Thickness | Dimension(L*W*H) | Max. speed | Air pressure |
| CNC-1512 | 1500*1200mm | 2-15mm | 2480*2240*1275mm | 150m/min | 0.6-0.8MPa |
| CNC-2620 | 2620*2000mm | 2-15mm | 3900*3100*1300mm | 160m/min | 0.6-0.8MPa |
| CNC-4228 | 4200*2800mm | 3-19mm | 5360*3100*1300mm | 160m/min | 0.6-0.8MPa |
| CNC-5133 | 5100*3300mm | 3-19mm | 6150*4212*1300mm | 160m/min | 0.6-0.8MPa |
| CNC-6133 | 6100*3300mm | 3-19mm | 7150*4212*1300mm | 160m/min | 0.6-0.8MPa |
3. YD-QP-2620 Glass Breaking Table
Mechanical characteristic:
- Air float function
- Breaking bars 1+1
- High density water-proof table
- Imported felt, high flatness, antistatic
- Breaking bars foot switch control
- Partial design for standard container load
The equipment can be customized as required.
Guarantee And After-sale Service:
- One year guarantee for whole machine.
- 24 hours technical support by e-mail.
- Ues-friendly English software, manual and detailed Videos/CD.
We will provide all spare parts needed for maintenance of the equipments.
Professional after-sales service team support face-to-face training and installation to customer's factory.
