Home LED Light Products for Different Shape Glass Cutting Machine
for Different Shape Glass Cutting Machine
| Price: | US $ 38000-39000/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,Western Union,Money Gram |
| Prod Model: | YD-CT-2620 |
|---|---|
| 1.New Style: | Pretty |
| 2.Good Looking: | Bright |
| 3.Horizontal: | Suitable for Flat Glass |
| 4.Size: | as Required |
| 5.System: | Automatic |
| 6.Glass Thickness: | 3-19mm |
| 7.Power: | 8kw |
| 8.Sturdy Structure: | Easy for User to Operate |
| 9.Fast Shipping: | Can Make Soon |
| 10.Occupies Small Space: | Working Stable |
| Type: | CNC Engraving Machine / CNC Router |
| Certification: | CE |
| Control System: | Automatic |
| Glass Edging Machine Type: | Glass Taking Platform |
Product Description

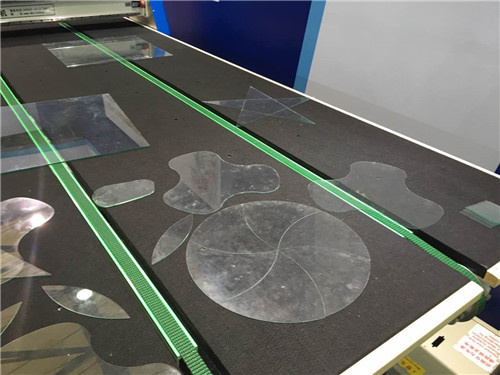

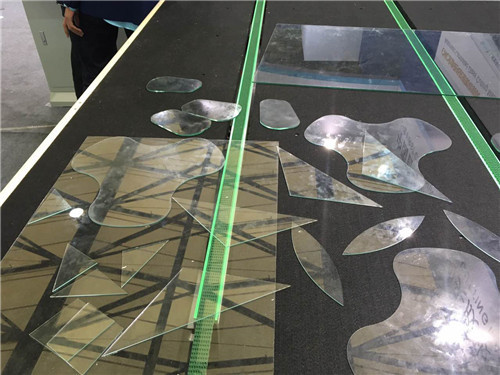

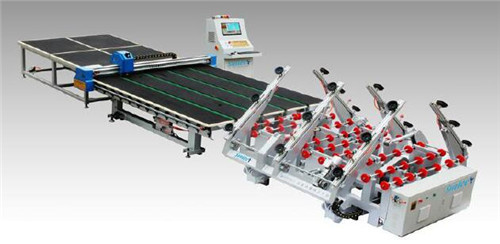

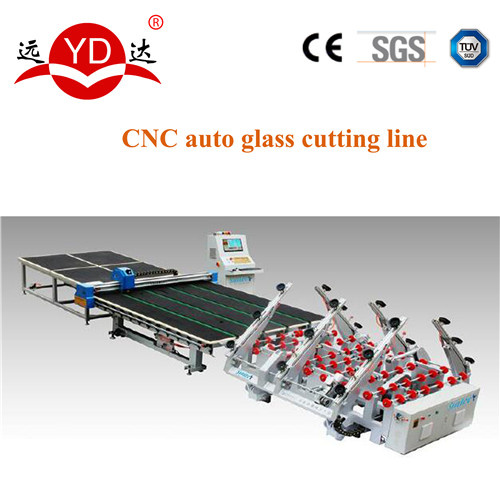

Hot selling new functional glass shape cutting machine line
The line mainly contains three sections:
1. YD-SP-2620 Automatic Glass Loading MachineMain parts list:
2. YD-CNC-2620 Automatic Shaped Glass Cutting Machine
Main technical parts:
3. YD-QP-2620 Glass Breaking Table
Mechanical characteristic:
- YD-SP-2620 Automatic Glass Loading Machine
- YD-CNC-2620 Automatic Shaped Glass Cutting Machine
- YD-QP-2620 Glass Breaking Table
1. YD-SP-2620 Automatic Glass Loading MachineMain parts list:
- PLC: Omron(Japan)
- Touch screen: MCGS
- Converter: Teco(Taiwan)
- Sensor: Omron(Japan)
- Tilt and suck: tilt angle adjustable, 3-19mm glass sheet auto-suck, suck depth 750mm
- Chain convey after glass suck
- Both auto and manual modes
- Auto alarm system and emergency button for make sure safety operation
- English language touch screen operation
- Glass sheet quantity and station position auto set
- Loading sequence: move-arm tilt up-glass sheet sense-glass sheet vacuum suck-move back-arm tilt flat-glass transmit to cutting table
| Model | Max. glass size | Thickness | Dimensions(L*W*H) | Power | Air pressure |
| SP-2620 | 2600*2000mm | 2-15mm | 3860*2200*900mm | 8kw | 0.6-0.8MPa |
| SP-4228 | 4200*2800mm | 3-19mm | 5400*3000*900mm | 8kw | 0.6-0.8MPa |
| SP-5133 | 5100*3300mm | 3-19mm | 5400*3000*900mm | 8kw | 0.6-0.8MPa |
| SP-6133 | 6100*3300mm | 3-19mm | 6430*3340*900mm | 8kw | 0.6-0.8MPa |
2. YD-CNC-2620 Automatic Shaped Glass Cutting Machine
Main technical parts:
- Table panel: high density water proof panel( flatness≤±0.2mm/m)
- Rack and rail: KHK Japan
- Guide rail: Hiwin Taiwan
- Belt: China brand (Joint venture)
- Cutter wheel and cutter holder: Bolhe Germany
- CNC System: Galil(USA)
- Optimization software: Optima(Italy)/ Guiyou(China best brand)
- Servo motor: YASKAWA(Japan)
- Pneumatic parts: Airtec(Taiwan)
- Low voltage electric parts: Schneider(France)
- Cutting pressure valve: SMC(Japan)
| Model | Max. glass size | Thickness | Dimension(L*W*H) | Max. speed | Air pressure |
| CNC-1512 | 1500*1200mm | 2-15mm | 2480*2240*1275mm | 150m/min | 0.6-0.8MPa |
| CNC-2620 | 2620*2000mm | 2-15mm | 3900*3100*1300mm | 160m/min | 0.6-0.8MPa |
| CNC-4228 | 4200*2800mm | 3-19mm | 5360*3100*1300mm | 160m/min | 0.6-0.8MPa |
| CNC-5133 | 5100*3300mm | 3-19mm | 6150*4212*1300mm | 160m/min | 0.6-0.8MPa |
| CNC-6133 | 6100*3300mm | 3-19mm | 7150*4212*1300mm | 160m/min | 0.6-0.8MPa |
3. YD-QP-2620 Glass Breaking Table
Mechanical characteristic:
- Air float function
- Breaking bars 1+1
- High density water-proof table
- Imported felt, high flatness, antistatic
- Breaking bars foot switch control
- Partial design for standard container load
The equipment can be customized as required.
Guarantee And After-sale Service:
- One year guarantee for whole machine.
- 24 hours technical support by e-mail.
- Ues-friendly English software, manual and detailed Videos/CD.
We will provide all spare parts needed for maintenance of the equipments.
Professional after-sales service team support face-to-face training and installation to customer's factory.
Why choose Ladglass?
1.Widely used in different industry
2.High precision and reputation
3.CE Certificate High quality parts
4.Competitive price
5.Fast delivery
6.Best service
Welcome your inquiry and we will try our best to help you choose a right machine!
