Price: | US $ 15000-35000/Piece |
---|---|
Min Order: | 1/Piece |
Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
Prod Model: | R-VF |
---|---|
Condition: | New |
Cumputerized: | Cumputerized |
Certificate: | Ce,GMP,ISO |
Customized: | Customized |
Type: | Volumetric Filling Machine |
Automatic Grade: | Fully Automatic |
Material Type: | Liquid |
Filling Valve Head: | Multi-Head |
Feed Cylinder Structure: | Single-Room Feeding |
Dosing Device: | Capacity Cup |
Filling Principle: | Atmospheric Pressure |
Packaging Container Lifting Structure: | Pneumatic Lifting |
Structure: | Rotary |
Packaging Type: | Bottle |
Packaging Material: | Glass |

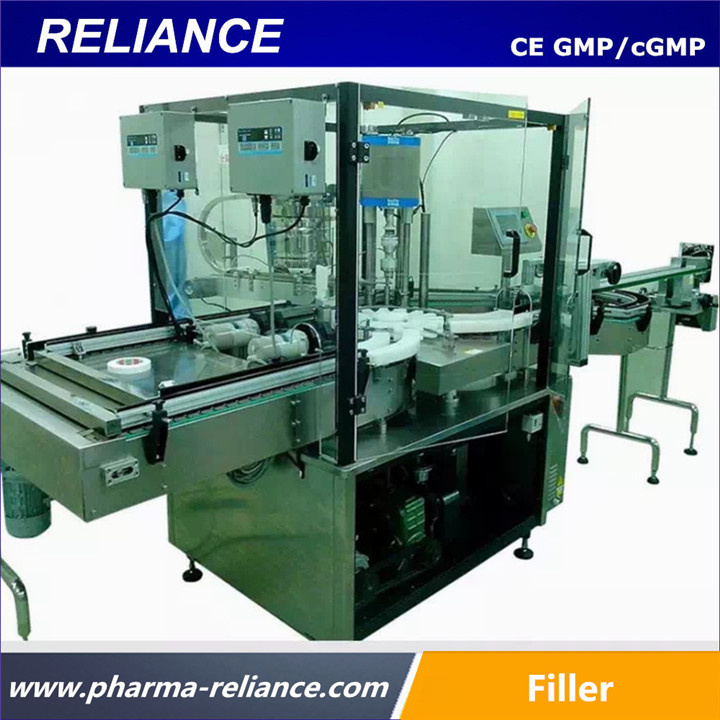

Automatic Chemical Diagnostic Reagent
Bottle Filling and Capping Machine
Introduction:
The Automatic Biochemistry Diagnostic Reagents Bottle/Container Filling Packing Line was design and manufactured by Reliance Machinery including liquid filling- capping- labeling machine.
Technical Features of Biochemistry Diagnostic Reagents Filling Machine :
1.This production Line can be used for various types of diagnostic reagent bottle filling and capping and can be used stand-alone or it can be connected with the labeler machine .
2.The bottle holders design for used for different shape of bottle.
3.High filling accuracy 1%
4.No liquid dripping in filling station
5. Alarm for the trouble of machine warning
6.Reliably and stably cap on and capping station. Adopting precision servo technology to control torsion of capping.
6.PLC control system and touch screen ( famous brand ) (HMI).
7.The main body of machine is made of SUS 304 stainless steel and aluminum alloy etc. and the designing is complied with GMP.
Specification:
Product name | in vitro diagnostic reagent filling machine |
Filling Range | 20~150 ml |
Capacity | 35~50PCS/M, 70~80PCS/M |
Measuring Type | Peristaltic pump or customized |
Filling Accuracy | Customized |
Voltage | 380V 50Hz |
Power | 2.25 Kw |
Compressed Air | 0.5~0.8Mpa 40~50L/min |
Weight | 1000kg |
Dimension | 4200*1600*2000 mm |
