Diagnostic Reagent Bottle for Pharmaceutical Liquid Filling, Capping Machine
| Price: | US $ 15000-35000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | R-VF |
|---|---|
| Condition: | New |
| Cumputerized: | Cumputerized |
| Certificate: | Ce,GMP,ISO |
| Customized: | Customized |
| Type: | Volumetric Filling Machine |
| Automatic Grade: | Fully Automatic |
| Material Type: | Liquid |
| Filling Valve Head: | Multi-Head |
| Feed Cylinder Structure: | Single-Room Feeding |
| Dosing Device: | Capacity Cup |
| Filling Principle: | Atmospheric Pressure |
| Packaging Container Lifting Structure: | Pneumatic Lifting |
| Structure: | Rotary |
| Packaging Type: | Bottle |
| Packaging Material: | Glass |
Product Description

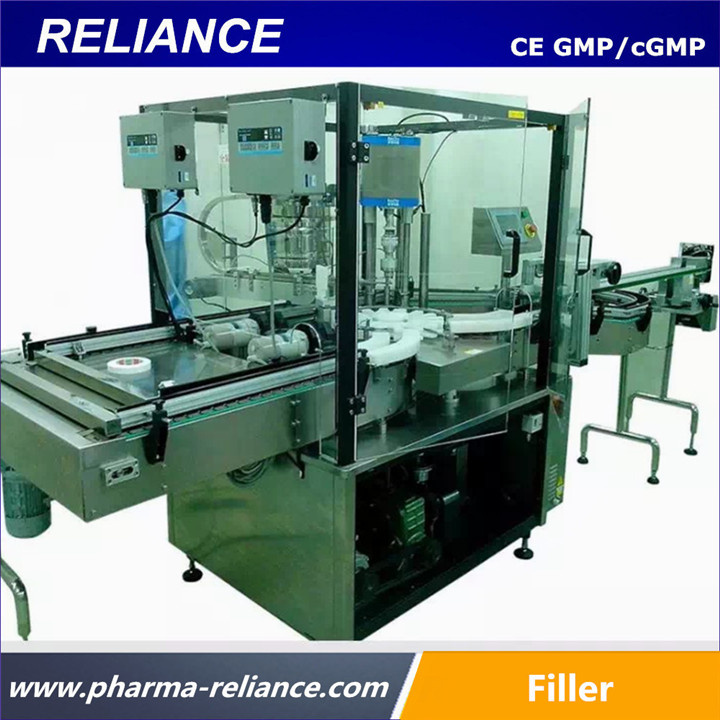

Diagnostic Reagent Bottle for Pharmaceutical Liquid Filling, Capping Machine
Introduction:
The Automatic Biochemistry Diagnostic Reagents Bottle/Container Filling Packing Line was design and manufactured by Reliance Machinery including liquid filling- capping- labeling machine.
Technical Features of Biochemistry Diagnostic Reagents Filling Machine :
1.This production Line can be used for various types of diagnostic reagent bottle filling and capping and can be used stand-alone or it can be connected with the labeler machine .
2.The bottle holders design for used for different shape of bottle.
3.High filling accuracy 1%
4.No liquid dripping in filling station
5. Alarm for the trouble of machine warning
6.Reliably and stably cap on and capping station. Adopting precision servo technology to control torsion of capping.
6.PLC control system and touch screen ( famous brand ) (HMI).
7.The main body of machine is made of SUS 304 stainless steel and aluminum alloy etc. and the designing is complied with GMP.
Specification:
| Product name | in vitro diagnostic reagent filling machine |
| Filling Range | 20~150 ml |
| Capacity | 35~50PCS/M, 70~80PCS/M |
| Measuring Type | Peristaltic pump or customized |
| Filling Accuracy | Customized |
| Voltage | 380V 50Hz |
| Power | 2.25 Kw |
| Compressed Air | 0.5~0.8Mpa 40~50L/min |
| Weight | 1000kg |
| Dimension | 4200*1600*2000 mm |
Company Introduction:
We RELIANCE MACHINERY is a professional designer and manufacture who can provide the widest range of liquid filling machine and contract turkey project for different industry, customized solutions for every stage of your business growth from set-up to industrial production. Our filling & packing solution will be widely used in Tincture Bottle Filling Capping Machine, Pharmaceutical / Medical, Diagnostic / Biotech, Nutraceutical, Cosmetic / Personal Care, e-Cigarette , Household Products, Chemical Specialties, Food / Beverage industrials.
Service Advantage:
1.Competitive price with good efficient.
2.High quality service available.
3.In-time delivery guarantee.
4.One year warranty for whole machine.
5.One year spare parts free of charge.
6.Engineers abailable for installation and setting up.
7.Training of workers to handle operation.
We RELIANCE MACHINERY is a professional designer and manufacture who can provide the widest range of liquid filling machine and contract Turkey project for different industry, customized solutions for every stage of your business growth from set-up to industrial production. Our filling & packing solution will be widely used in Pharmaceutical / Medical, Diagnostic / Biotech, Nutraceutical, Cosmetic / Personal Care, e-Cigarette, Household Products, Chemical Specialties, Food / Beverage industrials.
With more than 10 years experience on tech-developing and manufacturing, Our machines are designed towards cGMP compliances and cover a wide range of processes, including unscramblers, bottle washer & cleaners, liquid fillers, (tipping) pluggers, crimpers, & cappers, labels applicator, shrink wrapper and catoner.
From individual machines to complete lines, we can turn your requirement into reality. --we focus on the application, flexibility, changeover, and total cost of ownership.
The quality and our after service is always beyond the contract.
With more than 10 years experience on tech-developing and manufacturing, Our machines are designed towards cGMP compliances and cover a wide range of processes, including unscramblers, bottle washer & cleaners, liquid fillers, (tipping) pluggers, crimpers, & cappers, labels applicator, shrink wrapper and catoner.
From individual machines to complete lines, we can turn your requirement into reality. --we focus on the application, flexibility, changeover, and total cost of ownership.
The quality and our after service is always beyond the contract.
