Automatic Integrated Glass Cutting Production Line
| Price: | US $ 26000-36000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | CNCL-3726 |
|---|---|
| Type: | Glass Cutting Machine |
| Certification: | CE |
| Control System: | Industrial Computer |
| Glass Washing Machine Type: | No |
| Glass Edging Machine Type: | No |
| Grinding Head Number: | No |
Product Description

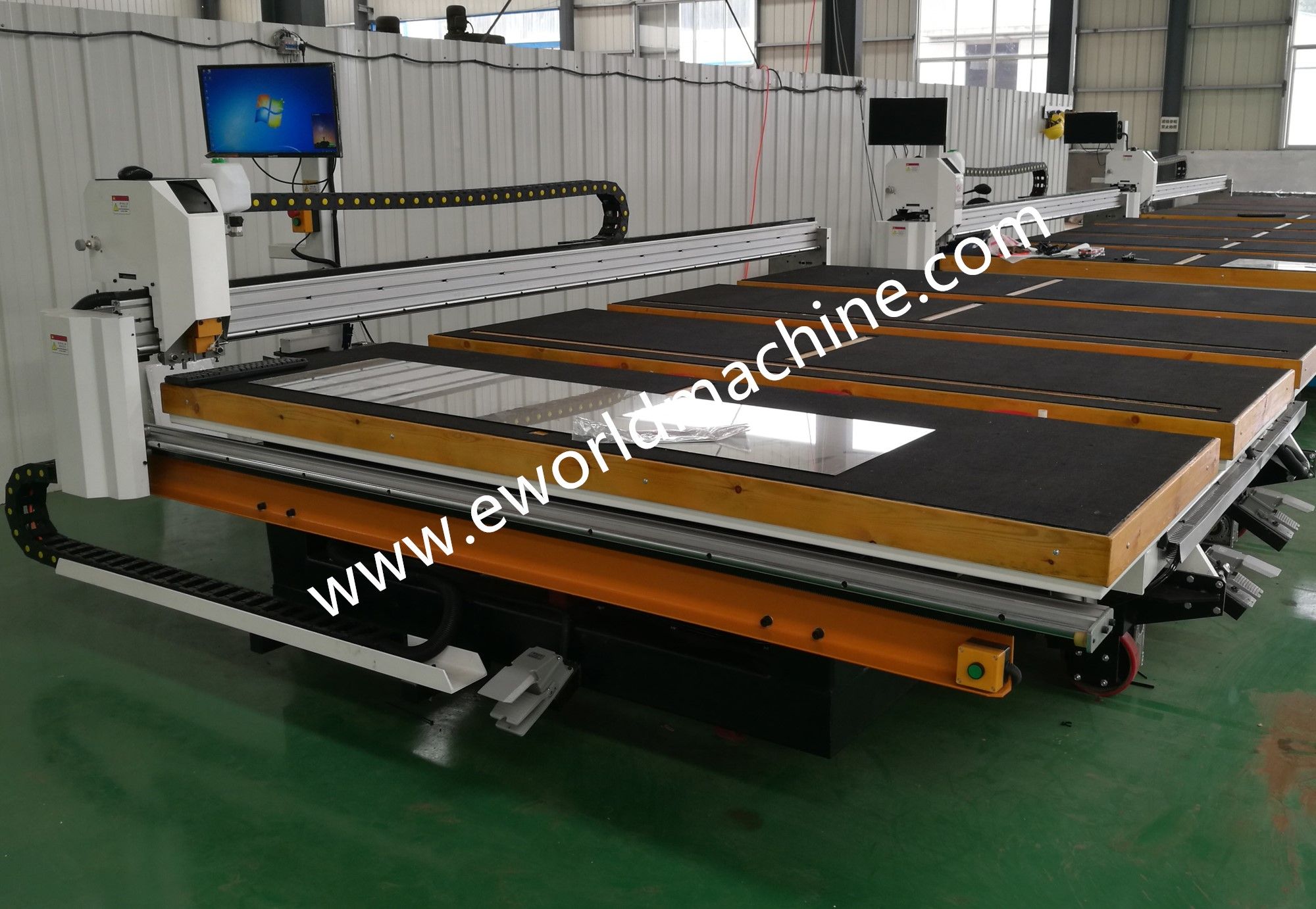

Automatic integrated glass cuting production lineIntroduction:

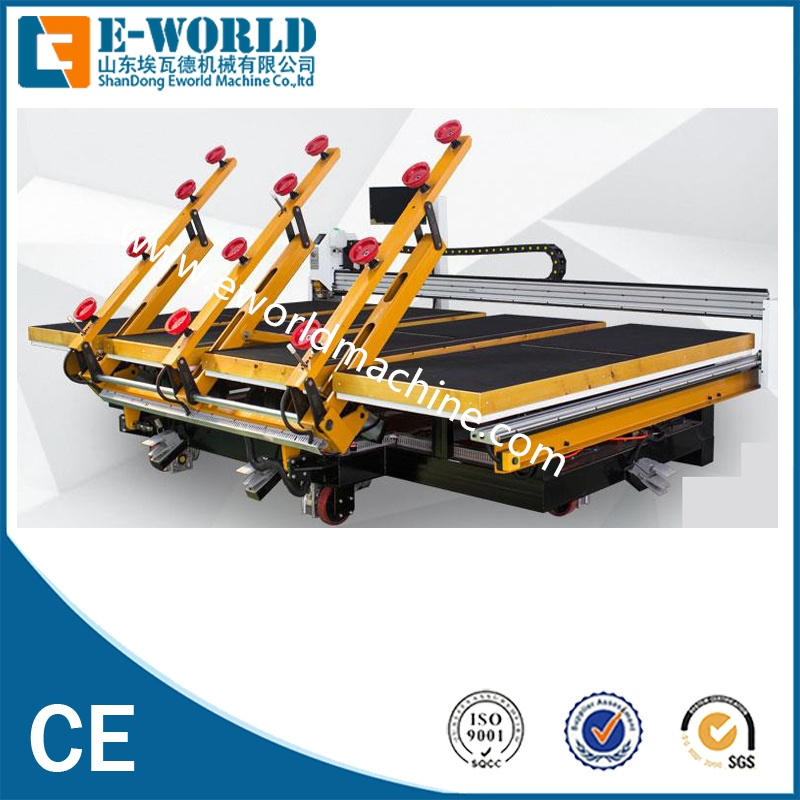

This set of equipment is the latest development , which is including loading, taking glass, straight cutting, shape cutting, air flotation, breaking, automatically move and walk (around), remote control. It is currently the most advanced automatic glass cutting system, instead of the traditional automatic glass cutting line(loading table, cutting machine, breaking table).It is significantly reduce the labor intensity of workers, with convenient operation, low investment and benefit advantages, greatly reducing the cost, it is the best choice for small and medium enterprise.
Flexibility: Mobile device inside the machine,which can be moved to any glass location for loading, cutting, breaking.
Security: through a remote control device to operate the device, effectively avoid personal injury and property damage likely to result from, the equipment itself also has a computer to automatically detect electrical protection devices, make the equipment very simple and safe to use.
Economy: it at least need 4 people for cutting glass with the traditional glass cutting line.Our equipment only need one person who can complete loading, cutting, breaking,. Meanwhile workers through remote control operation without contact glass, completely eliminate this aspect of high security risks, using flexibility can be applied to different sizes of glass, a piece of equipment has the function of multiple devices.
Features:
1.Innovative system is the only one can guarantee perfect uniformity and constant quality of all the machines that are being built and every single parts of machines can be easy to replace if needed, even the felt table surface.
2.Control panel with incorporated independent Computer , software packet with optimization program developed in Multitasking systems, user graphic interface for the managing of the cutting cycle and machine monitoring , hydraulic tilting surface, air cushion, ventilator for the movement of the sheet on the surface
3.Famous imported Electrical components or reliable domestic brands to make high cutting precision and stability, can meet all kinds of shapes of glass cutting.
4.Automatic oil injection and automatic constant pressure regulation functions, effective way to ensure the stability of the cutting and cutting effect. Simple, easy to manage, no special requirements for operators, easy training to start, unskilled workers will be able to operate it too.
- Safety of the glass presence:
Automatic sensor is placed on the cutting head, to stop the machine in case of lack of glass sheets - imported cutter wheels and setting tool.stable voltage power supply,English cutting software, instruction,AUTOCAD Designed graph and figure,all cutting are fully CNC Control
Technical Parameters:
1. The cutting thickness: 2-19mm
2. The cutting accuracy: Parallelism:≤±0.15mm/m
3. The cutting speed: 150m/minute(can be adjustable)
4. The outline size:4200*3800*900mm;
5. The max cutting size:3660*2440mm
6. Transmission system: The X,Y,Z Axis are equipped with reliable motor.
7. The cutter block: It adopt pneumatic and spring at the same time. the cutter holder can rotate by 360°degree, and cut the glass up and down.(It can cut any shape)
8. The oiling supply method: Auto oiling.

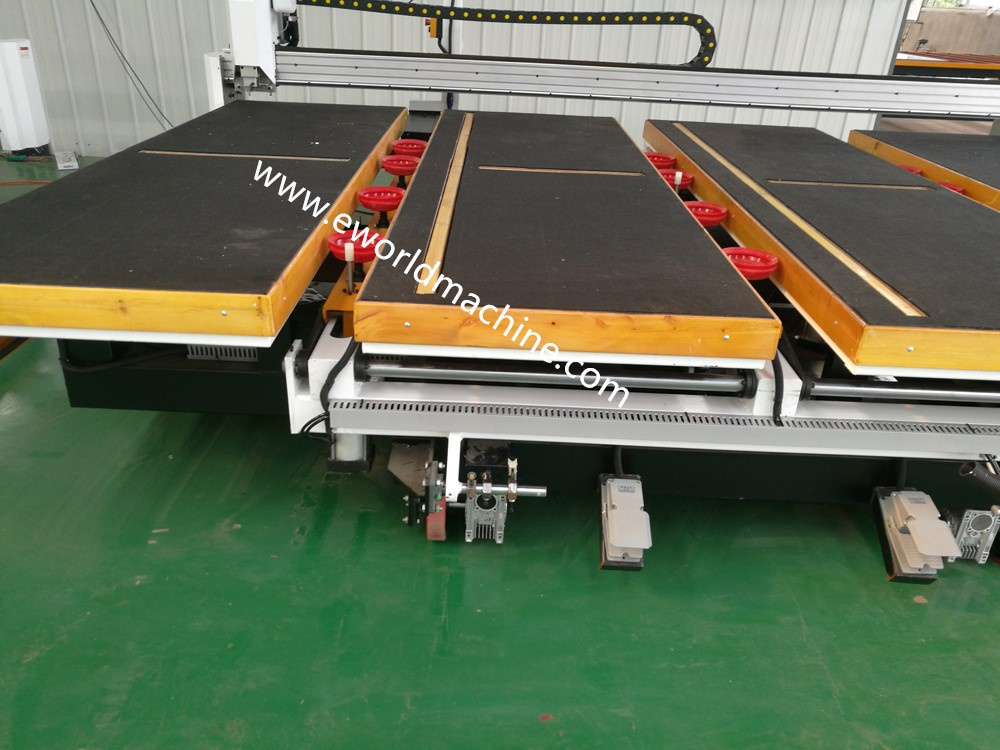

9. The transportation device: It adopt Flotation device which makes it convenient to move the sheet glass.
