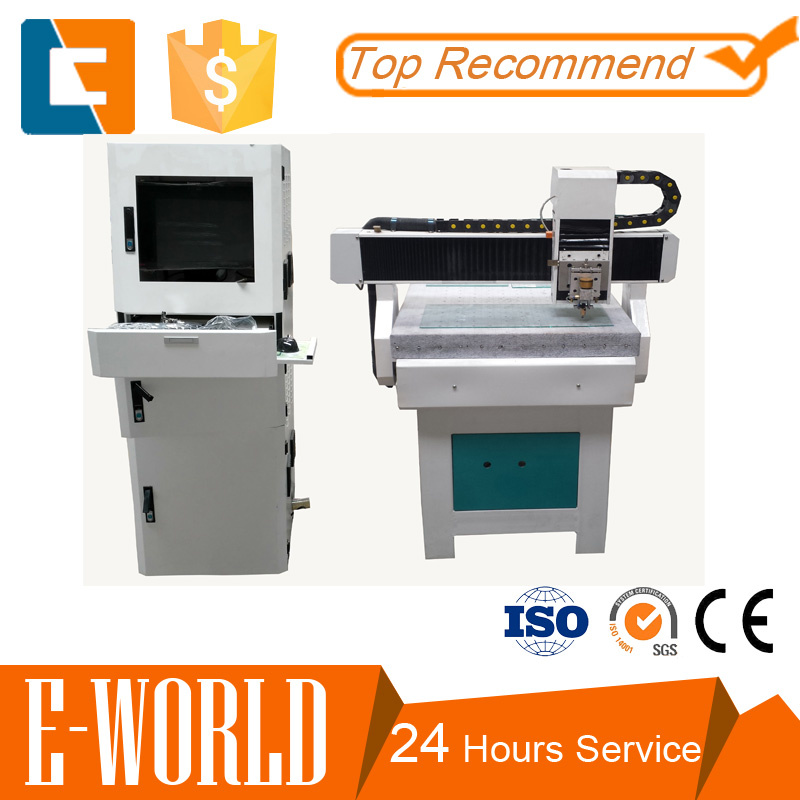

Automatic Mirror Glass Cutting Machine

Automatic Mirror Glass Cutting Machine
Price: US $ 4500-6500/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: NC6090
Name: Small Glass Cutting Machine
Working Size: 600*900
Certificate: Ce
Thickness: 1-19mm
Type: Glass Cutting Machine
Certification: CE
Control System: Industrial Computer
Glass Washing Machine Type: Cutting
Glass Edging Machine Type: Cuting
Grinding Head Number: Cutting

Product Description

automatic mirror glass cutting machine


Feature
1.Equipped with imported cutter wheels and a set of setting tool.

2.A set of stability voltage power supply.

3.A set of best optimized software.

4.A set of computer operating system (including a set of computer and cutting software)

full automatic glass cutting machine Mechanical:

1.The material of the tabletop: Metal tabletop(deformation will not happen)

(The smoothness≤±0.2mm/m)

2.Rack/Guides: Imported from Japan and switzerland.

3.Transmission belt/Transmission belt wheels: Barbieri in Italy.

4.Cutter wheels/cutter holder: Samsung in Japan.

5.The tabletop: Industrial blankets imported from Korea (color in black).

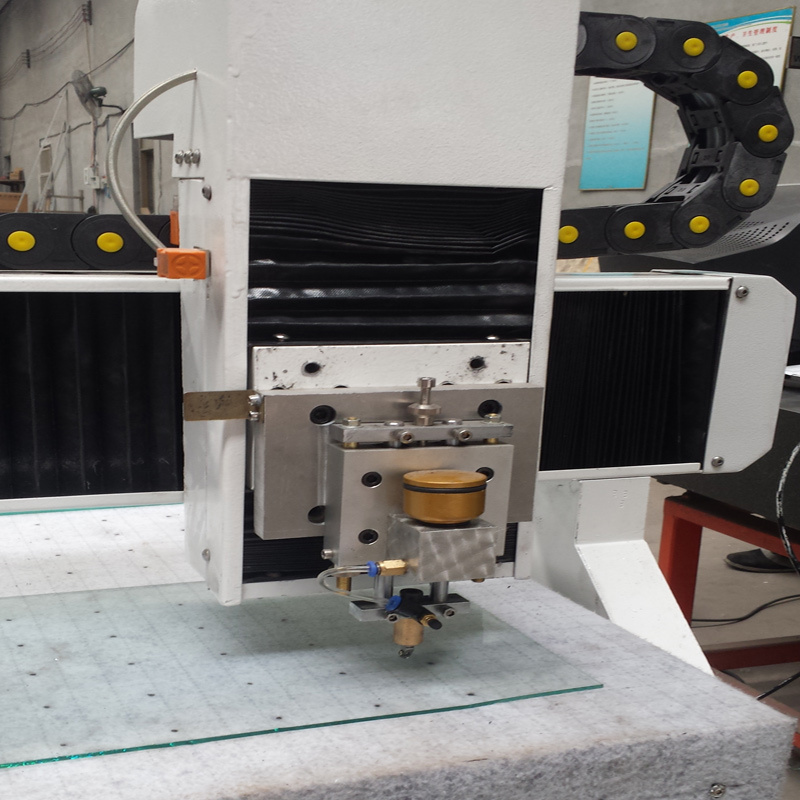

6.Turret: It use the pneumatic pressure and the spring pressure at the same time to make

the cutting best.


full automatic glass cutting machine Technical parameter:

The cutting accuracy:

Parallelism:≤±0.20mm  catercorner:≤±0.2mm

The cutting speed:

0~120m/minute(can be adjustable)

The outline size:

1100*1100*1800mm;

The tabletop size:

700*1000mm

The max cutting size:

600×900mm

The oiling supply method:

Auto oiling.

The positioning system:

Pneumatic positioning system

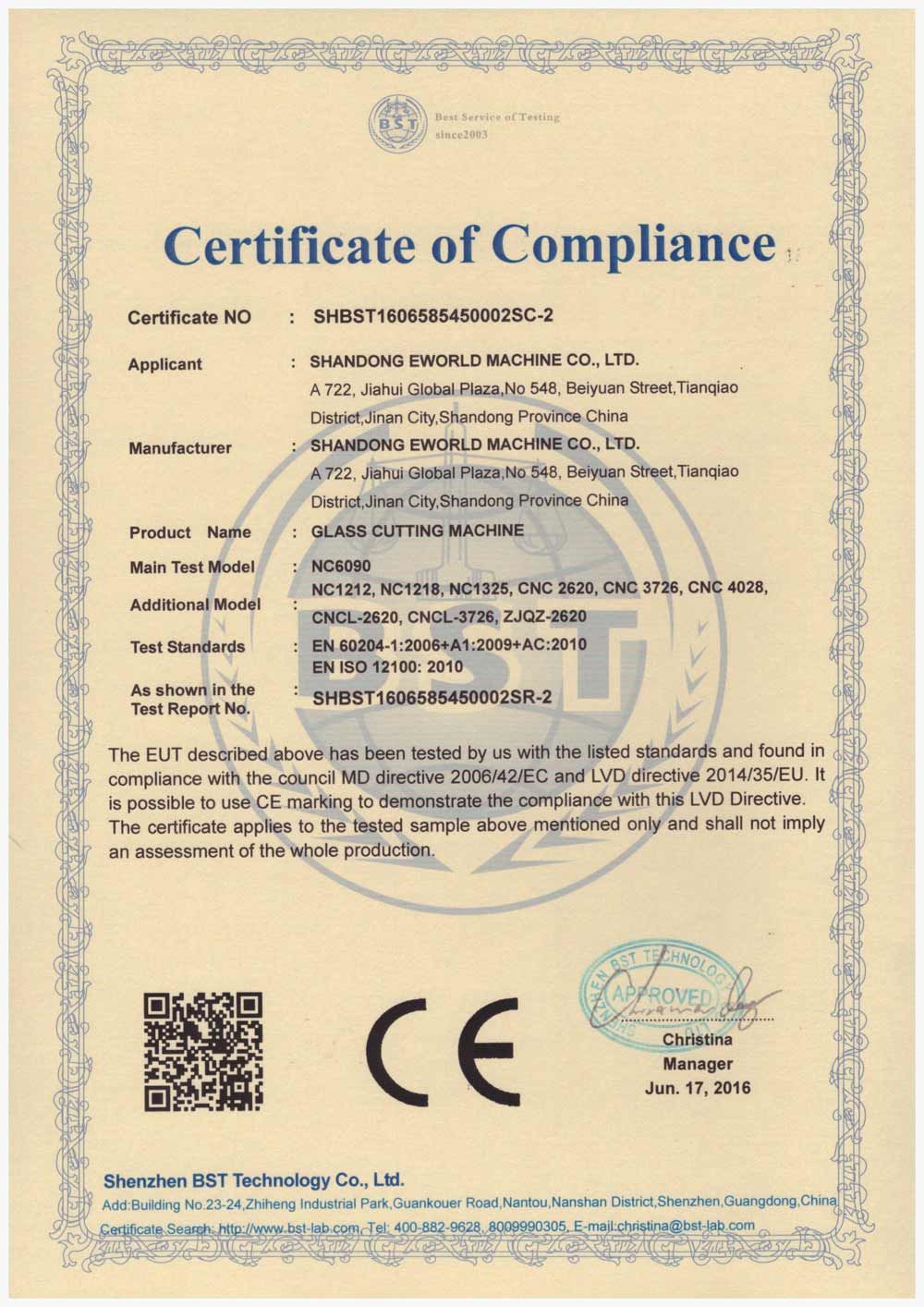

Certificate

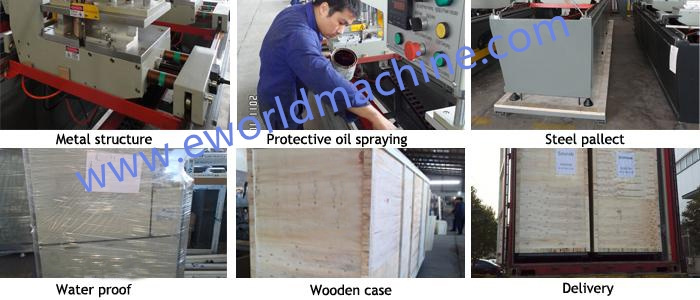

Production process





Shandong Eworld Machine Co., Ltd is one of the famous and big manufacturers of glass equipments, windows equipments, CNC equipments. Since its inception in 2002, and after more than 10 years of development and growth, the company is now playing a leading role in glass machine manufacture industry in China.

Advanced products, exquisite techniques, solid working and cordial services all give birth to the unique culture of "EWORLD today. EWORLD always keeps step on the latest technology and is committed to providing the most advanced products for our customers with the best service.

Main products: Insulating Glass Production Line, Glass Washing machine, Glass Cutting machines, Glass Edge polishing machine, Glass laminating machine, Glass drilling machine, Glass printing machine, Glass sandblasting Machine, Water jet cutting machine CNC Router, Laser Machines, PVC window and door machine, Aluminum window and door Machines. Scrap metal arts.

We take credit as the base of business and mutual benefits as the soul of business.

`Besides perfecting each product with our utmost effort.

`We regard customers as our partners and provide service surpassing the expectation of customers.

`We promise "Sincere Service, Permanent Promise".

EWORLD---bE Worthy Of youR Last Decision.
