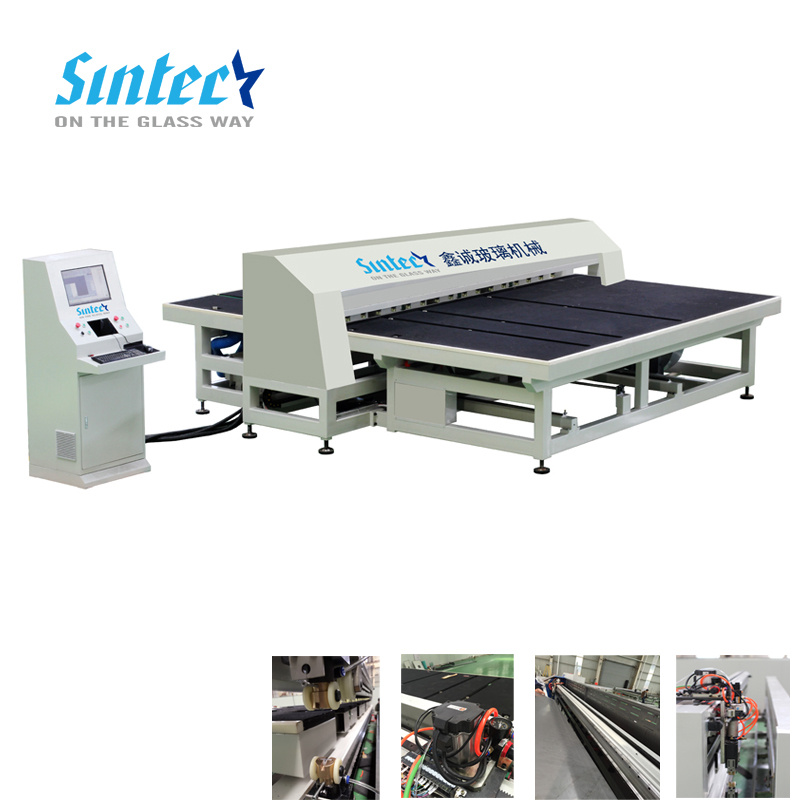

Automatic Laminated Glass Cutting Machine
| Price: | Negotiable/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P |
| Prod Model: | XC-LM3826 |
|---|---|
| Type: | Glass Laminating Machine |
| Certification: | ISO |
| Control System: | Industrial Computer |
Product Description
Characteristic1. Easy operation, high cutting precision
2. International standard steel with perfect surface treatment
3. Key area was annealed and milled, which ensures the high stability and intensity
4. Cutting and breaking pressure adjustable
5. Far-infrared heating temperature and heating time adjustable
6. Machine includes three sections and bridge frame
7. The first two sections are glass loading and transfer area with auto location system and mechanical location device
8. The third section has functions of glass stretch and glass break
9. Bridge frame is the center of the cutting system, which includes up and down double cutters, upper clamp and film far-infrared cutting.
Main mechanical parts:
- Rack and rail: KHK Japan
- Guide rail: Hiwin Taiwan
- Cutter wheel and cutter holder: Bolhe Germany
- CNC System: Galil (USA)
- Servo motor: YASKAWA (Japan)
- Pneumatic parts: Airtec (Taiwan)
- Low voltage electric parts: Schneider (France)
- Cutting pressure valve: SMC (Japan)
| Machine Name | Automatic Laminated Glass Cutting Machine |
| Model | XC-LM3826 |
| Max. Glass Sheet Size | 3700*2500mm |
| Min. Glass Cutting Size | 400*350mm |
| Glass Thickness | 3+3mm-------12+12mm |
| Heating Temperature and Time | Manual Set |
| Max. Cutting Speed | 120m/min |
| Dimensions | 7100*4500*1500mm |
| Weight | 3000KG |
Sintec Glass Machinery Co., Ltd., is located in a beautiful pearl City -- Bengbu, Anhui Province, is a professional high-tech enterprises which produce various kinds of glass cutting machines in China since 2009.
To become a leading international glass cutting manufacturing experts is the Sintec company development strategic target. Quality first and service supreme, made Sintec gained hundreds of domestic and all over the world customers.
After years of efforts, Sintec factory has owned ourselves special design, many patents of products. Company specializing in the production of Automatic Glass Cutting line, CNC Glass Cutting machine, Automatic Glass Loading machine, Glass breaking machine, Semi-automatic Glass Cutting machine, Manual glass cutting machines, Washing machine and various types of glass cutting tools etc.
Cutting production of products applicable to the construction, furniture, windows, hollow, electrical appliance, arts and crafts, all kinds of glass plate in deep processing glass jobs.
