Glass Loading Cutting Breaking Machine/ Machine Automatic Glass Loading
| Price: | US $ 10000/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | XC-CNC-6133 |
|---|---|
| Max. Glass Sheet Size: | 6100*3300mm |
| Glass Thickness: | 3-19mm |
| Dimensions (L*W*H): | 19980*4212*1300mm |
| Max. Cutting Speed: | 160m/Min |
| Air Pressure: | 0.6~0.8MPa |
| CNC System: | Galil (USA) |
| Optimization Software: | Optima (Italy) |
| Servo Motor: | Yaskawa (Japan) |
| Pneumatic Parts: | Airtac (Taiwan) |
| Low Voltage Electric Parts: | Schneider (France) |
| Type: | Glass Cutting Machine |
| Certification: | ISO |
| Control System: | Galia USA |
Product Description

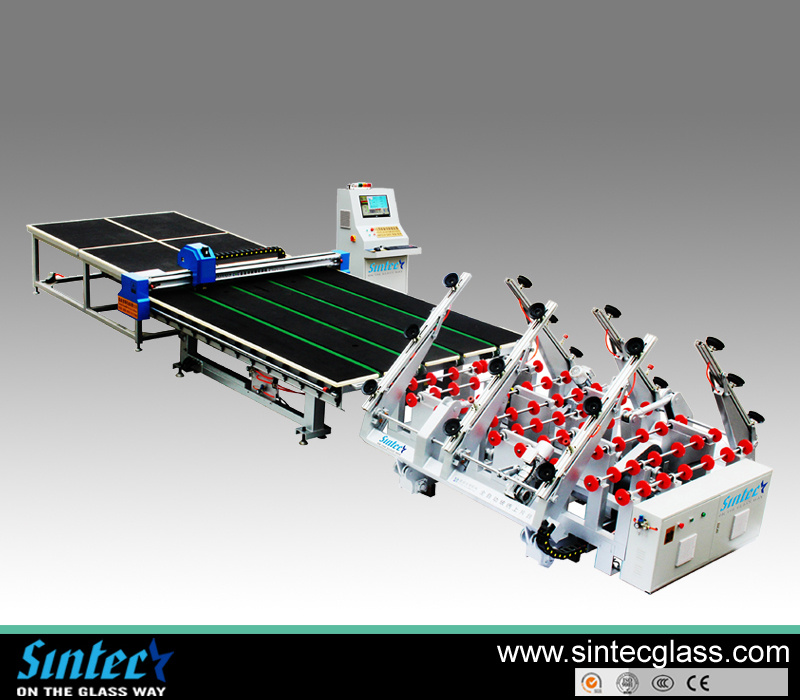

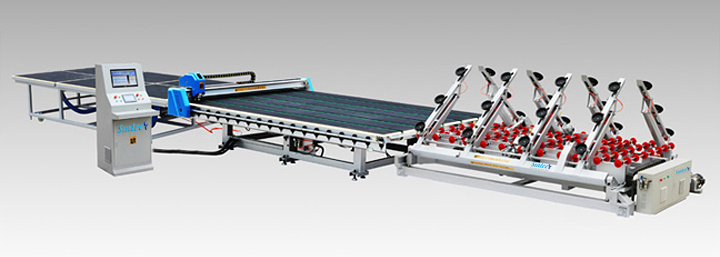

XC-CNC-6133 Automatic Glass Cutting Line
The line mainly contains three sections:
1. XC-SP-6133 Automatic Glass Loading Machine
2. XC-CNC-6133 Automatic Shaped Glass Cutting Machine
3. XC-QP-6133 Glass Breaking Table
1. XC-SP-6133 Automatic Glass Loading Machine
Mechanical characteristic:
- Mn bridge steel (Q345A ), perfect surface treatment
- High quality vacuum system, fast sucking speed and high stability
- One key original reset function, for improving work efficiency
- Trouble alarm system and safety alarm system
- Four-bar linkage glass lift structure
- High density PU material glass convey wheel
- Acrylonitrile-butadiene rubber suck disc
- 40CBM/hour vacuum pump
- Enclosed wire and air pipe set
Main parts list:
PLC: Omron (Japan)
Touch screen: MCGS
Converter: Teco (Taiwan)
Sensor: Omron (Japan)
Technical introduction:
- Tilt and suck: tilt angle adjustable, 3-19mm glass sheet auto-suck, suck depth 750mm
- Chain convey after glass suck
- Both auto and manual modes
- Auto alarm system and emergency button for make sure safety operation
- English language touch screen operation
- Glass sheet quantity and station position auto set
- Loading sequence: move-arm tilt up-glass sheet sense-glass sheet vacuum suck-move back-arm tilt flat-glass transmit to cutting table
Technical parameter:
| Model | Max. glass size | Thickness | Dimensions (L*W*H) | Power | Air pressure |
| SP-2620 | 2600*2000mm | 2~19mm | 3560*2200*900mm | 8KW | 0.6~0.8MPa |
| SP -4228 | 4200*2800mm | 3~19mm | 5000*2850*900mm | 8KW | 0.6~0.8MPa |
| SP -5133 | 5100*3300mm | 3~19mm | 5400*3000*900mm | 8KW | 0.6~0.8MPa |
| SP -6133 | 6100*3300mm | 3~19mm | 6430*3340*900mm | 8KW | 0.6~0.8MPa |
2. XC-CNC-6133 Automatic Glass Cutting Machine
Mechanical characteristic:
- Mn bridge steel (Q345A ), perfect surface treatment
- Perfect machine body structure makes sure the tale flat enough and no out of shape
- Japan SMC valve controls the cutting pressure according to different thickness glass
- Cutter head 360 degree rotation, cutter head buffers up and down for glass and cutter protections
- High density water-proof table
- Imported felt, high flatness, antistatic
- 3D edge searing system, high precision automatic location function
- Automatic lubrication system, work in step with cutter head
- Air float function and belt transmit
- Linear guide rail makes sure the high cutting precision and low noise

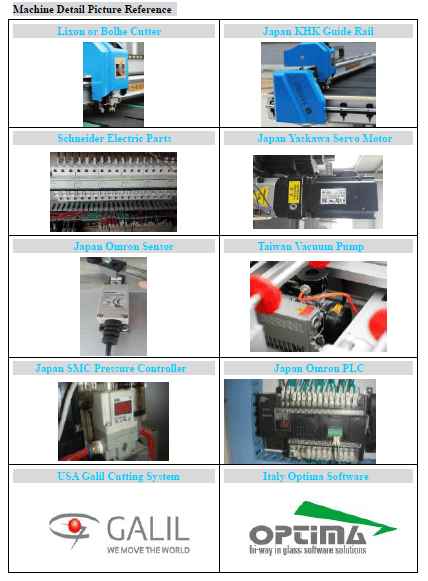

Main mechanical parts:
Table panel: high density water proof panel (flatness≤±0.20mm/m)
Rack and rail: KHK Japan
Guide rail: Hiwin Taiwan
Belt: Maiku (Joint venture)
Cutter wheel and cutter holder: Bolhe Germany
Main electric parts:
CNC System: Galil (USA)
Optimization software: Optima (Italy)/Guiyou (China best brand)
Servo motor: YASKAWA (Japan)
Pneumatic parts: Airtec (Taiwan)
Low voltage electric parts: Schneider (France)
Cutting pressure valve: SMC (Japan)
Technical parameter:
| Model | Max. glass size | Thickness | Dimensions (L*W*H) | Max. speed | Air pressure |
| CNC-1512 | 1500*1200mm | 2~19mm | 2480*2240*1275mm | 150m/min | 0.6~0.8MPa |
| CNC-2620 | 2600*2000mm | 2~19mm | 3560*2912*1300mm | 150m/min | 0.6~0.8MPa |
| CNC-4228 | 4200*2800mm | 3~19mm | 5320*3100*1300mm | 160m/min | 0.6~0.8MPa |
| CNC-5133 | 5100*3300mm | 3~19mm | 6150*4212*1300mm | 160m/min | 0.6~0.8MPa |
| CNC-6133 | 6100*3300mm | 3~19mm | 7150*4212*1300mm | 160m/min | 0.6~0.8MPa |
3. XC-QP-6133 Glass Breaking Table
Mechanical characteristic:
- Air float function
- Breaking bars 1+2
- High density water-proof table
- Imported felt, high flatness, antistatic
- Breaking bars foot switch control
- Partial design for standard container load
CNC GLASS CUTTING LINE PARAMETER TABLE SHEET:
| Model | Max. glass size | Thickness | Dimensions (L*W*H) | Max. speed | Air pressure |
| CNC-2620 | 2600*2000mm | 2~19mm | 11000*3000*1300mm | 150m/min | 0.6~0.8MPa |
| CNC-4228 | 4200*2800mm | 3~19mm | 14500*3600*1300mm | 160m/min | 0.6~0.8MPa |
| CNC-5133 | 5100*3300mm | 3~19mm | 17000*4212*1300mm | 160m/min | 0.6~0.8MPa |
| CNC-6133 | 6100*3300mm | 3~19mm | 19980*4212*1300mm | 160m/min | 0.6~0.8MPa |
