Automatic Storage and Retrieval Pallet Racking System (ASRS)
| Price: | Negotiable/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P |
| Prod Model: | HGLS-ASRS2 |
|---|---|
| Material: | Steel |
| Structure: | Rack |
| Mobility: | Adjustable |
| Height: | 5-15m |
| Closed: | Open |
| Development: | New Type |
| Serviceability: | for Special Purpose |
| Weight: | 1500kgs |
Product Description
AS/RS Systems
1).AS/RS System are usually equipped with pallet racking and drive-in racking, both of which are composite structure.
2).Steel panels and wooden panels are available for loading with good capacity. Conveyors will do the loading and unloading job under the instruction from the central computer.
3). AS/RS System is mainly used in the food, tobacco, electronic, mechanical and armament industry.
Model: NH heavy duty pallet racking

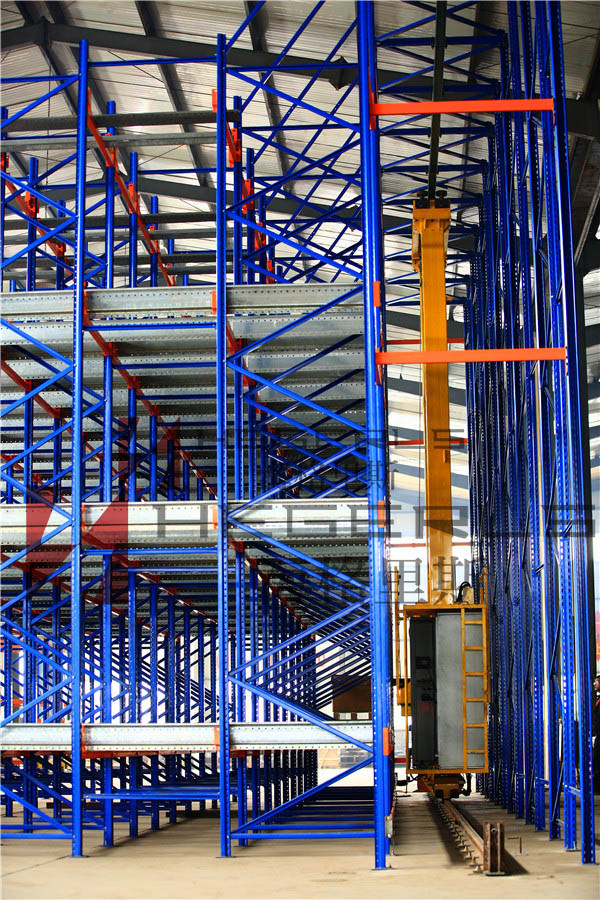

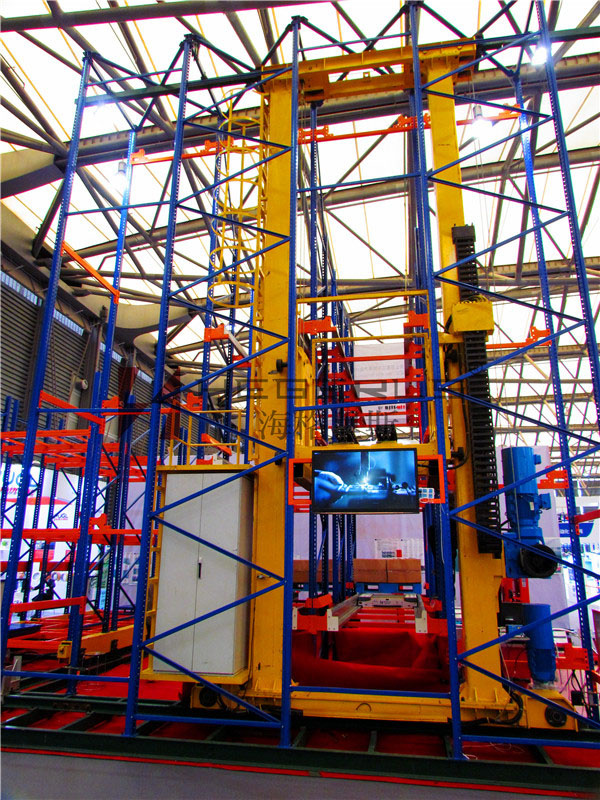

Stacker
Structural feature:
1).Double upright structure, steady and reliable, vector frequency conversion drive and encoder position control, mechanical and electronic safety devices to ensure safe using of the system; all the way tracing technology by information transferring;
2). electric components are imported from abroad; touching screen interface for easy operation; making manual, semiautomatic, automatic and linkage control come true; used in many situations by combining with other logistics equipment.
Model | Loading Capacity (kg) | Height | Walking Speed | Remark |
DPL-0.1T | 100 | 5-30m | 160m/min | Customized based on client's requirements |
DPL-0.5T | 500 | 160m/min | ||
DPL-1T | 1000 | 160m/min | ||
DPL-2T | 2000 | 120m/min | ||
DPL-3T | 3000 | 100m/min |
Contolling System:
Communicating with WMS and ECS through OPC agreement, PROFIBUS bus network, set up by SIEMENS S7-300 controller can operate all conveyors offline, doing conveying of goods automatically.
Please refer to the attached drawing for details of conveying system.
Softwares of WMS System:
Operating system: WINDOW 2000X SEVER
Data-base: MS SQL SEVER 2000X
Warehouse management software: WMS
Equipment controlling software: ECS
Bar code management software: RFS
Following are some examples of its functions
Hebei Woke Metal Products co Ltd founded in 1996, the headquarters and two sales company is located in Shijiazhuang hebei province, the production base is located in Hebei Xinhe industrial zone. We are partisan council unit of the China Storage & Distribution association/Hebei province modern logistics association and Hebei province e-commerce association. "HEGERLS" is ours registered trademark.
We can supply project plan design, supermarket and storage equipment and facilities installation, operation and management personnel training, supply series products, business planning and after-sales service, e-commerce etc. Our products and services has covered nearly 30 domestic provinces, cities and autonomous regions, products are exported to Europe, America, Middle East, Latin America, southeast Asia and other countries and regions. Annual sales of nearly 230 million yuan. More than 300 staffs, own production base and experimental centre, equipment research and development team, installation and after-sales service team, with senior technicians and senior engineer titles nearly 60. Company production base has the world advanced production assembly line 48.10 national patents of radio shuttle cart, stacker, mobile shelves, won the SGS, TUV certificate and ISO9001 certification.
In recent years, completed the domestic projects including: Sinopec storage project, Shanxi YunCang storage & distribution project, JiLin Long-Mart storage and distribution center project, Anguo Zhengtai Storage & distribution center project, Beiguo Goup supermarket chains, Guoda chain convenience stores, Hebei province expressway service area series of convenience stores and distribution centers, Junlebao dairy warehousing projects, etc.
Overseas projects: Sweden SwedMart warehouse project, Chile fisheries association Oscar refrigeratory AS/RS projects, Algeria FACTO storage projiects, Thailand JM Group AS/RS projects, FX Group South Africa AS/RS projects, AALM company UAE AS/RS projects. Automatic sorting stacker in FX Group South Africa AS/RS projects is domestic initiative within international leading level.
