CE Certificated Storage Heavy Duty Pallet Rack

Export Markets:	Global
Certificates:	CE, ISO, SGS
Material:	Steel
Structure:	Rack
Mobility:	Adjustable
Closed:	Open
Development:	Conventional
Serviceability:	Common Use
Height:	2m-15m
Weight:	500-5000kg/Level

Product Description

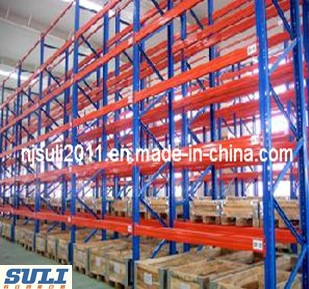

Heavy Duty Warehouse Pallet Racking/Pallet Rack System

Pallet Racking System is the most common, economic and easy to use system among all storage systems.

It is a material handling storage aid system designed to store materials on pallets (or "skids"). Although there are many varieties of pallet racking, all types allow for the storage of palletized materials in horizontal rows with multiple levels. All types of pallet racking create some level of increase storage density with the least dense being the least expensive and cost increasing with storage density.
An endless variety of storage configurations and systems are possible, ensuring that the most cost effective solution can be tailor made to suit your specific requirements.

Pallet Racking System is designed and installed to comply with customer needs and requirements from small warehouses to huge distribution centers.

The width of corridor between racks depends on handling equipment used inside of warehouse. There is no limit in height of such racking system.

Advantages:
· Individual access to all pallets to full height of warehouse
· Simple stock rotation achieved
· Easy beam adjustment accommodates variable pallet heights
· Compatible with many handling equipment styles
· Conventional tolerance for floors when used to 10m high
· Accessories available can accommodate every unit load type
· Economical shelving beams can be added for low level picking
High average locations used 95 %, for 100 % accessibility, good stock rotation

There is possibility to store all type of pallets with different sizes and weight;
Direct control of each pallet leads to keep pallets in a good conditions;
It can be combined with longspam beams for manual selection of goods.

Installation of this type of racking system doesn't require specialist, it's enough to install according to installation instruction.
Selective Pallet Racking System is compatible with most types of handling equipments and building structures. Therefore various storage possibilities can be created.

Remark:
We are very professional in producing various pallet racking, longspan shelving, cantilever racks, rivet shelving, drive in racks, steel mezzanine, carton flow racking and other related storage equipments.

Please don't hesitate to contact us, we are very confident to provide you with satisfying products!

Frame	Height (2-13m)	Depth (600-1,400mm)
	Upright section: 80x60; 90 x 70; 100 x 65; 120  x87mm
	Thickness: 2.0/2.3/2.5/3.0mm
Beam	Length (1200-4000mm) , popular size: 2300,2500,2700,3200,3600mm
	Beam section: 80 x 50;  100 x 50;110x50; 120 x 50; 140 x 50mm
	Thickness: 1.4--1.5mm
Load capacity	1-4Tons/Layer
Others	-  Pitch: 75mm -  Delivery time:   14-20days -  Payment term.   T/T  or L/C at sight -  Necessary accessories:  free(bolts & nuts, base plate, etc) -  Packing: stretch film & carton - Surface treatment:   powder coated, galvanization -  Production capacity: 3000T/month -  Available in  various colors/specifications/sizes
