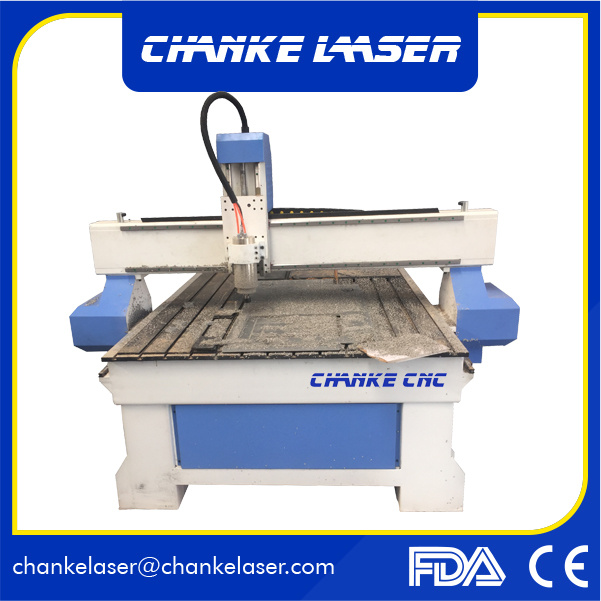

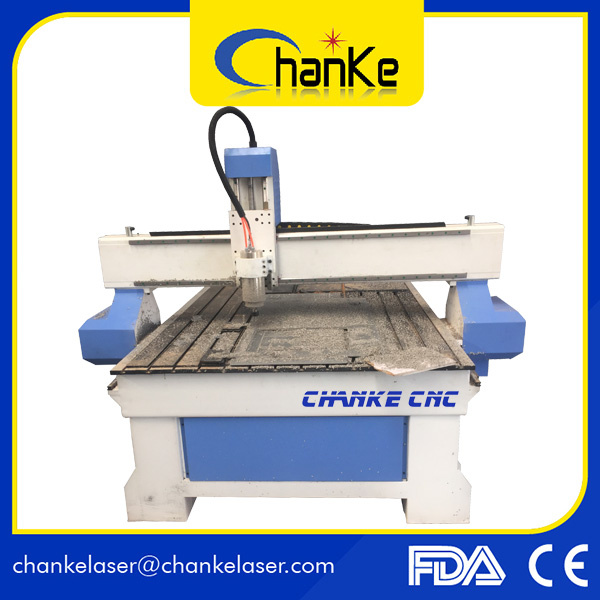

Ck1325 2 Heads Cup Board Mould CNC Wood Engraver
| Price: | US $ 5800SET |
|---|---|
| Trade Terms: | FOB,CIF |
| Min Order: | 1SET |
| Pay Type: | T/T,Western Union,Paypal,Money Gram |
| Prod Model: | ck1325 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Size: | 1300X2500mm |
| Working Table: | T-Solt Working Table |
| Rail: | Hiwin Square Rail |
| Structure: | 8mm Steel Structure of Lathe Bed |
| Xy: | Helical Rack and Pinion From Xy Axis |
| Z Axis: | Tbi Ball Screw Imported From Taiwan |
| Control Software: | DSP or Nc Stuido |
| Software: | Artcam/March 3/Wentai Software |
| Driver: | Yako2811 Stepper Driver |
| Inveter: | Delta Inverter |
| Spindle Layout: | Vertical |
| Spindle Number: | Double-Spindle |
| Feed Mode: | Manual |
| Controlling Mode: | CNC |
| Certification: | FDA |
Product Description
Wooden Door/Furniture Wood Working Machine Features:
This is one type of wood working machine of Jinan chanke mechnical Equipment Co.,LTD . this machine working size is: 1300x2500x200mm, aluminium profile table, has the T-solt, using the material holders to fasten the mould on the table. It can working on the MDF, wood to make the cabinet door, soild wooden door, computerdesk, assembling desk , it also can engrave on the HDF,wood board, acrylic ,plan cutting, 3D embossment
3.0KW Chinese water cooling spindle, we aslo have the HSD air cooling spindle. as your choice. XY gear transmission, Z Taiwan ball screw transmission. Weihong NK105 DSP control system, leadshine stepper motor, or Servo motor driving system, Fuling inverter.
we have vacuum table wood cnc router, 8 pieces of head wood cnc router, ATC cnc router.. All kinds of machines are one goal is to service and convenience for the users.
So welcome to contact us when you need wood working machines on the wooden , MDF doors or the furniture..
Forget to tell you, we can according to your requipments to produce the wood cnc router machine, like the working size, the colour of this machine, using which size of driving motor.... so don't hesitate contact us !
Technical data
Brand | chanke |
Model | CK1325 3D Wood router cnc |
Machine Size (mm)(W*L*thickness) | 1900*3100*1800 |
Table size(mm) | 1600*3100 |
Engraving area (W*L*thickness)(mm) | 1300*2500*200 |
Working Form | Full-automatic |
Spindle Power | 3.0KW water cooling spindle |
Spindle Rotate(rpm) | 6000~24000 |
Motor Driver | Stepper motor (Chinese servo motor or imported servo motor is optional) |
Tool Diameter(mm) | Ø3.175,Ø4,Ø6, Ø12.7mm |
Machine Structure | Industry square tube structure |
Transmission System | Imported ball screw or high accuracy gear rack |
X,Y,Z Rail | Imported square rail |
Mechanical Accuracy | <0.03/300mm |
Engraving Speed(mm/min) | 8000~12000mm/min |
Feeding Speed | manual |
Data Transmission | PC connect |
Support Format | G code or HPGL |
Working Voltage | AC220V/50Hz or 380V/50Hz |
Support Format | G Code or HPGL |
Range of Application | Woodworking relief engrave ,Cutting , Hollow |
Machine Net Weight | 1500Kg |

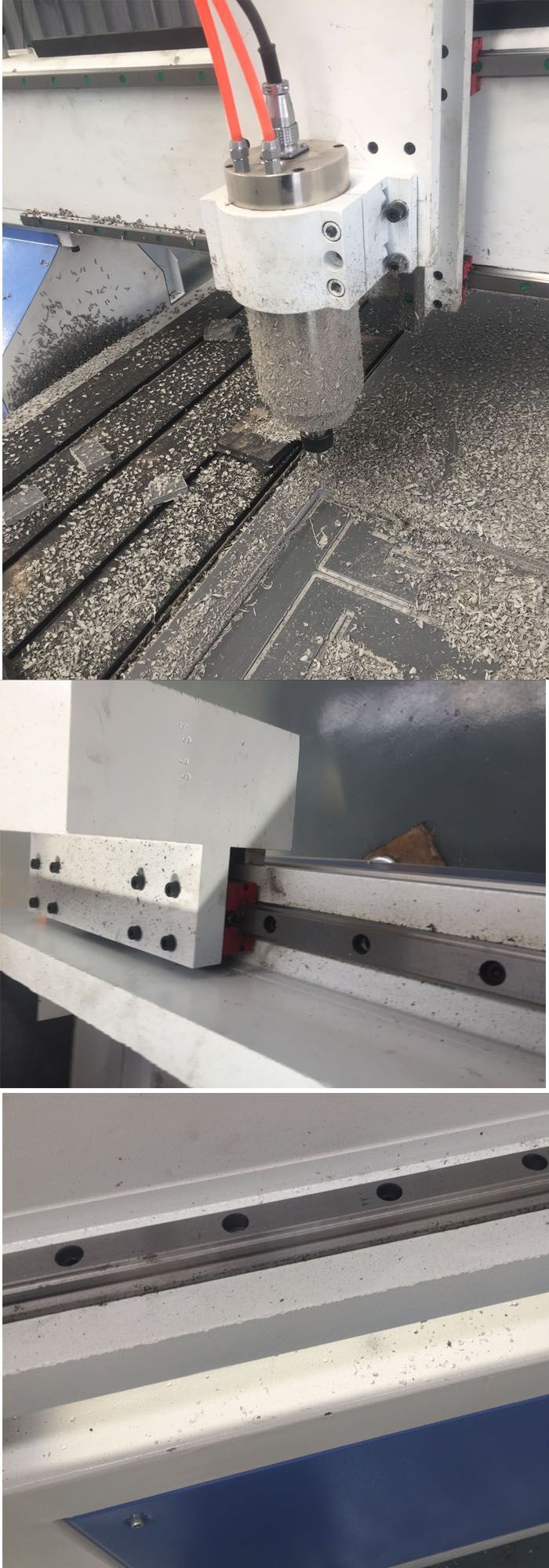

Features
1) T-slot Table: Small-scale processing by using material holder, eliminating the need for
a vacuum pump electricity.
2) Water cooling spindle, with high precision, long life time, steady working, easy to start up.
3) Taiwan Hiwin linear square guide rail, self-lubricating sliding block. It ensures equal
force in all directions and accuracy and strength of the machine.
4) Y axis uses double-motor in-phase drive that ensure the machine equality and smoothly
running.
5) Splendid independent controlling cabinet, easy to make maintenance, use friendly interface.

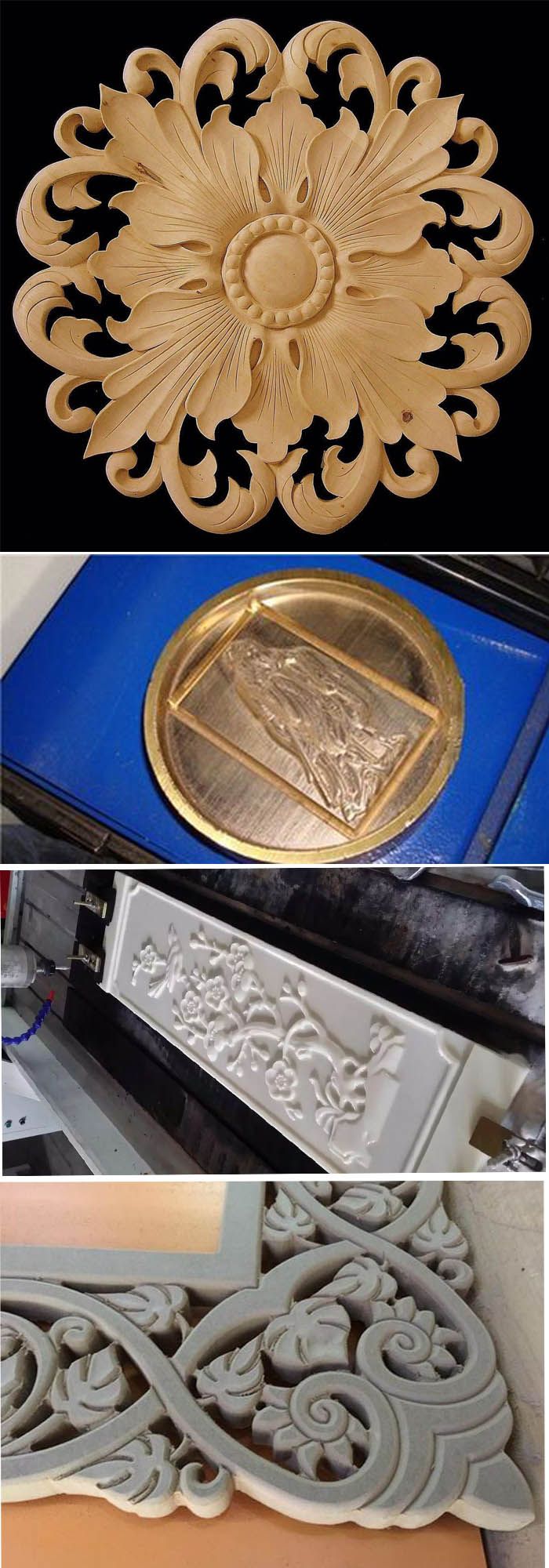

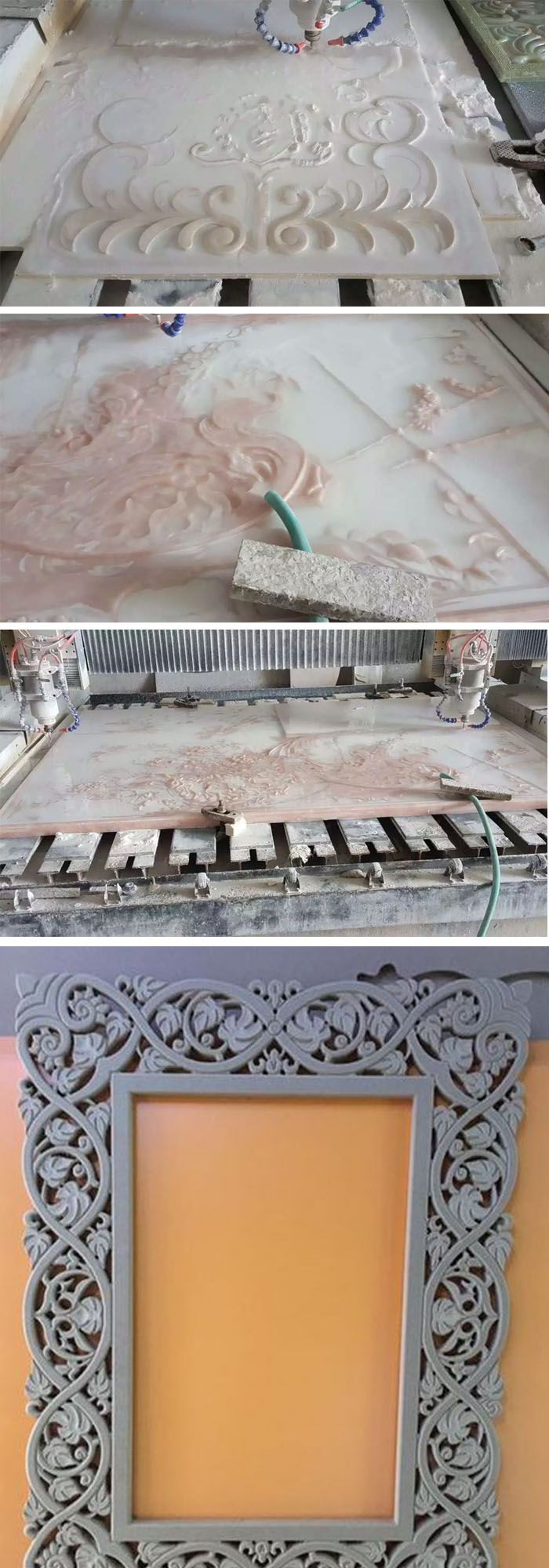

Applicable materials of wod working machine:
1) Furniture: plate, office furniture, doors, cabinets.
2) Wood products: speakers, games cabinets, computer tables, sewing machines,
musical instruments.
3) Board processing: insulation, plastic chemical components, PCB, car body,
bowling track, ABS, PP, PE, etc.
4) Decoration: Acrylic, PVC, MDF, glass, plastic and soft metals such as copper
and aluminum.
How to Order Our Machine?
Before we can recommend you the best suitable machine, please kindly tell us:
1) What materials will you work on?
2) What is your Max.size of your processing materials? ( Length & Width )
3) Do you mainly engrave or cut? If cut,What is your Max.cutting thickness?
4) Does your materials are cylinder? If YES, what's the Max. Diameter of it?
5) If it is possible, could you send us your product samples' picture? It will
help us better to understand.
Trade Items of Machine
MOQ | 1 set |
Package | Standard Plywood Box |
Delivery Terms | FOB, CIF, EXW, Door to Door ect. |
Delivery Time | 15 working days after receiving payment |
Payment Type | T/T, Paypal, Western Union and others |
Supply Ability | 50 sets/month |
Port | Qingdao, China. |
Packing of Machine
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.
Guarantee & service of Machine
Guarantee:
Two years quality guaranty, the machine with main parts(excluding the
consumables) shall be changed free of charge when if any problem during the warranty period.
Service: ( Provide whole life technical support, 24h online )
Before sale:
We would always be here to provide any information you need at the first time,and give professional suggestions according to your real needs for free;
During sale:
We would deal with all the production and shipping affairs, after everything is ready, we would tell you everything goes well here;
After sale:
1) We would provide English Version working manual.
2) If you have any questions during using and maintaining, our engineers who could speak very good English would answer you online or by calls.
3) Machine warranty is one year. So if your machine has any unintentionall damages, we would provide parts for free.
4) If your machine has big problems if by any chance, our engineers would arrive there to debug and fix.
5) Could be remote control if needed.
Jinan Chanke Mechanical Equipment Co., Ltd is situated in Jinan city, Shandong province. We are a professional and good reputation manufacturer of laser engraving machine, laser cutting machine, wood CNC router, laser marking machine in China to the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the CE, FDA certificate.
We prize quality above all else. We have a talented engineers and an experienced workers team. They have been in laser and CNC router area for a lot of years and love these machines very much. Our QC department is famous for strict attitude. Every parts should be checked step by step.
Competitive Pricing, Small Profit, Large Quantity is our rule when pricing. We keep our prices low through enhancing production efficiency, reducing the number of rejects and leaving more profit margins for clients to help them to get more orders. In addition, all our prices are based on good quality raw materials.
The aim of Jinan Chanke Mechanical Equipment Co., Ltd is to continuously upgrade the technique, to help our customers produce the best quality and high precision products.
Please feel free to contact us if you need the good quality machine, best price and the reassuring after sale service.
