Mini CNC Lathe Machine for Metal and Glass Wood Ck6090
| Price: | US $ 2800SET |
|---|---|
| Trade Terms: | FOB,EXW,CIF |
| Min Order: | 1SET |
| Pay Type: | T/T,Western Union,Paypal,Money Gram |
| Prod Model: | ck6090 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Size: | 600X900mmx200/150mm |
| Rail: | Taiwain Hiwin Square Rail or PMI |
| Control System: | DSP or Weihong Control System |
| Spindle Power: | 1.5kw/2.2kw |
| Transimion: | Gear and Rack Transmission |
| Cooling Mode: | Water Cooling Spindle or Air Cooling Spindle |
| Working Table: | T-Solt or Vacuum Working Table |
| Driver: | Fuling |
| Inverter: | Delta or Best or Fuling |
| Water Cooling Spindle: | CS / Shungtong / Qiancheng |
| Spindle Layout: | Spindle Over |
| Spindle Number: | Double-Spindle |
| Feed Mode: | Manual |
| Controlling Mode: | CNC |
| Certification: | SGS |
Product Description

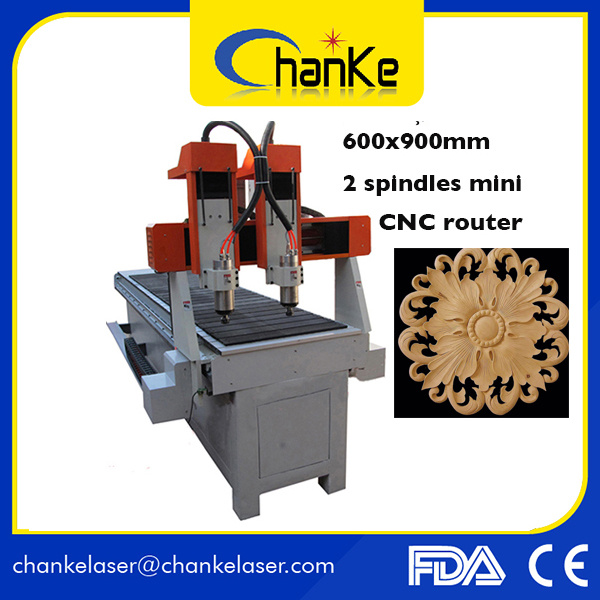

This machine working size is: 600x900mm advertising cnc router, it can engrave on the acrylic, double colour board, ABS, PVC, glass, aluminum,iron,plastic, stone..CK6090 Mini CNC router:
It's working size is: 600x900mm with 1.5/2.2kw water cooling spindle power, can engrave on the wood acrylic brass aluminum and stone and also can cut this materials and to do the 3D embossment work, fit for the furniture and cabinet upholster, wooden door, fretwork, instrument, board MDF, Plastic PVC
This machine can be produced not lathe bed, it is the desktop, it is convenience for you to take this machine.

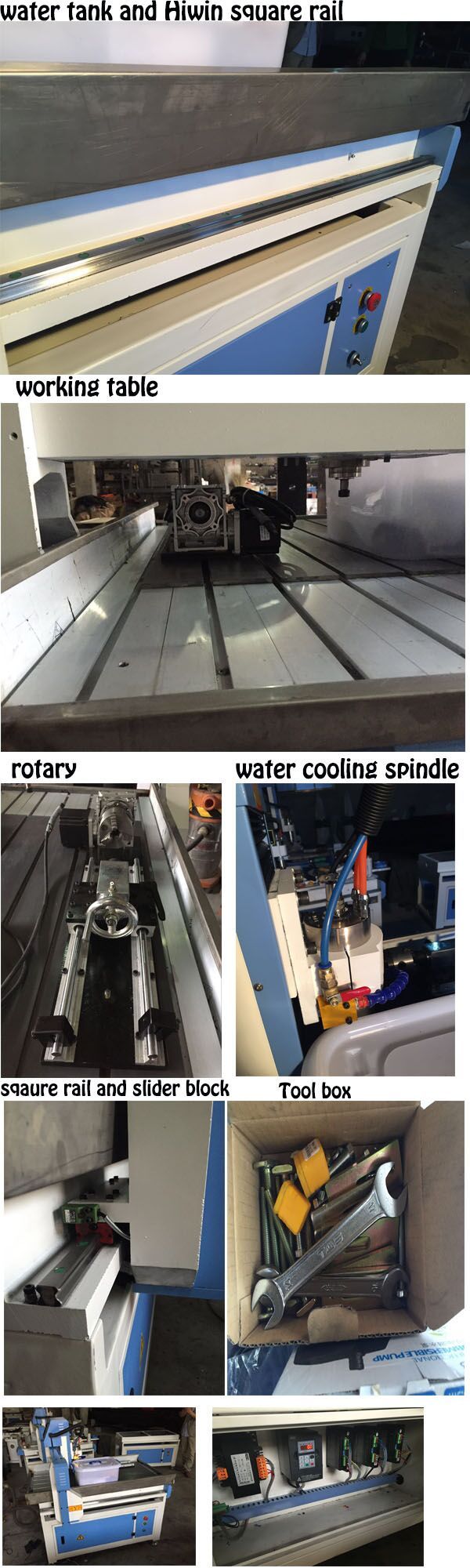

Here is the spare parts:
1. working size is: 600x900x100/200mm
2. 1.5kw water cooling spidle using changsheng brand
3. Tawai TBI ball screw transmission.
4.Taiwan Hiwin square rail( not the round one)
5.DSP control system
6. Leadshine stepper motor and lead shine drivers.
7.Fuling inverter
8.Janpan imron Limited switch
9. T-Slot table(materials holders)
10. Filter
11. Tool sensor
12. Tool box( including all tools for machine)
The round rail between with the square rail:
Compare the round rail, the square rail has more higher precision , less wear and tear can maintain high accuracy, square rails apply to high speed move and greatly
reduce the driver horsepower the machine required, what's more, can bear the load from left and right up and down at the same time. but the round rail has large bearing
capacity, cheaper than square rails.
why we use the DSP for you?
DSP control system don't need connect with the PC, and it included three parts, control card, U DISK and handle controller, when you set the tool path by the software (
Artcam Type3. etc.), then copy it to the U-disk. then insert U disk to control card , the tool path will show in the hand controller, you can control the tools cut or engrave.
Features:
*Adopt imported all-steel square guide rail with the high precision, ensure machine frame much stability and durability.
*High accuracy ball screw imported from Germany assure machine frame with the high precision.
*Break point and break bits continue engraving function can support up to nine points and can engrave at any places as you like.
*Compatible with Type3 / artcam /castmate/proe/coreldraw/wentai and other CAD/CAM software,which can produce exquisite relief,video sculpture,three-dimensional art works.
Applicable industry:
Advertisement engraving and cutting ,Handicraft industry ,Various types of man-made plate,LED,Neon literally cutting groove,plastic molding light box,interior decoration industry,mold manufacturing,wood processing,craft manufacturing ,light box cutting ,building model cutting,indoor decoration cutting,building,small metal,stationery,rulers,badges,department cards etc.
Applicable materials:
Wood ,Alumnium industry,3D technology ,arcylic cutting ,copper,PVC board,stone,MDF board ,PCB board etc.
We have the vedio of this machine engraving on the copper and aluminium, it aslo can working on jade, marble...
If you need the machine please come to the website of made in china ---company show-my vedio to have a check.
Thanks and Best regards
Technical Data

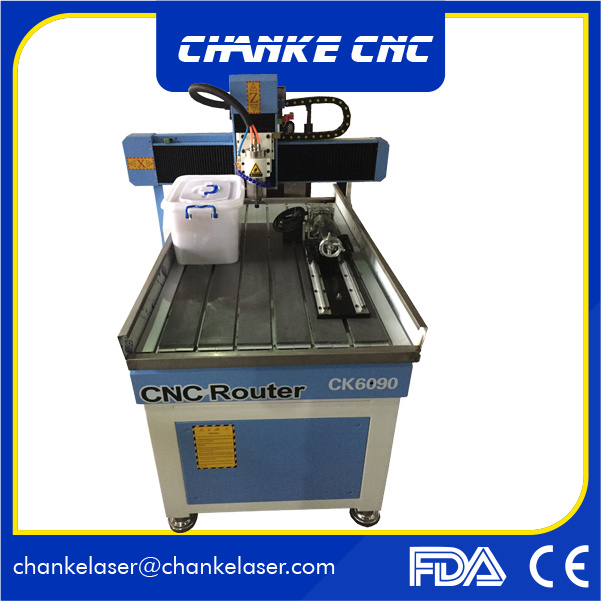

1. If it works on the cylinder, the max diameter is: Φ 100mm. The max length is: 1200mm.
2. It adopt the T slot with clamp as working table, then you could fit different size of carved materials.
3. DSP control system, no need computer.
4. It has the break-point memory points for 10 pcs, reducing materials waste.
5. Iron cast wholly frame, double-screw auto eliminating clearance ball screw, floor-type liner guide transmission.
6. Well designed dust and water proof device ensure the machine easy maintenance.
7. CAD/CAM designing software like Type 3/ArtCAM/Castmate /wentai and so on.
It fit for the small work production
Applicable industry:
outdoor light box, advertising logo, signage, seal, breastplate, handicraft, stationery, ornament, instrument panel, PCB board, carpentry product, etc
Forget to tell you, we can according to your requirements to produce the machine.
Agent price and end user price is different, so please tell me you are the end user or agent, when you send us the letter.
so don't hesitate contact us !
Items | Destription |
Effective working area | 600(X)mm*900(Y)mm*120(Z)mm |
Max.thickness of the materials | ≤200mm(the distance between Z-axis and the bottom of the working station) |
Materials | Cast iron machine bed ,cast aluminum gantry |
Guide rail | Linear square guide rail |
Transmission | ball screw |
Working table | Aircraft aluminum T slot |
Voltage | AC 220v 50/60Hz single phase |
Driving mode | Stepper motor |
Spindle motor | 2.2kw water cooling /1.5kw |
Collet type | ER11 |
Suitable tools diameter | 3.175mm,4mm,6mm |
Spindle speed | 0-24000rpm/min |
Empty traveling speed | 0-60000mm/min |
Engraving speed | 0-25000mm/min |
Voltage | AC 220V 50/60Hz single phase or |
Machine accuracy | 0.05mm |
Control system | MACH3 /Original NcStusio /DSP |

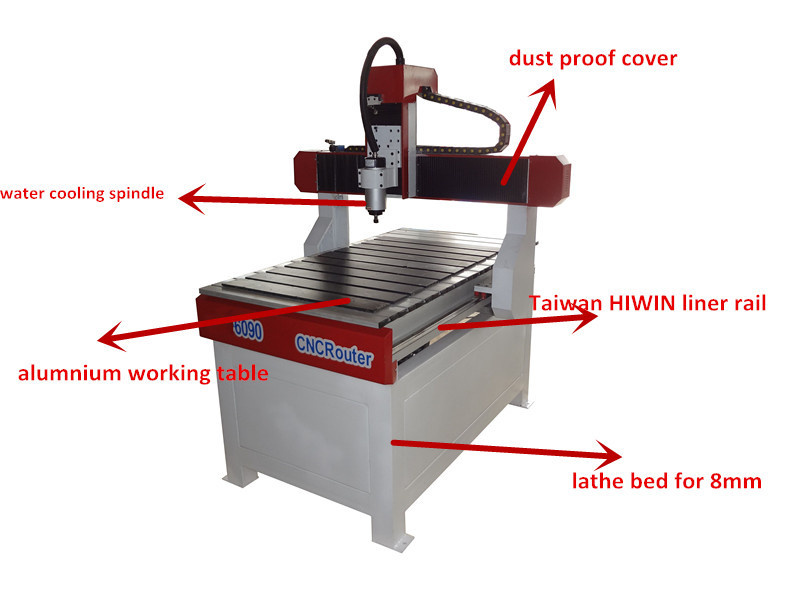

Features
1 , 2.2kw water cooling spindle ,high rotated speed,hign power can engraving on the hardness materials(or air cooling spindle ),low noise .
2,Dustproof system,make the working table more convenient
3,Aircraft aluminum T slot working table covered PVC protects the tools from breaking .T-slot with clamps makes it convenient to fix the materials
4,The machine cast iron machine bed ,cast aluminum gantry , more stable ,no deformation ,little shock ,moving stability .
5,linear square guide rail ,ball screw transmission,more precision.
6,T-shape dragon gate makes 3 axis working stable ,high speed and accuracy.Dragon gate moving,customer can work on any area of the materials.
7,Optional control system ,such as Ncstudio/DSP/Mach3,high stability ,high efficiency ,easy to learn
8,Continuing working after the break point /power failure,lower the rejection rate
9,Good software compatibility ,can compatible with th Artcam/Type3/Ucancam/JDPaint such CAS/CAM software ,convenient to using.
10,Control cabinet it includes :round transformer ,leadshine driver,inverter
(1) Round transformer:change the local power voltage into 40-60v
(2) Inverter :it can control the spindle speed and save energy

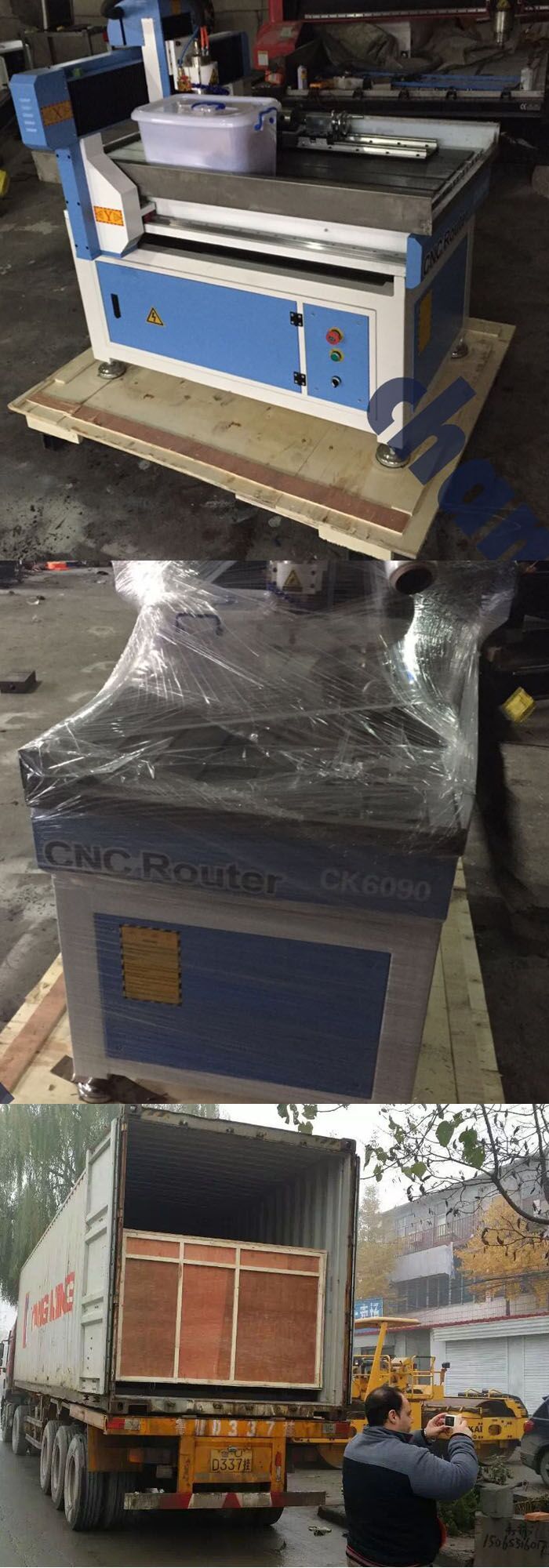

Packing:
All wood working machine are packed with standard inner plastic wrap and steel structure and outer plywood case, inner package would be help to tight all the Small parts in the package. and the plywood is firm enough to protect the laser machine during shipping.
The advantages of plywood case package:
Firstly, plywood case, its compressive strength and bearing quality is better, is the market of choice for the goods of high weight packing.
Secondly, the board area is big, the soil structuer is good and operational process is simple, so its is better in leakproof ness and waterproof.
Thirdly, when importing, the plywood case is with fumigation-free, the produre is simple.
After sale service:
1. 2 years warranty
2. Engineer can go to your country help you install and repair the machine if machine has big problems.
3. the easy broken parts are all change within the 9 months, so within 9 months if the easy brokens are working under a normal enviroment, so we can change for you for free.
4. 24 hours online to help you slove all the problems.
5. Engineers can speak English.
