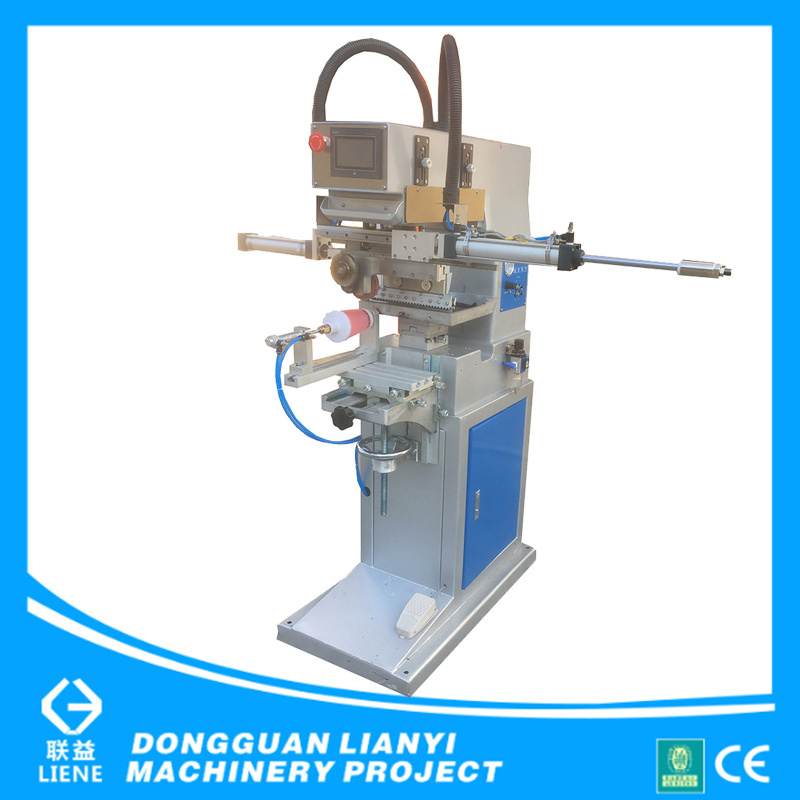

Cylindrical One Color Pad Printer Machine for Plastic Cup
| Price: | US $ 0.1-0.2/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | T/T,Western Union |
| Prod Model: | LY-GY5 |
|---|---|
| Fixture: | Rotary Fixture |
| Warranty: | One Year |
| Driven Type: | Pneumatic |
| Ink System: | Ink Cup/Ink Tray |
| Application: | Commodity |
| Customized: | Customized |
| Transmission Type: | Single-Colour Pad Printer |
| Usage: | Plastic Cup Printer |
| Steel Plate Size: | 100*300mm |
| Speed（pcs/hr）: | 800PCS/Hr |
Product Description
Plastic Cup One Color Pad Printing MachineInstruction
The one color pad printer is special designed for printing image on cylindrical products surface, it is equipped with special rotary fixture which can realize printing image around the whole circle objects, suitable for printing adjustment knob, adjustment wheel, pen holders, cups etc.
Features
- Japan Mitsubishi PLC with man-machine touch screen, programmable printing process, easy operation
- Japan SMC cylinder driven and solenoid valve, stable running and longer service life.
- Solid aluminum alloy casting machine, small vibration, stable printing.
- Hardened bearing track, not easy to wear, extend the life of parts greatly.
- Equipped with the blowing device, ensure ink drying on time.
- Equipped with emergency stop, meet international industrial safety stands.
- Scraper working mode: pneumatic mechanical valve cylinder up and down
- Start mode: panel | pedal
- Transverse stroke: 160mm
- Vertical stroke: 75mm
- The max height of products: 200mm
- Workstation: 1pcs
- Jigs fixing method: T-slot table, pressure code compression
- Pad fixing method: wooden bolt lock.
- Steel plate size: 100*300mm
- Printing area: 70*250mm
- Printing speed: 800pcs/hr
- Power supply: 110V/220V 50/60HZ 40W
- Air pressure: 5~7 bar
Product Display

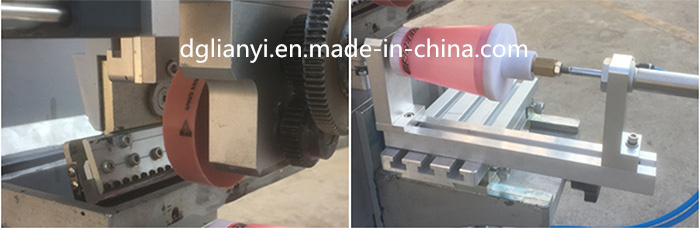

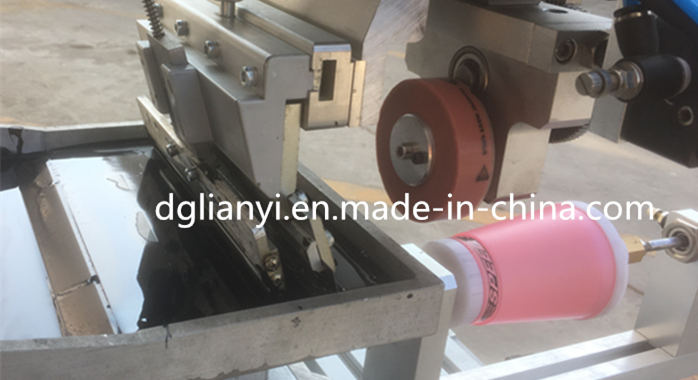

With special round pad With special rotary mould

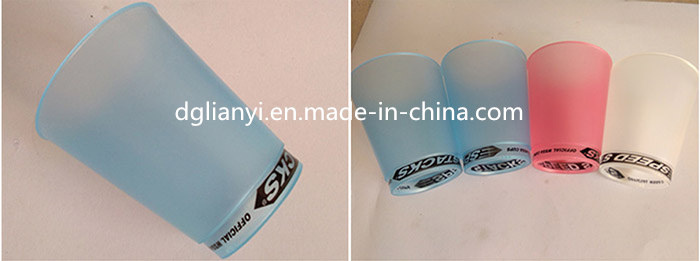

Printed Sample
Our Services
Pre-Sales Service After-Sales Service
* Inquiry and consulting support * One year warranty sine machine delivery
* Do the sample printing * We can train our customer operate machine
* Welcome to visit our factory at any time * We can provide oversea service
Pack Details
Inner PE film wrapping Outer plywood case
