Four Color Shuttle Pad Printer with Independent Pad

Four Color Shuttle Pad Printer with Independent Pad
Price: US $ 0.1-0.2/Set
Min Order: 1/Set
Pay Type: T/T,Western Union
Prod Model: LY-P4/S
Warranty: One Year
Driven Type: Pneumatic
Ink System: Ink Cup/Ink Tray
Application: Plastic, Hardware, Electronic, Toy, Electrical
Transmission Type: Multi-Color Pad Printer
Speed(pcs/hr): 800PCS/Hr

Product Description

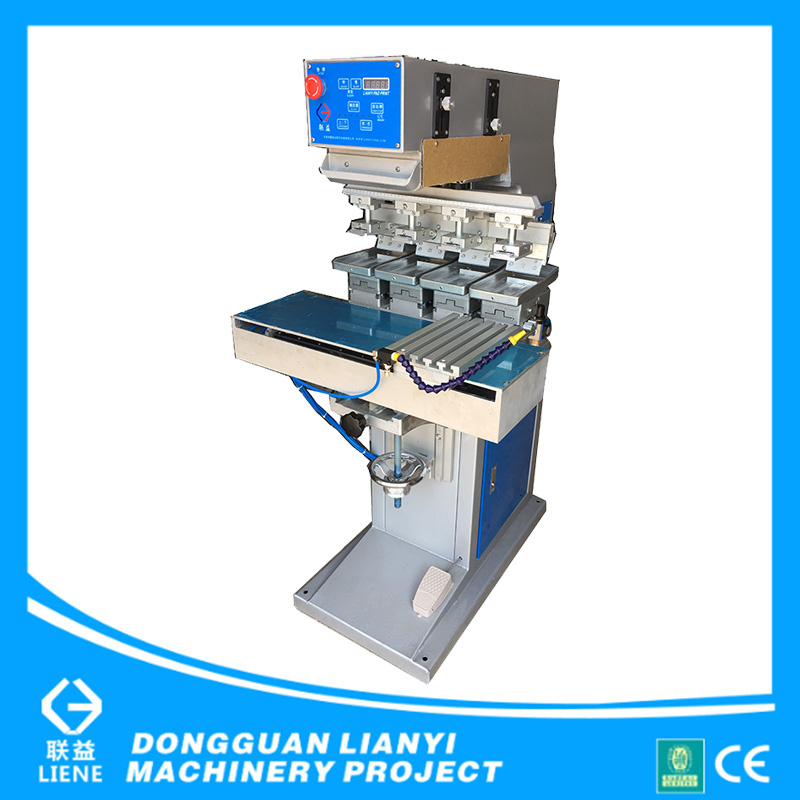

Four Color Shuttle Pad Printer With Independent Pad





Instruction
Shuttle pad printer have precise shuttle for good color registration, adopt linear slide registration system, driven by German FESTO rod-less cylinder and pneumatic bolt device, mechanical precise location, precision color registration. widely applied in plastic, hardware, electronic, toy, electrical appliances etc

Characteristic Parameter
  1. Model No: LY-P4/S
  2. Steel plate size: 100*150mm
  3. Max. printing area: 75*120mm
  4. Printing speed: 800pcs/hr
  5. Pad transverse stroke: 75mm
  6. Pad vertical stroke: 160mm
  7. Adjustable angle for pad: 360°
  8. Adjustable angle for worktable: ±5°
  9.  Max height of work piece: 120mm
  10. Center distance of ink tray: 127mm
  11. Pressure for pad pritning:155kgf/cm
  12. Air pressure: 5~7bar
  13. Voltage: 110V/220V 50/60 HZ 40W
  14. Machine size: 820*720*1380mm
  15. Machine weight: 160KG
Free Accessorie
1. Steel plate: 4 pc
2. Silicone pad: 4pc
3. Pad holder: 4pc
4. Doctor blade: 4pc
4. Power cable: 1 pc
5. Foot pedal: 1 pc
6. Screw: 8 pc /work table
7. Adjustment tools: 1 set
8. Operation manual: 1 pc

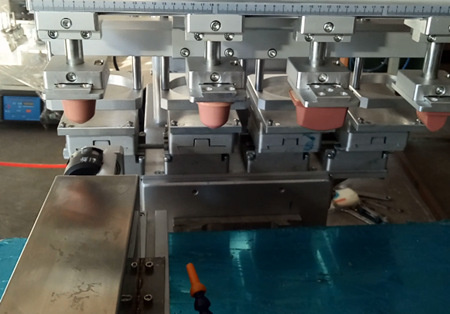

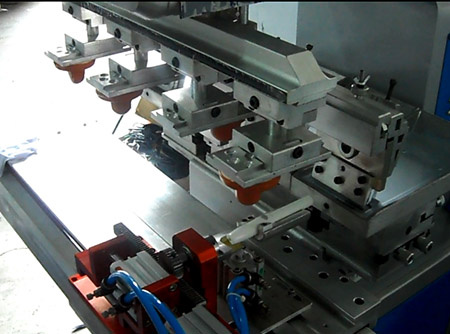

Product Display

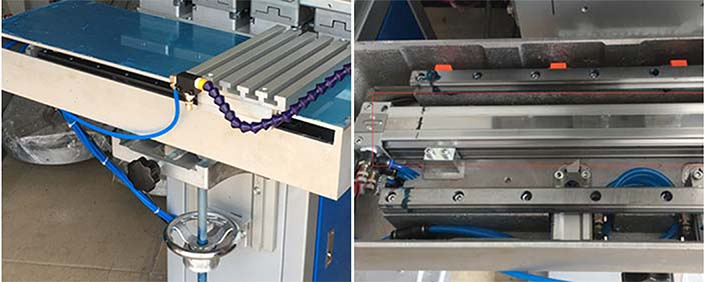

                    X.Y.Z Adjustable Worktable                                                             Adopt German Rod-less Cylinder

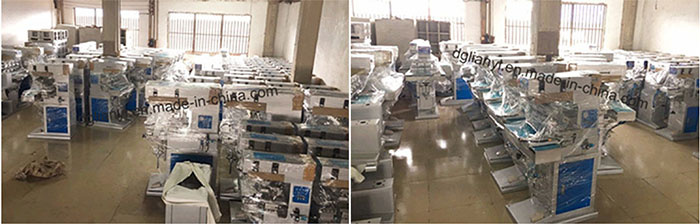

Factory Show



Our Services

Pre-Sales Service                                                                   After-Sales Service
* Inquiry and consulting support                                              * One year warranty sine machine delivery
* Do the sample printing                                                          * We can train our customer operate machine
* Welcome to visit our factory at any time                                * We can provide oversea service

Dongguan Lianyi screen pad printing machinery Co., Ltd Located in Dongguan city, is a scientific manufactory specialized in the research, development, production and management of pad printer, screen printer, automatic pad printer and automatic screen printer. According to special print requirement of products, our engineers can provide the most professional mechanical design and make the most suitable machine to meet their special print requirements.

Since founding Lianyi committed to the development of fully automatic pad and screen printing machine. We constantly pursue innovation and advanced technical concept, now we have played an important role in this filed. Our automatic machine have outstanding features with high quality, high efficiency, strong stability, reducing labor cost which have won the trust of clients from home and abroad.

We firmly insist on the principle of "quality first, credit and customers satisfaction first". Our company develop in competition, seek opportunities in challenge, Just trust us that we can offer you best technical solution and satisfied serve. We are willing to cooperate with you, create brilliant!
