Double Section Wall Mount Cabinet with Thermostat
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | TN-006B-S |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: | Ral7035, Ral9004, etc |
| Logo Type: | Silk Print, Aluminum Sticker, Rubber Sticker |
| Shipping: | Sea, Air, Train, Truck |
| Packing Style: | Assembled or Dis-Assembled |
| Material: | SPCC Cold Rolled Steel |
| Certificate: | Ce. RoHS. SGS |
| Type: | Network Cabinet |
| Usage: | Network Integration System |
| Installation: | Wall-Mounted Cabinet |
| Certification: | RoHS |
| Condition: | Used |
| Fan Number: | One or Two |
| Capacity: | From 6u~ 27u |
Product Description

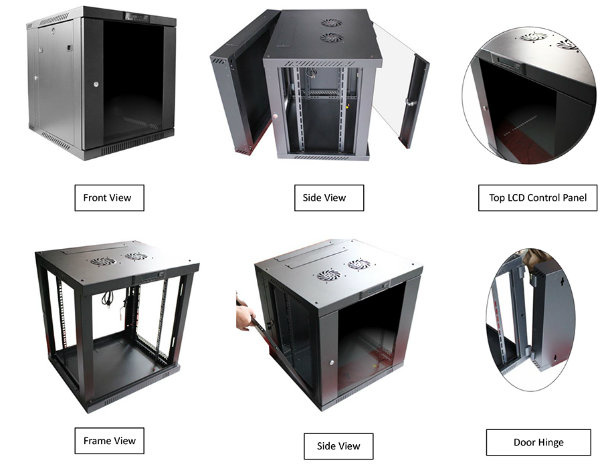

Double Section Wall Mount Cabinet with Thermostat
=========Descriptions===========
> Two Section/ Double Section Wall Mount Cabinet
> Top with LCD Control Panel (Thermostat Display)
> Can be Disassembled, Flat Packing, Save the Shipping Cost.
> Standing or wall mounting installation
> Adjustable feet and heavy duty castors are optional
> Easy mounting installation
> Removable side panels, side locks optional
> Cable entry on both of top cover and bottom panel
> 120mm fan available (220V or 110V)
> Turning angle of front door is over 180 degrees.
==========Size Form=======
| Model No. | Size | ||
| W (MM) | D (mm) | H(mm) | |
| TN-006B-S-6506 | 600 | 550 | 368 |
| TN-006B-S-6606 | 600 | 600 | 368 |
| TN-006B-S-6509 | 600 | 550 | 501 |
| TN-006B-S-6609 | 600 | 600 | 501 |
| TN-006B-S-6512 | 600 | 550 | 636 |
| TN-006B-S-6612 | 600 | 600 | 636 |
| TN-006B-S-6515 | 600 | 550 | 769 |
| TN-006B-S-6615 | 600 | 600 | 769 |
| TN-006B-S-6518 | 600 | 550 | 901 |
| TN-006B-S-6618 | 600 | 600 | 901 |
===========Standard===================
> Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1, DIN41494; PART7, ETSI standard
> Material:
High grade cold rolled steel.
> Thickness:
Mounting profile: 1.50mm others: 1.2mm
> Loading Capacity:
Static Loading: 60kgs
> Surface finish:
Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic painting.
> Degree of Protection:
IP20
> Body Color:
RAL7035, RAL9004 etc.
===========Optional Accessory============
> Fixed/cantilever shelf, sliding shelf, for 600mm, 800mm, 900mm, 1000mm depth cabinet
> 19'' keyboard frame (350mm, 550mm, 650mm, 730mm)
> 1U, 2U support board
> Vertical Cable manager
> 19'' Power distribution unit(PDU)
> 19'' Blanking plate 1U, 2U, 4U
> Heavy duty castor, Heavy duty castor with braker
> Optional lock for side panels
> Earth kit
And so on...
-------------------FAQ-----------------------
1) What is your Payment term?
---TNE accept T/T, L/C, Western Union.
2) What is your Trade term?
---TNE do EXW, FOB, CNF, CIF terms.
3) What is the Loading Port?
--- Ningbo or Shanghai port.
4) What is your MOQ?
---MOQ of most our products is 5pcs, different items will be different. We have indicated the MOQ for each item in the price list.
5) What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market, international safety standard certificate is also be provided.
Ningbo Longtu Network Technology Co., Ltd. ( Formly named Ningbo Taina Electronics Compay) own a Brand of "TNE" Mainly offer 19'' network cabinets, 19'' server racks, wall mount cabinet and customized Products, built for your specific requirement.
> Year 2003 TNE Founded
> Year 2006 TNE gains Export and Import Right
> Year 2010 TNE Moved the factory to Guanhaiwei East Industrial Zone, Ocupy 6066 Square Meter.
> Year 2014 TNE Changed the name from NINGBO TAINA ELECTRONICS COMPANY to NINGBO LONGTU NETWORK TECHNOLOGY Co., Ltd. Pure Producing Network Cabinet.
TNE have some stable partner From USA, UK, France, Austrial, Egypt, and So on.
TNE mainly Products as below:
Network cabinet
Server Rack
Wall Mount Cabinet
Open Frames
PDU...
TNE Machinery:
CNC Punching Machine: 4 sets
Laser Cutting Machine: 2 sets
Bending Machine: 11 sets
And other small Machines...
TNE owned Painting Line with Environment evaluation certificate
Welcome to contact with us to start the business in Year 2016! !
