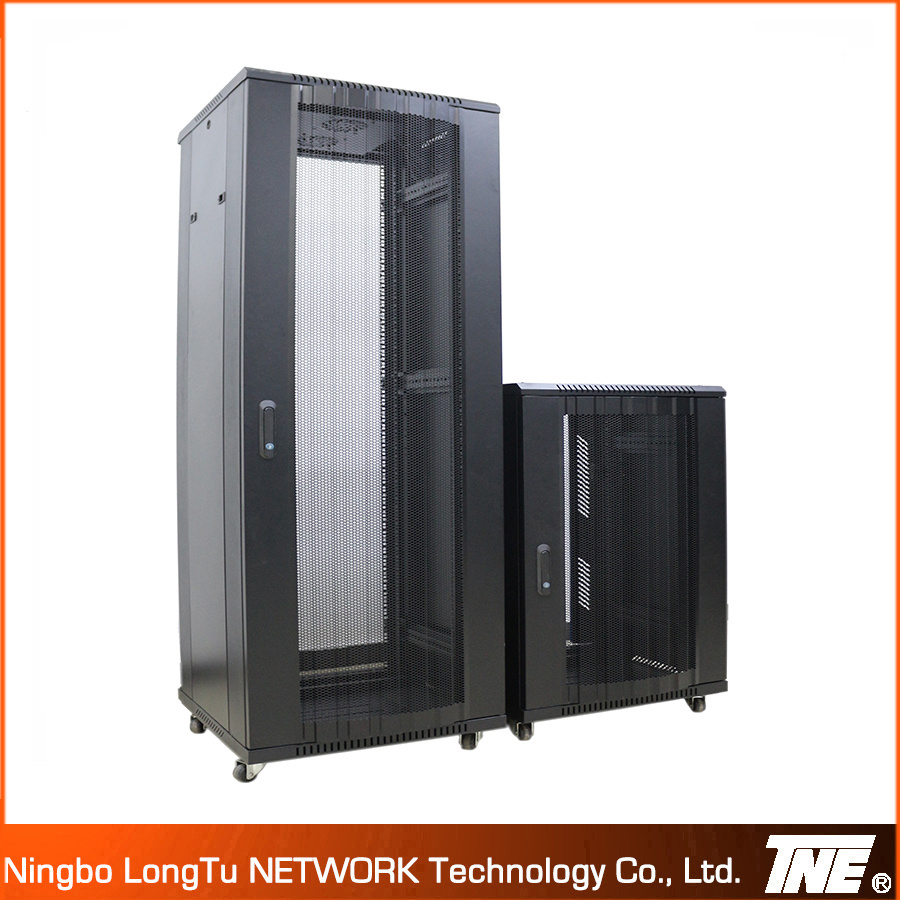

Home LED Light Products Sever Racks with High Ventilation Hexagonal Hole Arc Vented Door
Sever Racks with High Ventilation Hexagonal Hole Arc Vented Door
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | TN-001 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: | Ral7035, Ral9004, etc |
| Logo: | Silk Print, Aluminum Sticker, Rubber Sticker |
| Packing Style: | Assembled or Dis-Assembled |
| Shipping: | Sea, Air, Train, Truck |
| Material: | SPCC Cold Rolled Steel |
| Certificate: | CE. RoHS |
| Type: | Server Cabinet |
| Usage: | Network Integration System |
| Installation: | Vertical |
| Certification: | RoHS |
| Condition: | Used |
| Fan Number: | 2 to 6 PCS Fan |
| Capacity: | 12u to 47u |
Product Description
Sever Racks with High Ventilation Hexagonal Hole Arc Vented DoorDescription
> Exquisite design with precise dimension and craftsmanship;

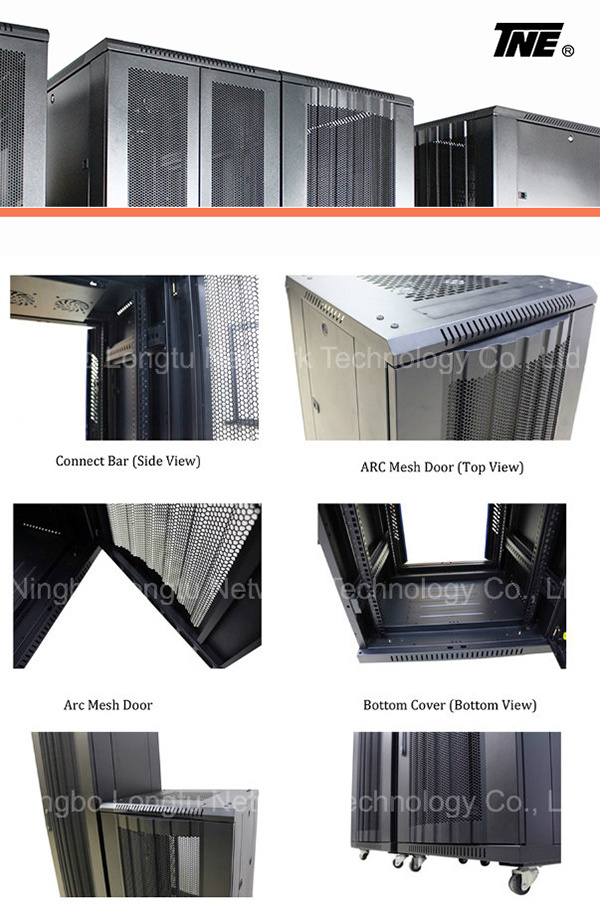

> High-density ARC vented front single &rear dual doors, Lockable door and side panels for system security;
> Fully adjustable vertical mounting rails;
> Swiveling wheels and legs can be jointly installed to withstand up to 800kg maximum static load;
> Lockable wiring holes on top/bottom, size of the large hole at the bottom adjustable;
Standard:
Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1, DIN41494; PART7, ETSI standard
Material:
High grade cold rolled steel.
Thickness:
Mounting profile: 2.00mm others: 1.2--1.5mm
Loading Capacity:
Static Loading: 800kgs
Surface finish:
Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic painting.
Degree of Protection
IP20
Body Color:
RAL7035, RAL9004 etc.
Optional Accessory:
> Fixed/cantilever shelf, sliding shelf, for 600mm, 800mm, 900mm, 1000mm depth cabinet
> 19'' keyboard frame (350mm, 550mm, 650mm, 730mm)
> 1U, 2U support board
> Vertical Cable manager
> 19'' Power distribution unit(PDU)
> 19'' Blanking plate 1U, 2U, 4U
> Heavy duty castor, Heavy duty castor with braker
> Optional lock for side panels
> Earth kit
And so on...
| Model No. | Capacity(U) | Width(mm) | Depth(mm) | Height(mm) |
TN-001 | 18U | 600mm/800mm | 600mm/800mm/1000mm | 988mm |
TN-001 | 22U | 600mm/800mm | 600mm/800mm/1000mm | 1166mm |
TN-001 | 27U | 600mm/800mm | 600mm/800mm/1000mm | 1388mm |
TN-001 | 32U | 600mm/800mm | 600mm/800mm/1000mm | 1610mm |
TN-001 | 37U | 600mm/800mm | 600mm/800mm/1000mm | 1833mm |
TN-001 | 42U | 600mm/800mm | 600mm/800mm/1000mm | 2055mm |
TN-001 | 45U | 600mm/800mm | 600mm/800mm/1000mm | 2188mm |
TN-001 | 47U | 600mm/800mm | 600mm/800mm/1000mm | 2277mm |
