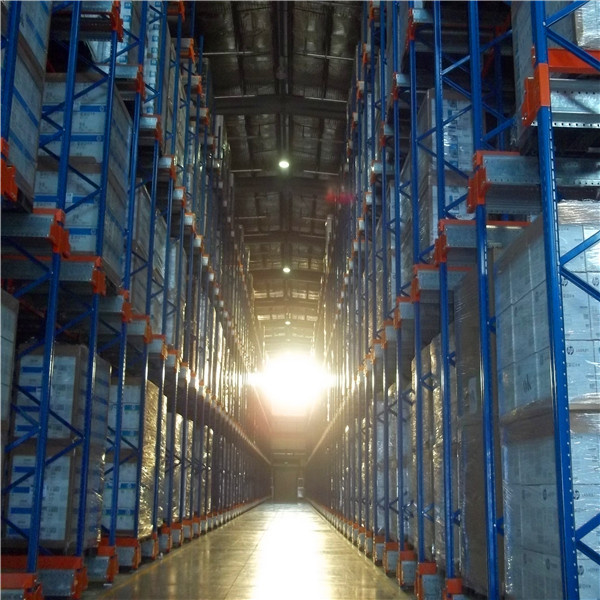

Heavy Duty High Density Warehouse Storage Radio Shuttle Racking
| Price: | US $ 1000-1200/Ton |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Ton |
| Pay Type: | L/C,T/T |
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
|---|---|
| Export Markets: | Global |
| Depth: | 1-4m |
| Certification: | CE,ISO9001,As4084,ISO9001:2008 |
| Height Within: | 10m |
| Width: | Customized |
| Color: | Selective |
| Dimension: | Different Sizes Are Available |
| Weight Capacity: | 800-2400kg/Bay |
| Weld: | Weld for Automatic Welding |
| Adjustable: | 75mm |
| Material: | Steel |
| Structure: | Rack |
| Mobility: | Fixed |
| Closed: | Open |
| Development: | Conventional |
| Serviceability: | Common Use |
| Height: | 4-10m |
| Weight: | 500~1500kg/Pallet |
Product Description
High Tech Heavy Duty And Power Coating Radio-shuttle RackFunction introduction
number | Work can | Charteristic point |
| 1 | Manual in-out-stock | , Press the remote manually to achieve single in-out-stock |
| 2 | Automatic in-out-stock | , Press the remote manually to achieve automatic in-out-stock for many times |
| 3 | / First in,first out/first in,last out | Achieve in-out-stock at two ends of single line |
| 4 | Locating shuttle | Use buzz to locate shuttle out of vision |
| 5 | Battery level indication | , Display the remaining amout of electricity to facilitate the operator to charge in time |
| 6 | Self-protection funcion | Function to stop car when meet obstacle |
| 7 | Rescue function | Specially designed rescue car in case of failure funcion |
| 8 | Automatical arrangement | Function to arrange the pallets on rail in place |
| 9 | Automatical count | Function to count cargo under certain rule |
Pallet size specification
number | standard | pallet size |
| 1 | Chinese nation standard | L1200×W1000mm |
| 2 | Korea and Japanese national standard | L1100×W1100mm |
| 3 | Es standard | L1200×W800mm |
| 4 | American standard | L1219×W1016mm |
| 5 | Specialized of china Tobacco | L1250×W1000mm |
| 6 | Non-standard | pallet size |
Technical performance and parameters
Ordernumber | Items | Performanceandparameters |
| 1 | (Kg) Rated load capacity | 1500 |
| 2 | (W) Power of lifting motor | 550 |
| 3 | (W) Power of traction motor | 550 |
| 4 | Drive power supply | High energy lithium battery |
| 5 | (AH) Battery capacity | 80 |
| 6 | (H) Runtime at the normal temperature | >8 |
| 7 | (H) Runtime at low temperature | >6 |
| 8 | (H) Charge time | 8 |
| 9 | Times of recharge | >800 |
| 10 | Remote | Hand-set remote made in Sweden |
| 11 | Controlling mode | / Handling/Automatic mode |
| 12 | (M) Remote distance | 100 |
| 13 | Functional temperate | -30ºC~50ºC |
| 14 | Programmable Logic Controller | SiemensPLC |
| 15 | Travelling mode | restricted between the designed tracks |
| 16 | (m/s) Speed without load | 0.8 |
| 17 | (m/s) Speed with full load | 0.6~0.7 |
| 18 | (mm) Distance of lift | 45 |
| 19 | () Transmission mode (lifting) | Chain |
| 20 | () Transmission mode(traction) | Chain |
| 21 | Travelling wheel | High-performance |
| 22 | Material of pallet | ,, Wood, Plastic and Steel |
| 23 | (mm) Deflection of Pallet | <20 |
| 24 | L×W mm Suitable pallet size | L1100~1250,W800~1100 |
| 25 | (Kg) Equipment self weight | 240 |
Our Storage Rack Advantages
1. Color and size can be adjusted according to your requirements.
2. Upright and beam is formed by high-quality cold rolled steel, with an omega shaped section to make sure they are very strong.
3. Box beam or step beam used. Beam can be freely adjusted by pitch 50mm or 75mm.
4. Connection of the upright and beam is by wedging, equipped with safety pin to make sure of the safety.
5. Rich accessories: upright protector, guide rail, frame barrier, row spacer, wire decks, steel shelf, etc.
6. Stable structure, large loading capacity, convenient sorting.
7. Compatible with most type of handling equipment and building structures.
8. First level pallets can be placed on the floor.
9. Easy to install and dismantle.
Our Advantages
1. High and stable quality.
2. Delivery timely.
3. Excellent rolling technology and patents
4. The whole set of perfect production process. (Cutting, roll forming, welding, galvanized, bending, punching machine, powder coated, assembly etc.)
Nanjing Suli Smart Storage Equipment Co., Ltd. Is specializes in providing total solutions for warehousing equipment system supplier. We provide our clients with warehousing systems consulting, design, manufacture, installation and service integration, integrated services.
Produced strictly to ISO9001 quality system to operate as a standard, all products are advanced European industry standard to test. The company has strong technical force, product development team, mature professional installation team and perfect service system. With excellent product quality and efficient after-sales service, product by all levels of users.
The company has a large number of professional and senior technical personnel, and with the Southern Electrical and Mechanical College has long-term technical cooperation, the introduction and digestion products internationally advanced logistics technology, innovative spirit, and always keep the company in the industry' S technology leader.
Nanjing Su Li Smart storage equipment Co., Ltd. Is a professional engaged in R & D, production, sales of smart storage equipment, technology oriented enterprises.
The company has strong technical force of product R & D team, mature and professional installation team and perfect after sale service system. With excellent product quality, efficient after sale service, products are well praised by users at all levels
The company's business scope: Automatic handling robot system, overall racking system design, system integration, warehousing material handling system.
Produced strictly to ISO9001 quality system to operate as a standard, all products are advanced European industry standard to test. The company has strong technical force, product development team, mature professional installation team and perfect service system. With excellent product quality and efficient after-sales service, product by all levels of users.
The company has a large number of professional and senior technical personnel, and with the Southern Electrical and Mechanical College has long-term technical cooperation, the introduction and digestion products internationally advanced logistics technology, innovative spirit, and always keep the company in the industry' S technology leader.
Nanjing Su Li Smart storage equipment Co., Ltd. Is a professional engaged in R & D, production, sales of smart storage equipment, technology oriented enterprises.
The company has strong technical force of product R & D team, mature and professional installation team and perfect after sale service system. With excellent product quality, efficient after sale service, products are well praised by users at all levels
The company's business scope: Automatic handling robot system, overall racking system design, system integration, warehousing material handling system.
