Home LED Light Products Heavy Duty Office Mobile Shelving

Heavy Duty Office Mobile Shelving

Heavy Duty Office Mobile Shelving
Price: US $ 223.59-226.59/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: SII-MIPS054
Color: Putty, Light Grey, Beige, White
Surface Treatment: Epoxy Powder Coating
Quality Warranty: 3 Years
Delivery Time: 2~3 Weeks
Port: Shenzhen Port
Material: Metal
Open Type: Sliding
Usage: Office
Customized: Customized

Product Description

What is Mobile shelving?
Mobile Shelving is a shelving system which mounted on moving carriages. It is a perfect & high efficiency storage solution maximum uses of your limited floor space.
All archive shelving units can be locked & packed when access is not required, but when needed, an aisle can be created. All the rolling shelving units have dust proof device, make sure the whole units are dust free.

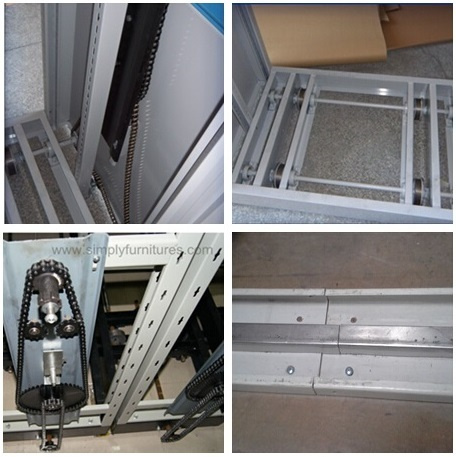

Product features:mobile shelving mechanical operation wheel, basement and rail details

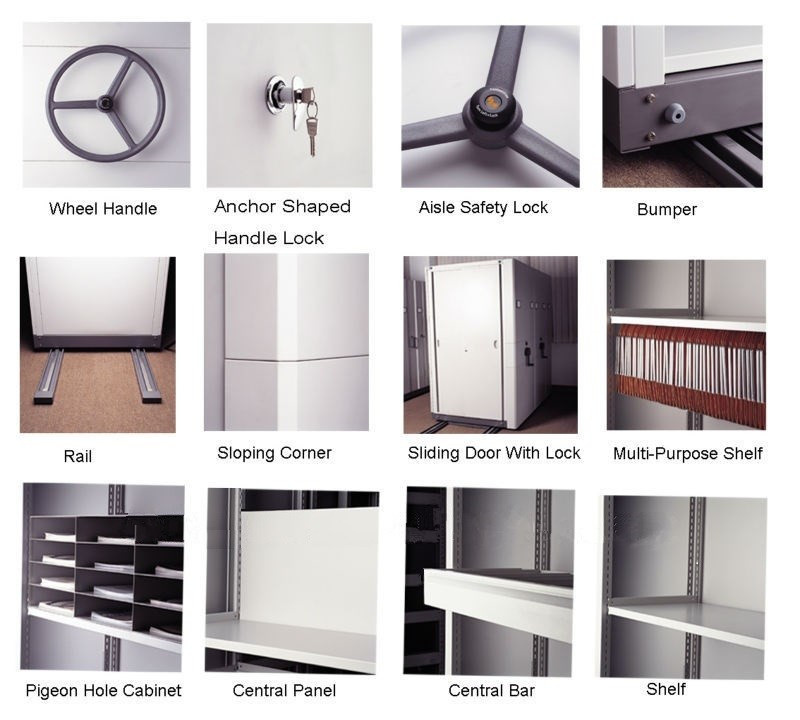

Main parts and Optional accessories:


Specification:
                                                         Parameter Specification  :
Types:Manual Mechanical WheelMechanical Handle
Material  :Electrolytic Galvanized Steel
Surface treatment:Epoxy Powder Coating
Dimension  :Height :2150mm
Width :(905*N)+165mm    (N=number of Bays)
Depth  :Fixed Unit  : 450mm
Movable Unit  : 450/650/850mm
Shelf Size :W845xD395xH38mm(for 450/850); W845xD295xH38mm(for 650);
No. of Shelf Single Fixed /Single Movable =4n
Double Movable =8n
Aisle Size :600-1000mm
Loading per Shelf:Reinforced Shelf  :D295mm/85kg ; D395mm/100kg
Multi-purpose Shelf  :D395mm/70kg
No. of Rails :1-3Bays : 2pcs4-5Bays :3pcs
6-7Bays : 4pcs8Bays :5pcs
Thickness:BaseBack panelTop panelFront panelSide panel ShelfPostRail
2mm1mm1mm1mm1mm0.8mm1.5mm2mm
Lock :Steering wheel with brake ,more safety
Post50x50mm square tube post of double plate with slots in 25mm increment
Bumper :Natural rubber of 30x16mm
Rail :Made of 25mm concrete steel with 0.8mm stainless steel sheet coating
Wheel :Iron die casting with anti-rust zinc coating
Loading  : 1000kg / Wheel
  Standard model of mobile filing shelving
TypeBay numbersSingle fixed Single movable  Double movable   Double Movable
Manual1SFP450-1SMP450-1DMP650-1DMP850-1
2SFP450-2SMP450-2DMP650-2DMP850-2
Mechanical1SFM450-1SMM450-1DMM650-1DMM850-1
2SFM450-2SMM450-2DMM650-2DMM850-2
3SFM450-3SMM450-3DMM650-3DMM850-3
4SFM450-4SMM450-4DMM650-4DMM850-4
5SFM450-5SMM450-5DMM650-5DMM850-5
6SFM450-6SMM450-6DMM650-6DMM850-6
7SFM450-7SMM450-7DMM650-7DMM850-7
8SFM450-8SMM450-8DMM650-8DMM850-8
Standard  Depth:  ( D )450mm450mm650mm850mm
Standard  Height:   ( H )                   2150mm
Standard  Width:  ( W )905*N (N=number of Bays)
Thanks for your concern!









To be a subsidiary of Simply International Industrial, Dongguan Chengmei Hardware Co., Ltd. Established in 2008, specialists in versatile Steel & Stainless Steel storage furniture which widely used in the office, home, pharmacy, food preparation and many other industries. Simply manufactures top quality storage systems using the high quality electrolytic galvanized steel & Stainless Steel and highly skilled professionals.

We have invested a lot on modern Machines, include: 300 meters long automatic power coating production line, "AMADA" Automatic punch machines, CNC punching machine

The material we are using is Electrolytic galvanized steel for all office furniture products, which ensures the products have much longer life-circle.

With modern machines and high quality raw material our products give a high-standard impression to customers. And have gained a good reputation among customers.

With our extensive range of Steel storage Furniture, Simply can manufacture as per your designing & requirements.

For more information about our storage furniture, and to request a free quotation email sales@simplyindustrial. Net or call us on 0086-769-22200111.
