High Density Mobile Shelving

Name: High Density Mobile Shelving
Brand: yourledlight.com
SKU: 677924402
Availability: InStock
Rating: 4.3 (129 reviews)

Price:	US $ 165-180/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Dongguan Chengmei Hardware Co., Ltd.

Showroom Product Company Profile

Prod Model:	T4B-04
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Putty, Light Grey, Beige, White
Surface Treatment:	Epoxy Powder Coating
Quality Warranty:	3 Years
Delivery Time:	2-3 Weeks
Port:	Shen Zhen Port
Material:	Metal
Open Type:	Sliding
Usage:	Office
Customized:	Customized
Door:	Without Door

Product Description

^{What is}^{High Density Mobile File Storage cabinet Shelving ?}
Mobile Shelving is a shelving system which mounted on moving carriages. It is a perfect & high efficiency storage solution maximum uses of your limited floor space.
All archive shelving units can be locked & packed when access is not required, but when needed, an aisle can be created. All the rolling shelving units have dust proof device, make sure the whole units are dust free

Compactor Storage Systems provides a solution to your storage needs and increase storage efficiency with systematic filing and retrieval of storage materials.

The benefits you can get by using mobile aisle shelving systems

Double your storage capacity

Mobile shelving offers the highest possible density for storing files and other media. Simply mobile shelving systems maximize existing storage space by eliminating aisles and compacting several storage cabinets or shelving systems into a much smaller amount of space. An aisle or access to your files is opened up only when and where you need it by easily shifting entire rows of high-density shelving.

Speed access to and retrieval of information

By allowing you to store all your information in one space-efficient area, files and other media are accessible within a few feet of each other. Mobile shelving systems allow you to keep files close to those that need them and minimize off-site storage. Productivity increases as the amount of time required for access, filing and retrieval of your information is reduced.

Storage of your valuable collections

The storage of historical documents requires specific conditions for safe and long-term preservation. Ventilation ducts and filters ensure an optimum climate to protect the archive against dust and mould. In addition to climate control, Simply mobile shelving has a range of features to preserve a historical archive collection.

Effortless movement

Simply custom builds a carriage that wraps around your existing shelving to match your environment. The carriages are mounted to rails and move easily

safety

The built-in safety locks for mechanical type cabinets to safeguard users from accidentally trapped in aisles.

Product Features:
1. mobile shelving t is Effortless push-pull operation
2. Economical way to maximize your valuable storage space
3. Units can be easily extended, altered or relocated to support your changing storage needs
4. Available in single or tandem configurations
5. Low profile tracks are trolley and wheelchair friendly
6. Each system is lockable with a central lock when packed together
7. The built-in safety locks for mechanical type cabinets to safeguard users from accidentally trapped in aisles

Why choose simply?
1. All filing shelving can be customized/tailored, sizes/dimensions & the designing, we can do as per you requested
2. Industry Solid bearings & tracks are what we are using
3. A variety of accessories for your choice
4. more than 10 years manufacturing experience
we have been manufacturing compact filing system more than 10 years, our professional teams will offer you suitable & perfect solutions, we are not offering products, we are offering storage solution

Product details:

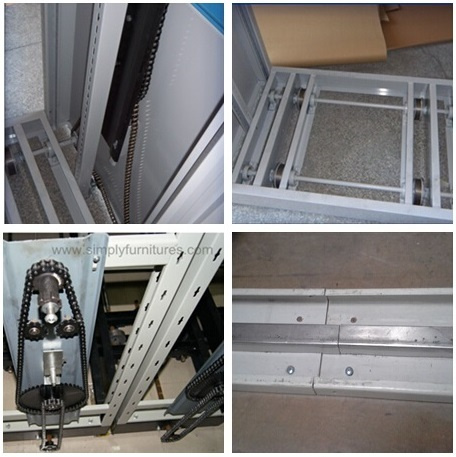

Mobile shelving system mechanical operation wheel, basement and rail details:

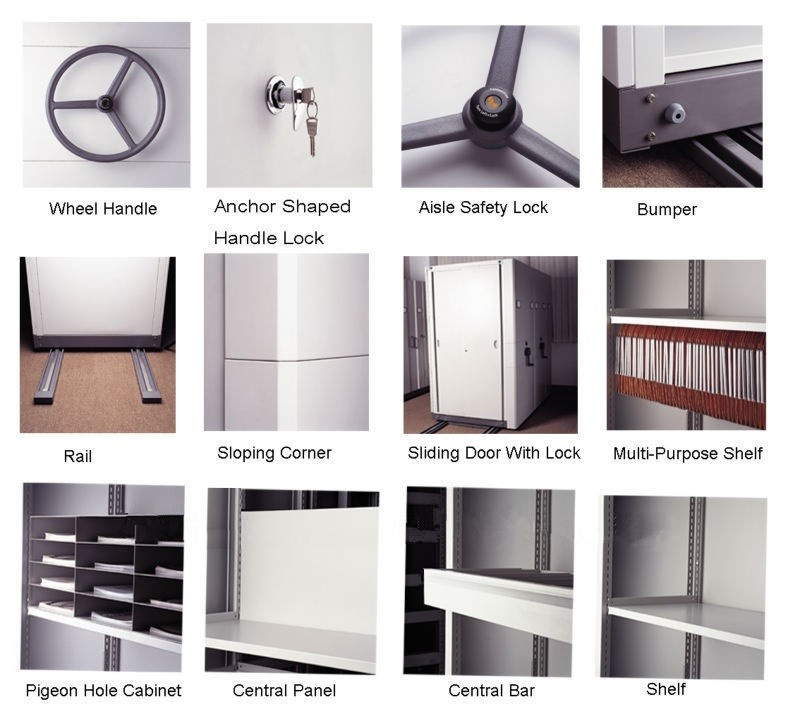

Main parts and Optional accessories: Multi-purpose shelf, cabinet, pull-out desk top, hanging rod, pull-out frame, pull-out drawer, divider , disk drawer, platform, sliding door

Specification:

Parameter Specification :
Types:	Manual		Mechanical Wheel			Mechanical Handle
Material :	Electyolytic Galvanized Steel
Surface treatment:	Epoxy Powder Coating
Dimension :	Height :	2150mm
	Width :	(905*N)+165mm (N=number of Bays)
	Depth :	Fixed Unit : 450mm
		Movable Unit : 450/650/850mm
Shelf Size :	W845xD395xH38mm(for 450/850);				W845xD295xH38mm(for 650);
No. of Shelf	Single Fixed /Single Movable =4n
	Double Movable =8n
Aisle Size :	600-1000mm
Loading per Shelf:	Reinforced Shelf :				D295mm/85kg ; D395mm/100kg
	Multi-purpose Shelf :				D395mm/70kg
No. of Rails :	1-3Bays :		2pcs		4-5Bays :		3pcs
	6-7Bays :		4pcs		8Bays :		5pcs
Thickness:	Base	Back panel	Top panel	Front panel	Side panel	Shelf	Post	Rail
	2mm	1mm	1mm	1mm	1mm	0.8mm	1.5mm	2mm
Lock :	Steering wheel with brake ,more safety
Post	50x50mm square tube post of double plate with slots in 25mm increment
Bumper :	Natural rubber of 30x16mm
Rail :	Made of 25mm concrete steel with 0.8mm stainless steel sheet coating
Wheel :	Iron die casting with anti-rust zinc coating
	Loading : 1000kg / Wheel
Standard model of mobile filing shelving
Type	Bay numbers	Single fixed	Single movable	Double movable		Double Movable
Manual	1	SFP450-1	SMP450-1	DMP650-1		DMP850-1
	2	SFP450-2	SMP450-2	DMP650-2		DMP850-2
Mechanical	1	SFM450-1	SMM450-1	DMM650-1		DMM850-1
	2	SFM450-2	SMM450-2	DMM650-2		DMM850-2
	3	SFM450-3	SMM450-3	DMM650-3		DMM850-3
	4	SFM450-4	SMM450-4	DMM650-4		DMM850-4
	5	SFM450-5	SMM450-5	DMM650-5		DMM850-5
	6	SFM450-6	SMM450-6	DMM650-6		DMM850-6
	7	SFM450-7	SMM450-7	DMM650-7		DMM850-7
	8	SFM450-8	SMM450-8	DMM650-8		DMM850-8
Standard Depth: ( D )		450mm	450mm	650mm		850mm
Standard Hight: ( H )		2150mm
Standard Width: ( W )		905*N (N=number of Bays)
Thanks for your concern !

To be a subsidiary of Simply International Industrial, Dongguan Chengmei Hardware Co., Ltd. Established in 2008, specialists in versatile Steel & Stainless Steel storage furniture which widely used in the office, home, pharmacy, food preparation and many other industries. Simply manufactures top quality storage systems using the high quality electrolytic galvanized steel & Stainless Steel and highly skilled professionals.

We have invested a lot on modern Machines, include: 300 meters long automatic power coating production line, "AMADA" Automatic punch machines, CNC punching machine

The material we are using is Electrolytic galvanized steel for all office furniture products, which ensures the products have much longer life-circle.

With modern machines and high quality raw material our products give a high-standard impression to customers. And have gained a good reputation among customers.

With our extensive range of Steel storage Furniture, Simply can manufacture as per your designing & requirements.

For more information about our storage furniture, and to request a free quotation email sales@simplyindustrial. Net or call us on 0086-769-22200111.
