Home LED Light Products Heavy Duty Pallet Racking for Industrial Warehouse Storage Solutions

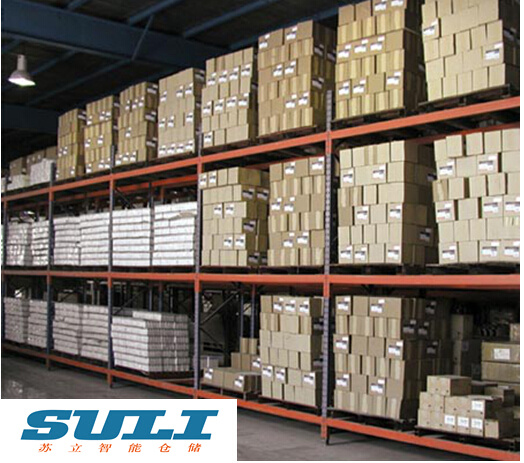

Heavy Duty Pallet Racking for Industrial Warehouse Storage Solutions
| Price: | US $ 1099.00/Piece |
|---|---|
| Trade Terms: | FOB,CFR,EXW |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
| Export Markets: | Global |
|---|---|
| Finishing: | Powder Coated or Galvanied |
| Color: | Blue/Red/Orange |
| Size: | up to Customer's Requirement |
| Usage: | Warehouse Storage Racking |
| Serviceability: | Common Use |
| Development: | Conventional |
| Closed: | Open |
| Weight: | 150-500kg |
| Mobility: | Adjustable |
| Structure: | Rack |
| Material: | Steel |
| Height: | up to 12m |
Product Description
1). Features of Heavy Duty Pallet Racking for Industrial Warehouse Storage Solutions1. The most popular and economical racking in warehouse;
2. Upright is formed by high-quality cold rolled steel, with an omega shaped section and hole distance 50mm or 75mm;
3. Box beam or step beam used. Beam can be freely adjusted by pitch 50mm or 75mm;
4. Connection of the upright and beam is by wedging, equipped with safety pin to make sure of the safety;
5. Rich accessories: Upright protector, guide rail, frame barrier, row spacer, wire decks, steel shelf, etc.;
6. Stable structure, large loading capacity, convenient sorting;
7. Compatible with most type of handling equipment and building structures;
8. First level pallets can be placed on the floor.
2). Advantages of heavy duty metal warehouse storage steel pallet racking:
1. Color and size can be adjusted according to your requirements.
2. Upright and beam is formed by high-quality cold rolled steel, with an omega shaped section to make sure they are very strong.
3. Box beam or step beam used. Beam can be freely adjusted by pitch 50mm or 75mm.
4. Connection of the upright and beam is by wedging, equipped with safety pin to make sure of the safety.
5. Rich accessories: Upright protector, guide rail, frame barrier, row spacer, wire decks, steel shelf, etc.
6. Stable structure, large loading capacity, convenient sorting.
7. Compatible with most type of handling equipment and building structures.
8. First level pallets can be placed on the floor.
9. Easy to install and dismantle.
3). Our advantages
1. High and stable quality.
2. Delivery timely.
3. Excellent rolling technology and patents
4. The whole set of perfect production process. (Cutting, roll forming, welding, galvanized, bending, punching machine, powder coated, assembly etc. )
| Features | 1. Pallets can be located, accessed and moved individually. 2. Rapid handling of almost all types of palletised goods. 3. Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs. 4. Maximizes space use in any warehouse configuration while retaining optimum product accessibility. 5. Strength and rigidity prevents compression damage to goods. 6. Bottom level of pallets can be stored on the floor, lowering structure costs. |
| Load Capacity & Dimension: |
1. Loading capacity: 500-4,000 kgs UDL/beam level. 2. Height: 1,000-11,000mm 3. Depth: 400-1,500mm 4. Length: 1,500-3,300mm 5. Special sizes also avaiable to specific storage needs. |
| Main Parts Specs: | 1. Upright section: 80*60*2.0, 90*70*2.0, 100*70*2.0, 120*95*2.0-2.5mm, etc. 2. Boxed beams section: 80*50*1.5, 100*50*1.5, 110*50*1.5, 120*50*1.5-2.0, 140*50*1.5-2.0, 160*50*1.5- 2.0, 180*50*2.0mm, etc., 3. Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components. |
| Material | High-quality steel from BAO Steel Co. Ltd., the largest steel manufacturer in China |
| Finish | High-quality Powder Coating Finish |
| Quick Delivery | Within 25 days for ordinary order quantity. Big production capacity allow us in a position to make quick delivery. |
| CE certified | Pallet Rack, CE certified, is designed and manufacturered to European Racking Code FEM 10.2.02, the Australian Standard - Steel Storage Racking AS4084 1993, and American racking standards. |
