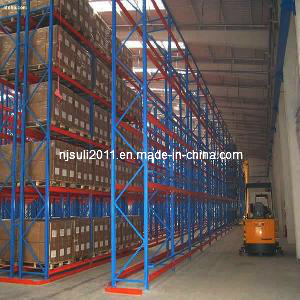

Heavy-Duty Pallet Racking

Export Markets:	Global
Certificate:	ISO9001
OEM:	Yes
Beams:	Box Beams and Step Beams
Material:	Steel
Structure:	Rack
Mobility:	Adjustable
Height:	0-5m
Weight:	500kg
Closed:	Open
Development:	Conventional
Serviceability:	Common Use

Product Description

Well Sold and Durable Storage Warehouse Pallet Rack

Details:
Racking is taken as a suitable and economical storage solution:
1. Standard and special dimensions are both available, you just put forward your requirement and we design, we give the solutions;
2. Pitch is with 75mm and 76.2mm(3''), compatible with European top brands like Dexion, Schaefer, etc.

Specification:

1. Upright: NH1 TYPE (Upright 80), NH2A TYPE(Upright 90A), NH2B TYPE(Upright 90B), NH3 TYPE(Upright 100), NH4 TYPE(upright 120), NH5 TYPE(upright 140), NH6 TYPE(Upright 160) or customized by clients.

2. Beams are divided into Box beams and Step beams.

3. Sectional sizes of box beams include: K80, K90, K100, K110, K120, K140, K150, K160.

4. Sectional sizes of step beams include: PK95, PK115, PK135, PK155.

Frame	Height (2-13m)	Depth (600-1,400mm)
	Upright section: 80x60; 90 x 70; 100 x 65; 120  x87mm
	Thickness: 2.0/2.3/2.5/3.0mm
Beam	Length (1200-4000mm) , popular size: 2300,2500,2700,3200,3600mm
	Beam section: 80 x 50;  100 x 50;110x50; 120 x 50; 140 x 50mm
	Thickness: 1.4--1.5mm
Load capacity	1-4Tons/Layer
Others	-  Pitch: 75mm -  Delivery time:   14-20days -  Payment term.   T/T  or L/C at sight -  Necessary accessories:  free(bolts & nuts, base plate, etc) -  Packing: stretch film & carton - Surface treatment:   powder coated, galvanization -  Production capacity: 3000T/month -  Available in  various colors/specifications/sizes



5. Pallet support bar: Regular type and cut-in adjustable types.

FREQUNT QUESTION ANSWER

1. What makesus different with others?

1) Our Excellent Service
For a quick, no hassle quote just send email to us

We promise to reply with a price within 24 hours - sometimes even within the hour.
If you need an advice, just call our export office a025 6602 6389, we will answer your questions immediately.

2)Our quick manufacturing time
For Normal orders, we will promise to produce within 15 days.

As a manufactory, we can essure the delivery time according to the formal contract.

3)Our Special Export Design
We pay very much attention to the export packages. We have plastic clips on the beams to protect the beams from surface damage in the transportation, We have got the whole uprights wrapped with transparent plastic film.

4)Our Warranty Time
The High Standards in the Design and Manufacturing ensure us to support the products with a 10-Year Warranty Time for your normal use, it is the Longest Manufacturer's Warranty!

2. What is delivery times?
This depends on the product. Typically standard products are delivered within 20 days.
The delivery time of the special products is according to the time of setting up of the tooling.

3. What is the term of payment?
1) T/T payment.
2) LC

4. May I know the status of my order?
Yes. We will send you information and photos at different production stage of your order. You will get the latest information in time.

5. Are samples available?
Yes, we can send some sections of samples for your reference by express.
FrameHeight (2-13m)Depth (600-1, 400mm)
Upright section: 80x60; 90 x 70; 100 x 65; 120 x87mm
Thickness: 2.0/2.3/2.5/3.0mm
BeamLength (1200-4000mm), popular size: 2300, 2500, 2700, 3200, 3600mm
Beam section: 80 x 50; 100 x 50; 110x50; 120 x 50; 140 x 50mm
Thickness: 1.4--1.5mm
Load capacity1-4Tons/Layer
Others - Pitch: 75mm, 76.2mm - Delivery time: 14-20days - Payment term. T/T or L/C at sight - Necessary accessories: Free(bolts & nuts, base plate, etc) - Packing: Stretch film & carton - Surface treatment: Powder coated, galvanization - Production capacity: 3000T/month - Main market: Exported more than 40countries, such as AU, PH, SG, UK, INDIA and etc. - Available in various colors/specifications/sizes
