Heavy Duty Teardrop Pallet Rack Shelves for Warehouse

Heavy Duty Teardrop Pallet Rack Shelves for Warehouse
Price: US $ 248-250/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Color: Orange+Blue
Finish: Powder Coating
OEM: Customized
Design: Teardrop Style Pallet Rack
Wire: Wire Mesh Layer
Panel: Metal Panel
Application: American Style
Material: Steel
Structure: Layer Frame
Mobility: Fixed
Height: 5-15m
Weight: 500kg
Closed: Open
Development: Conventional
Serviceability: Common Use

Product Description

Heavy Duty Teardrop Pallet Rack Shelves for Warehouse









 Steel American Teardrop Pallet shelfis taken as a suitable and economical storage solution:
1. Style: Pallet style, easy installation and adjustable.
2. Certificate: CE, ISO9001: 2008
3. Regular size/unit: (L) 2700 x (W) 1050 x (H) 5025mm, 4 levels loading, 2500kg/level
4. Customized sizes accepted: Yes
5. Adjustable size: 75mm
6. Standard color: Blue, orange, green, red, grey
7. Special color available: Yes
8. MQQ: 10 units
9. Delivery time: 7 -15 days for 1*40' container
10. Standard export package: Metal strip, film, paper board and master carton

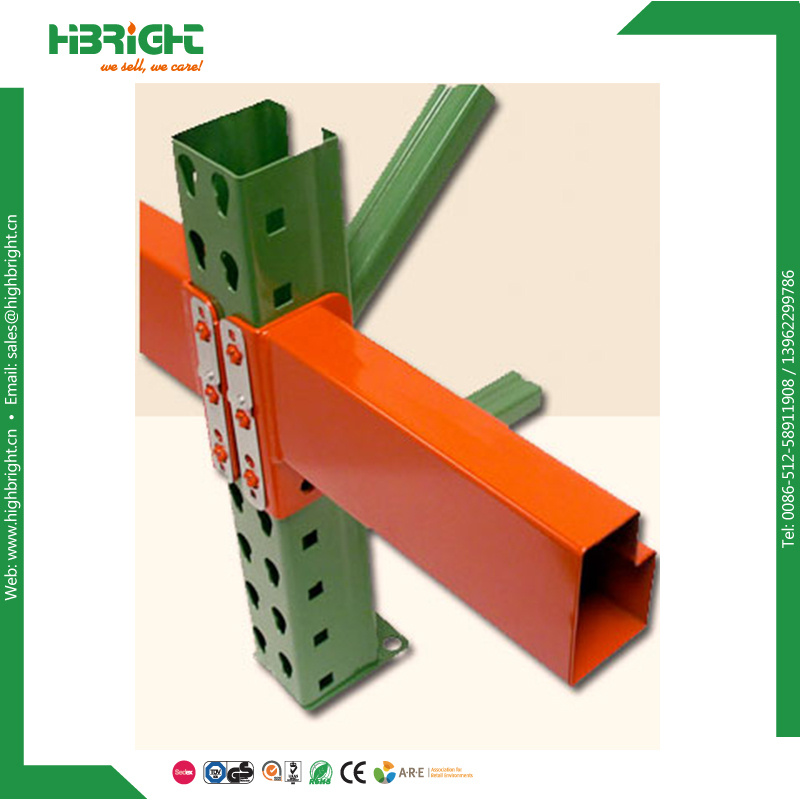

Teardrop Pallet Racking is another kind of Pallet Racking as customer's request, it is very popular for American Market, Step Beam and Wire Deck are available according the using request. Pitch of upright 2 inch(50.8mm)

Teardrop pallet rack, Interlake Teardrop Pallet Rack, teardrop Pallet racking, Pallet rack system, heavy-duty rack, Selective Pallet Racking, storage racking, warehouse racking system, storage pallet rack

1. Standard sizes to fit most racks, tubular steel with horizontal and diagonal bracing. Includes standard foot plates.
2. Piston Lock and Auto Lock clips are available and make a clicking sound when beam is secure and prevents beams for dislodging. Full filet welds adds to beams strength and durability.
3. Pre-Drilled footpad or footplate with the standard two-hole pad makes lagging anchors into concrete floor easy. 4. Upright Frames are made of two columns joined together by diagonal and horizontal Steel Bracing, which is high strength rolled steel bracing that is either welded or comes factory bolted with grade five serrated lock nuts.
5. Fully utilizes vertical space, Teardrop pallet rack is suitable for storing all kinds of goods
6 Special matches and decking can be used to make the racks capable of supporting other types of unit loads besides pallets (coils, drums, skids)
7 Engineered for maximum strength and value


If you are interested in our rack, please offer following info for a clear quotation:
1)- layout of your warehouse(if available) of length x width x clear height
2)- height of rack
3)- door site
4)- the size and weight of the pallet (after loading)
5)- forklift access size
6)- levels you would like

If you don't have the drawing, we could provide you the CAD design for your warehouse to your requirements, thanks a lot.


Advantage:
1. Low MQQ: Meeting actual small requests;
2. OEM Acceptable: We can produce your design;
3. Good service: We treat clients as friend;
4. Good quality: We have strict quality control system. Good reputation in the market;
5. Fast delivery: Scientific production arrangement to ensure the fast delivery.

Features:
1) Height: 1800-2500mm
2) Width: 450-600mm
3) Length: 1200-2000mm
4) Load capacity: 200-500kg/layer
5) Material: Cold rolled steel tube
6) Separable
7) Can be connected with another shelf
8) Available in assorted colors
9) Practical, convenient and attractive
10) Customized orders welcomed

Outer packing:
Knockdown packaging according to part dimensions


Upright frames Keyhole-style post
Cross section 3" x 3"
 Size (in inch)Size (in mm) Weight  (kgs)
1( thickness 1.9mm ) 36" X 96" 914.4*2438.4 27.591
 2( thickness 1.9mm ) 36" X 120" 914.4*3048.4 33.731
3( thickness 1.9mm ) 36" X 144" 914.4*3657.6 38.607
4( thickness 1.9mm ) 36" X 168" 914.4*4267.2 45.084
 5 thickness 1.9mm ) 36" X 192" 914.4*4876.8 49.929
6( thickness 1.9mm ) 36" X 216" 914.4*5486.4 55.702
7( thickness 1.9mm ) 36" X 240" 914.4*6096.0 62.679
 8( thickness 1.9mm ) 42" X 96" 1066.8*2438.4 28.999
 9( thickness 1.9mm ) 42" X 120" 1066.8*3048.0 35.210
 10( thickness 1.9mm ) 42" X 144" 1066.8*3657.6 39.984
 11( thickness 1.9mm ) 42" X 168" 1066.8*4267.2 46.594
12( thickness 1.9mm ) 42" X 192" 1066.8*4876.8 51.306
13( thickness 1.9mm ) 42" X 216" 1066.8*5486.4 57.232
14( thickness 1.9mm ) 42" X 240" 1066.8*6096.0 64.709
 15( thickness 1.9mm ) 48" X 96" 1219.2*2438.4 30.529
 16( thickness 1.9mm ) 48" X 120" 1219.2*3048.0 36.740
 17( thickness 1.9mm ) 48" X 144" 1219.2*3657.6 42.871
18( thickness 1.9mm ) 48" X 168" 1219.2*4267.2 48.195
19( thickness 1.9mm ) 48" X 192" 1219.2*4876.8 53.091
 20( thickness 1.9mm ) 48" X 216" 1219.2*5486.4 58.813
 21( thickness 1.9mm ) 48" X 240" 1219.2*6096.0 66.769
HIGHBRIGHT ENTERPRISE LIMITED was created in year 2004 and located in Zhangjiagang, Jiangsu, China.
We mainly manufacture innovative shopping trolley(carts) and shopping basket which are mainly used in the retail industry. Products include metal shopping cart, plastic shopping trolley, warehouse trolley, kids trolley, airport luggage trolley, fold able shopping cart, plastic shopping basket, rolling basket etc. When dealing in these various products fields, HIGHBRIGHT offers responsible support, with emphasis on quality and reliability over time. For more product information, please do not hesitate to send your detailed inquiries to us. You will feel our rapid and effective service from heart. Let's work together to open the door for mutual benefit.
Our Vision: To be the best One-Stop-Sourcing supermarket equipment supplier
from China.
Our Culture: WE SELL, WE CARE!
Our Mission: Let more international chain stores use Chinese supermarket
equipments.
Our Values: We conduct our business with integrity, honesty and fairness.
.
