Price: | US $ 223.59-226.59/Piece |
---|---|
Min Order: | 10/Piece |
Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
Prod Model: | SII-MIPS058 |
---|---|
Color: | Customized by Your Needs |
Surface Treatment: | Epoxy Powder Coating |
Quality Warranty: | 3 Years |
Delivery Time: | 2~3 Weeks |
Port: | Shenzhen Port |
Material: | Metal |
Open Type: | Sliding |
Usage: | Office |
Customized: | Customized |
Simply put, it's a way to store more in less space. We're all familiar with traditional static shelves-but the challenge with static storage is that it takes up a fixed amount of space. The amount of stuff being housed in your work space or storage area keeps growing, while the square footage stays exactly the same.
If you don't have the money to expand your space to accommodate those items, there's a good chance it's overcrowded and unorganized, which leads to a whole other set of issues-decreased productivity, low morale, safety hazards for employees, and ultimately, a negative effect on your bottom line.

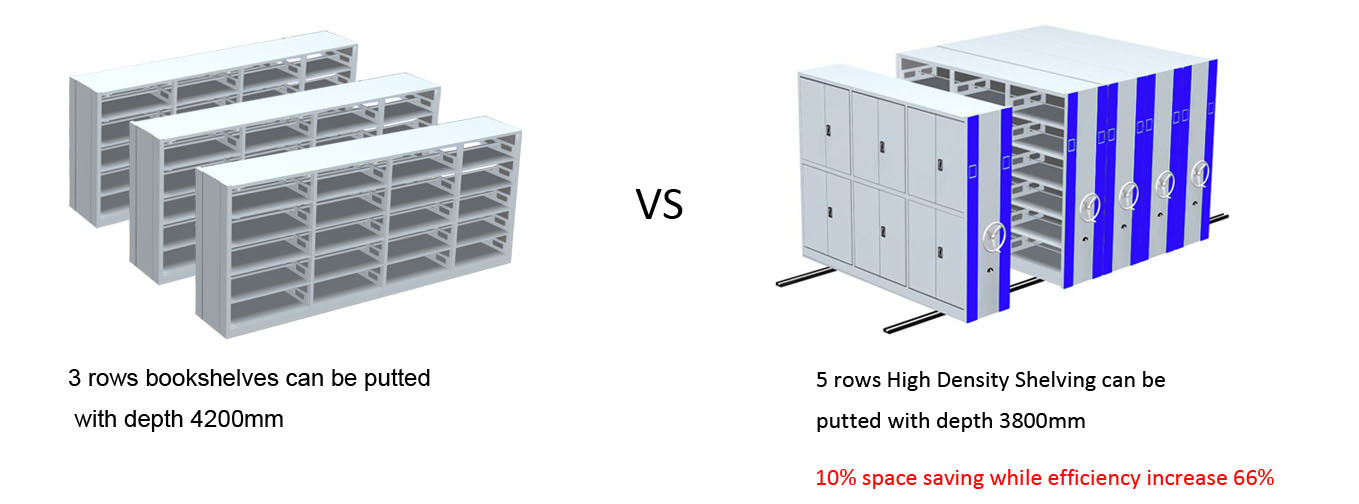

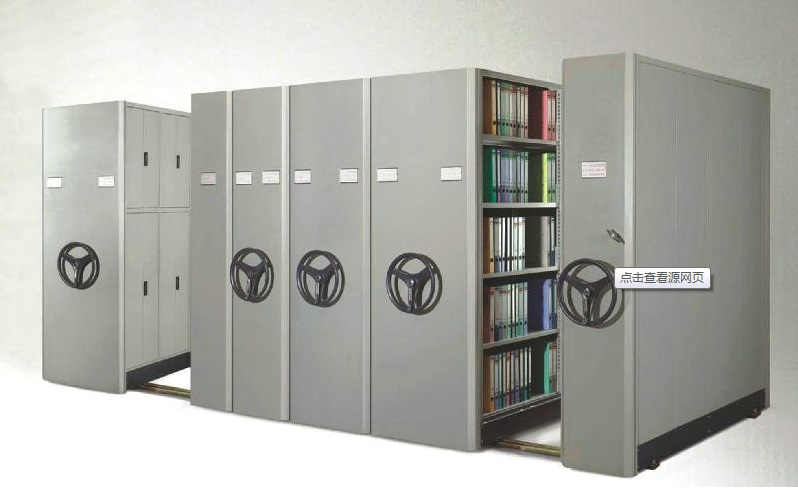

High-density mobile storage solves all of these challenges. By mounting shelving or cabinets onto a carriage and rail system, mobile storage eliminates fixed aisles to compact your storage space. It's a simple concept that enables you to significantly increase your storage capacity or store the same amount of items in half the footprint.
Simply high density mobile storage solutions offer a unique, space saving filing and shelving solution, Designed to accommodate any setting and engineered to fit into any space, Simply high density storage products are ideal for government, legal, medical and healthcare, warehouse, archival and athletic settings.
Product features

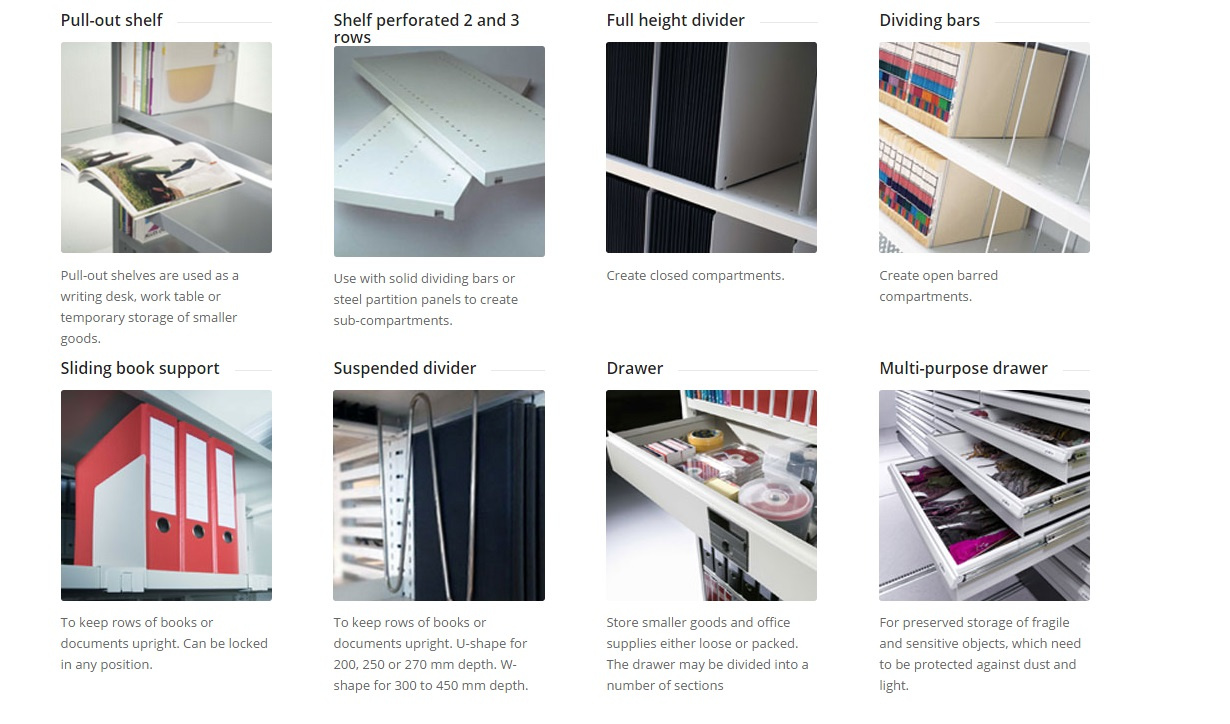

Optional accessories:
Specification:
Parameter Specification : | ||||||||
Types: | Manual | Mechanical Wheel | Mechanical Handle | |||||
Material : | Electrolytic Galvanized Steel | |||||||
Surface treatment: | Epoxy Powder Coating | |||||||
Dimension : | Height : | 2150mm | ||||||
Width : | (905*N)+165mm (N=number of Bays) | |||||||
Depth : | Fixed Unit : 450mm | |||||||
Movable Unit : 450/650/850mm | ||||||||
Shelf Size : | W845xD395xH38mm(for 450/850); | W845xD295xH38mm(for 650); | ||||||
No. of Shelf | Single Fixed /Single Movable =4n | |||||||
Double Movable =8n | ||||||||
Aisle Size : | 600-1000mm | |||||||
Loading per Shelf: | Reinforced Shelf : | D295mm/85kg ; D395mm/100kg | ||||||
Multi-purpose Shelf : | D395mm/70kg | |||||||
No. of Rails : | 1-3Bays : | 2pcs | 4-5Bays : | 3pcs | ||||
6-7Bays : | 4pcs | 8Bays : | 5pcs | |||||
Thickness: | Base | Back panel | Top panel | Front panel | Side panel | Shelf | Post | Rail |
2mm | 1mm | 1mm | 1mm | 1mm | 0.8mm | 1.5mm | 2mm | |
Lock : | Steering wheel with brake ,more safety | |||||||
Post | 50x50mm square tube post of double plate with slots in 25mm increment | |||||||
Bumper : | Natural rubber of 30x16mm | |||||||
Rail : | Made of 25mm concrete steel with 0.8mm stainless steel sheet coating | |||||||
Wheel : | Iron die casting with anti-rust zinc coating | |||||||
Loading : 1000kg / Wheel | ||||||||
Standard model of mobile filing shelving | ||||||||
Type | Bay numbers | Single fixed | Single movable | Double movable | Double Movable | |||
Manual | 1 | SFP450-1 | SMP450-1 | DMP650-1 | DMP850-1 | |||
2 | SFP450-2 | SMP450-2 | DMP650-2 | DMP850-2 | ||||
Mechanical | 1 | SFM450-1 | SMM450-1 | DMM650-1 | DMM850-1 | |||
2 | SFM450-2 | SMM450-2 | DMM650-2 | DMM850-2 | ||||
3 | SFM450-3 | SMM450-3 | DMM650-3 | DMM850-3 | ||||
4 | SFM450-4 | SMM450-4 | DMM650-4 | DMM850-4 | ||||
5 | SFM450-5 | SMM450-5 | DMM650-5 | DMM850-5 | ||||
6 | SFM450-6 | SMM450-6 | DMM650-6 | DMM850-6 | ||||
7 | SFM450-7 | SMM450-7 | DMM650-7 | DMM850-7 | ||||
8 | SFM450-8 | SMM450-8 | DMM650-8 | DMM850-8 | ||||
Standard Depth: ( D ) | 450mm | 450mm | 650mm | 850mm | ||||
Standard Height: ( H ) | 2150mm | |||||||
Standard Width: ( W ) | 905*N (N=number of Bays) | |||||||
