Home LED Light Products High Density Mobile Archive Shelving
High Density Mobile Archive Shelving
| Price: | US $ 223.59-226.59/Piece |
|---|---|
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | SII-MIPS078 |
|---|---|
| Color: | Customized |
| Surface Treatment: | Epoxy Powder Coating |
| Quality Warranty: | 3 Years |
| Delivery Time: | 2~3 Weeks |
| Port: | Shenzhen Port |
| Material: | Metal |
| Open Type: | Sliding |
| Usage: | Office |
| Customized: | Customized |
Product Description

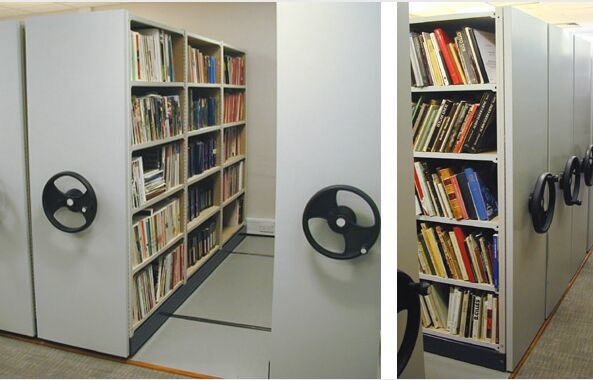

What is mobile shelving?With a mechanical mobile shelving system, users open system aisles by rotating ergonomic drive handles. They provide basic safety systems, and are ideal for medium-sized storage applications with higher activity levels, heavier storage material, greater carriage lengths and a larger number of system ranges.
Product features:
1.Mobile shelving is Effortless push-pull operation
2.Economical way to maximize your valuable storage space
3.Units can be easily extended, altered or relocated to support your changing storage needs
4.The built-in safety locks for mechanical type cabinets to safeguard users from accidentally trapped in aisles
5.Low profile tracks are trolley and wheelchair friendly
6.Available in single or tandem configurations
7.Easy assembly and dismantle
Specification:
| Parameter Specification : | ||||||||
| Types: | Manual | Mechanical Wheel | Mechanical Handle | |||||
| Material : | Electrolytic Galvanized Steel | |||||||
| Surface treatment: | Epoxy Powder Coating | |||||||
| Dimension : | Height : | 2150mm | ||||||
| Width : | (905*N)+165mm (N=number of Bays) | |||||||
| Depth : | Fixed Unit : 450mm | |||||||
| Movable Unit : 450/650/850mm | ||||||||
| Shelf Size : | W845xD395xH38mm(for 450/850); | W845xD295xH38mm(for 650); | ||||||
| No. of Shelf | Single Fixed /Single Movable =4n | |||||||
| Double Movable =8n | ||||||||
| Aisle Size : | 600-1000mm | |||||||
| Loading per Shelf: | Reinforced Shelf : | D295mm/85kg ; D395mm/100kg | ||||||
| Multi-purpose Shelf : | D395mm/70kg | |||||||
| No. of Rails : | 1-3Bays : | 2pcs | 4-5Bays : | 3pcs | ||||
| 6-7Bays : | 4pcs | 8Bays : | 5pcs | |||||
| Thickness: | Base | Back panel | Top panel | Front panel | Side panel | Shelf | Post | Rail |
| 2mm | 1mm | 1mm | 1mm | 1mm | 0.8mm | 1.5mm | 2mm | |
| Lock : | Steering wheel with brake ,more safety | |||||||
| Post | 50x50mm square tube post of double plate with slots in 25mm increment | |||||||
| Bumper : | Natural rubber of 30x16mm | |||||||
| Rail : | Made of 25mm concrete steel with 0.8mm stainless steel sheet coating | |||||||
| Wheel : | Iron die casting with anti-rust zinc coating | |||||||
| Loading : 1000kg / Wheel | ||||||||
| Standard model of mobile filing shelving | ||||||||
| Type | Bay numbers | Single fixed | Single movable | Double movable | Double Movable | |||
| Manual | 1 | SFP450-1 | SMP450-1 | DMP650-1 | DMP850-1 | |||
| 2 | SFP450-2 | SMP450-2 | DMP650-2 | DMP850-2 | ||||
| Mechanical | 1 | SFM450-1 | SMM450-1 | DMM650-1 | DMM850-1 | |||
| 2 | SFM450-2 | SMM450-2 | DMM650-2 | DMM850-2 | ||||
| 3 | SFM450-3 | SMM450-3 | DMM650-3 | DMM850-3 | ||||
| 4 | SFM450-4 | SMM450-4 | DMM650-4 | DMM850-4 | ||||
| 5 | SFM450-5 | SMM450-5 | DMM650-5 | DMM850-5 | ||||
| 6 | SFM450-6 | SMM450-6 | DMM650-6 | DMM850-6 | ||||
| 7 | SFM450-7 | SMM450-7 | DMM650-7 | DMM850-7 | ||||
| 8 | SFM450-8 | SMM450-8 | DMM650-8 | DMM850-8 | ||||
| Standard Depth: ( D ) | 450mm | 450mm | 650mm | 850mm | ||||
| Standard Height: ( H ) | 2150mm | |||||||
| Standard Width: ( W ) | 905*N (N=number of Bays) | |||||||
| Thanks for your concern! | ||||||||
To be a subsidiary of Simply International Industrial, Dongguan Chengmei Hardware Co., Ltd. Established in 2008, specialists in versatile Steel & Stainless Steel storage furniture which widely used in the office, home, pharmacy, food preparation and many other industries. Simply manufactures top quality storage systems using the high quality electrolytic galvanized steel & Stainless Steel and highly skilled professionals.
We have invested a lot on modern Machines, include: 300 meters long automatic power coating production line, "AMADA" Automatic punch machines, CNC punching machine
The material we are using is Electrolytic galvanized steel for all office furniture products, which ensures the products have much longer life-circle.
With modern machines and high quality raw material our products give a high-standard impression to customers. And have gained a good reputation among customers.
With our extensive range of Steel storage Furniture, Simply can manufacture as per your designing & requirements.
For more information about our storage furniture, and to request a free quotation email sales@simplyindustrial. Net or call us on 0086-769-22200111.
