Home LED Light Products High Density Mobile Collection Storage Shelving

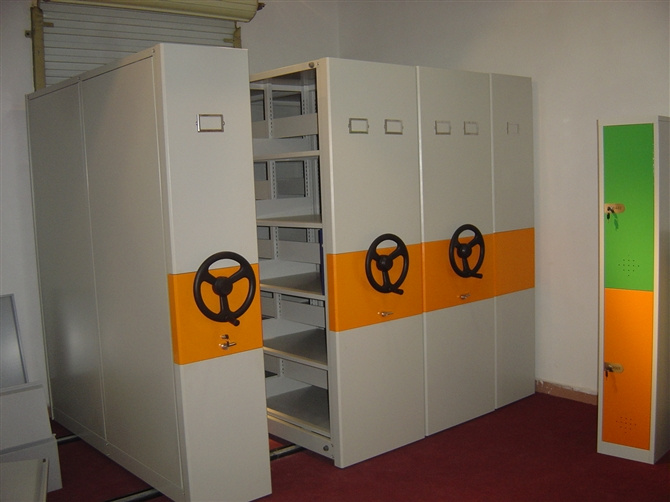

High Density Mobile Collection Storage Shelving

High Density Mobile Collection Storage Shelving
Price: US $ 223.59-226.59/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: SII-MIPS089
Size: Customized
Color: Customized
Surface Treatment: Epoxy Powder Coating
Quality Warranty: 3 Years
Delivery Time: 2~3 Weeks
Port: Shenzhen Port
Material: Metal
Open Type: Sliding
Usage: Office
Customized: Customized

Product Description

What is high density storage shelving?
Simply put, it's a way to store more in less space. We're all familiar with traditional static shelves-but the challenge with static storage is that it takes up a fixed amount of space. The amount of stuff being housed in your work space or storage area keeps growing, while the square footage stays exactly the same.

If you don't have the money to expand your space to accommodate those items, there's a good chance it's overcrowded and unorganized, which leads to a whole other set of issues-decreased productivity, low morale, safety hazards for employees, and ultimately, a negative effect on your bottom line.

High-density mobile storage solves all of these challenges. By mounting shelving or cabinets onto a carriage and rail system, mobile storage eliminates fixed aisles to compact your storage space. It's a simple concept that enables you to significantly increase your storage capacity or store the same amount of items in half the footprint.
Simply high density mobile storage solutions offer a unique, space saving filing and shelving solution, Designed to accommodate any setting and engineered to fit into any space, Simply high density storage products are ideal for government, legal, medical and healthcare, warehouse, archival and athletic settings.

Product features:
1.Mobile shelving is Effortless push-pull operation
2.Economical way to maximize your valuable storage space
3.Units can be easily extended, altered or relocated to support your changing storage needs
4.The built-in safety locks for mechanical type cabinets to safeguard users from accidentally trapped in aisles
5.Low profile tracks are trolley and wheelchair friendly
6.Available in single or tandem configurations
7.Easy assembly and dismantle

Specification:
                                                         Parameter Specification  :
Types:Manual Mechanical WheelMechanical Handle
Material  :Electrolytic Galvanized Steel
Surface treatment:Epoxy Powder Coating
Dimension  :Height :2150mm
Width :(905*N)+165mm    (N=number of Bays)
Depth  :Fixed Unit  : 450mm
Movable Unit  : 450/650/850mm
Shelf Size :W845xD395xH38mm(for 450/850); W845xD295xH38mm(for 650);
No. of Shelf Single Fixed /Single Movable =4n
Double Movable =8n
Aisle Size :600-1000mm
Loading per Shelf:Reinforced Shelf  :D295mm/85kg ; D395mm/100kg
Multi-purpose Shelf  :D395mm/70kg
No. of Rails :1-3Bays : 2pcs4-5Bays :3pcs
6-7Bays : 4pcs8Bays :5pcs
Thickness:BaseBack panelTop panelFront panelSide panel ShelfPostRail
2mm1mm1mm1mm1mm0.8mm1.5mm2mm
Lock :Steering wheel with brake ,more safety
Post50x50mm square tube post of double plate with slots in 25mm increment
Bumper :Natural rubber of 30x16mm
Rail :Made of 25mm concrete steel with 0.8mm stainless steel sheet coating
Wheel :Iron die casting with anti-rust zinc coating
Loading  : 1000kg / Wheel
  Standard model of mobile filing shelving
TypeBay numbersSingle fixed Single movable  Double movable   Double Movable
Manual1SFP450-1SMP450-1DMP650-1DMP850-1
2SFP450-2SMP450-2DMP650-2DMP850-2
Mechanical1SFM450-1SMM450-1DMM650-1DMM850-1
2SFM450-2SMM450-2DMM650-2DMM850-2
3SFM450-3SMM450-3DMM650-3DMM850-3
4SFM450-4SMM450-4DMM650-4DMM850-4
5SFM450-5SMM450-5DMM650-5DMM850-5
6SFM450-6SMM450-6DMM650-6DMM850-6
7SFM450-7SMM450-7DMM650-7DMM850-7
8SFM450-8SMM450-8DMM650-8DMM850-8
Standard  Depth:  ( D )450mm450mm650mm850mm
Standard  Height:   ( H )                   2150mm
Standard  Width:  ( W )905*N (N=number of Bays)
Thanks for your concern!
To be a subsidiary of Simply International Industrial, Dongguan Chengmei Hardware Co., Ltd. Established in 2008, specialists in versatile Steel & Stainless Steel storage furniture which widely used in the office, home, pharmacy, food preparation and many other industries. Simply manufactures top quality storage systems using the high quality electrolytic galvanized steel & Stainless Steel and highly skilled professionals.

We have invested a lot on modern Machines, include: 300 meters long automatic power coating production line, "AMADA" Automatic punch machines, CNC punching machine

The material we are using is Electrolytic galvanized steel for all office furniture products, which ensures the products have much longer life-circle.

With modern machines and high quality raw material our products give a high-standard impression to customers. And have gained a good reputation among customers.

With our extensive range of Steel storage Furniture, Simply can manufacture as per your designing & requirements.

For more information about our storage furniture, and to request a free quotation email sales@simplyindustrial. Net or call us on 0086-769-22200111.
