High Density Storage Shelving
Price: |
US $ 223.59-226.59/Piece |
Min Order: |
10/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Prod Model: |
SII-MIPS022 |
Color: |
Putty, Light Grey, Beige, White |
Surface Treatment: |
Epoxy Powder Coating |
Quality Warranty: |
3 Years |
Delivery Time: |
2~3 Weeks |
Port: |
Shenzhen Port |
Material: |
Metal |
Open Type: |
Sliding |
Usage: |
Office |
Customized: |
Customized |
Product Description

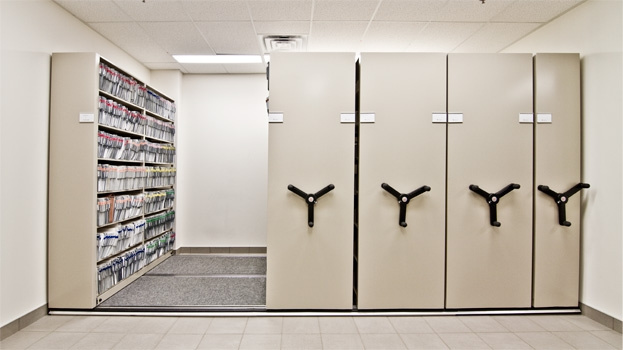

What is high density storage shelving?High Density storage Shelving is a shelving system which mounted on moving carriages. It is a perfect & high efficiency storage solution maximum uses of your limited floor space.
All archive shelving units can be locked & packed when access is not required, but when needed, an aisle can be created. All the rolling shelving units have dust proof device, make sure the whole units are dust free.

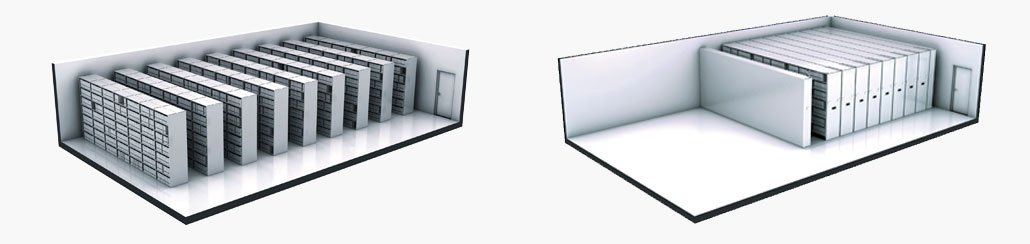

The benefits you can get by using mobile aisle shelving systems- Double your storage capacity
Mobile shelving makes the best use of the available space by using only a single aisle, nearly doubling the storage capacity of the archive. Mobile shelving can be moved individually or in multiples, where necessary. The system can be specified with extra-wide aisles, suitable for wheelchair users.- Speed access to and retrieval of information
By allowing you to store all your information in one space-efficient area, files and other media are accessible within a few feet of each other. Mobile shelving systems allow you to keep files close to those that need them and minimize off-site storage. Productivity increases as the amount of time required for access, filing and retrieval of your information is reduced.- Storage of your valuable collections
The storage of historical documents requires specific conditions for safe and long-term preservation. Ventilation ducts and filters ensure an optimum climate to protect the archive against dust and mould. In addition to climate control, Simply mobile shelving has a range of features to preserve a historical archive collection.Product features- Modular components for design freedom
- Heavy-duty quality for long life
- Mobile shelving is Effortless push-pull operation
- Units can be easily extended, altered or relocated to support your changing storage needs
- Each system is lockable with a central lock when packed together
- The built-in safety locks for mechanical type cabinets to safeguard users from accidentally trapped in aisles
- Low profile tracks are trolley and wheelchair friendly
- Available in single or tandem configurations
- Easy assembly and dismantle
- Custom design assistance

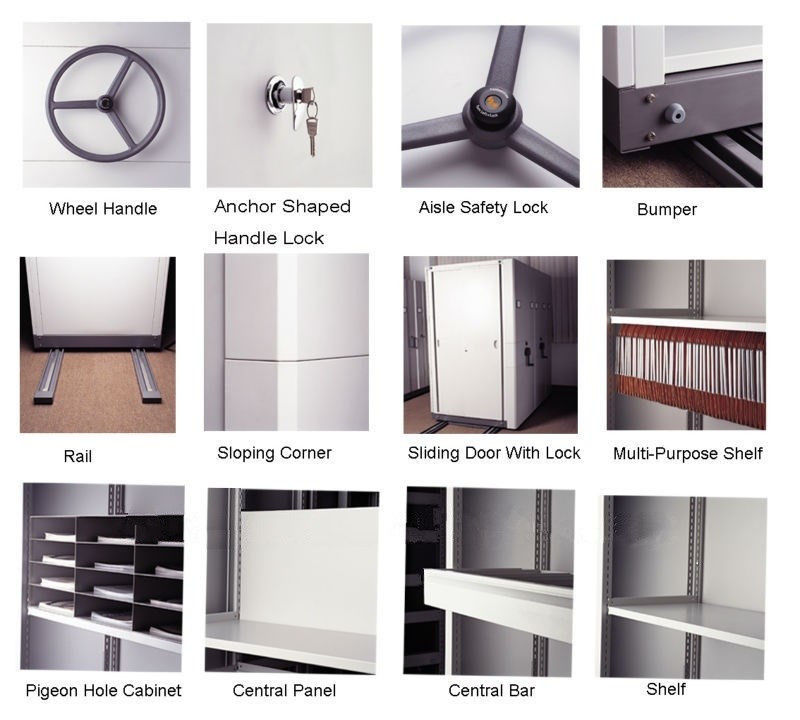

Main parts and Optional accessories: Multi-purpose shelf, cabinet, pull-out desk top, hanging rod, pull-out frame, pull-out drawer, divider, , disk drawer, platform, sliding door
Specification: Parameter Specification : |
Types: | Manual | Mechanical Wheel | Mechanical Handle |
Material : | Electrolytic Galvanized Steel |
Surface treatment: | Epoxy Powder Coating |
Dimension : | Height : | 2150mm |
Width : | (905*N)+165mm (N=number of Bays) |
Depth : | Fixed Unit : 450mm |
Movable Unit : 450/650/850mm |
Shelf Size : | W845xD395xH38mm(for 450/850); | W845xD295xH38mm(for 650); |
No. of Shelf | Single Fixed /Single Movable =4n |
Double Movable =8n |
Aisle Size : | 600-1000mm |
Loading per Shelf: | Reinforced Shelf : | D295mm/85kg ; D395mm/100kg |
Multi-purpose Shelf : | D395mm/70kg |
No. of Rails : | 1-3Bays : | 2pcs | 4-5Bays : | 3pcs |
6-7Bays : | 4pcs | 8Bays : | 5pcs |
Thickness: | Base | Back panel | Top panel | Front panel | Side panel | Shelf | Post | Rail |
2mm | 1mm | 1mm | 1mm | 1mm | 0.8mm | 1.5mm | 2mm |
Lock : | Steering wheel with brake ,more safety |
Post | 50x50mm square tube post of double plate with slots in 25mm increment |
Bumper : | Natural rubber of 30x16mm |
Rail : | Made of 25mm concrete steel with 0.8mm stainless steel sheet coating |
Wheel : | Iron die casting with anti-rust zinc coating |
Loading : 1000kg / Wheel |
Standard model of mobile filing shelving |
Type | Bay numbers | Single fixed | Single movable | Double movable | Double Movable |
Manual | 1 | SFP450-1 | SMP450-1 | DMP650-1 | DMP850-1 |
2 | SFP450-2 | SMP450-2 | DMP650-2 | DMP850-2 |
Mechanical | 1 | SFM450-1 | SMM450-1 | DMM650-1 | DMM850-1 |
2 | SFM450-2 | SMM450-2 | DMM650-2 | DMM850-2 |
3 | SFM450-3 | SMM450-3 | DMM650-3 | DMM850-3 |
4 | SFM450-4 | SMM450-4 | DMM650-4 | DMM850-4 |
5 | SFM450-5 | SMM450-5 | DMM650-5 | DMM850-5 |
6 | SFM450-6 | SMM450-6 | DMM650-6 | DMM850-6 |
7 | SFM450-7 | SMM450-7 | DMM650-7 | DMM850-7 |
8 | SFM450-8 | SMM450-8 | DMM650-8 | DMM850-8 |
Standard Depth: ( D ) | 450mm | 450mm | 650mm | 850mm |
Standard Height: ( H ) | 2150mm |
Standard Width: ( W ) | 905*N (N=number of Bays) |
Thanks for your concern! |
To be a subsidiary of Simply International Industrial, Dongguan Chengmei Hardware Co., Ltd. Established in 2008, specialists in versatile Steel & Stainless Steel storage furniture which widely used in the office, home, pharmacy, food preparation and many other industries. Simply manufactures top quality storage systems using the high quality electrolytic galvanized steel & Stainless Steel and highly skilled professionals.
We have invested a lot on modern Machines, include: 300 meters long automatic power coating production line, "AMADA" Automatic punch machines, CNC punching machine
The material we are using is Electrolytic galvanized steel for all office furniture products, which ensures the products have much longer life-circle.
With modern machines and high quality raw material our products give a high-standard impression to customers. And have gained a good reputation among customers.
With our extensive range of Steel storage Furniture, Simply can manufacture as per your designing & requirements.
For more information about our storage furniture, and to request a free quotation email sales@simplyindustrial. Net or call us on 0086-769-22200111.
