Price: | US $ 60-88/Piece |
---|---|
Min Order: | 10/Piece |
Pay Type: | L/C,T/T,Western Union |
Prod Model: | XBH-G04 |
---|---|
Weight Capacity: | 300-500kg Per Layer |
Usage: | Warehouse, Industrial, Tool Rack,Supermarket Rack |
Layers: | 1~10 |
Surface: | Powder Coating |
Size: | Customized |
Thickness Of Beam: | 1.1mm |
Thickness Of Post: | 1.2mm |
Thickness Of Layer Board: | 0.5mm |
Surface Treatment: | Powder Coated |
Port Of Loading: | Shanghai |
Material: | Metal |
Type: | L Stand |
Style: | Floor-type |

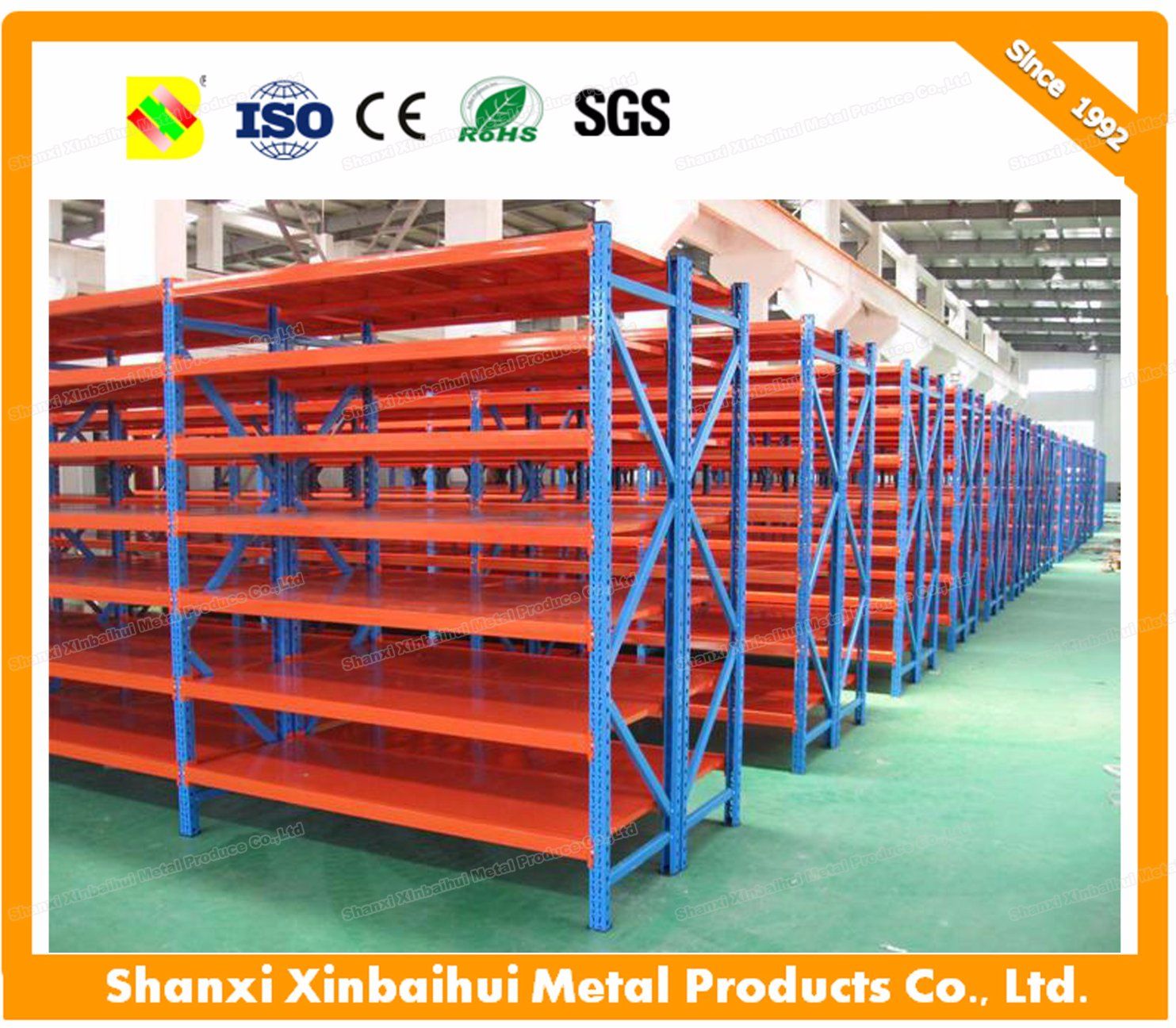

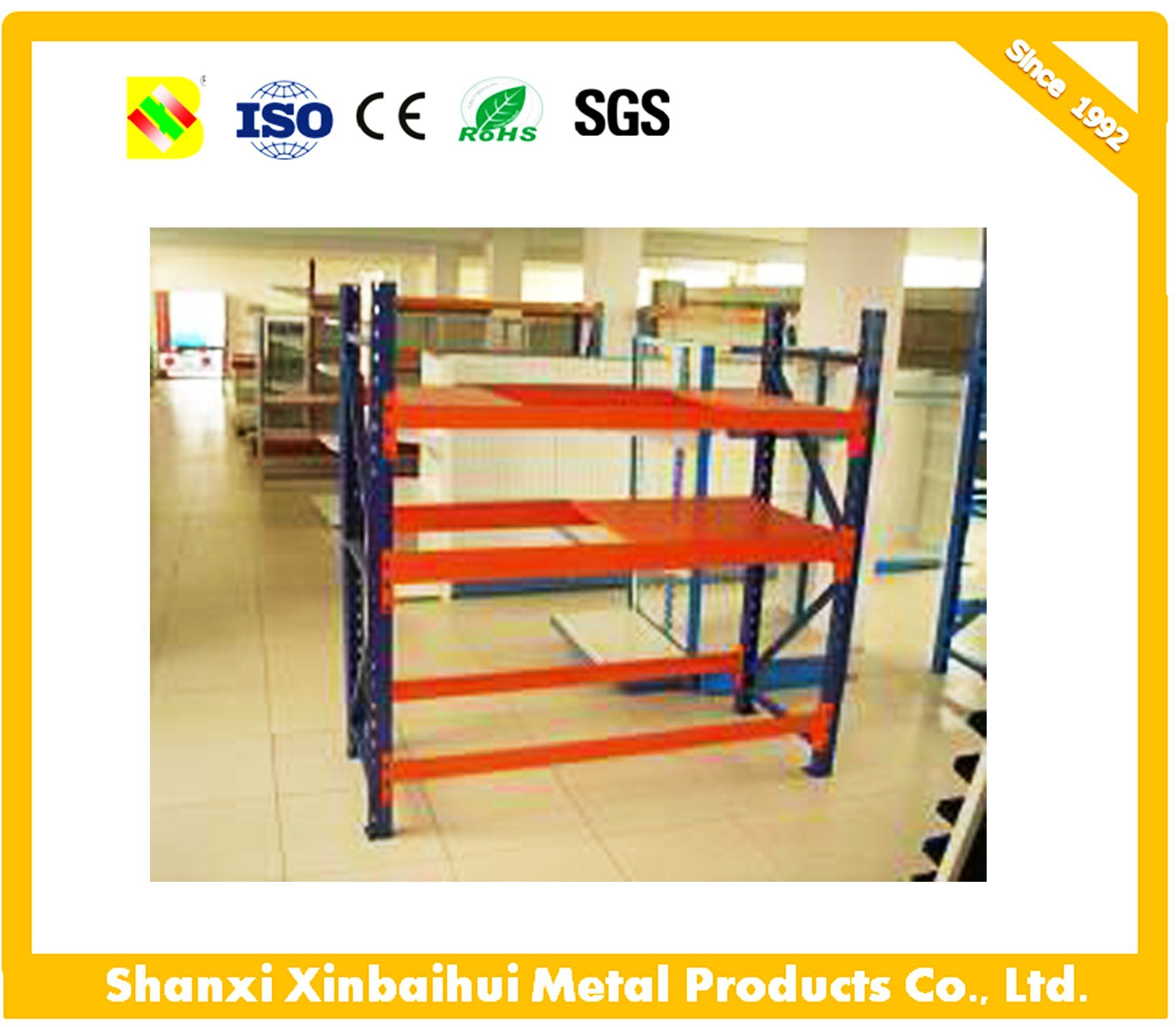

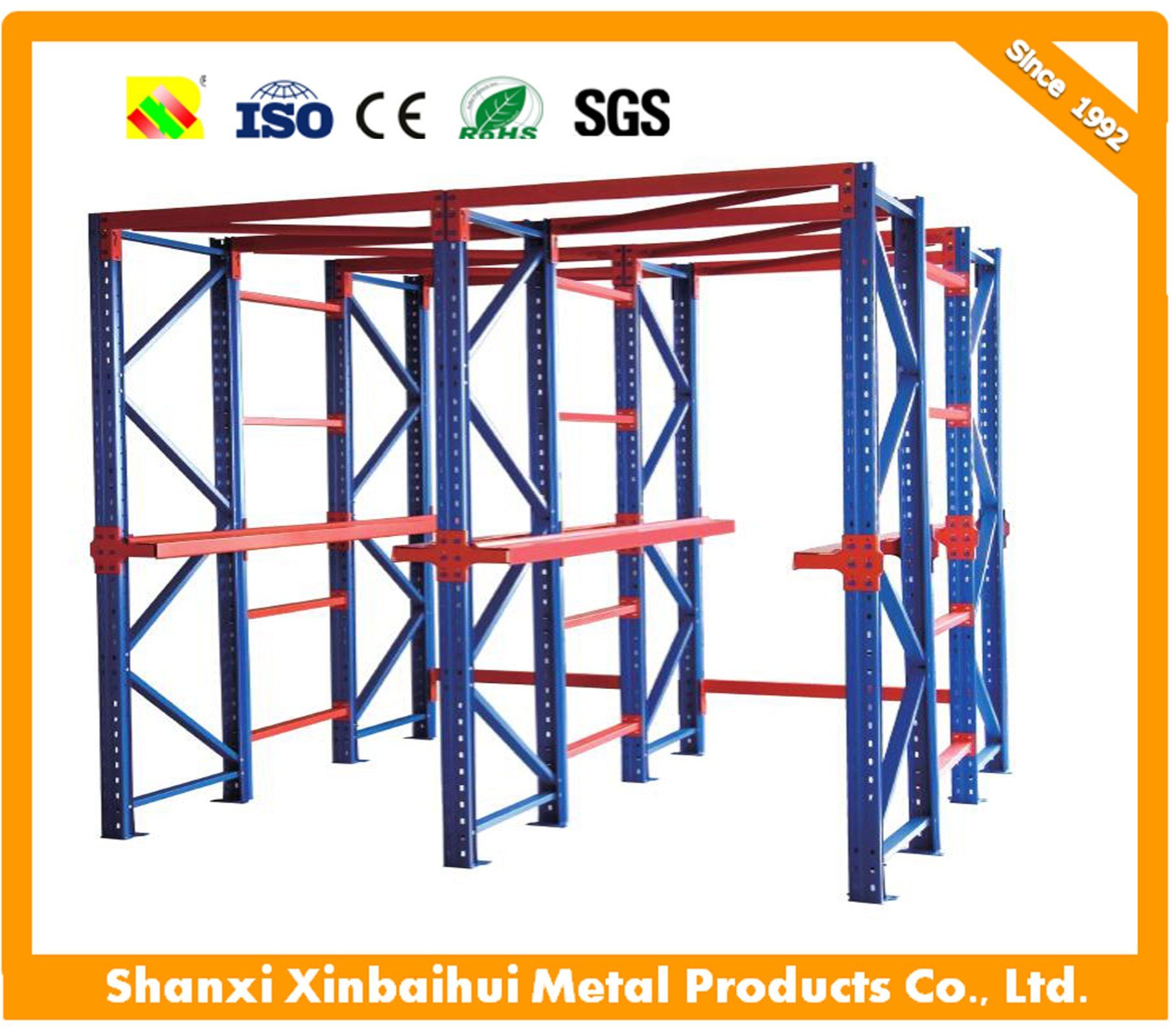

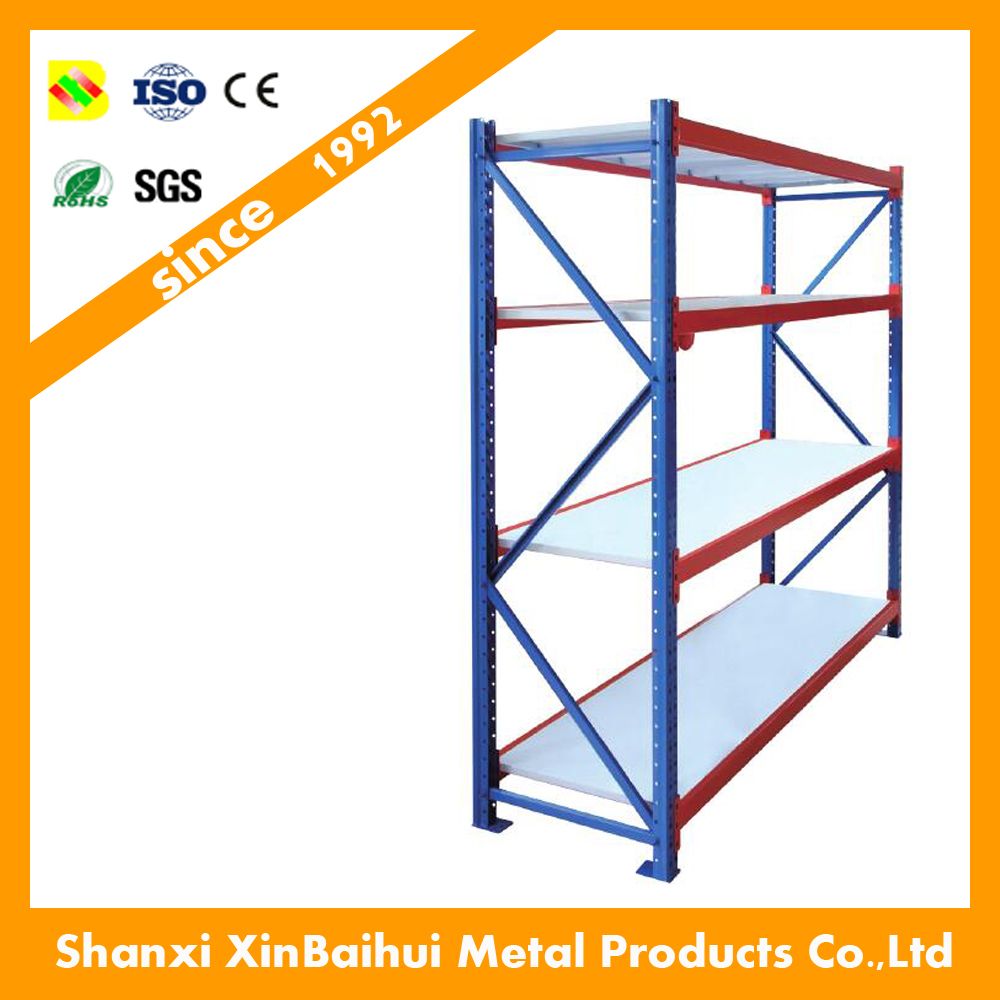

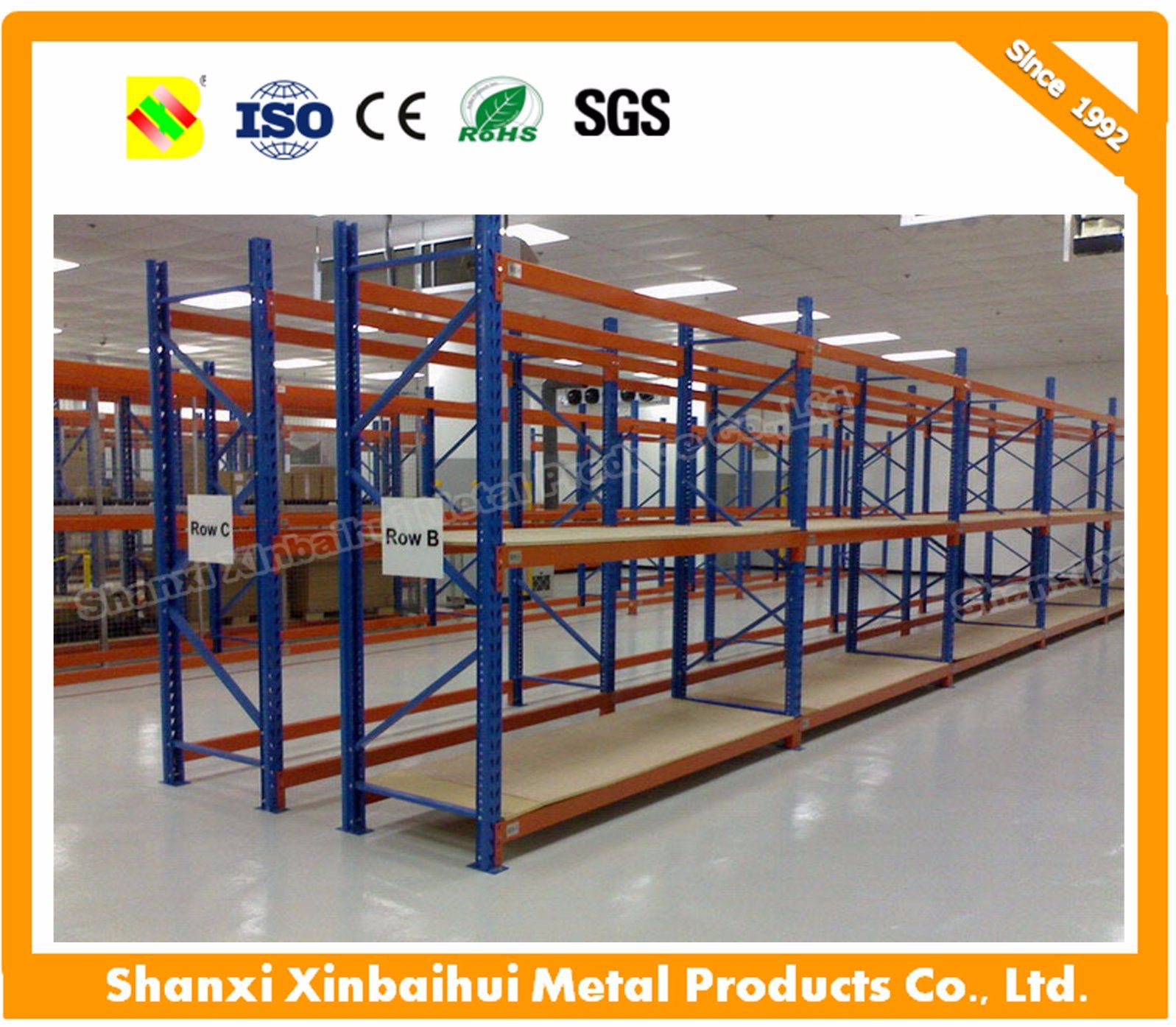

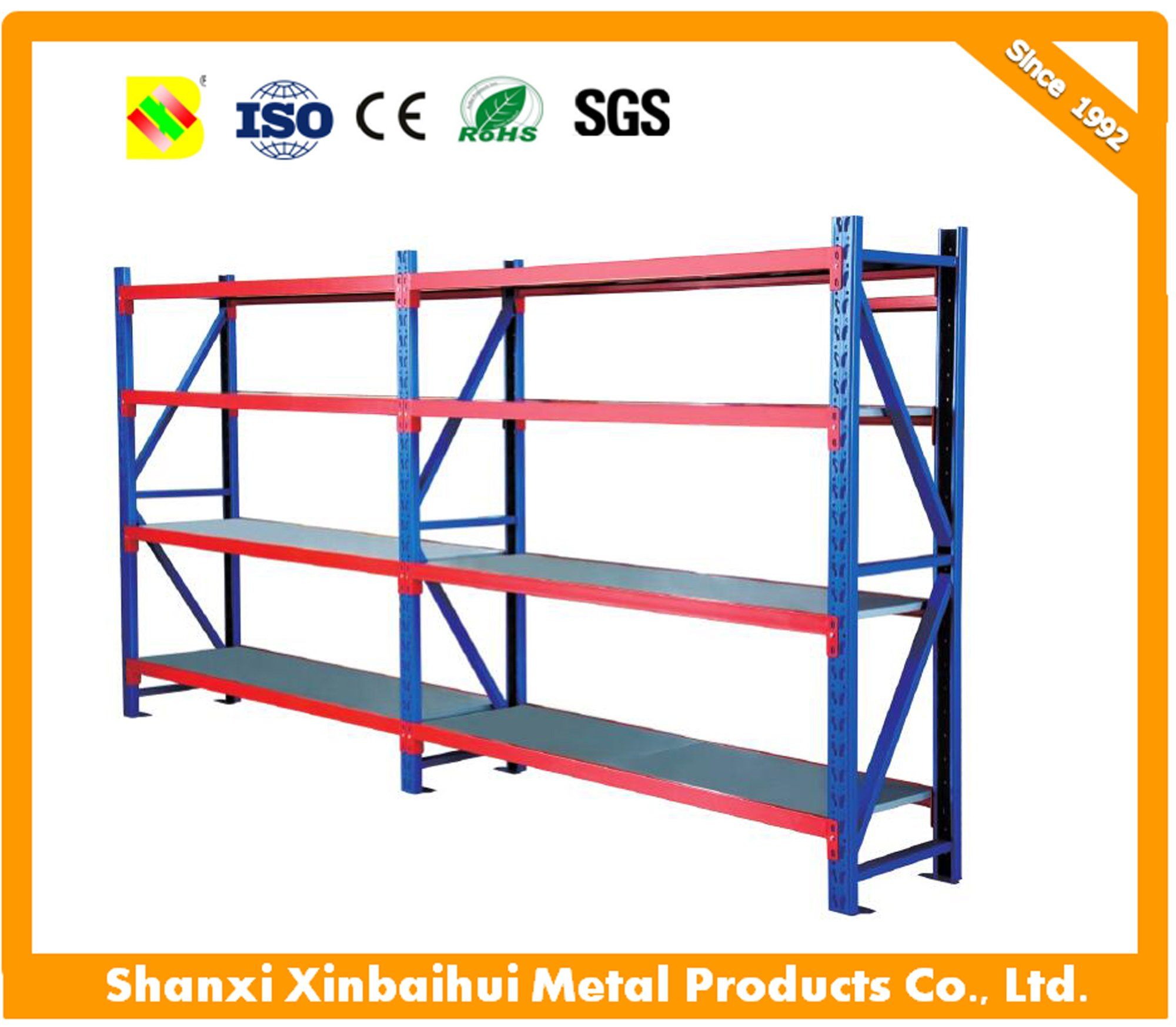

High Load Capacity and Detachable Warehouse Rack (XBH-G04)
Shelving rack has a wonderful looks and scientific structures. The upright is made of the cold rolled steel sheet, which is bent and rolled. And it has the double line of holes, and there is a 50mm distance between two holes. The holes are designed to hang the beams. There are row bracing and diagonal racing between the upright frames. And the beam is "P" shape beam, and the height is matched with the shelf panels. The shelf panels are made of the cold roll steel according to the requests. All the accessories of the rack are processed by polishing, acid cleaning, phosphating, automatic static sprayed, baking and so on. After all these processing, it is installed to a whole set of the rack. It is convenient to disassemble and assemble and it is widely used in the supermarket, warehouse and other public fields.

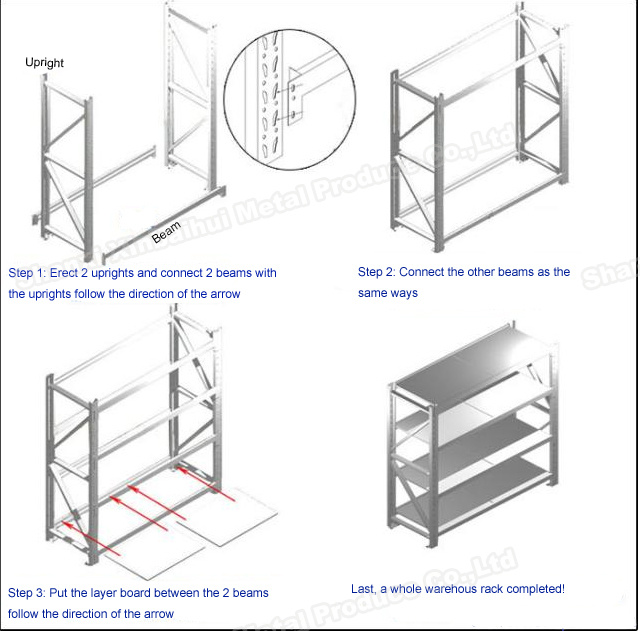

Installation Instruction
For the upright, we have the standard size of: 60*55*1.2mm, 60*55*1.5mm and 80*60*1.8mm and 80*60*2.0mm. Special requests of the upright style and size can be designed according to the customer's requests.
1. High grade Q235B Steel
2. Loading Capacity: 200-500kg/ per layer
Product Details:
1. Item | medium duty rack |
2. Regular Size/Unit | L1500/1600/1700/1800/2000/2200mm*D400~800mm*H1500~3500mm |
3. Panel | galvanized, painting, wire, wood |
4. Standard Color | blue, orange, green, yellow, grey |
5. MOQ | 10 units |
6. Standard Packings | metal strip, film, paper board and master carton |
7. Certification | ISO9001: 2000 |
8. Customized size accepted, Special color available |
If you are interested in any products of ours, welcome to contact me at any time! We will try our best to help you and give you a satisfied service!
