Metal Warehouse Shelving Storage Rack Pallet Racks
| Price: | Negotiable/Piece |
|---|---|
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | XBH-G01 |
|---|---|
| Weight Capacity: | 300-500kg Per Layer |
| Usage: | Warehouse, Industrial, Tool Rack,Supermarket Rack |
| Layers: | 3-4 |
| Surface Treatment: | Powder Coating |
| Size: | Customized |
| MOQ: | 10 PCS |
| Certification: | ISO9001:2000 Ce |
| Warranty: | 5 Years |
| Load Capacity: | 500kg |
| Colour: | Customerized |
| Material: | Metal |
| Type: | L Stand |
| Style: | Magnetic Suspension |
Product Description

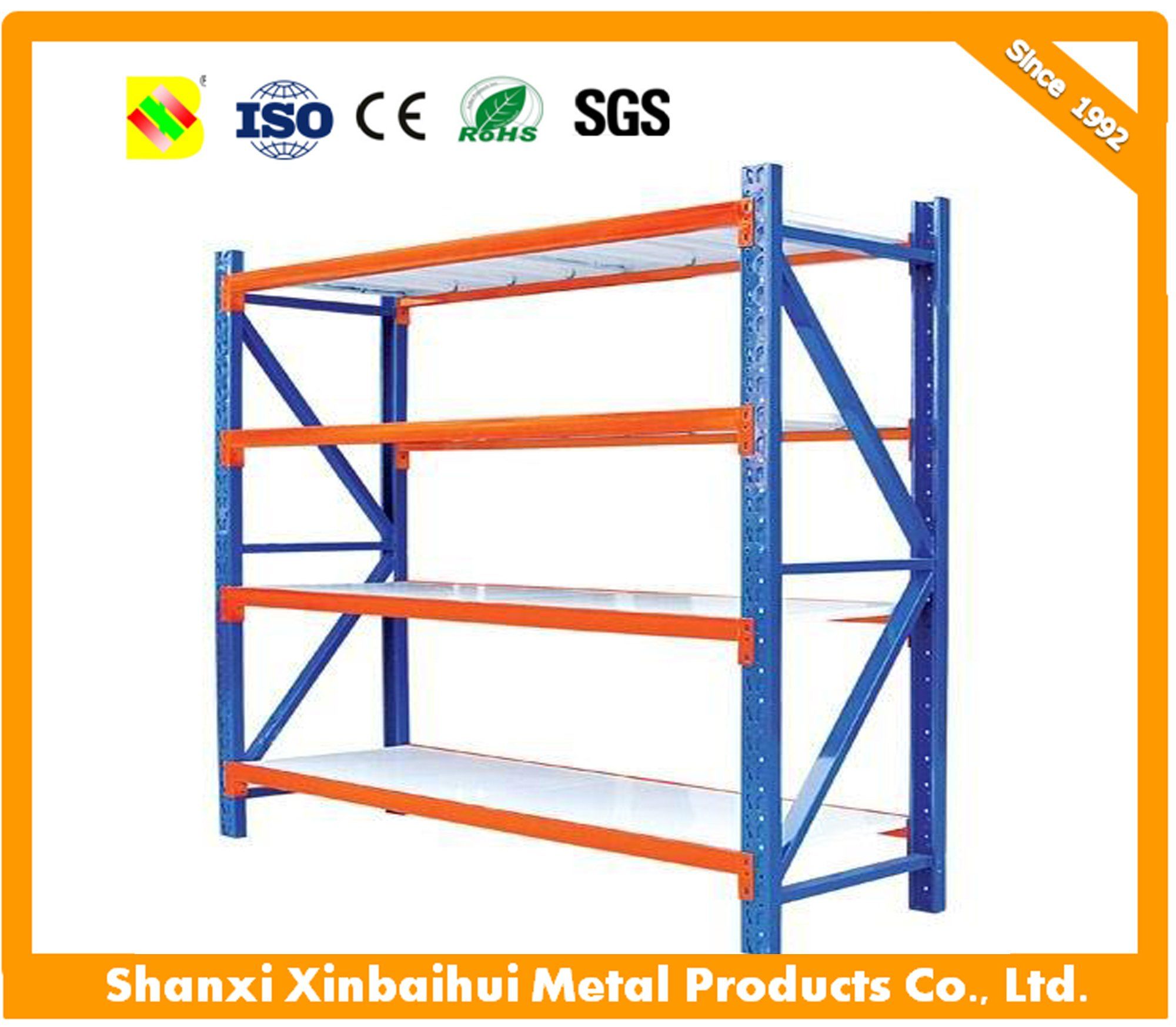

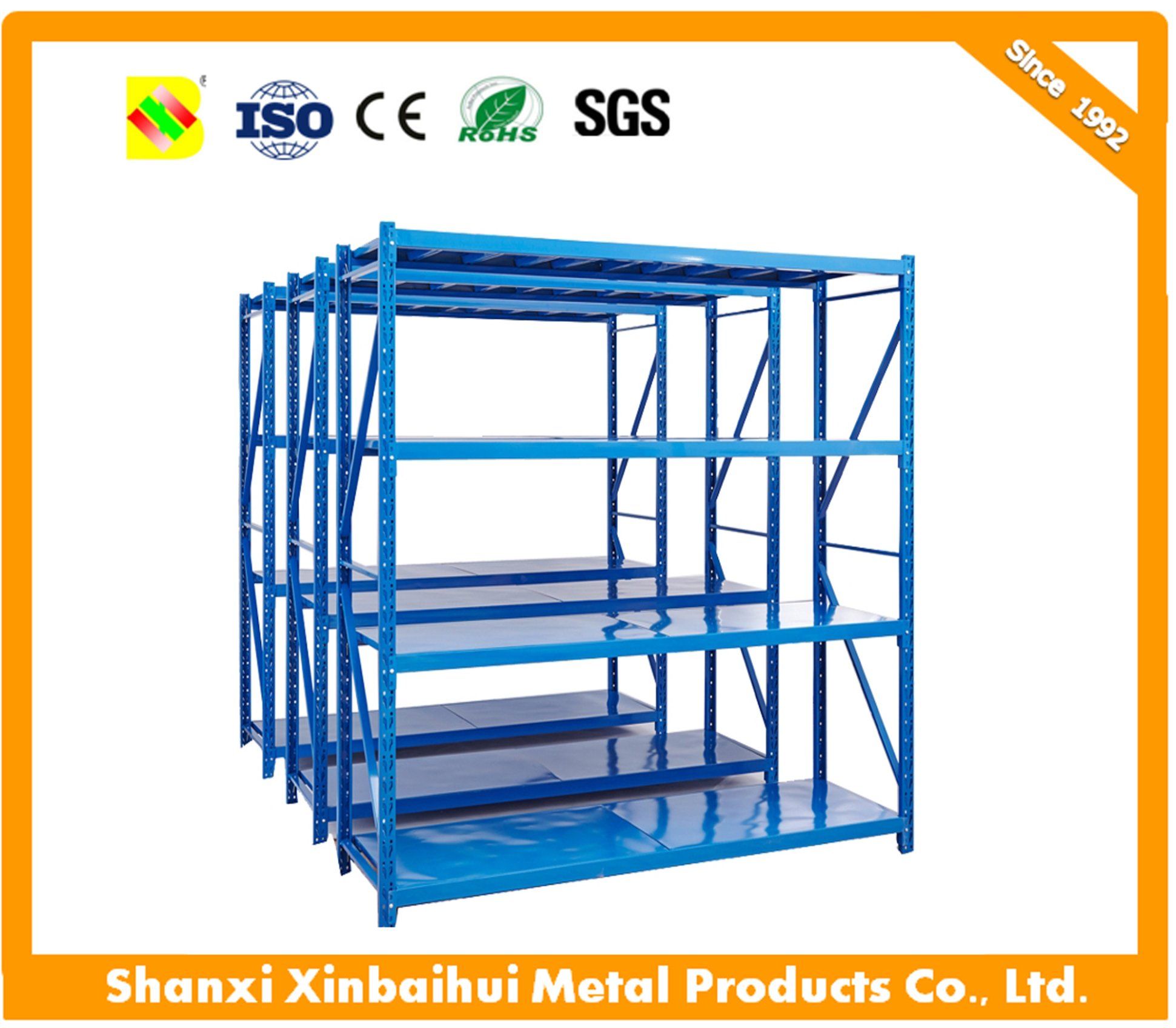

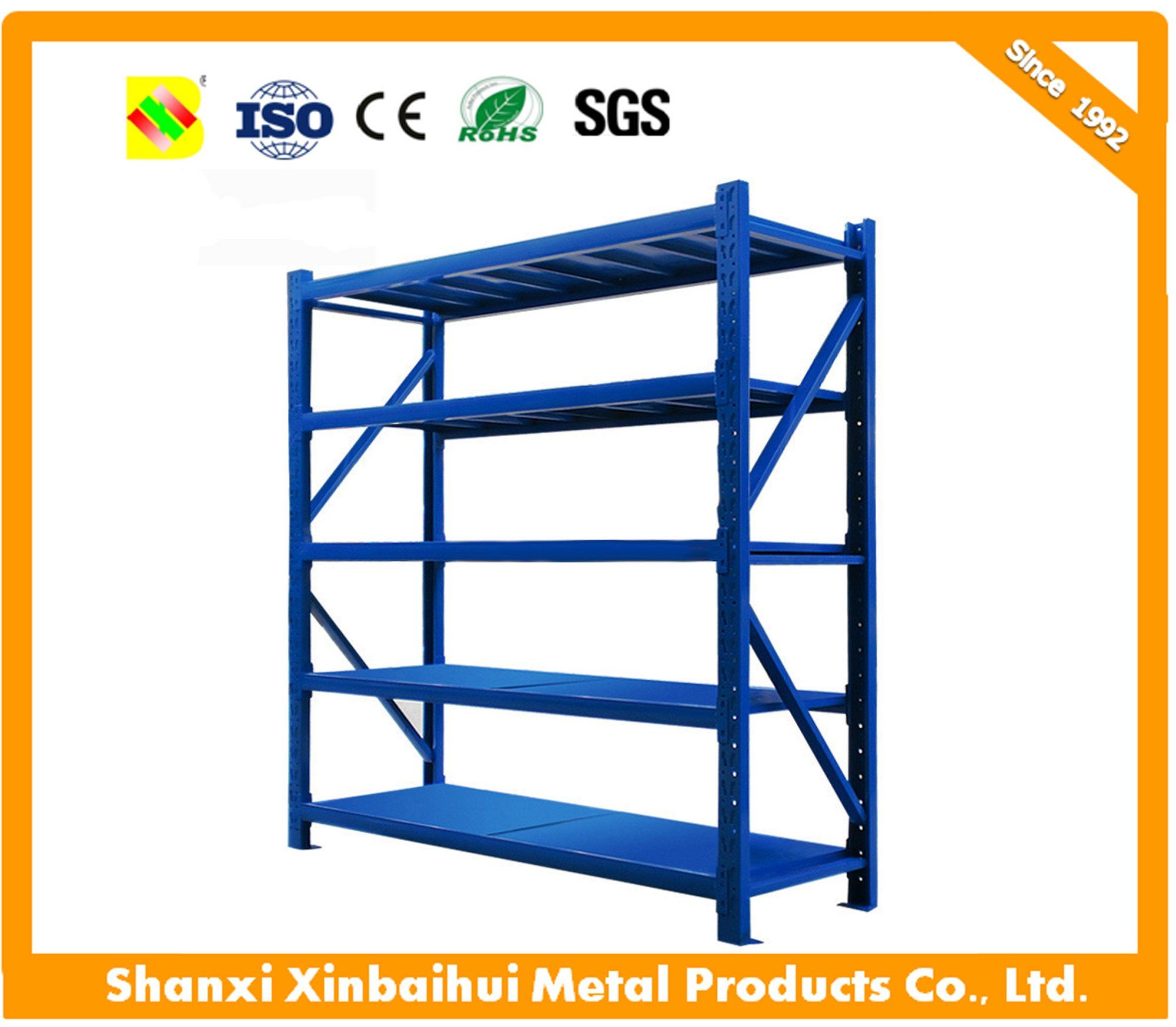

Metal Warehouse Shelving Storage Rack Pallet Racks (XBH-G01)

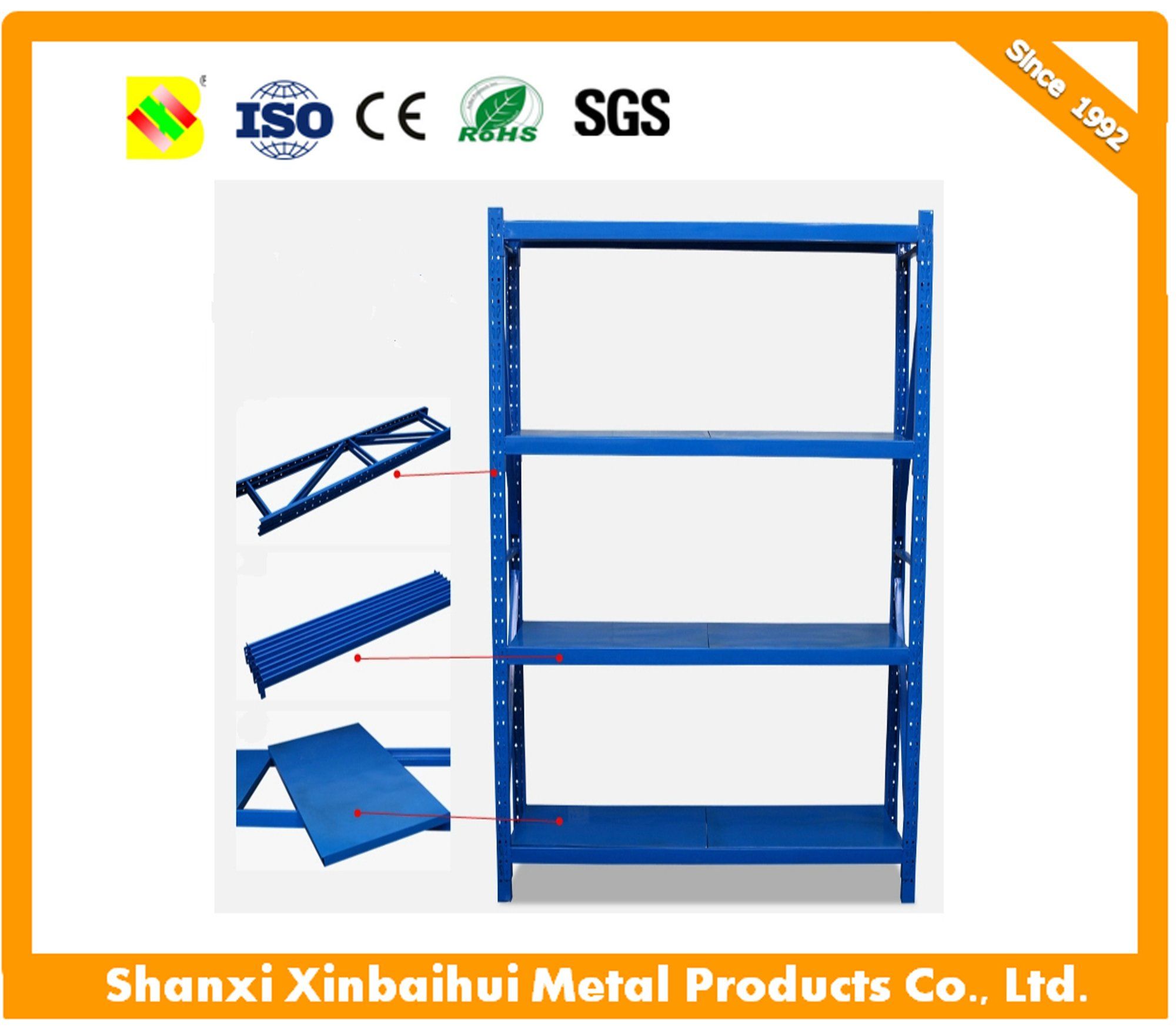

Shelving rack has a wonderful looks and scientific structures. The upright is made of the cold rolled steel sheet, which is bent and rolled. And it has the double line of holes, and there is a 50mm distance between two holes. The holes are designed to hang the beams. There are row bracing and diagonal racing between the upright frames. And the beam is "P" shape beam, and the height is matched with the shelf panels. The shelf panels are made of the cold roll steel according to the requests. All the accessories of the rack are processed by polishing, acid cleaning, phosphating, automatic static sprayed, baking and so on. After all these processing, it is installed to a whole set of the rack. It is convenient to disassemble and assemble and it is widely used in the supermarket, warehouse and other public fields.
For the upright, we have the standard size of: 60*55*1.2mm, 60*55*1.5mm and 80*60*1.8mm and 80*60*2.0mm. Special requests of the upright style and size can be designed according to the customer's requests.
1. High grade Q235B Steel
2. Loading Capacity: 200-500kg/ per layer
Product Details:
| Model | Light Warehouse Rack | Medium Warehouse Rack | Heavy Warehouse Rack |
| Material | Cold Rolled Steel | ||
| Dimension | L1000~1200*W400*H1800/2000/2500mm | L1800~2500*W600*H2000/2500mm | L2500*W1000*H3000mm |
| Size of Upright (With diagnal bracing) | 30*50*1.2mm | 40*80*1.2mm | 70*90*1.8/2.5mm |
| Thickness of Beam | 30*50*1.0mm | 40*60*1.1mm | 50*80*1.5/2.0mm |
| Thickness of Layer Board | 0.5-1.0mm | ||
| Levels | 4 levels and customerized | ||
| Load Capacity | 300~1000kg | ||
| Color | Blue, Orange and customerized | ||
| Why choose us | 1.We supply high quality products with reasonable price. 2.We are one of the biggest and earliest manufacturer in China, with more than 20 years professional manufacturer experience(Started in 1992) 3.Advanced Production machine. We have 2 Gema powder coating systems comes from Switzerland. 4.Strict quality control system. We have got ISO9001:2000 and CE certified 5.We have professional sales team. 6.Experienced exporting for all over the world. 7.We supply one-step solution service. | ||
