Home LED Light Products High Quality Cabinet Rack Mount

High Quality Cabinet Rack Mount

High Quality Cabinet Rack Mount
Price: US $ 21-54/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: LE-WS1

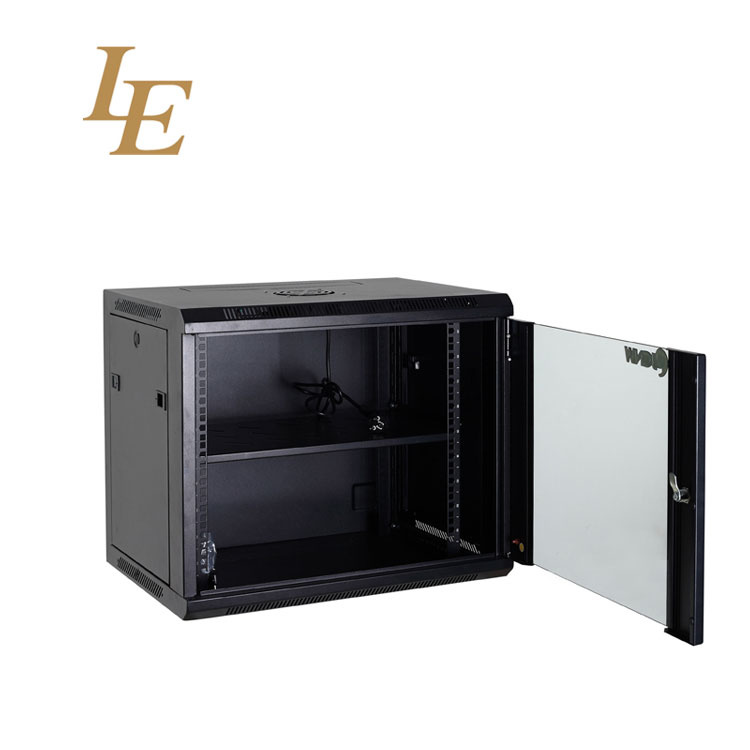

Product Name: High Quality Cabinet Rack Mount
Material Thickness: Thickness: 1.2mm
Tempered Glass: Thickness:5mm
Loading Capacity: Static Loading: 60kg(on The Adjustable Feet)
Degree Of Protection: IP20
Surface Finish: Degreasing,Pickling,Phosphating,Powder Coated
Height: 4u-27u
Depth: 600mm
Width: 450mm,600mm
Color: Ral9004; Ral9005; Ral7035
Type: Network Cabinet
Usage: Network Integration System
Installation: Wall-Mounted Cabinet
Certification: SGS,TUV,BV
Condition: New
Fan Number: 1 to 2 PCS Fans
Capacity: 4u-27u

Product Description

General Description:
1. Frame:Welded frame, unassembled structure with precise craftsmanship;
2. Single Section,compatiblewith 19"standard equipment;
3. Front Door: Tempered glass front door with over 180 turning degree;
4. Side Panel: Removable side panel, easy to install and maintain (lock optional);
5. Cable Entry on the top cover and bottom panel with knock-out plate;
6. L-Shaped Mounting Profile, easy to adjustable on the mounting rail;
7. Fan cutout on the top cover ,easy to install fan;
8. Installing back panel,easy to fix on the wall;
9. Various accessories for optional;

StandardANS/EIA RS-310-D,IEC297-2,DIN41491,PART1,DIN41491,PART7,ETSI Standard
MaterialSPCC quality cold rolled steel
Thickness: 1.2mm
Tempered glass Thickness:5mm
Loading CapacityStatic loading: 60kg
Degree of protectionIP20
Surface finishDegreasing,Pickling,Phosphating,Powder Coated
Product specification4U-27U
Width600mm
Depth450mm,600mm
ColorRal9004; Ral9005; Ral7035


Ningbo Latitude Communication Equipment Co., Ltd was established in 2002, is a professional manufacturer specialized in server rack, network rack, outdoor cabinet, wall cabinet, all kind of power distribution Unit(PDU) and other communication products. Our factory is located at the south bank of Hangzhou Bay Bridge, nearby the Ningbo port(one of most big port in the world), which will be easy to transport our products to the whole world.

For over years, we are always devoting ourselves to research, develop, design and manufacture the products. Striving to maintained a steady growth in the extremely competitive market, we have the world's advanced equipment including TruLaser cutting CNCmachine, TruPunch Punching CNC machine, AMADA Punching and Bending CNC equipment, WAGNER spraying paining line and other equipment. We use ERP order management system, Also have the strict quality control system and Advanced production technology, in order to assure the stable and high quality of products. We got ISO9001: 2008, BV, SGS, TUV, CE, RoHS certification.

We can supply customized service and OEM, ODM products, thanks for choosing our products and believe our cooperation can bring you benefit and value.
