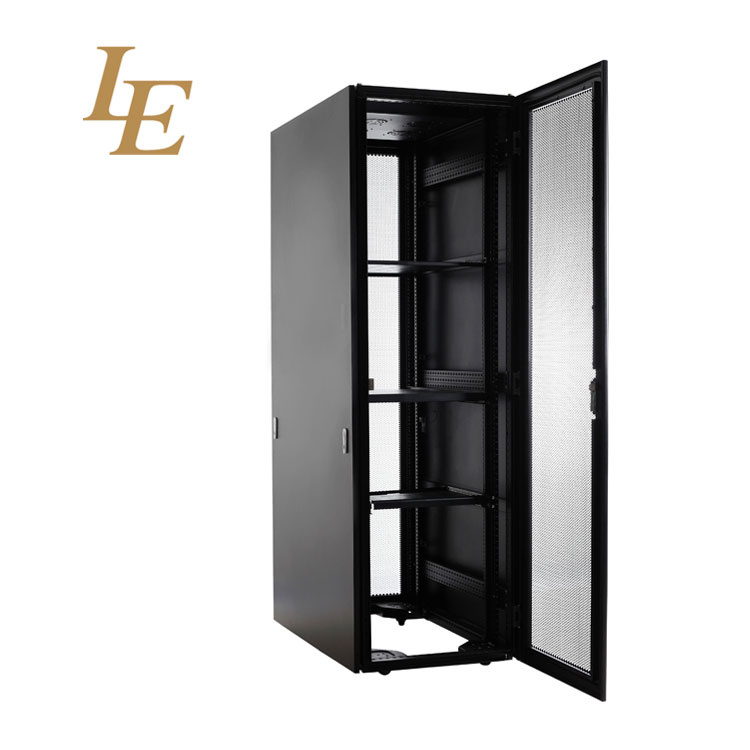

New Floor Standing Standard Computer Rack Dimensions

New Floor Standing Standard Computer Rack Dimensions
Price: US $ 191-290/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: LE-SF
Product Name: 22u Vertical Server Rack 19
Material Thickness: Mounting Profile:2.0mm,Others:1.2mm
Tempered Glass: Thickness:5mm
Loading Capacity: Static Loading: 800kg(on The Adjustable Feet)
Degree Of Protection: IP20
Surface Finish: Degreasing,Pickling,Phosphating,Powder Coated
Height: 18u-47u
Depth: 600mm,800mm,900mm,1000mm,1200mm
Width: 600mm,800mm
Color: Ral9004; Ral9005; Ral7035
Type: Standard Cabinet
Usage: Network Integration System
Installation: Vertical
Certification: SGS,TUV,BV
Condition: New
Fan Number: 2 to 6 PCS Fans
Capacity: 18u-47u

Product Description

General Description:
1.Exquisite design with precise craftsmanship;
2.Nine-folded profiled,welded frame with high intensity;
3.High-density perforated front door(single open) with over 180 turning degree;
4.High-density perforated front door(dual open) enable equipment ventilation and reliable operation with ventilation rate above 50%;
5.Removable side panels,easy to install and maintain with moon shaped lock;
6.Connected by four-corner to ensure the strength and stability;
7.Adjustable feet and castors are available;
8.Adjustable cable entry on the top ,bottom with cable entrance;
9.Metal cable ring on the mounting profile for cable management;
10.Supplied as welded structure,also supplied as a flat packing;
11.Various optional Accessories for common using;

StandardANS/EIA RS-310-D,IEC297-2,DIN41491,PART1,DIN41491,PART7,ETSI Standard
MaterialSPCC quality cold rolled steel
Frame: Nine-folded profiled (SPCC)
Thickness:mounting Profile:2.0mm,Others:1.2mm
Loading CapacityStatic loading: 1000kg(on the adjustable feet)
Degree of protectionIP20
Surface finishDegreasing,Pickling,Phosphating,Powder Coated
Capacity18U-47U
Width600mm,800mm
Depth600mm,800mm,900mm,1000mm,1200mm
ColorRal9004; Ral9005; Ral7035
Ningbo Latitude Communication Equipment Co., Ltd was established in 2002, is a professional manufacturer specialized in server rack, network rack, outdoor cabinet, wall cabinet, all kind of power distribution Unit(PDU) and other communication products. Our factory is located at the south bank of Hangzhou Bay Bridge, nearby the Ningbo port(one of most big port in the world), which will be easy to transport our products to the whole world.

For over years, we are always devoting ourselves to research, develop, design and manufacture the products. Striving to maintained a steady growth in the extremely competitive market, we have the world's advanced equipment including TruLaser cutting CNCmachine, TruPunch Punching CNC machine, AMADA Punching and Bending CNC equipment, WAGNER spraying paining line and other equipment. We use ERP order management system, Also have the strict quality control system and Advanced production technology, in order to assure the stable and high quality of products. We got ISO9001: 2008, BV, SGS, TUV, CE, RoHS certification.

We can supply customized service and OEM, ODM products, thanks for choosing our products and believe our cooperation can bring you benefit and value.
