Home LED Light Products Large Printing Size Ink Cup PVC Pie Pad Printing Machine

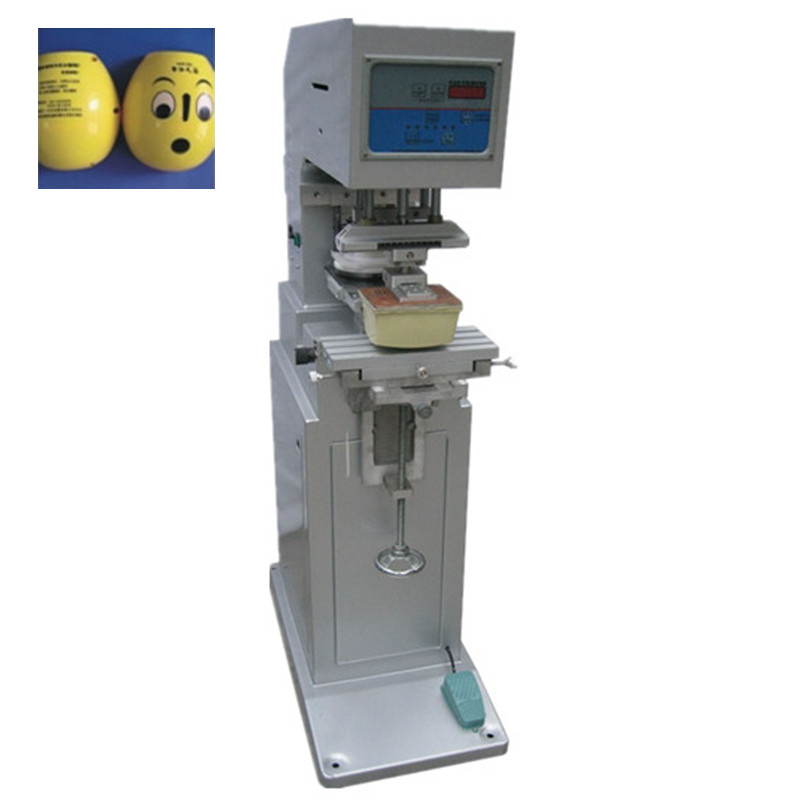

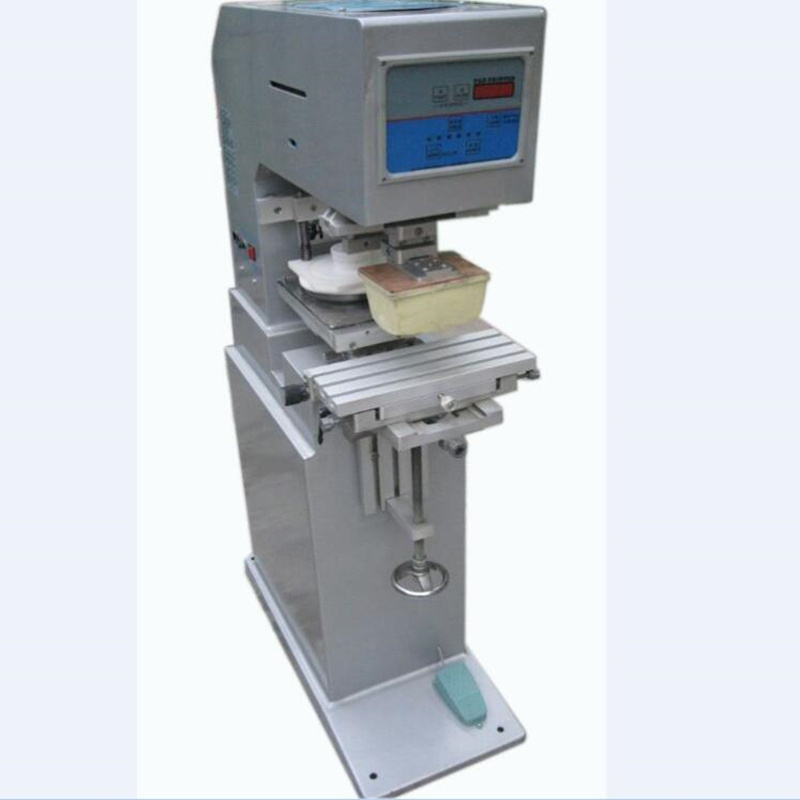

Large Printing Size Ink Cup PVC Pie Pad Printing Machine
| Price: | US $ 2370/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | TM-1525 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Plate Area: | 150*250mm |
| Max Printing Inner Diameter: | 126mm |
| Max Printing Outer Diameter: | 136mm |
| Max Printing Area: | 100*100mm |
| Max Printing Speed: | 1500PCS/Hr |
| Air Consumption: | 91litre/Min(5bar) |
| Dimensions: | 700X360X1250mm(Lxwxh) |
| Weight: | 100kg |
| Transmission Type: | Single-Colour Pad Printer |
| Speed（pcs/hr）: | 1800 |
| Steel Plate Size: | 150*250mm |
Product Description
Product DescriptionTM-C1-1525 1 Color Sealed Cup Pad Printer video
http://v.youku.com/v_show/id_XMTQxNjkyNDcxNg==.html?from=s1.8-1-1.2#paction
Technical parameters
| Plate area | 150*250mm |
| Cup inner diameter | 126mm |
| Cup outer diameter | 136mm |
| Max printing area | 120*120mm |
| Max printing speed | 1500pcs/hr |
| Air consumption | 91litre/min(5bar) |
| Power | 110/220V 60/50Hz 50W |
| Dimensions | 700X360X1250mm(LXWXH) |
| Weight | 100kg |
Features
1, With sealed cup to protect environment, VOC volatilization reduced 86% and save ink over 25%.
2, With coin aluminum structure ensure more stabilization and long life.
3, Independent cylinder to drive sealed cup ensure removing ink completely. Make min Pressure to remove ink and prolong the life of sealed cup and steel plate;
4, Both thick steel plates and thin steel plates installed, Choose according to customer requirements.
5, Can print almost small size objects. So sold very nice in the world.
6, Completely printing solution including ink and thinner , fixtures, steel plates, rubber pads provided when you send us samples.
Application
Widely used in the industry field of cosmetics case, electron parts, toys, plastics production, housewares, gifts, decorations, cloth, etc.
